Root Rakes 1858 mm (74 in)

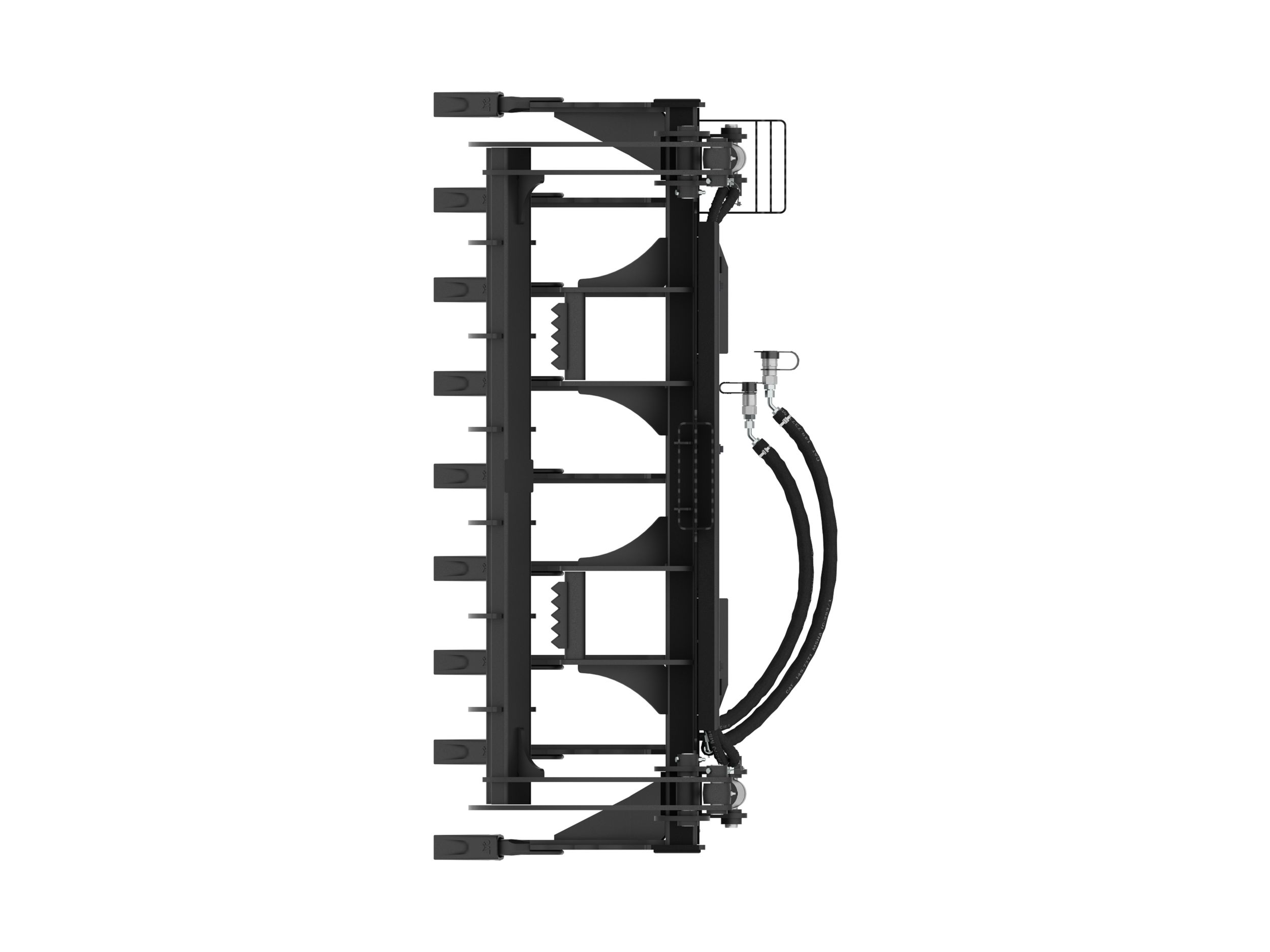

Name: 1858 mm (74 in) Root Rake
Brand: Cat

Request A Price Shop Now

Key Specs

1858 mm (74 in)
Change model

Overview

For root removal, stockpiling of tree debris, and soil preparation.

Displaying 1-6 of 8

Serrations on the grapple and the tines help to ensure retention of larger objects and debris.

Heavy duty serrated push bars can be used to tip or push debris.

Hose sleeves and guarding help to protect the hoses from damage.

Allows the rake to be used to scarify in a reverse direction. Also provides for a stable base when the tool is being stored.

Robust grapple tips are hardened to be more durable and allow for better performance.

Large grapple opening allows the ability to secure a wide range of debris.

Serrations on the grapple and the tines help to ensure retention of larger objects and debris.

Heavy duty serrated push bars can be used to tip or push debris.

Hose sleeves and guarding help to protect the hoses from damage.

Allows the rake to be used to scarify in a reverse direction. Also provides for a stable base when the tool is being stored.

Robust grapple tips are hardened to be more durable and allow for better performance.

Large grapple opening allows the ability to secure a wide range of debris.

Replaceable J200 style teeth help to prolong the life of the tool and provide better performance.

Serrated steps provide the operator with a safer ingress and egress from the machine.

Width	74 in 1858 mm
Weight	996.5 lb 452 kg
Overall Height	36.2 in 920 mm
Overall Length	33.6 in 853 mm
Tine Spacing	8.3 in 212 mm
Tine Thickness	0.5 in 12 mm
Number of Tines	9 9
Interface Type	Skid Steer Coupler Skid Steer Coupler
Top Clamp Width	63.7 in 1618 mm
Required Hydraulics	Standard Flow w/o Electrical Standard Flow w/o Electrical
Maximum Clamp Opening	51.1 in 1297 mm
Minimum Clamp Opening	13.2 in 335 mm
