Designed to easily handle a wide array of bulky, irregularly shaped objects encountered in demolition, industrial, construction, recycling, storm debris clean-up, landscaping and other aggressive applications.
Features At A Glance
Displaying 1-6 of 9
Application
Cat® Industrial Grapple Rakes are designed to handle a wide array of bulky, irregularly shaped objects encountered in demolition, industrial, construction, recycling, storm debris cleanup, land clearing and other aggressive applications.
Strong Grapple Design
Heavy-duty industrial grapple rake is designed for superior durability, long structural life, and incorporates durable steel rake tines, and dual full-width torque tubes with an additional front torque tube for tine reinforcement.
Open Bottom Design
Open bottom design allows unwanted material to filter through the bottom of the work tool making it ideal for storm debris clean-up and land clearing applications.
Wide Jaw Opening
Wide jaw opening for handling large, bulky material such as logs, stumps, rocks and other landscape debris.
Robust Grapple Assemblies
Robust grapple assemblies incorporate thick, high strength steel to resist bending and increase durability.
Excellent Clamping Force
Excellent clamping force and independently controlled grapple assemblies allow for easy grasping of irregularly shaped objects.
Serrated Step
Serrated step provides safe ingress and egress from machine cab.
Lift/Tie Downs
Convenient lift/tie down locations to help facilitate maneuverability and transport.
Reinforced Gussets
Tines are reinforced with gussets to provide increased durability and better penetration.
Features At A Glance
Cat® Industrial Grapple Rakes are designed to handle a wide array of bulky, irregularly shaped objects encountered in demolition, industrial, construction, recycling, storm debris cleanup, land clearing and other aggressive applications.
Heavy-duty industrial grapple rake is designed for superior durability, long structural life, and incorporates durable steel rake tines, and dual full-width torque tubes with an additional front torque tube for tine reinforcement.
Open bottom design allows unwanted material to filter through the bottom of the work tool making it ideal for storm debris clean-up and land clearing applications.
Wide jaw opening for handling large, bulky material such as logs, stumps, rocks and other landscape debris.
Robust grapple assemblies incorporate thick, high strength steel to resist bending and increase durability.
Excellent clamping force and independently controlled grapple assemblies allow for easy grasping of irregularly shaped objects.
Serrated step provides safe ingress and egress from machine cab.
Convenient lift/tie down locations to help facilitate maneuverability and transport.
Tines are reinforced with gussets to provide increased durability and better penetration.

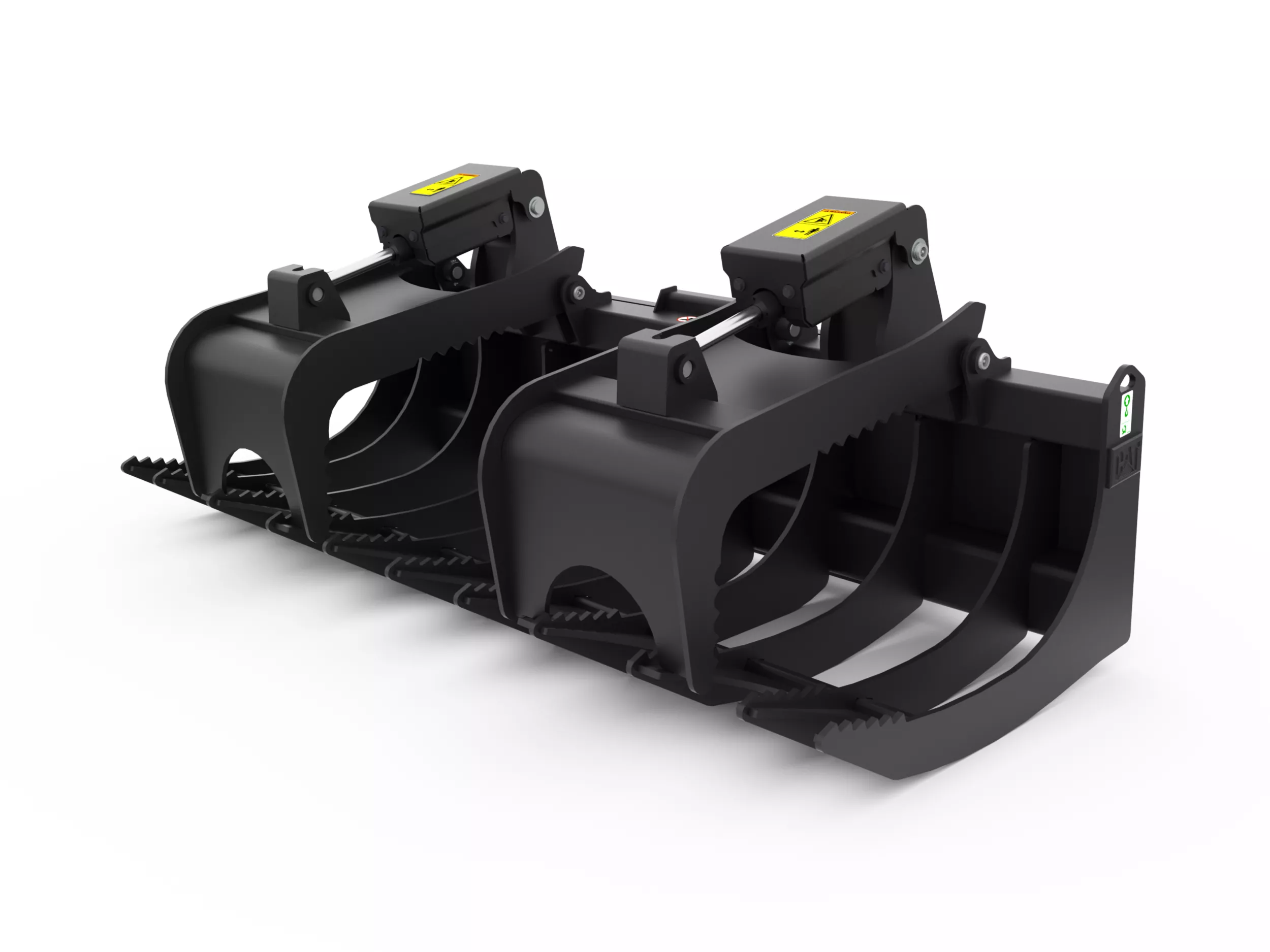

Product Specifications for 2136 mm (84 in) Curved Tine
Width
84.1 in2136 mm
Height
34.3 in872 mm
Weight
1221.6 lb554.1 kg
Maximum Grapple Opening
42.9 in1089 mm
Minimum Grapple Opening
15.5 in393 mm
Length
41.3 in1048 mm
Optimal Hydraulic Flow
42-86 L/min (11-23 gpm)42-86 L/min (11-23 gpm)
Optimal Hydraulic Pressure
145-235 bar (2100-3400 psi)145-235 bar (2100-3400 psi)
Number of Tines
1111
Required Hydraulics
Standard FlowStandard Flow
Product Specifications for 2136 mm (84 in) Curved Tine
