Wheel Material Handlers MH3032 Tier 4 / Stage V

Name: MH3032 Wheel Material Handler
Brand: Cat

New Used

Request A Price Find Dealer

Key Specs

Engine Model: Cat® C7.1; Cat® C7.1

Operating Weight: 80250 lb; 36400 kg

Maximum Reach: 46.2 ft; 14080 mm

MH3032
Change model

Overview

Versatility and the Latest Technology for Efficient Production

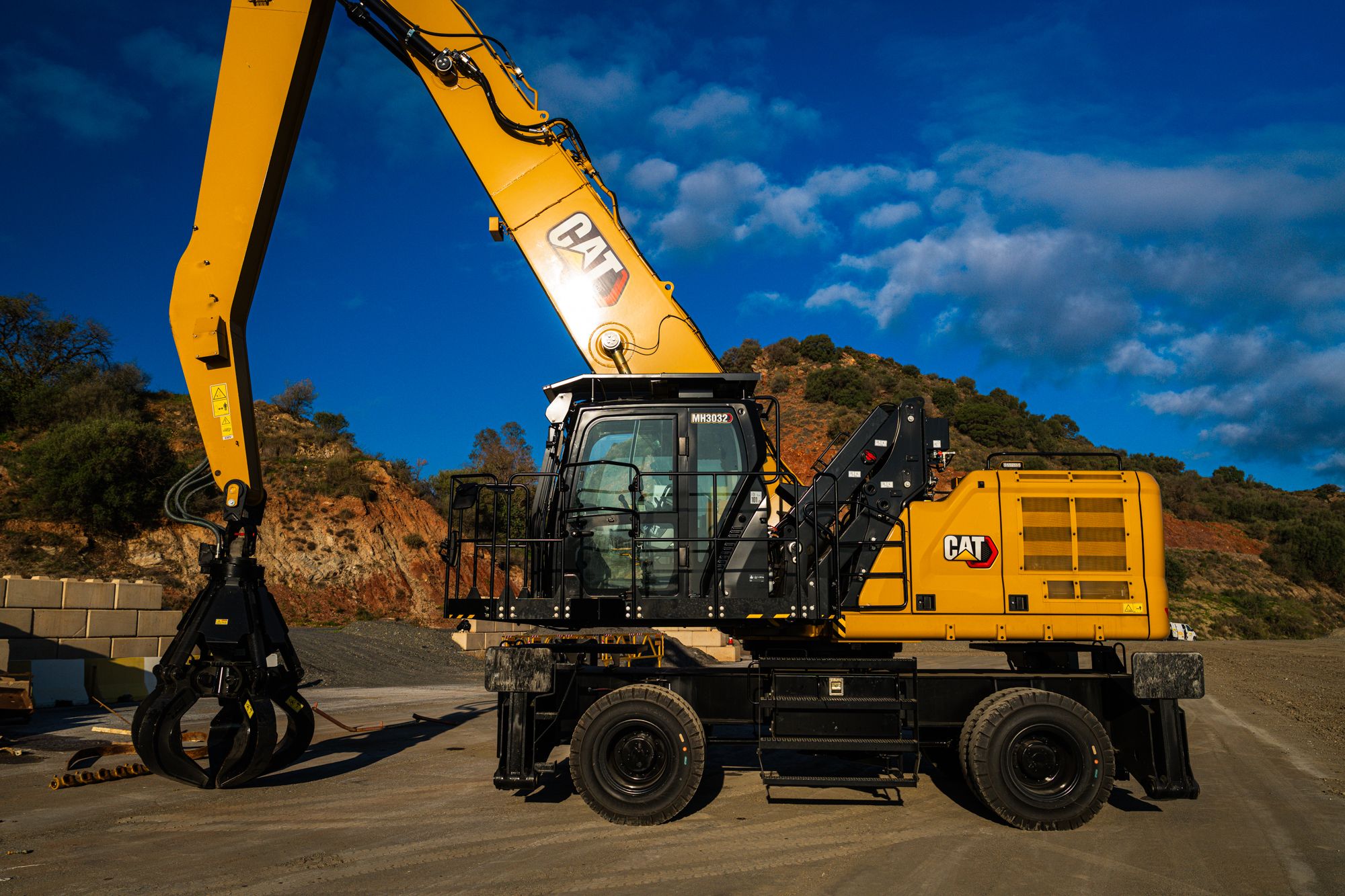

The Cat^® MH3032 is a versatile, productive solution in the 30 mt size class. Drop nose and straight stick options along with an optional generator help expand versatility in scrap, waste, and recycling applications. The MH3032 helps maximize performance with its configuration and technology options for optimum production.

Benefits

High Performance

A long reach offering helps you move more material without repositioning the machine. Large grapple compatibility allows you to move more material at a time.

Unmatched Versatility

Drop nose and straight stick options along with an optional 20 kw generator for magnet operation help expand the MH3032's versatility.

Ergonomic Comfort

A cushioning hydraulic cab riser helps provide operator comfort and high visibility to the jobsite. Multiple machine access points help improve safety and accessibility.

Features At A Glance

Displaying 1-6 of 9

Latest Features

Machine Setup Simplification

At the touch of fingertips and navigating user-friendly icons, the latest operator oriented User Interface (UI) maximizes uptime and gets crews to work without delay. From re-ordering work tool lists to creating new work tool combinations as needed, operators can quickly set up machines and easily access information.
The interface allows operators to maintain accuracy and makes the most of every second of their shift. Adding the ability to input couplers and attachments into the system makes setting up work tool combinations highly efficient by significantly reducing calibration time. It also eliminates the need to measure up again when changing Cat^® work tool attachments and makes it manageable for a single person to check and adjust for bucket wear.

Cat Payload*

Cat Payload provides operators with on-the-go weighing to help them hit load targets and avoid overloading, underloading, or misloading materials. Combine Payload with VisionLink^TM** to analyze jobsites and individual assets for remote management of production targets and key metrics.

Swing Assist

Swing Assist automatically stops machine swing at operator-defined preset points. Simply swing to the desired stopping point and activate using the machine monitor or a preset joystick button. As you get closer, the machine will automatically decelerate and not allow swing past the set point. Swing Assist helps you hit more repetitive swing targets to help reduce fuel use and improve cycle times.

*Payload technologies are not legal for trade.
**VisionLink^TM subscription required.

Not all features are available in all regions. Please check with your local Cat dealer for specific offering availability in your area. Build Number: 07E

High Performance

The C7.1 engine can run on biodiesel up to B20 and meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 and Korea Tier 4 Final emission standards with an aftertreatment system that requires no maintenance or downtime.
Match the machine to the job with three power modes - Power, Smart, and Eco. Smart mode automatically matches engine and hydraulic power to working conditions, helping provide maximum power when needed and reducing power when it isn't to save fuel.
The advanced electro-hydraulic system helps provide the optimum balance of power and efficiency while giving you the control you need.
Available SmartBoom™ lets the boom freely travel up and down without using any pump flow so operators can focus on stick and bucket work.
Valve priority helps put hydraulic pressure and flow where you need it.
Program and store your preferred power mode and joystick settings using your Operator ID. The machine will automatically remember your selections.

Integrated Cat® Technologies

Cat Payload helps you achieve precise load targets to improve your operating efficiency. Pick up a load of material – with a grapple or clamshell attachment – and get a real-time weight estimate without swinging.
VisionLink^TM provides actionable data insights for all assets - regardless of fleet size or equipment manufacturer. *Review equipment data from your desktop or mobile device to maximize uptime and optimize assets. Dashboards provide information such as hours, miles, location, idle time, and fuel utilization. Make informed decisions that lower costs, simplify maintenance, and improve safety and security on your jobsite.
Swing Assist automatically stops machine swing at operator-defined preset points. Simply swing to the desired stopping point and activate using the machine monitor or a preset joystick button. As you get closer, the machine will automatically decelerate and not allow swing past the set point. Swing Assist helps you hit more repetitive swing targets to help reduce fuel use and improve cycle times.
Remote Troubleshoot is a mobile application that allows your Cat dealer to perform diagnostic testing on your connected machine remotely to help ensure that issues are resolved quickly and with less downtime.
Remote Flash is a mobile application that allows you to update onboard software without a technician being present, allowing you to initiate software updates when convenient, increasing your overall operating efficiency.

*Data field availability can vary by equipment manufacturer.

Work in Comfort

Choose between a deluxe and premium cab. Both provide a comfortable, ergonomic work environment.
The cab has a wide seat that adjusts for operators of all sizes.
Get in and out of the cab easier using the tilt-up left console.
Control the machine comfortably with easy-to-reach controls all located in front of you.
Standard automatic climate control keeps you at the right temperature all shift long.
Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles. A cup holder, document holder, bottle holder, and coat hook are also provided.
Connect to personal devices via the standard radio’s USB ports and Bluetooth^® technology.
Optional auxiliary relay powers on and turns off CB radios, beacon lights, and other attachments without you taking your hands off the joysticks.
Continuously improved user interface allows for intuitive navigation, minimizing performance interruption with the easy-to-use touchscreen menu.

Reliable, Durable, and Versatile

Count on your machine to withstand wear throughout the years. Boom, sticks, and other high-stress areas are reinforced with thick multi-plate fabrications, castings, and forgings to help ensure quality and reliability.
The upper frame uses specially designed mountings to support the heavy-duty cab and the lower frame is reinforced to help enhance component durability.
Work up to 3000 m (9,840 ft) above sea level without de-rating.
Don’t let the temperature stop you from working. The machine has a standard cold start capability down to -18° C (0°F).
Auto warm up speeds up hydraulic oil warming in cold temperatures and helps prolong the life of components.
Standard autolube simplifies maintenance by automatically keeping the machine greased from the swing bearing and cab riser to the stick end.
An optional 20 kW generator allows for magnet operation. Generator controls are fully integrated into the cab monitor.
Expand your work capabilities with attachments for a variety of applications.

Maintenance

Track your machine's filter life and maintenance intervals via the in-cab monitor.
Scheduled Oil Sampling (S•O•S^SM) ports are located at ground level, helping simplify maintenance and allowing for quick, easy extraction of fluid samples for analysis.
The long life of the air intake filter with pre-cleaner helps save on maintenance costs.
The hydraulic oil filter helps provide high filtration performance, anti-drain valves to help keep oil clean when the filter is replaced, and long life with a 3,000-hour replacement interval.
High-efficiency cooling fans run only when needed; you can program intervals so they automatically reverse to help keep cores clean without interrupting your work.
Boost productivity with proactive service reminders. The integrated vehicle health management system alerts the operator with step-by-step service guidance and the parts needed to help reduce unnecessary downtime.

Safety Features

Cab Avoidance helps you avoid contact between your worktool attachment and the cab.
Standard 2D E-fence prevents your machine from moving outside operator-defined parameters.
Ground-level shutoff switch stops all fuel to the engine when activated and shuts down the machine.
Keep your machine secure with Operator ID. Use your PIN code on the monitor to enable the push-button starting feature.

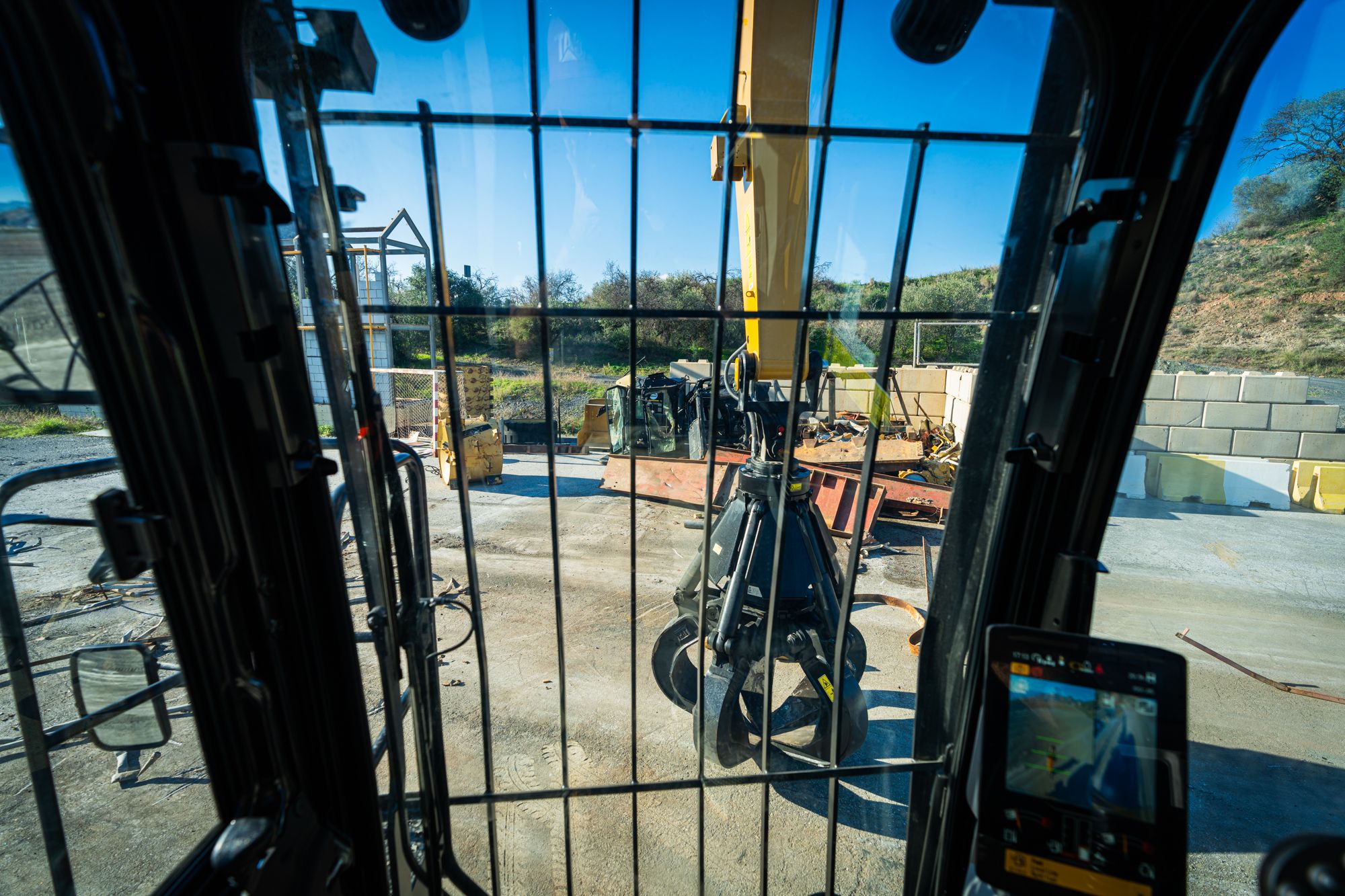

Enjoy great all-around visibility with the help of small cab pillars, large windows, and a flat engine hood design. Rearview and side-view cameras are standard.
Standard 1800-lumen LED exterior lights illuminate your surroundings for a safer work environment.
Thick impact-resistant windshields fulfill P5A standards.
Service platform design provides easy, safe, and quick access to the upper service platform. The service platform steps use an anti-skid punch plate to help prevent slipping.
The standard hydraulic lockout lever isolates all hydraulic and travel functions in the lowered position.
Optional Operator Protective Guards (OPG) protect from falling and flying debris.
In an emergency, lower the cab safely with the emergency cab lowering valve behind the cab riser or to the right of the seat. The valve located behind the cab riser is easily accessible.
Boom and stick lowering check valves prevent reverse flow, keeping your front linkage securely in place should the hydraulic system unexpectedly lose pressure.
Make service work more accessible and safer with optional inspection lighting. With the flip of a switch, lights will illuminate the engine pump, battery, and radiator compartments to enhance visibility.

Sustainability

The Cat^® C7.1 diesel engine U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 and Korea Stage V.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)*** or 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Auto Engine Speed Control helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Cat^® 2D E-fence keeps the front linkage within a predefined work area to avoid hazards such as traffic - not only helping keep personnel safe and helps avoid repairs, downtime, and costly job site fines.
Extended maintenance intervals help reduce downtime and decrease the amount of fluid and filters that are replaced over the machine's life.
VisionLink^TM displays the CO₂ emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
Remote Flash helps minimize downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
Remote Troubleshoot helps decrease maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.

*While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use.
**Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
***Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).

Attachments

Tackle your jobs with a complete Cat^® solution. Cat attachments are not just accessories – they are essential tools that define what your machine can do. When you pair a Cat excavator with Cat attachments, you unlock a fully integrated system built for performance, durability, and efficiency. Whether you are clearing land, breaking concrete, or compacting soil, the right attachment transforms your excavator into a powerful, multi-purpose tool ready for any challenge. Depending on your project or application, you could benefit from excavator attachments such as:

Clamshell Grapples: Perfect for bulk material handling, dredging, and excavation of loose or semi-compacted materials like sand, gravel, and debris. Their dual-opening jaws allow for precise loading and unloading. High-capacity and controlled operation make them ideal for ports, recycling, and heavy civil projects.
Demolition and Sorting Grapples: Tackle larger debris or precisely sort materials into piles. These grapples are engineered for accuracy in demolition and material sorting, handling concrete, rebar, wood, and mixed debris. High clamping force and agile movement make them ideal for primary and secondary demolition and recycling operations.
Orange Peel Grapples: Built for scrap and bulk material handling, Orange Peel Grapples excel with irregular, heavy loads like metal, rock, and waste. Their hydraulic tines provide superior grip and penetration. High-capacity and continuous rotation are perfect for scrap yards and transfer stations. Cat^® offers these grapples with a choice of different shell designs and tine options suited to various applications.
Multi-Processors: A versatile tool for demolition, equipped with interchangeable jaws to handle concrete, steel, and rebar. Multi-Processors combine cutting, crushing and pulverizing capabilities in one attachment. Their modular design maximizes efficiency across a range of job site demands.
Scrap and Demolition Shears: Rotating shears provide precision cutting for metal structures, pipes, rebar, and scrap, making them ideal for demolition and recycling. Their powerful jaws and fast cycle times ensure clean cuts and high productivity. Built for durability, they excel in heavy-duty steel processing.

Cat^® attachments are engineered to maximize your excavator’s productivity, helping you get more work done with greater efficiency and confidence. Choosing the right attachment is not just about compatibility, it is about unlocking your machine’s full potential while avoiding equipment damage or safety risks. Connect with your Cat Dealer to find the optimal attachments for your specific machine and application needs.

Machine Setup Simplification

At the touch of fingertips and navigating user-friendly icons, the latest operator oriented User Interface (UI) maximizes uptime and gets crews to work without delay. From re-ordering work tool lists to creating new work tool combinations as needed, operators can quickly set up machines and easily access information.
The interface allows operators to maintain accuracy and makes the most of every second of their shift. Adding the ability to input couplers and attachments into the system makes setting up work tool combinations highly efficient by significantly reducing calibration time. It also eliminates the need to measure up again when changing Cat^® work tool attachments and makes it manageable for a single person to check and adjust for bucket wear.

Cat Payload*

Cat Payload provides operators with on-the-go weighing to help them hit load targets and avoid overloading, underloading, or misloading materials. Combine Payload with VisionLink^TM** to analyze jobsites and individual assets for remote management of production targets and key metrics.

Swing Assist

Swing Assist automatically stops machine swing at operator-defined preset points. Simply swing to the desired stopping point and activate using the machine monitor or a preset joystick button. As you get closer, the machine will automatically decelerate and not allow swing past the set point. Swing Assist helps you hit more repetitive swing targets to help reduce fuel use and improve cycle times.

The C7.1 engine can run on biodiesel up to B20 and meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 and Korea Tier 4 Final emission standards with an aftertreatment system that requires no maintenance or downtime.
Match the machine to the job with three power modes - Power, Smart, and Eco. Smart mode automatically matches engine and hydraulic power to working conditions, helping provide maximum power when needed and reducing power when it isn't to save fuel.
The advanced electro-hydraulic system helps provide the optimum balance of power and efficiency while giving you the control you need.
Available SmartBoom™ lets the boom freely travel up and down without using any pump flow so operators can focus on stick and bucket work.
Valve priority helps put hydraulic pressure and flow where you need it.
Program and store your preferred power mode and joystick settings using your Operator ID. The machine will automatically remember your selections.

Cat Payload helps you achieve precise load targets to improve your operating efficiency. Pick up a load of material – with a grapple or clamshell attachment – and get a real-time weight estimate without swinging.
VisionLink^TM provides actionable data insights for all assets - regardless of fleet size or equipment manufacturer. *Review equipment data from your desktop or mobile device to maximize uptime and optimize assets. Dashboards provide information such as hours, miles, location, idle time, and fuel utilization. Make informed decisions that lower costs, simplify maintenance, and improve safety and security on your jobsite.
Swing Assist automatically stops machine swing at operator-defined preset points. Simply swing to the desired stopping point and activate using the machine monitor or a preset joystick button. As you get closer, the machine will automatically decelerate and not allow swing past the set point. Swing Assist helps you hit more repetitive swing targets to help reduce fuel use and improve cycle times.
Remote Troubleshoot is a mobile application that allows your Cat dealer to perform diagnostic testing on your connected machine remotely to help ensure that issues are resolved quickly and with less downtime.
Remote Flash is a mobile application that allows you to update onboard software without a technician being present, allowing you to initiate software updates when convenient, increasing your overall operating efficiency.

*Data field availability can vary by equipment manufacturer.

Choose between a deluxe and premium cab. Both provide a comfortable, ergonomic work environment.
The cab has a wide seat that adjusts for operators of all sizes.
Get in and out of the cab easier using the tilt-up left console.
Control the machine comfortably with easy-to-reach controls all located in front of you.
Standard automatic climate control keeps you at the right temperature all shift long.
Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles. A cup holder, document holder, bottle holder, and coat hook are also provided.
Connect to personal devices via the standard radio’s USB ports and Bluetooth^® technology.
Optional auxiliary relay powers on and turns off CB radios, beacon lights, and other attachments without you taking your hands off the joysticks.
Continuously improved user interface allows for intuitive navigation, minimizing performance interruption with the easy-to-use touchscreen menu.

Count on your machine to withstand wear throughout the years. Boom, sticks, and other high-stress areas are reinforced with thick multi-plate fabrications, castings, and forgings to help ensure quality and reliability.
The upper frame uses specially designed mountings to support the heavy-duty cab and the lower frame is reinforced to help enhance component durability.
Work up to 3000 m (9,840 ft) above sea level without de-rating.
Don’t let the temperature stop you from working. The machine has a standard cold start capability down to -18° C (0°F).
Auto warm up speeds up hydraulic oil warming in cold temperatures and helps prolong the life of components.
Standard autolube simplifies maintenance by automatically keeping the machine greased from the swing bearing and cab riser to the stick end.
An optional 20 kW generator allows for magnet operation. Generator controls are fully integrated into the cab monitor.
Expand your work capabilities with attachments for a variety of applications.

Track your machine's filter life and maintenance intervals via the in-cab monitor.
Scheduled Oil Sampling (S•O•S^SM) ports are located at ground level, helping simplify maintenance and allowing for quick, easy extraction of fluid samples for analysis.
The long life of the air intake filter with pre-cleaner helps save on maintenance costs.
The hydraulic oil filter helps provide high filtration performance, anti-drain valves to help keep oil clean when the filter is replaced, and long life with a 3,000-hour replacement interval.
High-efficiency cooling fans run only when needed; you can program intervals so they automatically reverse to help keep cores clean without interrupting your work.
Boost productivity with proactive service reminders. The integrated vehicle health management system alerts the operator with step-by-step service guidance and the parts needed to help reduce unnecessary downtime.

Cab Avoidance helps you avoid contact between your worktool attachment and the cab.
Standard 2D E-fence prevents your machine from moving outside operator-defined parameters.
Ground-level shutoff switch stops all fuel to the engine when activated and shuts down the machine.
Keep your machine secure with Operator ID. Use your PIN code on the monitor to enable the push-button starting feature.
Enjoy great all-around visibility with the help of small cab pillars, large windows, and a flat engine hood design. Rearview and side-view cameras are standard.
Standard 1800-lumen LED exterior lights illuminate your surroundings for a safer work environment.
Thick impact-resistant windshields fulfill P5A standards.
Service platform design provides easy, safe, and quick access to the upper service platform. The service platform steps use an anti-skid punch plate to help prevent slipping.
The standard hydraulic lockout lever isolates all hydraulic and travel functions in the lowered position.
Optional Operator Protective Guards (OPG) protect from falling and flying debris.
In an emergency, lower the cab safely with the emergency cab lowering valve behind the cab riser or to the right of the seat. The valve located behind the cab riser is easily accessible.
Boom and stick lowering check valves prevent reverse flow, keeping your front linkage securely in place should the hydraulic system unexpectedly lose pressure.
Make service work more accessible and safer with optional inspection lighting. With the flip of a switch, lights will illuminate the engine pump, battery, and radiator compartments to enhance visibility.

The Cat^® C7.1 diesel engine U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 and Korea Stage V.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)*** or 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Auto Engine Speed Control helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Cat^® 2D E-fence keeps the front linkage within a predefined work area to avoid hazards such as traffic - not only helping keep personnel safe and helps avoid repairs, downtime, and costly job site fines.
Extended maintenance intervals help reduce downtime and decrease the amount of fluid and filters that are replaced over the machine's life.
VisionLink^TM displays the CO₂ emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
Remote Flash helps minimize downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
Remote Troubleshoot helps decrease maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.

Clamshell Grapples: Perfect for bulk material handling, dredging, and excavation of loose or semi-compacted materials like sand, gravel, and debris. Their dual-opening jaws allow for precise loading and unloading. High-capacity and controlled operation make them ideal for ports, recycling, and heavy civil projects.
Demolition and Sorting Grapples: Tackle larger debris or precisely sort materials into piles. These grapples are engineered for accuracy in demolition and material sorting, handling concrete, rebar, wood, and mixed debris. High clamping force and agile movement make them ideal for primary and secondary demolition and recycling operations.
Orange Peel Grapples: Built for scrap and bulk material handling, Orange Peel Grapples excel with irregular, heavy loads like metal, rock, and waste. Their hydraulic tines provide superior grip and penetration. High-capacity and continuous rotation are perfect for scrap yards and transfer stations. Cat^® offers these grapples with a choice of different shell designs and tine options suited to various applications.
Multi-Processors: A versatile tool for demolition, equipped with interchangeable jaws to handle concrete, steel, and rebar. Multi-Processors combine cutting, crushing and pulverizing capabilities in one attachment. Their modular design maximizes efficiency across a range of job site demands.
Scrap and Demolition Shears: Rotating shears provide precision cutting for metal structures, pipes, rebar, and scrap, making them ideal for demolition and recycling. Their powerful jaws and fast cycle times ensure clean cuts and high productivity. Built for durability, they excel in heavy-duty steel processing.

Specifications Standard Equipment Optional Equipment

Product Specifications for MH3032

Engine

Engine Model	Cat® C7.1 Cat® C7.1
Net Power - ISO 9249	201 hp 150 kW
Net Power - ISO 9249 (DIN)	204 hp (metric) 204 hp (metric)
Engine Power - Maximum - ISO 14396	202 hp 151 kW
Engine Power - ISO 14396 (DIN)	205 hp (metric) 205 hp (metric)
Bore	4.1 in 105 mm
Stroke	5.3 in 135 mm
Displacement	428 in³ 7 l
Biodiesel Capability	Up to B20¹ Up to B20¹
Emissions	Meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 and Korea Stage V emission standards. Meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 and Korea Stage V emission standards.
Note (1)	Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)	¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. *Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible with ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. **Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).

Weights

Operating Weight	80250 lb 36400 kg
Note	Operating weight includes full fuel tank, 75 kg (165 lb) operator and a 2000 kg (4,410 lb) grapple. Weight varies depending on configuration. Operating weight includes full fuel tank, 75 kg (165 lb) operator and a 2000 kg (4,410 lb) grapple. Weight varies depending on configuration.

Working Ranges

Maximum Reach	46.2 ft 14080 mm
Boom	MH 8.5 m (27'11") MH 8.5 m (27'11")
Stick	6.4 m (21'0") Drop Nose 6.4 m (21'0") Drop Nose
Maximum Height	50.8 ft 15470 mm
Minimum Dump Height	15.3 ft 4670 mm
Maximum Depth	16.4 ft 4990 mm
Boom Pin Height	35.3 ft 10750 mm

Transmission

Maximum Travel Speed	11.2 mile/h 18 km/h
Drawbar Pull	32597 lbf 145 kN
Maximum Gradeability	45% 45%

Hydraulic System

Maximum Pressure - Implements	5076 psi 35000 kPa
Maximum Pressure - Swing	4119 psi 28400 kPa
Maximum Pressure - Travel	5076 psi 35000 kPa

Swing Mechanism

Swing Speed	7 r/min 7 r/min
Maximum Swing Torque	60680 lbf·ft 82 kN·m

Service Refill Capacities

Fuel Tank Capacity	125.2 gal (US) 474 l
Cooling System	6.6 gal (US) 25 l
Engine Oil	6.6 gal (US) 25 l
Rear Axle - Housing (Differential)	5.2 gal (US) 19.5 l
Final Drive - Each	0.6 gal (US) 2.2 l
Powershift Transmission	0.8 gal (US) 3 l
Hydraulic System - Including Tank	81.9 gal (US) 310 l
Hydraulic Tank	38.8 gal (US) 147 l
Diesel Exhaust Fluid (DEF) Tank	10.8 gal (US) 41 l

Dimensions

Boom	MH 8.5 m (27'11") MH 8.5 m (27'11")
Stick	6.4 m (21'0") Drop Nose 6.4 m (21'0") Drop Nose
Shipping Length	38.9 ft 11860 mm
Machine Length	19 ft 5785 mm
Tail Swing Radius	9.8 ft 3000 mm
Counterweight Clearance	4.8 ft 1465 mm
Cab Height- Lowered	11.5 ft 3500 mm
Cab Height-Lowered with OPG	11.6 ft 3550 mm
Cab Height-Raised	20 ft 6095 mm
Cab Height-Raised with OPG	20.2 ft 6145 mm
Wheel Base	10.5 ft 3200 mm
Shipping Width	9.8 ft 3000 mm
Ground Clearance	0.8 ft 249 mm
Undercarriage Length	19 ft 5781 mm

Air Conditioning System

Note (1)

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. If equipped with R134a (Global Warming Potential = 1430), the system contains 1.2 kg (2.6 lb) of refrigerant which has a CO2 equivalent of 1.716 metric tonnes (1.891 tons). If equipped with R1234yf (Global Warming Potential = 0.5), the system contains 1.05 kg (2.31 lb) of refrigerant which has a CO2 equivalent of 0.001 metric tonnes (0.001 tons). The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. If equipped with R134a (Global Warming Potential = 1430), the system contains 1.2 kg (2.6 lb) of refrigerant which has a CO2 equivalent of 1.716 metric tonnes (1.891 tons). If equipped with R1234yf (Global Warming Potential = 0.5), the system contains 1.05 kg (2.31 lb) of refrigerant which has a CO2 equivalent of 0.001 metric tonnes (0.001 tons).

Sustainability

Recyclability

94% 94%

MH3032 Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

CAB

Advanced sound suppressed Tip Over Protective Structure (TOPS) certified cab

High-resolution 254 mm (10") LCD touchscreen monitor

Automatic bi-level air conditioner

Jog dial and shortcut keys for monitor control

Keyless push-to-start engine control

Tilt-up left-side console

Heated and ventilated premium seat with automatic adjustable air suspension

LED dome light

CAT TECHNOLOGY

VisionLink™

Remote Flash and Remote Troubleshoot

Cat Payload

ELECTRICAL SYSTEM

Maintenance-free battery

LED lights on chassis (Left Hand [LH], Right Hand [RH]) and counterweight

Centralized electrical disconnect switch

Programmable time-delay LED working lights after engine shutdown

ENGINE

Cat C7.1 diesel engine

Three selectable modes: Power, Smart, Eco

Up to 3000 m (9,840 ft) altitude capability without engine power de-rate

Cold starting capability down to -18°C (0°F)

On-demand hydraulic cooling fan with auto-reverse function

HYDRAULIC SYSTEM

Boom and stick lowering control check valves

Boom and stick regeneration circuits

Electronic main control valve

Automatic hydraulic oil warm up

High performance hydraulic return filter

SAFETY AND SECURITY

Rear and right-side-view cameras

Caterpillar One Key Security System

Travel alarm

Lockable external tool/storage box

Ground-level accessible secondary engine shutoff switch

2D E-fence

Cab Avoidance

Swing Assist

Rear window emergency exit

UNDERCARRIAGE AND STRUCTURES

All wheel drive

Automatic brake/axle lock

Creeper speed

Electronic swing and travel lock

Heavy-duty axles, advanced disc brake system, and travel motor with adjustable braking force

Lockable, oscillating front axle with remote greasing point

Front, right hand side (RHS), and left hand side (LHS) cab access

Two speed hydrostatic transmission

Counterweight 6000 kg (13,250 lb)

MH3032 Optional Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

BOOM AND STICKS

5.7 m (18.8') drop nose stick

6.4 m (21'0") drop nose stick

6.4 m (21'0") straight stick

Stickless machine configuration

8.5 m (27'11") MH boom

9.3 m (30'6") MH boom

CAB

Fixed one-piece front window and skylight (P5A classified)

Fixed two-piece front window and skylight (P8B classified)

Operator Protective Guards (OPG)

ELECTRICAL SYSTEM

Generator, 20 kW with wiring to stick nose

ENGINE

Cold start, block heater

HYDRAULIC SYSTEM

Fine swing capability (N Am only)

SAFETY AND SECURITY

Rotating beacon on cab

Signal/warning horn

UNDERCARRIAGE AND STRUCTURES

12.00-20 dual solid tires

11.00-20 dual pneumatic tires

Standard undercarriage

HD undercarriage with trailer hitch

Hitch towing

Waste blade

Product Specifications for MH3032

Download Print

Engine

Engine Model	Cat® C7.1 Cat® C7.1
Net Power - ISO 9249	201 hp 150 kW
Net Power - ISO 9249 (DIN)	204 hp (metric) 204 hp (metric)
Engine Power - Maximum - ISO 14396	202 hp 151 kW
Engine Power - ISO 14396 (DIN)	205 hp (metric) 205 hp (metric)
Bore	4.1 in 105 mm
Stroke	5.3 in 135 mm
Displacement	428 in³ 7 l
Biodiesel Capability	Up to B20¹ Up to B20¹
Emissions	Meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 and Korea Stage V emission standards. Meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 and Korea Stage V emission standards.
Note (1)	Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)	¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. *Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible with ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. **Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).

Weights

Operating Weight	80250 lb 36400 kg
Note	Operating weight includes full fuel tank, 75 kg (165 lb) operator and a 2000 kg (4,410 lb) grapple. Weight varies depending on configuration. Operating weight includes full fuel tank, 75 kg (165 lb) operator and a 2000 kg (4,410 lb) grapple. Weight varies depending on configuration.

Working Ranges

Maximum Reach	46.2 ft 14080 mm
Boom	MH 8.5 m (27'11") MH 8.5 m (27'11")
Stick	6.4 m (21'0") Drop Nose 6.4 m (21'0") Drop Nose
Maximum Height	50.8 ft 15470 mm
Minimum Dump Height	15.3 ft 4670 mm
Maximum Depth	16.4 ft 4990 mm
Boom Pin Height	35.3 ft 10750 mm

Transmission

Maximum Travel Speed	11.2 mile/h 18 km/h
Drawbar Pull	32597 lbf 145 kN
Maximum Gradeability	45% 45%

Hydraulic System

Maximum Pressure - Implements	5076 psi 35000 kPa
Maximum Pressure - Swing	4119 psi 28400 kPa
Maximum Pressure - Travel	5076 psi 35000 kPa

Swing Mechanism

Swing Speed	7 r/min 7 r/min
Maximum Swing Torque	60680 lbf·ft 82 kN·m

Service Refill Capacities

Fuel Tank Capacity	125.2 gal (US) 474 l
Cooling System	6.6 gal (US) 25 l
Engine Oil	6.6 gal (US) 25 l
Rear Axle - Housing (Differential)	5.2 gal (US) 19.5 l
Final Drive - Each	0.6 gal (US) 2.2 l
Powershift Transmission	0.8 gal (US) 3 l
Hydraulic System - Including Tank	81.9 gal (US) 310 l
Hydraulic Tank	38.8 gal (US) 147 l
Diesel Exhaust Fluid (DEF) Tank	10.8 gal (US) 41 l

Dimensions

Boom	MH 8.5 m (27'11") MH 8.5 m (27'11")
Stick	6.4 m (21'0") Drop Nose 6.4 m (21'0") Drop Nose
Shipping Length	38.9 ft 11860 mm
Machine Length	19 ft 5785 mm
Tail Swing Radius	9.8 ft 3000 mm
Counterweight Clearance	4.8 ft 1465 mm
Cab Height- Lowered	11.5 ft 3500 mm
Cab Height-Lowered with OPG	11.6 ft 3550 mm
Cab Height-Raised	20 ft 6095 mm
Cab Height-Raised with OPG	20.2 ft 6145 mm
Wheel Base	10.5 ft 3200 mm
Shipping Width	9.8 ft 3000 mm
Ground Clearance	0.8 ft 249 mm
Undercarriage Length	19 ft 5781 mm

Air Conditioning System

Note (1)

Sustainability

Recyclability

94% 94%

MH3032 Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

CAB

Advanced sound suppressed Tip Over Protective Structure (TOPS) certified cab

High-resolution 254 mm (10") LCD touchscreen monitor

Automatic bi-level air conditioner

Jog dial and shortcut keys for monitor control

Keyless push-to-start engine control

Tilt-up left-side console

Heated and ventilated premium seat with automatic adjustable air suspension

LED dome light

CAT TECHNOLOGY

VisionLink™

Remote Flash and Remote Troubleshoot

Cat Payload

ELECTRICAL SYSTEM

Maintenance-free battery

LED lights on chassis (Left Hand [LH], Right Hand [RH]) and counterweight

Centralized electrical disconnect switch

Programmable time-delay LED working lights after engine shutdown

ENGINE

Cat C7.1 diesel engine

Three selectable modes: Power, Smart, Eco

Up to 3000 m (9,840 ft) altitude capability without engine power de-rate

Cold starting capability down to -18°C (0°F)

On-demand hydraulic cooling fan with auto-reverse function

HYDRAULIC SYSTEM

Boom and stick lowering control check valves

Boom and stick regeneration circuits

Electronic main control valve

Automatic hydraulic oil warm up

High performance hydraulic return filter

SAFETY AND SECURITY

Rear and right-side-view cameras

Caterpillar One Key Security System

Travel alarm

Lockable external tool/storage box

Ground-level accessible secondary engine shutoff switch

2D E-fence

Cab Avoidance

Swing Assist

Rear window emergency exit

UNDERCARRIAGE AND STRUCTURES

All wheel drive

Automatic brake/axle lock

Creeper speed

Electronic swing and travel lock

Heavy-duty axles, advanced disc brake system, and travel motor with adjustable braking force

Lockable, oscillating front axle with remote greasing point

Front, right hand side (RHS), and left hand side (LHS) cab access

Two speed hydrostatic transmission

Counterweight 6000 kg (13,250 lb)

MH3032 Optional Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

BOOM AND STICKS

5.7 m (18.8') drop nose stick

6.4 m (21'0") drop nose stick

6.4 m (21'0") straight stick

Stickless machine configuration

8.5 m (27'11") MH boom

9.3 m (30'6") MH boom

CAB

Fixed one-piece front window and skylight (P5A classified)

Fixed two-piece front window and skylight (P8B classified)

Operator Protective Guards (OPG)

ELECTRICAL SYSTEM

Generator, 20 kW with wiring to stick nose

ENGINE

Cold start, block heater

HYDRAULIC SYSTEM

Fine swing capability (N Am only)

SAFETY AND SECURITY

Rotating beacon on cab

Signal/warning horn

UNDERCARRIAGE AND STRUCTURES

12.00-20 dual solid tires

11.00-20 dual pneumatic tires

Standard undercarriage

HD undercarriage with trailer hitch

Hitch towing

Waste blade

Compatible Technology and Services

Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.

Cat 2D E-fence for Excavators

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

Cat® 2D E-fence keeps the front linkage within a predefined work area to avoid hazards like traffic. 2D E-fence uses data from position sensors to automatically stop motion when the front linkage reaches the defined boundaries.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Cat® 2D E-fence keeps the front linkage within a predefined work area to avoid hazards like traffic. 2D E-fence uses data from position sensors to automatically stop motion when the front linkage reaches the defined boundaries.

Explore Technology

Cat® Remote Flash

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

Remote Flash sends an alert from your Cat dealer, prompting you to update the software on your machine. To minimize downtime, updates can be deployed while on the jobsite without having to wait for a dealer technician to arrive. Remote flash decreases maintenance time and keeps your asset running with maximum efficiency.

Explore Technology
Cat® Remote Troubleshooting

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

Remote Troubleshoot allows your Cat dealer to run testing while the machine is operating. Once the problem is identified, a technician can fix it with the correct parts and tools the first time, saving time and money. Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency.

Explore Technology
VisionLink™

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Remote Flash sends an alert from your Cat dealer, prompting you to update the software on your machine. To minimize downtime, updates can be deployed while on the jobsite without having to wait for a dealer technician to arrive. Remote flash decreases maintenance time and keeps your asset running with maximum efficiency.

Explore Technology

Remote Troubleshoot allows your Cat dealer to run testing while the machine is operating. Once the problem is identified, a technician can fix it with the correct parts and tools the first time, saving time and money. Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency.

Explore Technology

VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

Cat Payload for Material Handlers

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

Next generation material handlers take on all kinds of tasks - loading, sorting, stockpiling, and more. Cat® Payload technology provides on-the-go weighing to help operators hit exact targets every time and avoid overloading, underloading, or misloading materials.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Next generation material handlers take on all kinds of tasks - loading, sorting, stockpiling, and more. Cat® Payload technology provides on-the-go weighing to help operators hit exact targets every time and avoid overloading, underloading, or misloading materials.

Explore Technology
