Overview
Cat® forestry mulchers have industry-leading features to ensure you are getting the best productivity from a mulcher for tracked and wheeled excavators, all while keeping your work environment and equipment safe.

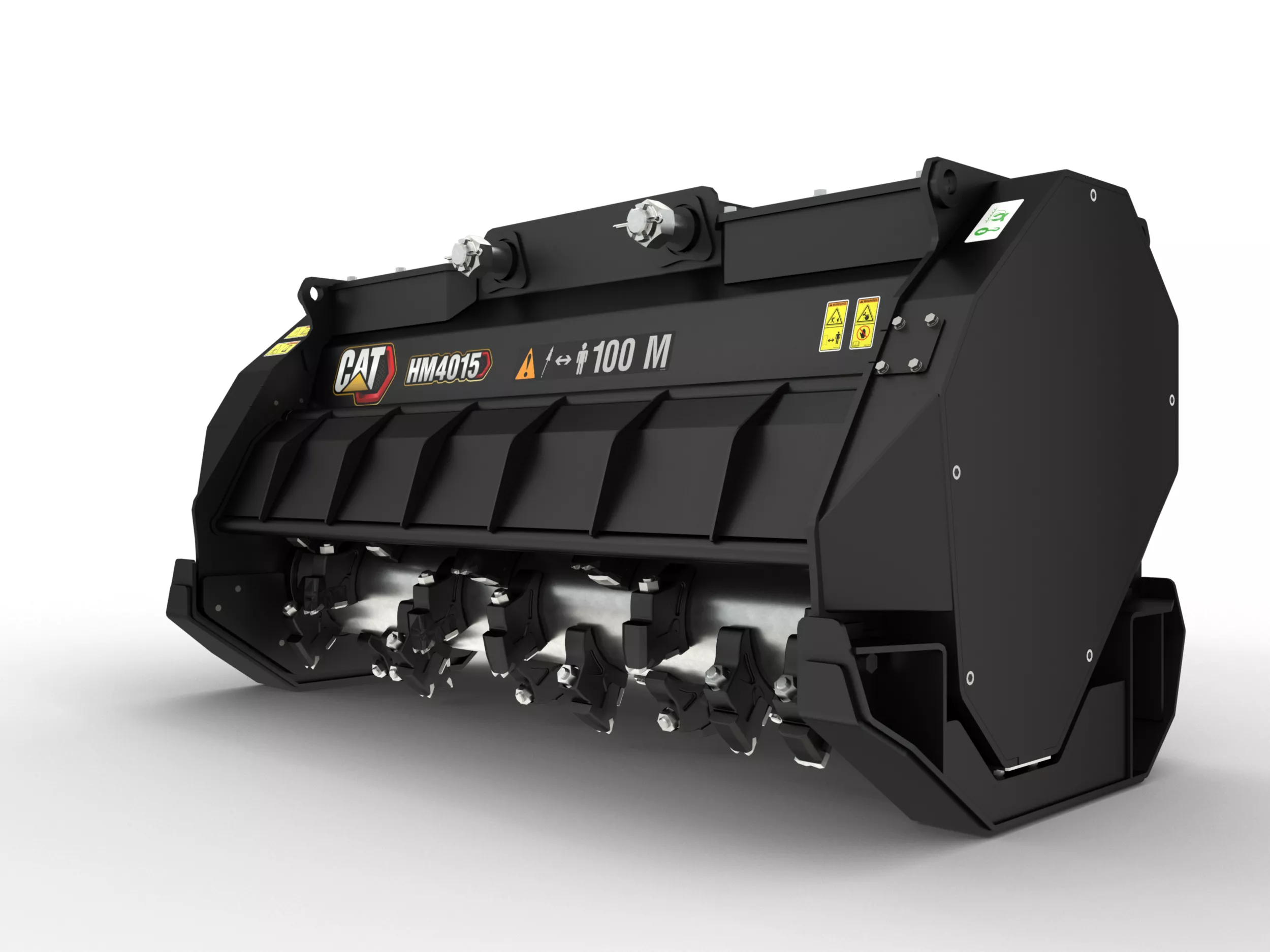

Mulchers HM4015 Standard Forestry Mulcher
Key Specs
- Motor
- Variable Torque Hydraulic Piston Motor
- Variable Torque Hydraulic Piston Motor
- Overall Width
- 74 in
- 1871 mm
- Drive Method
- Poly Chain Belt
- Poly Chain Belt
Features At A Glance
Displaying 1-6 of 4
Reliable Performance
- Cut trees from 152 mm (6 in) up to 407 mm (16 in) in diameter.
- Two rotor types:
- Standard – rotor with teeth only
- Bite limiter – rotor with teeth separated by ribs to help prevent rotor stalling and creates finer shredded materials
- Variable torque hydraulic piston motor shifts between high speed, low torque and low speed, high torque to give you speed when you need it and power when it counts.
- Brackets allow the mulchers to be mounted to a variety of excavators within each size class.
- The staggered tooth design reduces stalling and jamming.
- Mulcher teeth options vary by application and preference on final material size:
- Standard: Most commonly used option. Fairly fine final product used where there is minimal rock present and durability is needed.
- Rock Crushing: Larger final product, but can work in applications where rocks are present.
- Bite Limiter: Very fine final product due to aggressive edge of the blade with the limiters and counter knives. Use where rocks are minimal and there are large amounts of standing timber.
- Hardened counter blades reduce finished material size and increase the rate of composting.
Easy Maintenance
- Access internal components quickly and easily with bolt-on service panels.
- Poly chain belt driven transmission eliminates slippage on startup, reducing maintenance costs.
- The motor is integrated into the frame to protect it from dust, damage, and impact from falling debris.
- Ensure service panel security with access bolts recessed into the panel, protecting them from debris.
- Get back to work faster with field-replaceable wear parts.
Prioritized Safety
- Hydraulic mulching door keeps the work environment and equipment safe by dispersing materials according to your application and surroundings.
- The mulching door operation is controlled by electric diverter valve or medium pressure hydraulic kits from the cab.
- Door closed – right-of-way clearing, near powerlines and pipelines, and roadside maintenance.
- Door open – vegetation management, jobsite clearing, forest wood fuel removal, and firebreaks.
- Flow control valve protects the motor from excessive flow.
- Ground-level primary grease points keep you safe while performing daily maintenance.
- Bolt-on, replaceable skids keep the mulcher from going into the ground or into materials expediting wear or causing damage.
Boost Efficiency and Productivity with Integrated Technologies
- Never waste time looking for your attachments again. Cat PL161 Attachment Locator is available on most attachments.
- Track your entire fleet of attachments and machines from one source. Attachments with asset tracking can be viewed within VisionLink® alongside Product Link™ subscribed equipment.
- Keep your assets secure. Attachments with an asset tracker send an alert if they leave an easy-to-setup site boundary.
Product Specifications for HM4015 Standard Forestry Mulcher
| Motor | Variable Torque Hydraulic Piston Motor Variable Torque Hydraulic Piston Motor |
| Overall Width | 74 in 1871 mm |
| Drive Method | Poly Chain Belt Poly Chain Belt |
| Working Width | 62.5 in 1587 mm |
| Maximum Cutting Diameter | 12 in 305 mm |
| Overall Height | 38 in 964 mm |
| Length | 37.5 in 952 mm |
| Fixed Teeth per Drum | 36 36 |
| Weight | 3417 lb 1550 kg |
| Optimal Hydraulic Flow | 151-201 L/min (40-53 gpm) 151-201 L/min (40-53 gpm) |
| Optimal Hydraulic Pressure | 207-345 bar (3000-5000 psi) 207-345 bar (3000-5000 psi) |
| Drum Speed | 2000-2200 rpm 2000-2200 rpm |
See how HM4015 Standard Forestry Mulcher compares against frequently compared products.
Mulchers
HM4015 Standard Forestry Mulcher
Selected
- Motor
- Variable Torque Hydraulic Piston Motor
- Variable Torque Hydraulic Piston Motor
- Overall Width
- 74 in
- 1871 mm
- Drive Method
- Poly Chain Belt
- Poly Chain Belt
Mulchers
HM3013 Dedicated Bite Limiter Forestry Mulcher
- Motor
- Variable Torque Hydraulic Piston Motor
- Variable Torque Hydraulic Piston Motor
- Overall Width
- 65 in
- 1656 mm
- Drive Method
- Poly Chain Belt
- Poly Chain Belt
Mulchers
HM4815 Dedicated Bite Limiter Forestry Mulcher
- Motor
- Variable Torque Hydraulic Piston Motor
- Variable Torque Hydraulic Piston Motor
- Overall Width
- 77.6 in
- 1871 mm
- Drive Method
- Poly Chain Belt
- Poly Chain Belt
