| Maximum Opening | 55 in 1397 mm |
| Minimum Opening | 5 in 127 mm |
| Weight | 2860 lb 1297 kg |
| Height - Open | 74.21 in 1885 mm |
| Height - Closed | 77.09 in 1958 mm |
| Width | 22.09 in 561 mm |
| Rotation Torque | 850.41 ft-lb 1153 N·m |
| Rotation | 360 ° 360 ° |
Forest Machine Grapples GLL55 Forestry Grapple
Request A Price Find DealerKey Specs
- Maximum Opening
- 55 in
- 1397 mm
- Minimum Opening
- 5 in
- 127 mm
- Weight
- 2860 lb
- 1297 kg
Overview
Cat® GLL Forestry Grapples are productive, durable, and the quality you expect from Cat products. Integrated to your machine's hydraulics, forestry grapples can handle a wide range of tasks with ease, while keeping you working with simple serviceability. GLL Forestry Grapples are a high-performing solution for your operation.
Features At A Glance
- Leg profile designed for optimal performance across a variety of tasks.
- Maximum holding power and control from the cylinder valve.
- Interlocking legs designed to secure maximum or minimum load. The minimum opening of 5 in. (127 mm) can be used to handle single, small stems.
- Precise matching of the bearing surface to the rotator increases the strength of mounting, reducing side loads on the mounting bolts.
- Efficiently align to, grab, pick, and sort with powerful rotations motor and cylinders.
- Keep your grapple safe while traveling by securing it with the grapple heel preventing swing and impact.
- Optimal for applications such as: high-volume loading, sorting, high-decking in millyard, and shovel logging.
- High-strength, alloy steel used to construct grapples for the highest level of durability in tough applications.
- Get extended use out of your bearings with heavy-duty, lip type excluder seals and sealed pin joints.
- Long-lasting direct fittings even in extreme conditions.
- Induction-hardened alloy pins float, decreasing wear.
- Use a heel with your grapple for maximum productivity:
- Centered over the hydraulics, hoses are protected by the heel from damage.
- Maintain control over your load, whether it is one or multiple logs, the flat, serrated rack provides engagement and stability.
- Easy-to-replace Hardox® wear strips on the grapple legs.
- Easy access to grease points and fully serviceable cylinders.
- Spend more time working with long service intervals and some servicing that can be done in the field with hand tools.
- Critical components are safe and secure inside the grapple frame.
- Ensure the integration of your grapple’s hydraulics to the machine’s by having it installed at the factory.
- Track your entire fleet of attachments and machines from one source. Grapples with asset tracking can be viewed in VisionLink® alongside Product Link™ subscribed equipment.
- Keep your assets secure. Grapples with a PL161 asset tracker send an alert if they leave an easy-to-setup site boundary.
Product Specifications for GLL55 Forestry Grapple
See how GLL55 Forestry Grapple compares against frequently compared products.
Grapples
GLL55 Forestry Grapple
Selected
- Maximum Opening
- 55 in
- 1397 mm
- Minimum Opening
- 5 in
- 127 mm
- Weight
- 2860 lb
- 1297 kg
Grapples
GLL52 Forestry Grapple
- Maximum Opening
- 52 in
- 1321 mm
- Minimum Opening
- 5 in
- 127 mm
- Weight
- 2762 lb
- 1253 kg
Grapples
GLL60 Forestry Grapple
- Maximum Opening
- 60 in
- 1524 mm
- Minimum Opening
- 5 in
- 127 mm
- Weight
- 3060 lb
- 1388 kg
assignment Product Brochures and More Are Ready to Download!
Caterpillar product brochures and other informational documents are available for your growing business.
Media Gallery
Photos

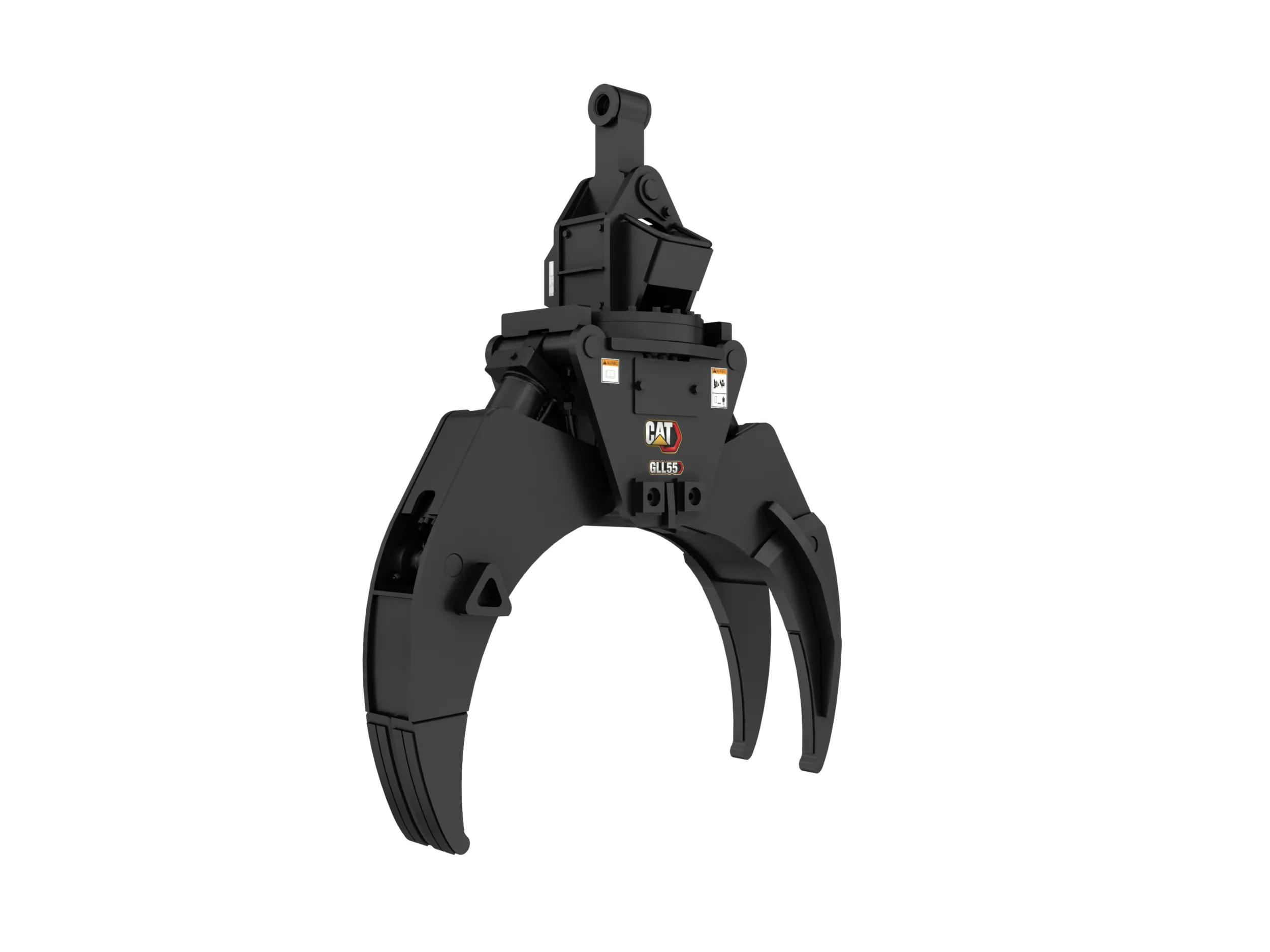

GLL55 Forestry Grapple
Grapple with Under/Under Heel grabbing logs

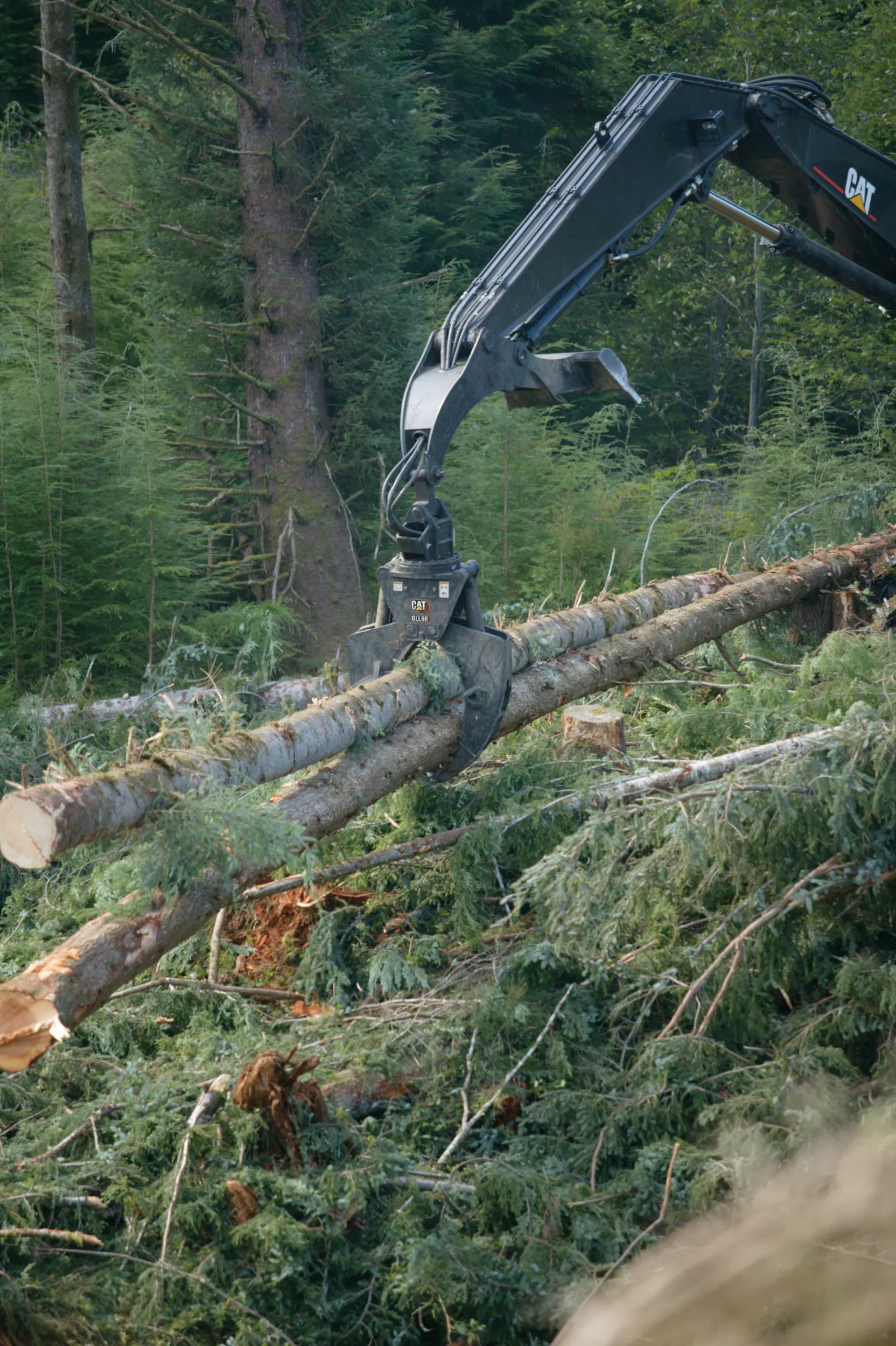

Grapple moving single log
Grapple with Under/Under Heel shoveling logs

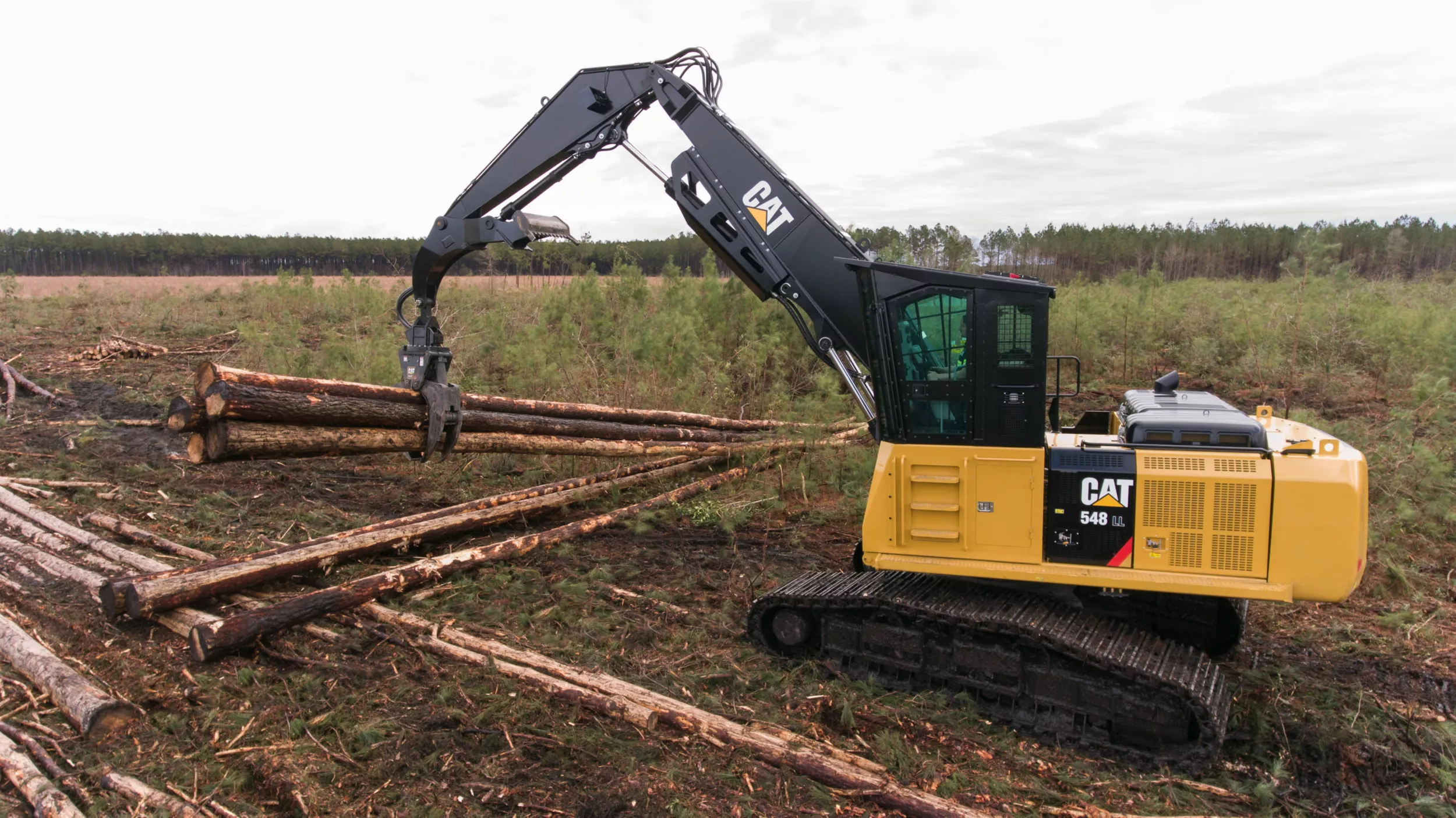

Grapple moving logs
Grapple service points are easily accessible at ground level
