Overview
Cat® Contractors' Grapples are a proven product built for your high-volume material handling needs. Designed for long-lasting durability, Contractors' Grapples are made to help you in the toughest of applications.
Contractors' Grapples G117 315-Linkage Contractors' Grapple
Request A Price Find DealerKey Specs
- Machine Class
- 15-18 Ton Excavators
- 15-18 Ton Excavators
- Weight
- 2830 lb
- 1286 kg
- Jaw Opening
- 100.6 in
- 2555 mm
Features At A Glance
Strong and Durable
- Wide surface area for demolition and material handling applications with a rigid, box-type design.
- Penetrate, securely grasp, and retain materials better with two-over-three interlocking tines.
- Keep an eye on your work with long, wide-spaced tines for better visibility.
- Tips, wrapper, and wear strips are made of AR400 steel, for long-lasting, durability in the harshest applications.
Increase Productivity
- Debris loads and unloads seamlessly without catching due to the tips mounted flush with the wrapper.
- Optimize material flow and penetration into piles with less curvature in the lower jaw.
- Maintain high-volume production when using the grapple pinned to the machine or with a Pin Grabber Coupler.
- Purpose-designed to match their respective machine sizes for maximum performance in break out and lift capacity.
- Share your grapple across similar-sized excavators for maximum utilization with the use of replaceable pins to match different linkages.
- Capacities calculated according to SAE standard J2754, an industry-leading standard for fabricated grapples.
- Optimal for applications such as: structural demolition, material handling and sorting, loading and unloading rock, scrap, pipe, waste material, and other debris.
Easy to Maintain
- No need for added hydraulics or hoses. Contractors' Grapples utilize the bucket linkages for operation.
- Long-lasting, field-serviceable tips have extended service life without extra weight.
- Jaws stay connected when the grapple pin is removed with the advanced modular pin hub system.
- Field-install an extreme duty wear package for extra protection on your grapple.
Product Specifications for G117 315-Linkage Contractors' Grapple
| Machine Class | 15-18 Ton Excavators 15-18 Ton Excavators |
| Weight | 2830 lb 1286 kg |
| Jaw Opening | 100.6 in 2555 mm |
| Inner Wrapper Thickness | 0.5 in 12 mm |
| Outer Wrapper Thickness | 0.5 in 12 mm |
| Wear Plate Thickness | 1 in 25 mm |
| Upper Jaw Tine Count | 2 2 |
| Lower Jaw Tine Count | 3 3 |
| Linkage | 315 315 |
See how G117 315-Linkage Contractors' Grapple compares against frequently compared products.
Grapples
G117 315-Linkage Contractors' Grapple
Selected
- Machine Class
- 15-18 Ton Excavators
- 15-18 Ton Excavators
- Weight
- 2830 lb
- 1286 kg
- Jaw Opening
- 100.6 in
- 2555 mm
Grapples
G113 312-Linkage Contractors' Grapple
- Machine Class
- 11-15 Ton Excavators
- 11-15 Ton Excavators
- Weight
- 1885 lb
- 857 kg
- Jaw Opening
- 86.4 in
- 2195 mm
Grapples
G120 B-Linkage Contractors' Grapple
- Machine Class
- 19-23 Ton Excavators
- 19-23 Ton Excavators
- Weight
- 3350 lb
- 1523 kg
- Jaw Opening
- 105.8 in
- 2687 mm
assignment Product Brochures and More Are Ready to Download!
Caterpillar product brochures and other informational documents are available for your growing business.
Media Gallery
Photos
Videos

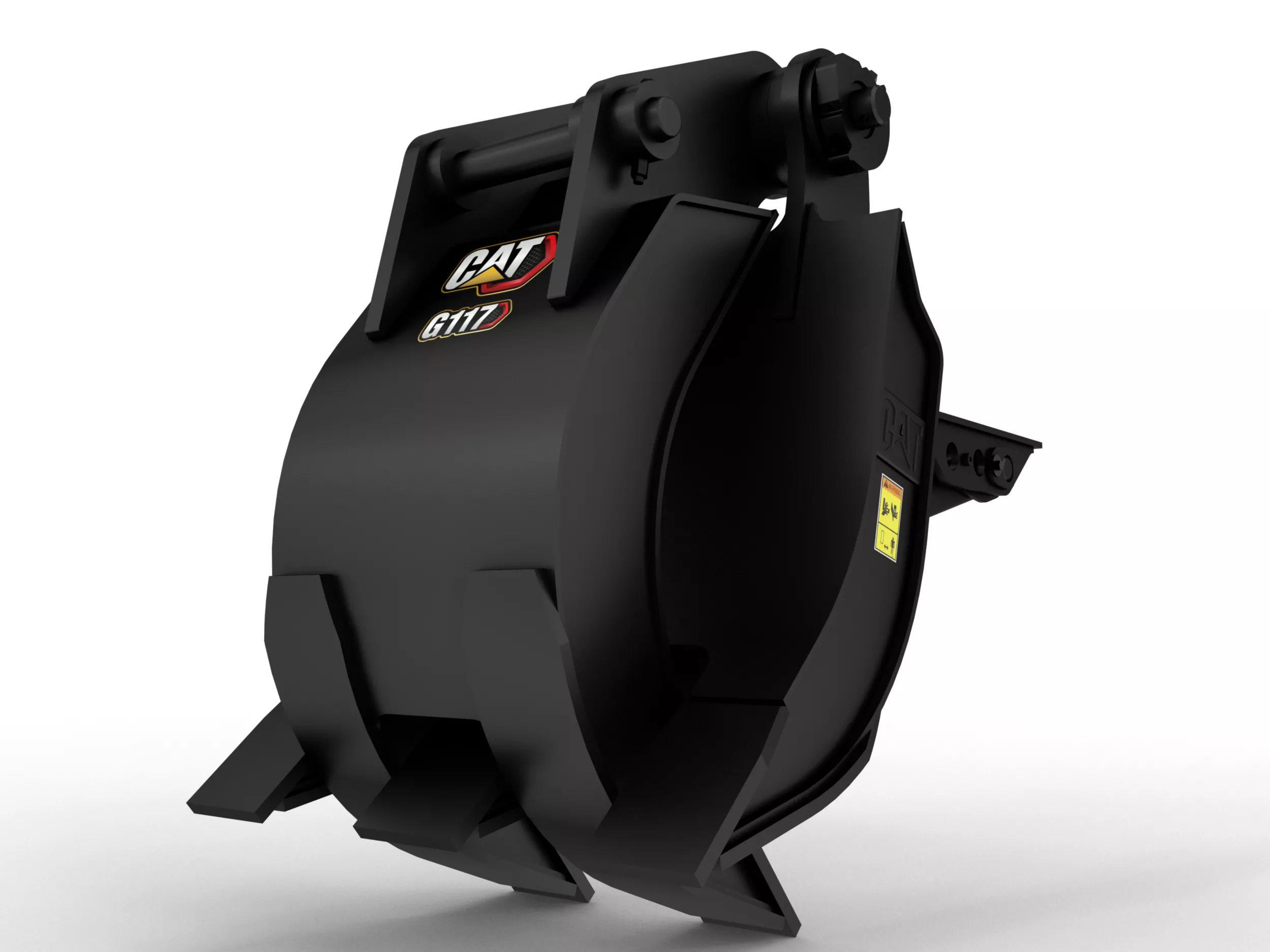

G117 315-Linkage Contractors' Grapple
