Overview
Cat® Contractors' Grapples are a proven product built for your high-volume material handling needs. Designed for long-lasting durability, Contractors' Grapples are made to help you in the toughest of applications.

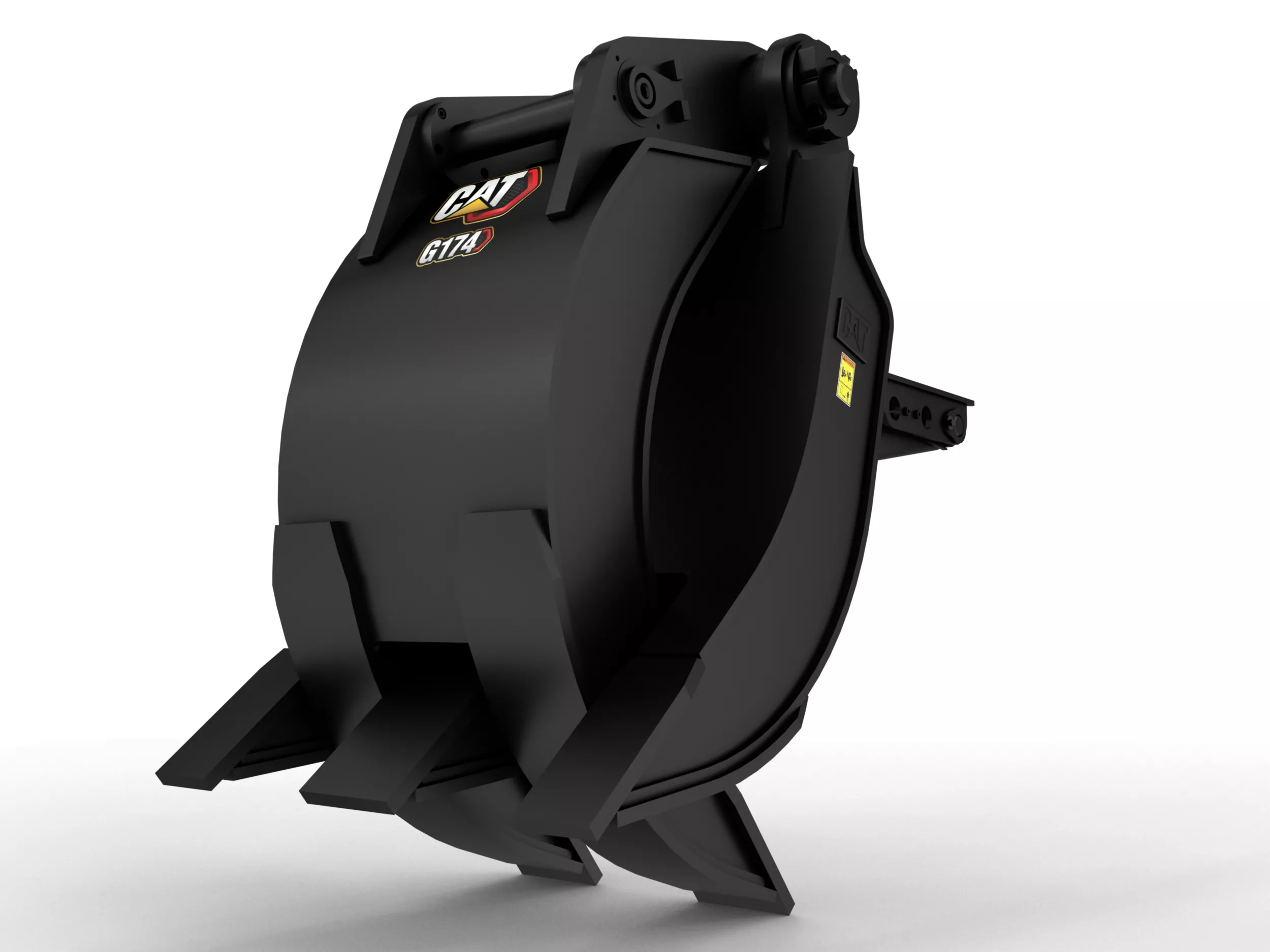

Contractors' Grapples G174 VB-Linkage Contractors' Grapple
Request A Price Find DealerKey Specs
- Machine Class
- 74 Ton Excavators
- 74 Ton Excavators
- Weight
- 8940 lb
- 4055 kg
- Jaw Opening
- 152 in
- 3860 mm
Features At A Glance
Strong and Durable
- Wide surface area for demolition and material handling applications with a rigid, box-type design.
- Penetrate, securely grasp, and retain materials better with two-over-three interlocking tines.
- Keep an eye on your work with long, wide-spaced tines for better visibility.
- Tips, wrapper, and wear strips are made of AR400 steel, for long-lasting, durability in the harshest applications.
Increase Productivity
- Debris loads and unloads seamlessly without catching due to the tips mounted flush with the wrapper.
- Optimize material flow and penetration into piles with less curvature in the lower jaw.
- Maintain high-volume production when using the grapple pinned to the machine or with a Pin Grabber Coupler.
- Purpose-designed to match their respective machine sizes for maximum performance in break out and lift capacity.
- Share your grapple across similar-sized excavators for maximum utilization with the use of replaceable pins to match different linkages.
- Capacities calculated according to SAE standard J2754, an industry-leading standard for fabricated grapples.
- Optimal for applications such as: structural demolition, material handling and sorting, loading and unloading rock, scrap, pipe, waste material, and other debris.
Easy to Maintain
- No need for added hydraulics or hoses. Contractors' Grapples utilize the bucket linkages for operation.
- Long-lasting, field-serviceable tips have extended service life without extra weight.
- Jaws stay connected when the grapple pin is removed with the advanced modular pin hub system.
- Field-install an extreme duty wear package for extra protection on your grapple.
Product Specifications for G174 VB-Linkage Contractors' Grapple
| Machine Class | 74 Ton Excavators 74 Ton Excavators |
| Weight | 8940 lb 4055 kg |
| Jaw Opening | 152 in 3860 mm |
| Inner Wrapper Thickness | 1 in 25 mm |
| Outer Wrapper Thickness | 1 in 25 mm |
| Wear Plate Thickness | 1.2 in 30 mm |
| Upper Jaw Tine Count | 2 2 |
| Lower Jaw Tine Count | 3 3 |
| Linkage | VB VB |
See how G174 VB-Linkage Contractors' Grapple compares against frequently compared products.
Grapples
G174 VB-Linkage Contractors' Grapple
Selected
- Machine Class
- 74 Ton Excavators
- 74 Ton Excavators
- Weight
- 8940 lb
- 4055 kg
- Jaw Opening
- 152 in
- 3860 mm
Grapples
G149 TB-Linkage Contractors' Grapple
- Machine Class
- 30-52 Ton Excavators
- 30-52 Ton Excavators
- Weight
- 6724 lb
- 3050 kg
- Jaw Opening
- 135.2 in
- 3433 mm
Grapples
G136 DB-Linkage Contractors' Grapple
- Machine Class
- 24-40 Ton Excavators
- 24-40 Ton Excavators
- Weight
- 5130 lb
- 2332 kg
- Jaw Opening
- 126.9 in
- 3223 mm
assignment Product Brochures and More Are Ready to Download!
Caterpillar product brochures and other informational documents are available for your growing business.
Media Gallery
Photos
Videos
G174 VB-Linkage Contractors' Grapple
Open Grapple
Contractors' Grapple loading scrap
Contractors' Grapple loading scrap
Contractors' Grapple loading scrap
Contractors' Grapple clearing trash materials
Contractors' Grapple unloading into a bin
