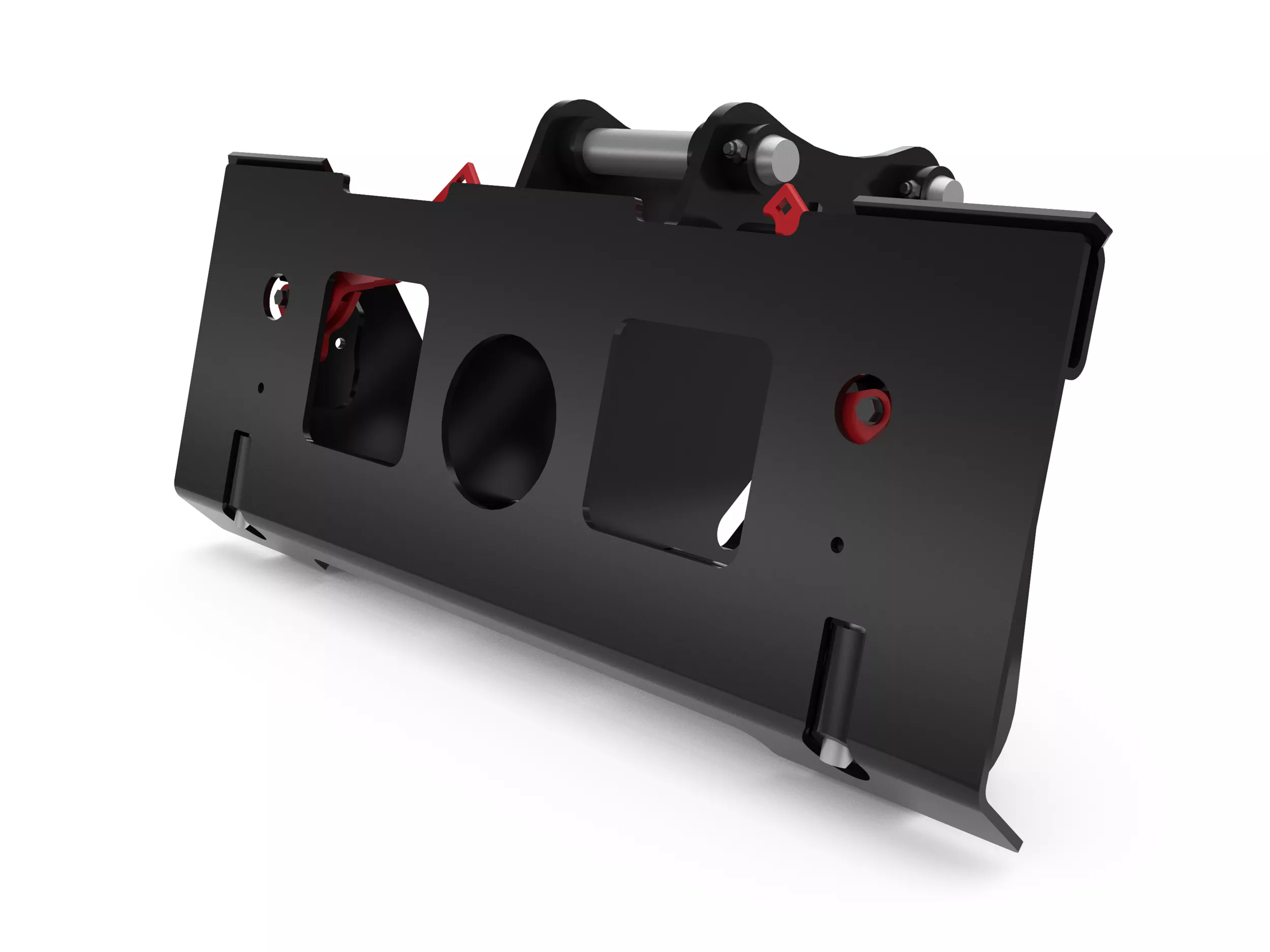

Adapters 5 - 7 Ton Excavator Class

Request A Price Shop Now

Key Specs

Weight: 262.3 lb; 119 kg

Width: 44.3 in; 1125 mm

Overall Length: 18.7 in; 476 mm

5 - 7 Ton Excavator Class
Change model

Overview

Coupler adapters for connecting to Cat® Skid Steer interfaces.

Features At A Glance

Displaying 1-6 of 7

Application

Designed to allow the use of approved Skid Steer Loader attachments on Mini Hydraulic Excavators.

Bolt-On Hose Guide

Provided to help guide hydraulic hoses when using approved hydro-mechanical attachments with the coupler. Can be mounted on either side of the adapter to accommodate your specific tools and needs.

Cross Tube Reinforced Design

Reinforced cross tube design provides the needed stability to operate a wide range of approved attachments.

Open Frame

The open frame design provides visibility to attachments to aid in safer and easier coupling operation of attachments.

Integrated Stand

When not in use, the integrated stand keeps the adapter in an upright position. This helps maintain keeping it in the correct position for attachment to your machine either by pinning on, or by quick coupler.

Pins Included

All Mini Hydraulic Excavator to Skid Steer Loader adapters come complete with a set of pins.

Designed to allow the use of approved Skid Steer Loader attachments on Mini Hydraulic Excavators.

Provided to help guide hydraulic hoses when using approved hydro-mechanical attachments with the coupler. Can be mounted on either side of the adapter to accommodate your specific tools and needs.

Reinforced cross tube design provides the needed stability to operate a wide range of approved attachments.

The open frame design provides visibility to attachments to aid in safer and easier coupling operation of attachments.

All Mini Hydraulic Excavator to Skid Steer Loader adapters come complete with a set of pins.

5 Ton version approved attachments: General Purpose Buckets, Bale Spears, and Class II Forks.

Product Specifications for 5 - 7 Ton Excavator Class

Weight	262.3 lb 119 kg
Width	44.3 in 1125 mm
Overall Length	18.7 in 476 mm
Overall Height	21.9 in 557 mm
Pin Diameter	1.8 in 45 mm
Excavator Class	5 Ton - 7 Ton 5 Ton - 7 Ton
Interface Type	Pin On Pin On
Coupler Type	Adapts to Skid Steer Coupler Adapts to Skid Steer Coupler
Required Hydraulics	None None

Product Specifications for 5 - 7 Ton Excavator Class

Download Print

Weight	262.3 lb 119 kg
Width	44.3 in 1125 mm
Overall Length	18.7 in 476 mm
Overall Height	21.9 in 557 mm
Pin Diameter	1.8 in 45 mm
Excavator Class	5 Ton - 7 Ton 5 Ton - 7 Ton
Interface Type	Pin On Pin On
Coupler Type	Adapts to Skid Steer Coupler Adapts to Skid Steer Coupler
Required Hydraulics	None None
