Key Specs

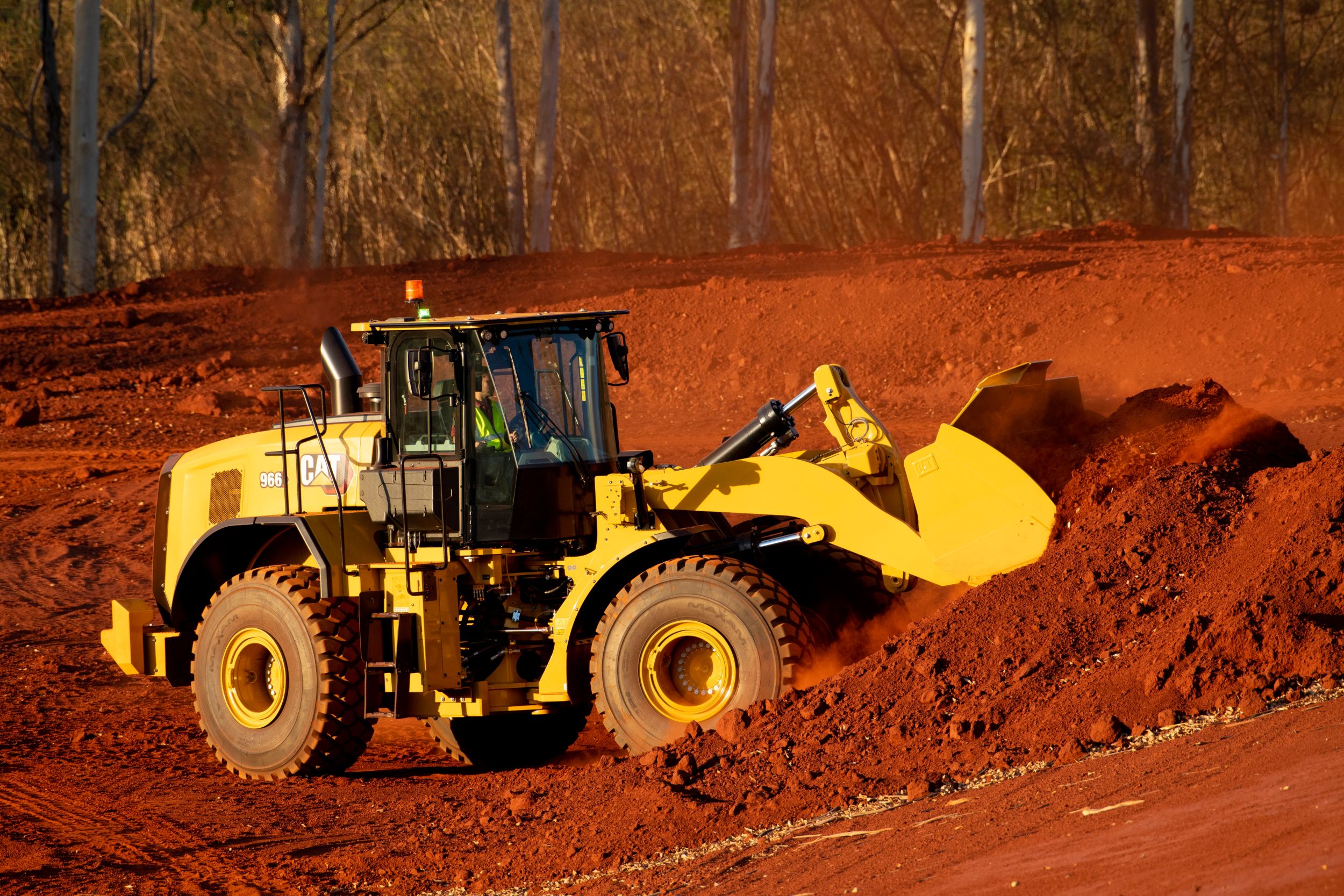

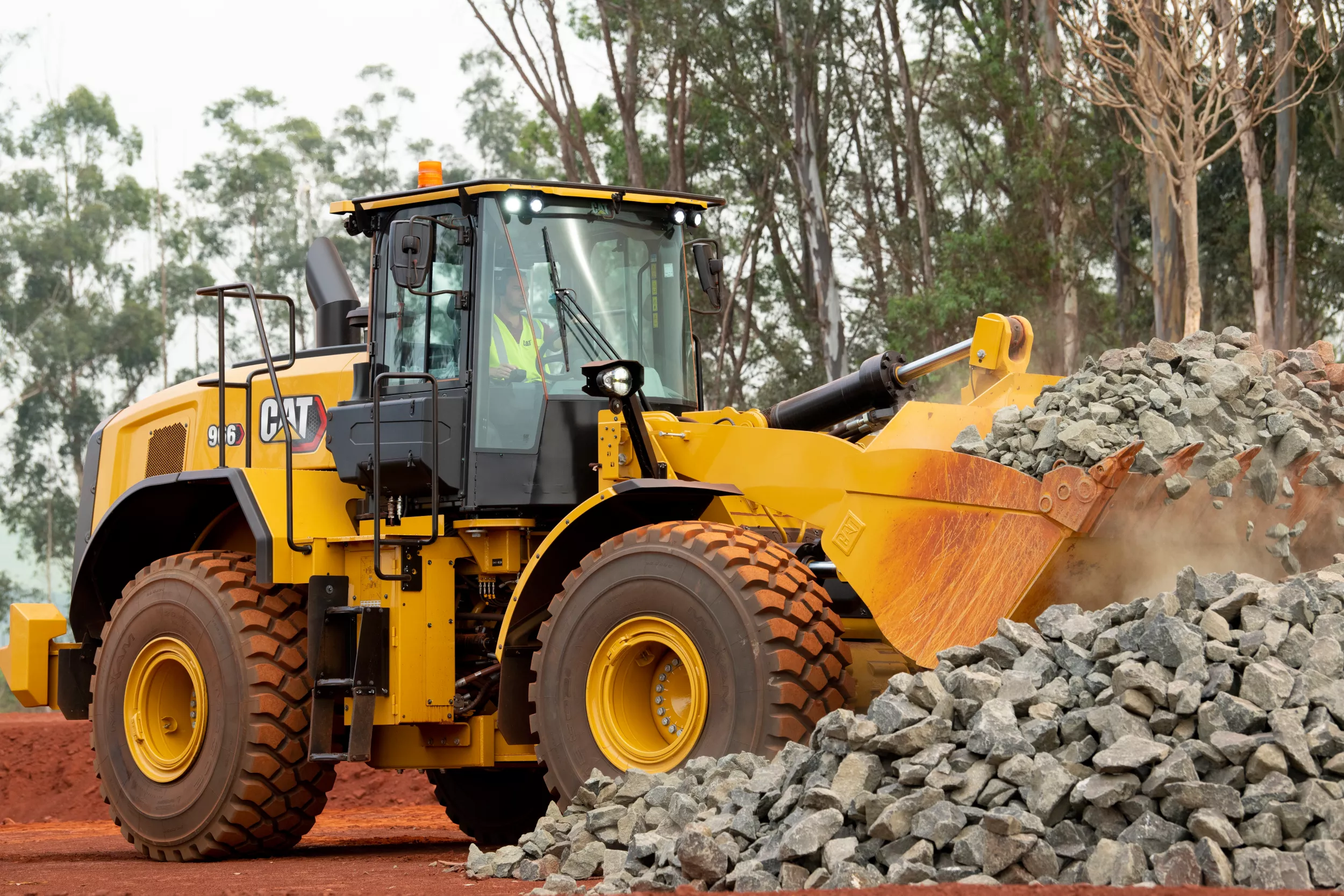

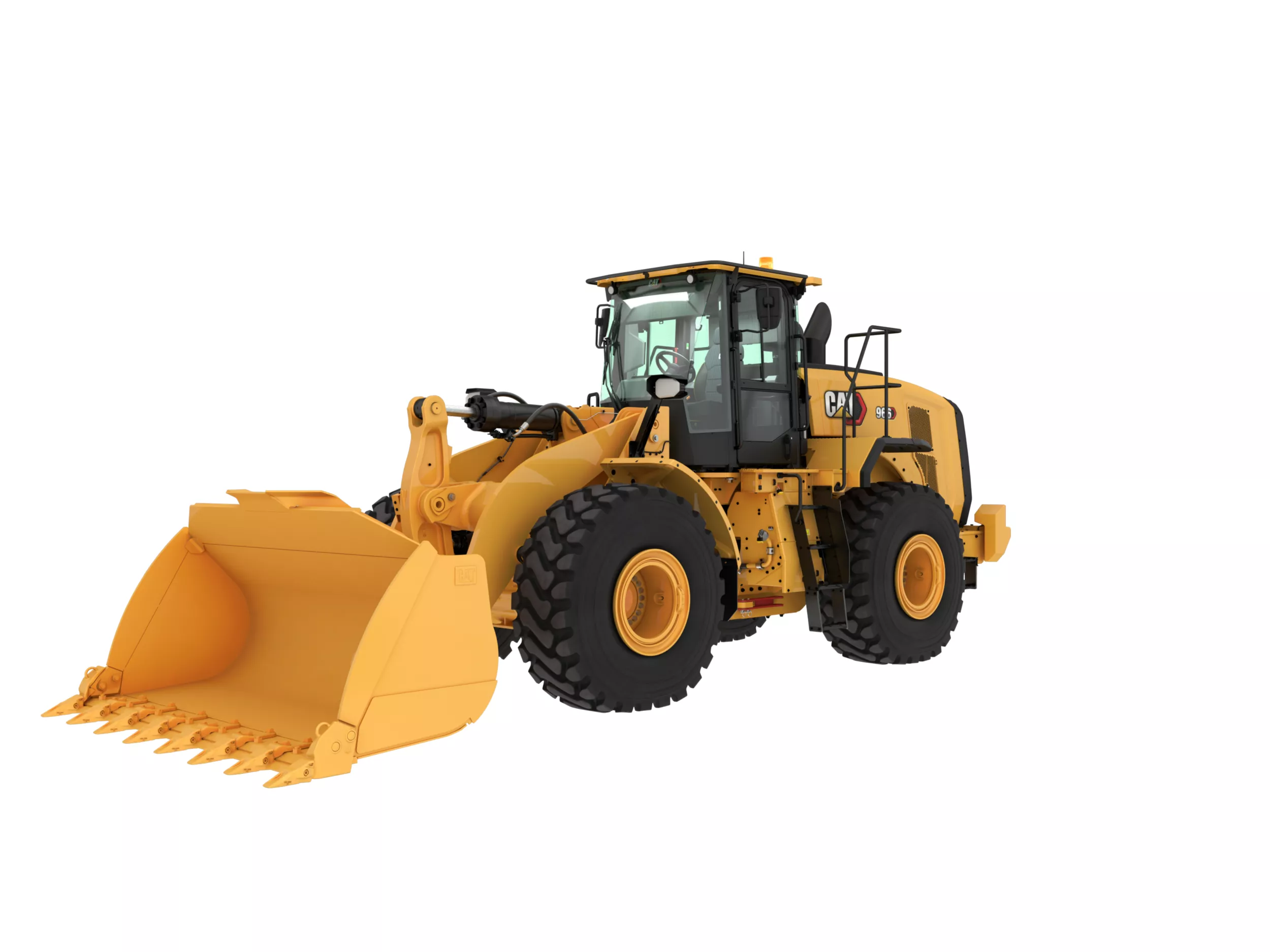

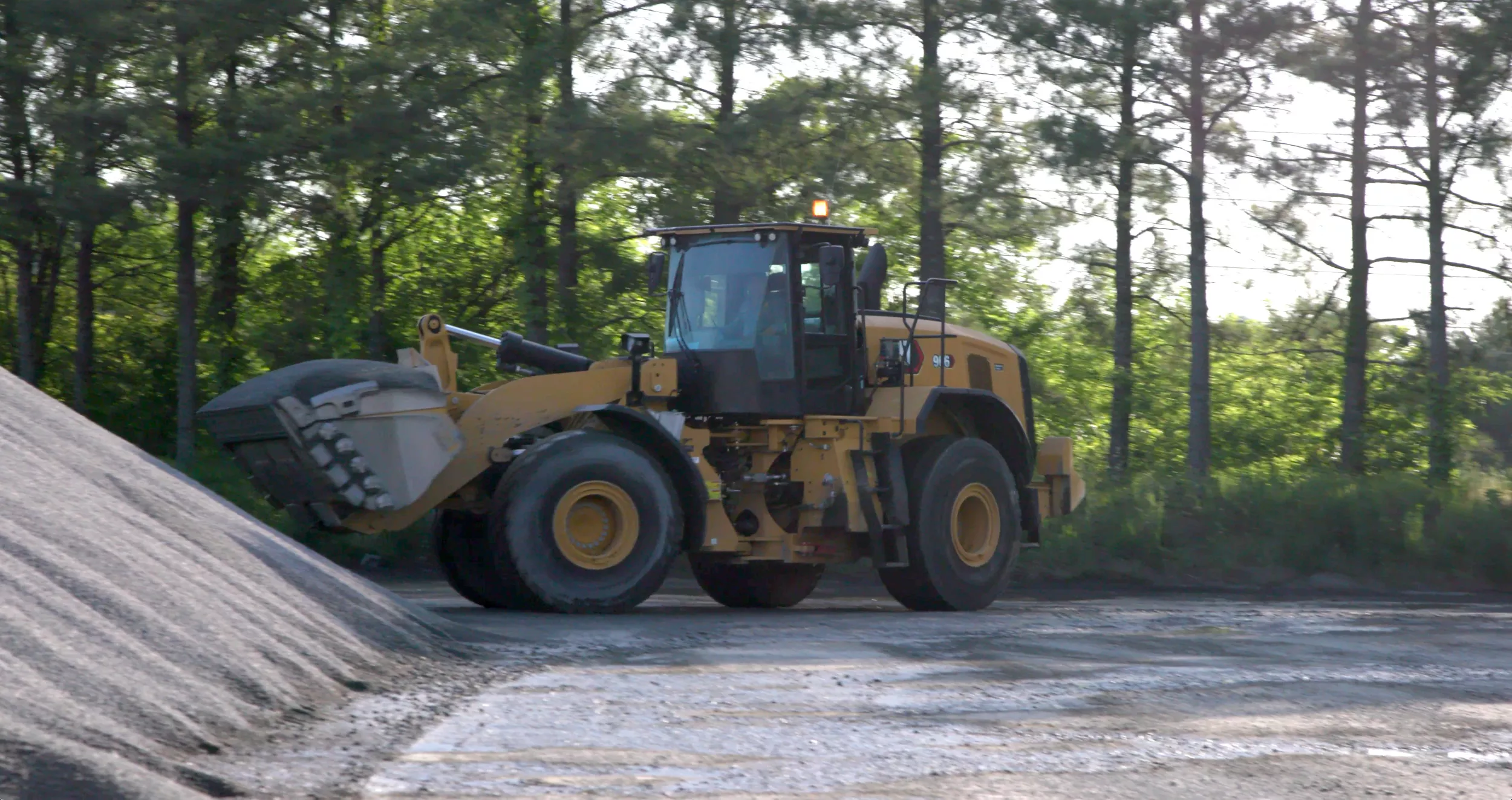

The Cat® 966 is a versatile wheel loader with an operating weight of 51,124 lb (23 196 kg). Designed for quarry, aggregate, construction and material handling applications, it delivers the productivity and efficiency needed to lower cost per ton.

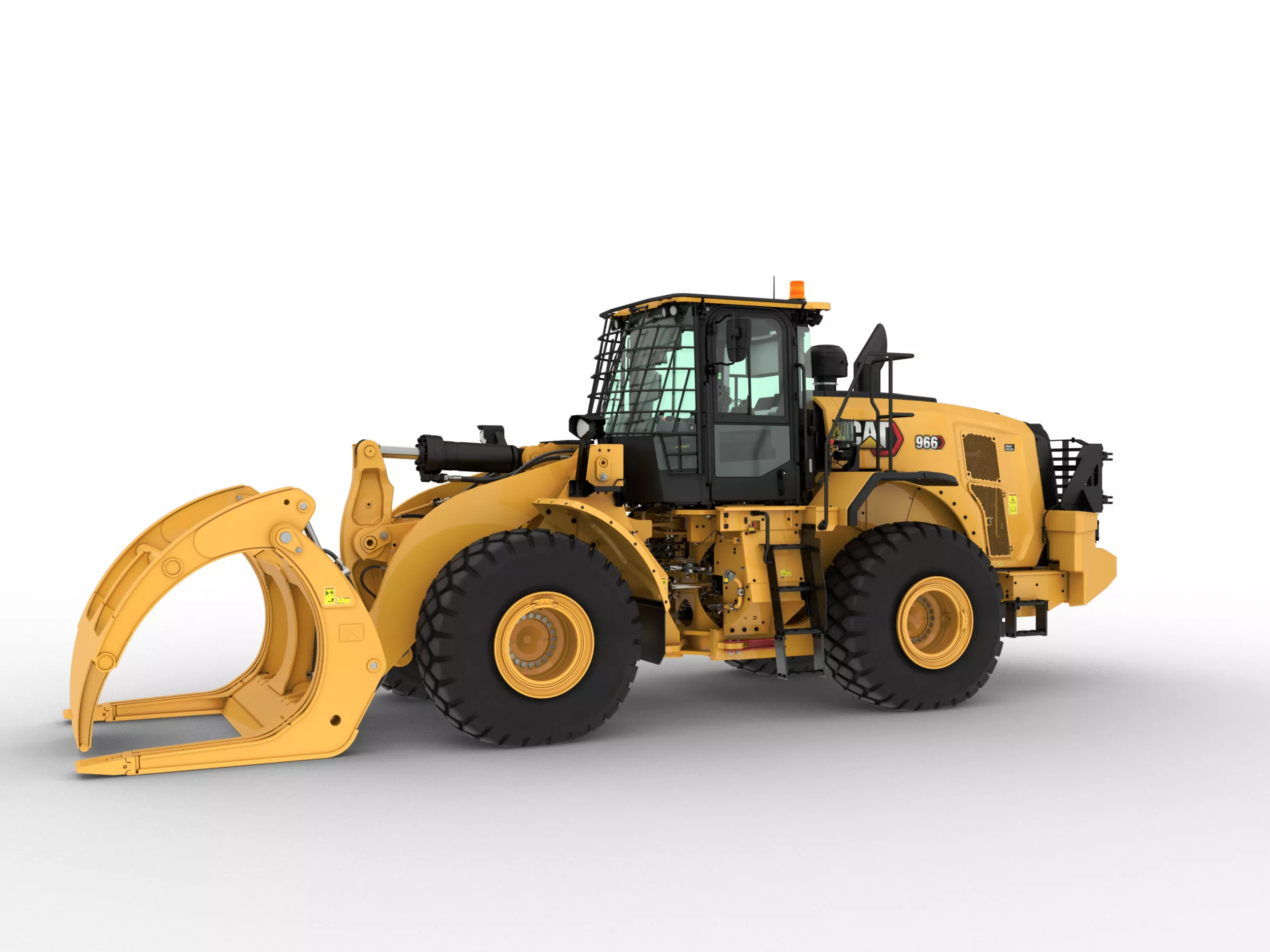

Intelligent machine features and flexible configurations help improve productivity, simplify operation and reduce downtime.

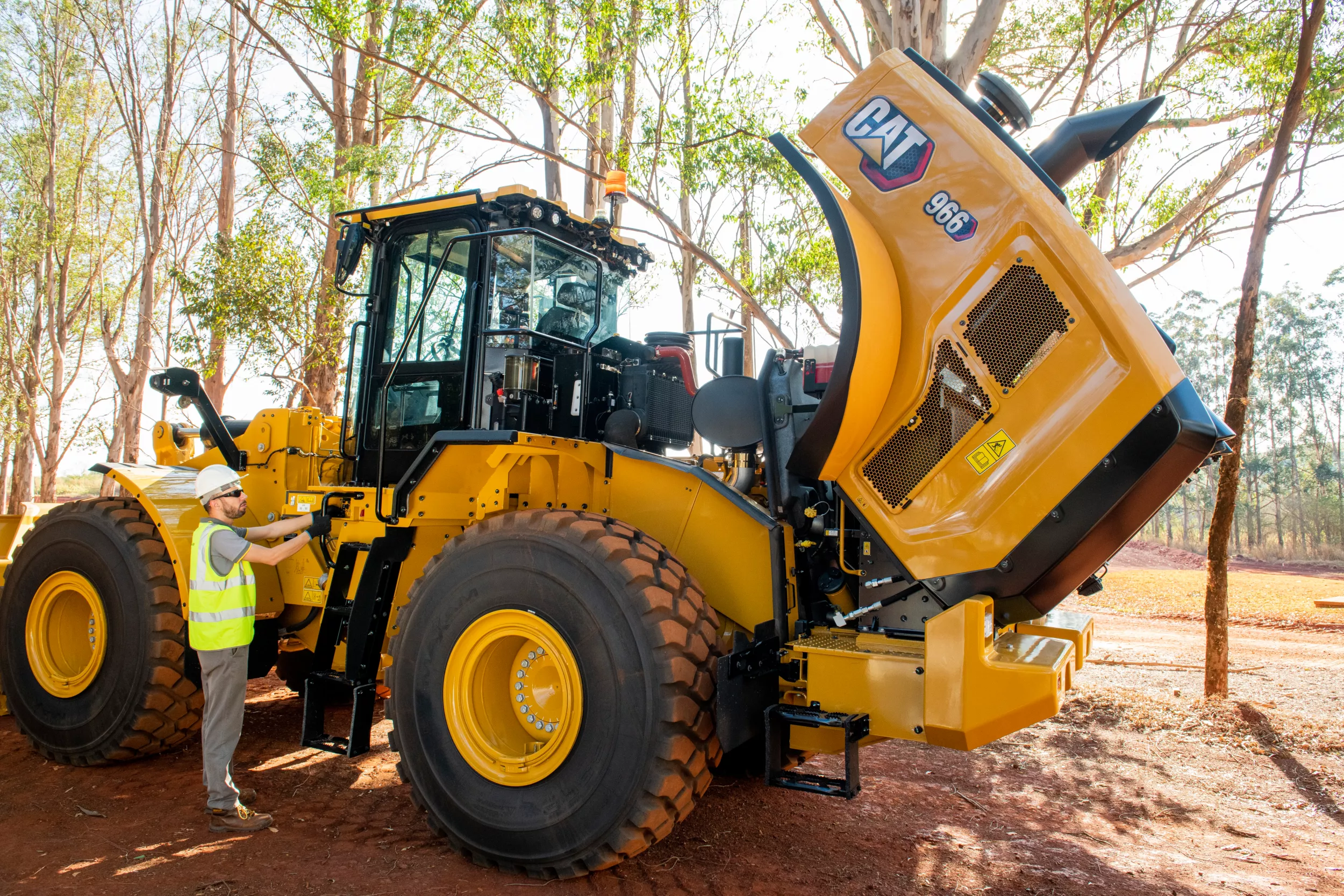

Reduce operating costs and maximize uptime with Remote Services, tire monitoring and Cat Advanced Payload.

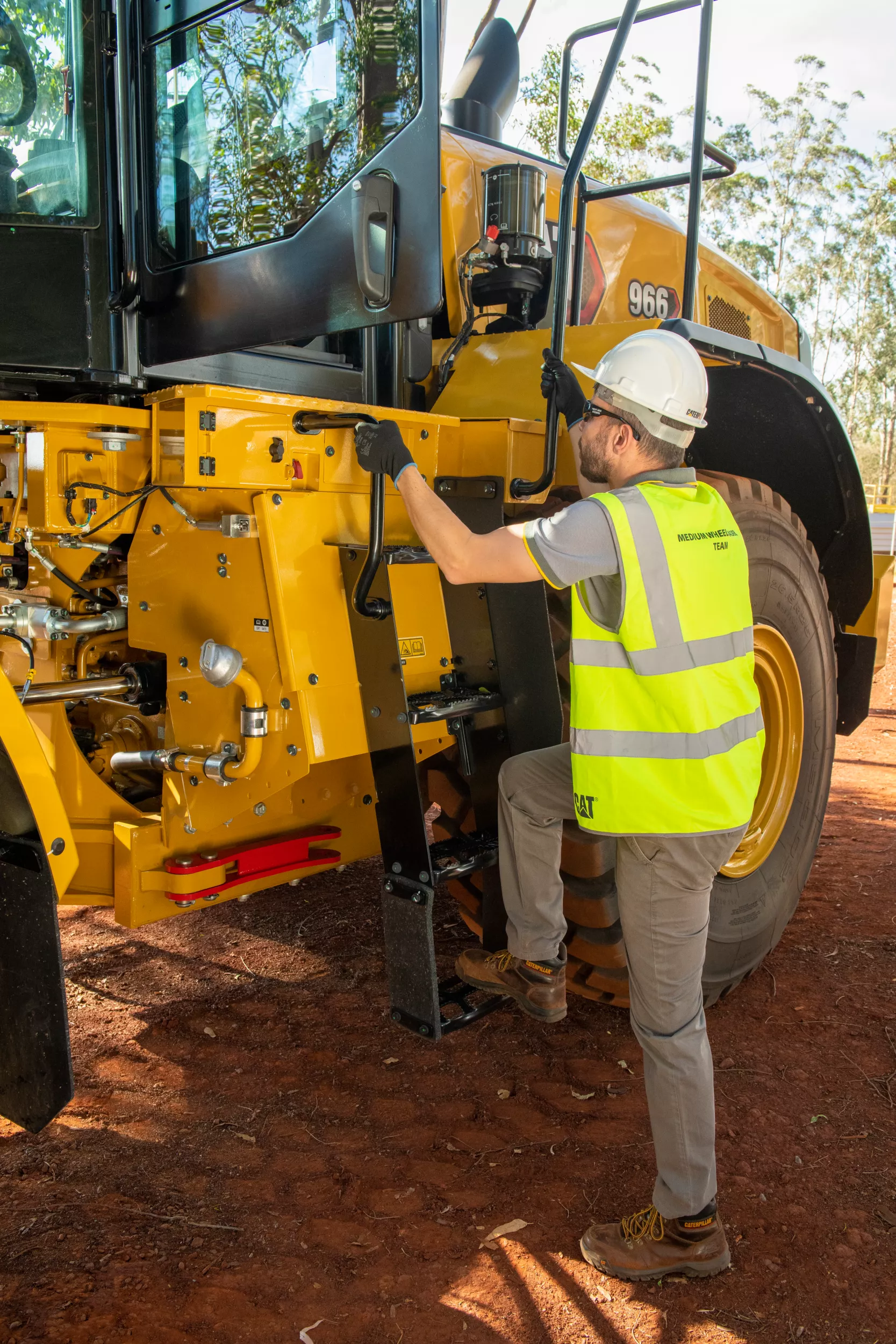

Advanced vision systems, object detection, collision warnings, and remote operation capabilities help improve jobsite safety, operator awareness and risk management.
Displaying 1-6 of 9
| Engine Power - 1,600 rpm ISO 14396:2002 | 321 hp 239 kW |
| Engine Power - 1,600 rpm ISO 14396:2002 | 325 hp (metric) 325 hp (metric) |
| Engine Model | Cat® C9.3B Cat® C9.3B |
| Gross Power - 1,600 rpm SAE J1995:2014 | 325 hp 242 kW |
| Gross Power - 1,600 rpm SAE J1995:2014 | 329 hp (metric) 329 hp (metric) |
| Net Power - 1,600 rpm ISO 9249:2007, SAE J1349:2011 | 302 hp 222 kW |
| Net Power - 1,600 rpm ISO 9249:2007, SAE J1349:2011 | 302 hp (metric) 302 hp (metric) |
| Engine Torque - 1,200 rpm ISO 14396:2002 | 1313 lbf·ft 1781 N·m |
| Gross Torque - 1,200 rpm SAE J1995:2014 | 1327 lbf·ft 1799 N·m |
| Net Torque - 1,200 rpm ISO 9249:2007, SAE J1349:2011 | 1255 lbf·ft 1702 N·m |
| Displacement | 567.5 in³ 9.3 l |
| Emissions | Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, China Nonroad Stage IV and Japan 2014 emission standards. Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, China Nonroad Stage IV and Japan 2014 emission standards. |
| Biodiesel Capability | Up to B20¹ Up to B20¹ |
| Note (2) | ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels**up to: 20% biodiesel FAME (fatty acid methyl ester) ***100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or "Caterpillar Machine Fluids Recommendations" (SEBU6250) for details. *While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. ***Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels**up to: 20% biodiesel FAME (fatty acid methyl ester) ***100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or "Caterpillar Machine Fluids Recommendations" (SEBU6250) for details. *While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. ***Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). |
| Gross Torque @ 1,200 rpm – SAE J1995:2014 | 1327 lb/ft 1799 N·m |
| Engine Torque @ 1,200 rpm – ISO 14396:2002 | 1313 lb/ft 1781 N·m |
| Note (3) | Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: • 20% biodiesel FAME (fatty acid methyl ester)* • 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to- liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: • 20% biodiesel FAME (fatty acid methyl ester)* • 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to- liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. |
| Displacement | 9.3 L 9.3 L |
| Operating Weight | 51124 lb 23196 kg |
| Note | Weight based on a machine configuration with Z-bar linkage, Bridgestone 26.5R25 VJT L3 radial tires, full fluids, operator, standard counterweight, ride control, cold start, roading fenders, Product Link™, front manual differential/open rear axles, powertrain guard, secondary steering, sound suppression, and a 4.2 m³ (5.5 yd³) general purpose bucket with BOCE. Weight based on a machine configuration with Z-bar linkage, Bridgestone 26.5R25 VJT L3 radial tires, full fluids, operator, standard counterweight, ride control, cold start, roading fenders, Product Link™, front manual differential/open rear axles, powertrain guard, secondary steering, sound suppression, and a 4.2 m³ (5.5 yd³) general purpose bucket with BOCE. |
| Forward - 1 | 4.2 mile/h 6.7 km/h |
| Forward - 2 | 8.4 mile/h 13.5 km/h |
| Forward - 3 | 15 mile/h 24.2 km/h |
| Forward - 4 | 24.5 mile/h 39.5 km/h |
| Reverse - 1 | 4.5 mile/h 7.3 km/h |
| Reverse - 2 | 9.2 mile/h 14.8 km/h |
| Reverse - 3 | 16.5 mile/h 26.6 km/h |
| Reverse - 4 | 24.5 mile/h 39.5 km/h |
| Note | Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 849 mm (33 in) roll radius. Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 849 mm (33 in) roll radius. |
| Operator Sound Pressure Level - ISO 6396:2008 | 70 dB(A) 70 dB(A) |
| Exterior Sound Power Level - ISO 6395:2008 | 109 dB(A) 109 dB(A) |
| Operator Sound Pressure Level - ISO 6396:2008 ¹ | 69 dB(A) 69 dB(A) |
| Exterior Sound Power Level - ISO 6395:2008² | 108 dB(A) 108 dB(A) |
| Note (1) | ¹Including countries that adopt the EU and UK Directives. ¹Including countries that adopt the EU and UK Directives. |
| Note (2) | ²Exterior Sound Power Level - European Union Directive 2000/14/EC and UK Noise Regulation 2001 No. 1701. ²Exterior Sound Power Level - European Union Directive 2000/14/EC and UK Noise Regulation 2001 No. 1701. |
| With Cooling Fan Speed at Maximum Value - Note | Distance of 15 m (49.2 ft), moving forward in second gear ratio. Distance of 15 m (49.2 ft), moving forward in second gear ratio. |
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.600 kg (3.5 lb) of refrigerant, which has a CO2 equivalent of 2.288 metric tonnes (2.522 tons). - If equipped with R1234yf (Global Warming Potential = 0.501), the system contains 1.389 kg (3.1 lb) of refrigerant, which has a CO2 equivalent of .001 metric tonnes (1.10 tons). The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.600 kg (3.5 lb) of refrigerant, which has a CO2 equivalent of 2.288 metric tonnes (2.522 tons). - If equipped with R1234yf (Global Warming Potential = 0.501), the system contains 1.389 kg (3.1 lb) of refrigerant, which has a CO2 equivalent of .001 metric tonnes (1.10 tons). |
| Static Tipping Load - Full 37° Turn | 32727 lb 14849 kg |
| Static Tipping Load - Full 37° Turn - No Tire Deflection | 35224 lb 15981 kg |
| Breakout Force | 38999 lbf 174 kN |
| Note | For a machine configuration as defined under “Weight.” For a machine configuration as defined under “Weight.” |
| Note (1) | Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing. Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing. |
| Fuel Tank | 80.1 gal (US) 303 l |
| DEF Tank | 6.9 gal (US) 26 l |
| Cooling System | 17.4 gal (US) 66 l |
| Crankcase | 6.1 gal (US) 23 l |
| Transmission | 15.5 gal (US) 58.5 l |
| Differential - Final Drives - Front | 15.1 gal (US) 57 l |
| Hydraulic Tank | 30.1 gal (US) 114 l |
| Implement System - Maximum Pump Output at 2,275 rpm | 99 gpm 373 L/min |
| Implement System - Maximum Operating Pressure | 4496 psi 31000 kPa |
| Hydraulic Cycle Time - Total | 10.1 s 10.1 s |
| Hydraulic Cycle Time - Total | 10.1 seconds 10.1 seconds |
| Height - Top of Hood | 9.42 ft 2850 mm |
| Height - Top of ROPS | 11.83 ft 3593 mm |
| Ground Clearance | 1.33 ft 424 mm |
| Wheel Base | 11.67 ft 3550 mm |
| Overall Length - Without Bucket | 24.33 ft 7399 mm |
| Hinge Pin Height at Carry Height | 2 ft 635 mm |
| Hinge Pin Height at Maximum Lift | 13.92 ft 4245 mm |
| Lift Arm Clearance at Maximum Lift | 12.08 ft 3687 mm |
| Rack Back - Maximum Lift | 62 ° 62 ° |
| Rack Back - Carry Height | 50 ° 50 ° |
| Width over Tires (Loaded) | 9.92 ft 3012 mm |
| Tread Width | 7.25 ft 2230 mm |
| Note | All dimensions are approximate and based on machine equipped with 4.2 m³ (5.5 yd³) general purpose bucket with BOCE and Bridgestone 26.5R25 VJT L3 radial tires. All dimensions are approximate and based on machine equipped with 4.2 m³ (5.5 yd³) general purpose bucket with BOCE and Bridgestone 26.5R25 VJT L3 radial tires. |
| Rack Back - Maximum Lift | 62 degrees 62 degrees |
| Rack Back - Carry Height | 50 degrees 50 degrees |
| Rack Back at Ground | 39 degrees 39 degrees |
| Height - Top of Hood | 9.42 ft 2850 mm |
| Height - Top of ROPS | 11.83 ft 3593 mm |
| Ground Clearance | 1.33 ft 424 mm |
| Wheel Base | 11.67 ft 3550 mm |
| Overall Length - Without Bucket | 26.5 ft 8069 mm |
| Hinge Pin Height at Carry Height | 2.5 ft 782 mm |
| Hinge Pin Height at Maximum Lift | 15.75 ft 4804 mm |
| Lift Arm Clearance at Maximum Lift | 13.67 ft 4183 mm |
| Rack Back - Maximum Lift | 71 ° 71 ° |
| Rack Back - Carry Height | 49 ° 49 ° |
| Width over Tires (Loaded) | 9.92 ft 3012 mm |
| Tread Width | 7.25 ft 2230 mm |
| Note | All dimensions are approximate and based on machine equipped with 4.2 m³ (5.5 yd³) general purpose bucket with BOCE and Bridgestone 26.5R25 VJT L3 radial tires. All dimensions are approximate and based on machine equipped with 4.2 m³ (5.5 yd³) general purpose bucket with BOCE and Bridgestone 26.5R25 VJT L3 radial tires. |
| Rack Back - Maximum Lift | 71 degrees 71 degrees |
| Rack Back - Carry Height | 49 degrees 49 degrees |
| Rack Back at Ground | 37 degrees 37 degrees |
Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.
Cat® Command Remote Control enables operators to control Caterpillar construction equipment from a safe distance, helping improve job site safety, productivity, and operational flexibility. Whether working in hazardous environments, demolition sites, steep terrain, or areas with restricted access, Cat Command technology keeps operators away from potential risks while maintaining precise machine control.
Cat® Command Remote Control enables operators to control Caterpillar construction equipment from a safe distance, helping improve job site safety, productivity, and operational flexibility. Whether working in hazardous environments, demolition sites, steep terrain, or areas with restricted access, Cat Command technology keeps operators away from potential risks while maintaining precise machine control.
Cat Detect - Collision Mitigation System is an operator assist feature designed to enhance situational awareness when reversing the machine. It utilizes an integrated and intelligent sensor array to provide reverse collision warnings, detect people, inhibit motion, and enable automatic emergency braking. Additionally, visibility into event data and safety trends is available through VisionLink™.
Rear Object Detection for wheel loaders is a two-part system providing enhanced blind spot awareness. Radar provides visual and audible alerts when objects enter a safety proximity zone, while a camera allows the operator to see what's behind the machine when reversing.
Cat Detect - Collision Mitigation System is an operator assist feature designed to enhance situational awareness when reversing the machine. It utilizes an integrated and intelligent sensor array to provide reverse collision warnings, detect people, inhibit motion, and enable automatic emergency braking. Additionally, visibility into event data and safety trends is available through VisionLink™.
Rear Object Detection for wheel loaders is a two-part system providing enhanced blind spot awareness. Radar provides visual and audible alerts when objects enter a safety proximity zone, while a camera allows the operator to see what's behind the machine when reversing.
VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.
VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.
Cat® Payload technologies provide on-the-go weighing to help operators hit exact targets, everytime and avoid overloading, underloading or misloading materials.
Cat® Payload technologies provide on-the-go weighing to help operators hit exact targets, everytime and avoid overloading, underloading or misloading materials.
