Key Specs
The Cat® D6 XE is the world’s first Electric Drive bulldozer. With an operating weight of 24 to 27 tons, this medium-sized bulldozer is designed for applications such as earthmoving, road construction, and land clearing.
The Cat D6 XE's advanced electric drive technology and fuel-efficient performance helps reduce operating costs and maximize productivity.
[]

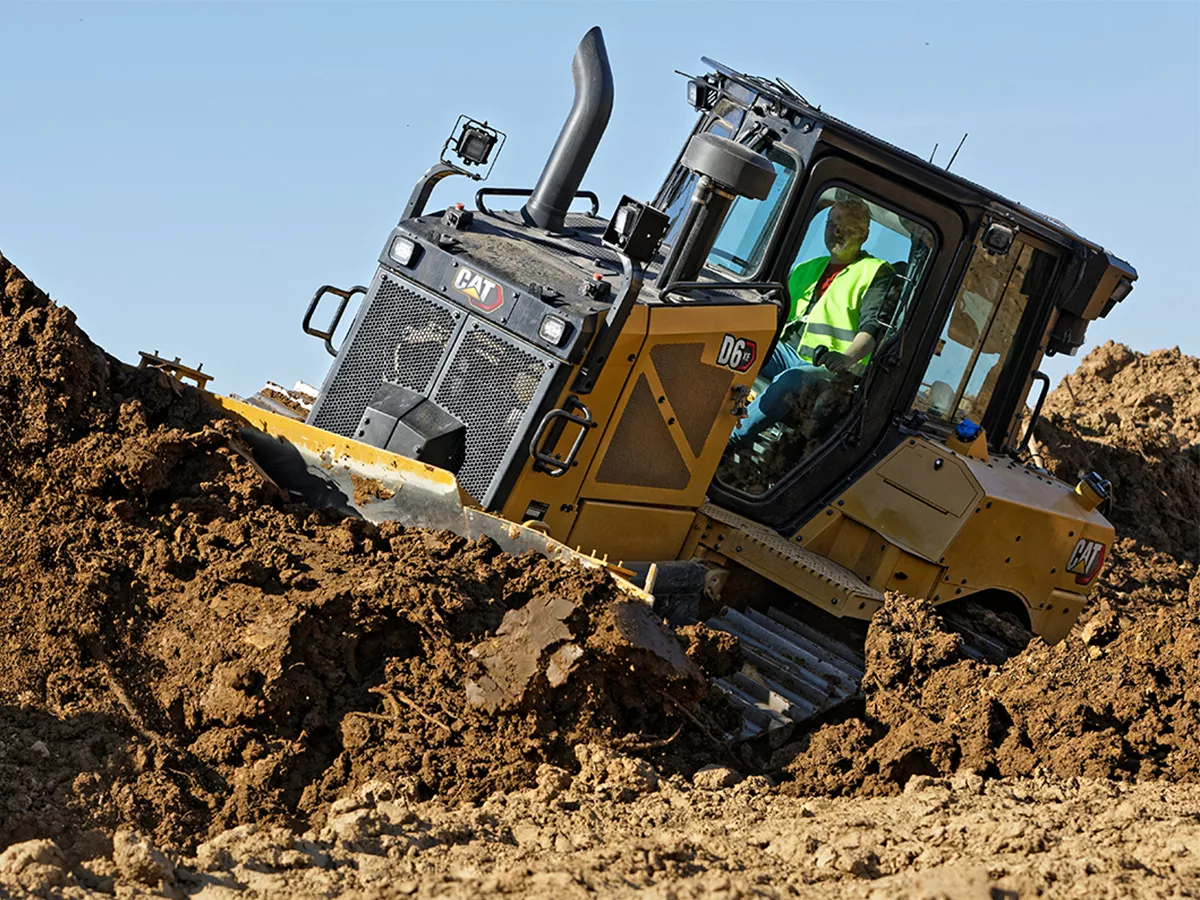

Electric Drive increases productivity and significantly lowers fuel consumption.
Reduce operating costs with fewer moving parts and longer service intervals.

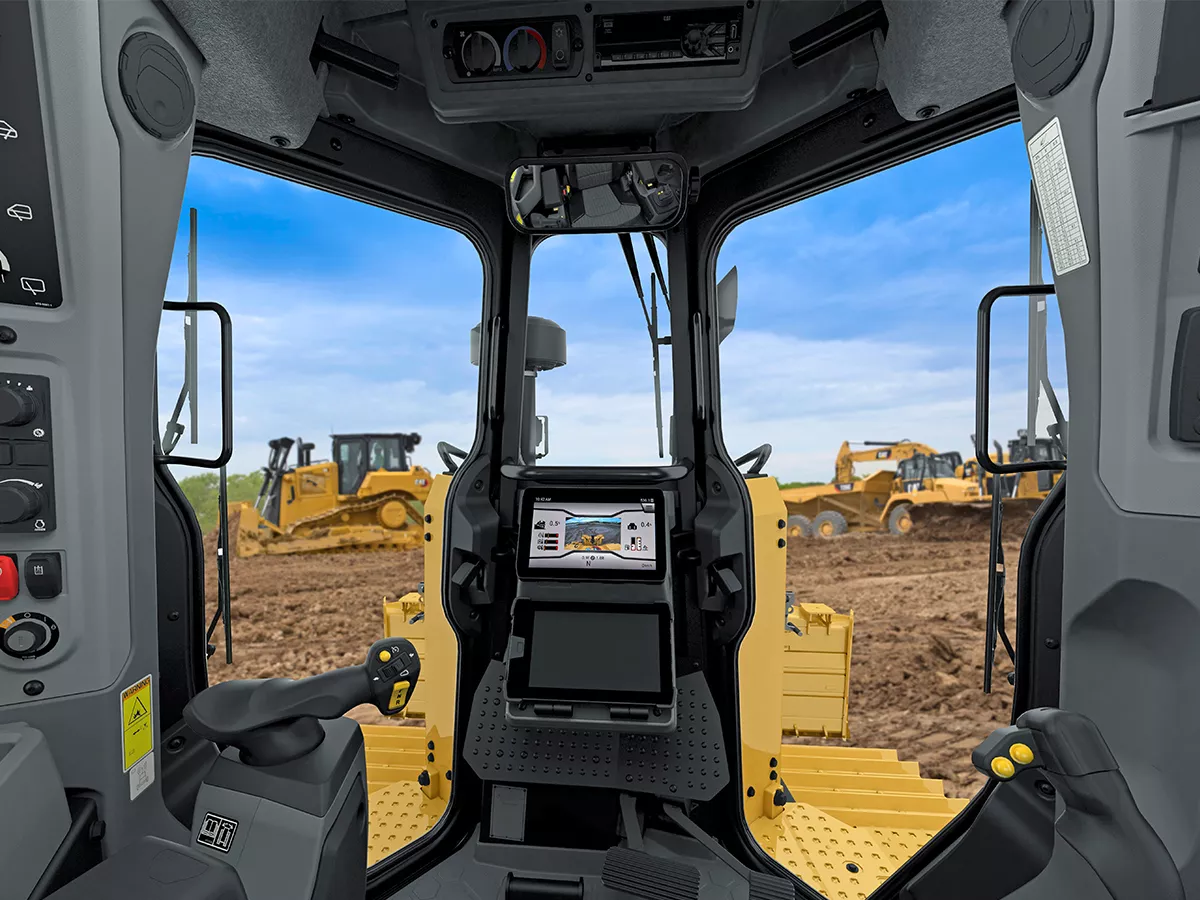

Cat technology improves ease of operation for operators of all skill levels.
Displaying 1-6 of 6
| Engine Model | Cat C9.3B Cat C9.3B |
| Power - Net | 215 hp 161 kW |
| Net Power - Rated - ISO 9249/SAE J1349 | 215 hp 161 kW |
| Net Power (Rated) - ISO 9249 (DIN) | 219 mhp 219 mhp |
| Emissions | U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V |
| Note (1) | Rated horsepower at 1,700 rpm. Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. Advertised power is tested per the specified standard in effect at the time of manufacture. Rated horsepower at 1,700 rpm. Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note (2) | Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) ** or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. ** Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) ** or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. ** Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). |
| Note (3) | Basic machine specs provided below. For complete specifications and dimensions by configuration, blade and track shoe offerings and more, please visit the product download section to view the full Technical Specifications document. Basic machine specs provided below. For complete specifications and dimensions by configuration, blade and track shoe offerings and more, please visit the product download section to view the full Technical Specifications document. |
| Note (4) | Machine Build Number 20B Machine Build Number 20B |
| Operating Weight | 51333 lb 23285 kg |
| Powertrain | Electric Drive Electric Drive |
| Fuel Tank | 90 gal (US) 341 l |
| DEF Tank | 7.4 gal (US) 28 l |
| Operating Weight | 49388 lb 22403 kg |
| Ground Pressure | 8 psi 55 kPa |
| Width of Standard Shoe | 24 in 610 mm |

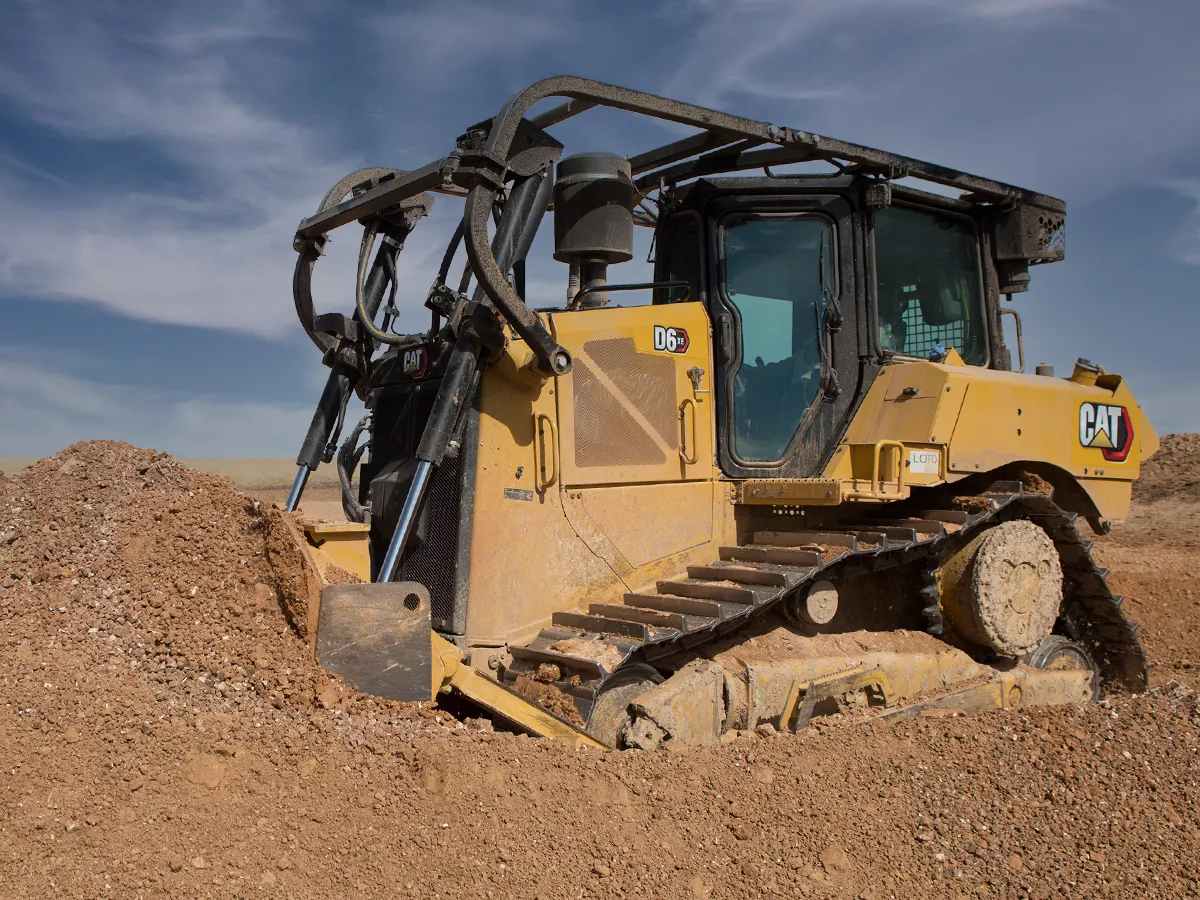

| Blade | Semi-Universal (SU) Semi-Universal (SU) |
| Blade Capacity | 7.5 yd³ 5.7 m³ |
| Operating Weight | 51020 lb 23143 kg |
| Ground Pressure | 6.6 psi 45 kPa |
| Width of Standard Shoe | 30 in 760 mm |
| Blade | Semi-Universal (SU) Semi-Universal (SU) |
| Blade Capacity | 7.6 yd³ 5.8 m³ |
| Operating Weight | 53315 lb 24184 kg |
| Ground Pressure | 5.3 psi 37 kPa |
| Width of Standard Shoe | 36 in 915 mm |
| Blade | Straight Straight |
| Blade Capacity | 5 yd³ 3.8 m³ |
| Operating Weight | 49708 lb 22548 kg |
| Ground Pressure | 7.2 psi 49 kPa |
| Width of Standard Shoe | 24 in 610 mm |
| Blade | VPAT VPAT |
| Blade Capacity | 5.4 yd³ 4.1 m³ |
| Operating Weight | 51333 lb 23285 kg |
| Ground Pressure | 5.9 psi 41 kPa |
| Width of Standard Shoe | 30 in 760 mm |
| Blade | VPAT VPAT |
| Blade Capacity | 5.9 yd³ 4.5 m³ |
| Operating Weight | 52512 lb 23820 kg |
| Ground Pressure | 5.1 psi 35 kPa |
| Width of Standard Shoe | 36 in 915 mm |
| Blade | VPAT VPAT |
| Blade Capacity | 6.5 yd³ 4.9 m³ |
| Recyclability | 98% 98% |
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.36 kg (3 lb) of refrigerant which has a CO2 equivalent of 1.95 metric tonnes (2.14 tons). The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.36 kg (3 lb) of refrigerant which has a CO2 equivalent of 1.95 metric tonnes (2.14 tons). |
Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.
Cat® AutoCarry™ for Dozers assists operators with maintaining full blade loads while reducing fatigue. AutoCarry works in tandem with Blade Load Monitor to help improve load consistency with less effort.
Cat® Grade with Slope Assist™ for Dozers makes just about any dozing job faster and easier. The system maintains blade cross slope and/or mainfall for better surface quality, even with a less experienced operator.
Cat® Stable Blade for Dozers works seamlessly with operator inputs to help produce a smoother surface when operating manually.
Cat® Steer Assist for Dozers automates multiple steering functions to help make operation easier. Increase productivity with less effort, resulting in greater efficiency and reduced operator fatigue.
Cat® Traction Control for Dozers reduces excessive track slippage under full load conditions and improves undercarriage life. It reduces operator fatigue and increases productivity by providing a smoother reverse pass.
Cat® AutoCarry™ for Dozers assists operators with maintaining full blade loads while reducing fatigue. AutoCarry works in tandem with Blade Load Monitor to help improve load consistency with less effort.
Cat® Grade with Slope Assist™ for Dozers makes just about any dozing job faster and easier. The system maintains blade cross slope and/or mainfall for better surface quality, even with a less experienced operator.
Cat® Stable Blade for Dozers works seamlessly with operator inputs to help produce a smoother surface when operating manually.
Cat® Steer Assist for Dozers automates multiple steering functions to help make operation easier. Increase productivity with less effort, resulting in greater efficiency and reduced operator fatigue.
Cat® Traction Control for Dozers reduces excessive track slippage under full load conditions and improves undercarriage life. It reduces operator fatigue and increases productivity by providing a smoother reverse pass.
Cat® Command Remote Control enables operators to control Caterpillar construction equipment from a safe distance, helping improve job site safety, productivity, and operational flexibility. Whether working in hazardous environments, demolition sites, steep terrain, or areas with restricted access, Cat Command technology keeps operators away from potential risks while maintaining precise machine control.
Cat® Command Remote Control enables operators to control Caterpillar construction equipment from a safe distance, helping improve job site safety, productivity, and operational flexibility. Whether working in hazardous environments, demolition sites, steep terrain, or areas with restricted access, Cat Command technology keeps operators away from potential risks while maintaining precise machine control.
While machines are designed to maximize operator visibility, it can be challenging to constantly monitor what is going on around them. Cat® Detect - People Detection is an intelligent vision camera system that can alert an operator when someone enters within a machine’s hazard zone.
The Seat Belt Reminder System enhances safety by prompting operators to fasten their seat belts before operating the machine, helping reduce risks and create safer work environments.
While machines are designed to maximize operator visibility, it can be challenging to constantly monitor what is going on around them. Cat® Detect - People Detection is an intelligent vision camera system that can alert an operator when someone enters within a machine’s hazard zone.
The Seat Belt Reminder System enhances safety by prompting operators to fasten their seat belts before operating the machine, helping reduce risks and create safer work environments.
VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.
VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.
Cat® Grade with 3D for Dozers is a factory-integrated grade control system that helps operators improve grading efficiency, accuracy, and productivity using automated blade movements.
Cat® Grade with 3D for Dozers is a factory-integrated grade control system that helps operators improve grading efficiency, accuracy, and productivity using automated blade movements.
