Cat® Tiltrotators help you get the job done faster with the quality you expect from Cat products. Integrated to your excavator, Tiltrotators are productive, easy-to-use, and add value to your operation. Tiltrotators are a versatile solution providing enhancements to your operation.
Features At A Glance
Seamless Integration
Tiltrotators connect to the machine’s HP2 circuit leaving the HP1 circuit for an additional attachment, ensuring smooth hydraulic flow to both
Display function integrates into the machine’s monitor
Positioning system connects to Cat GRADE with 3D
Up to 13% More Productivity
Controls allow for simultaneous tilt, rotation, and machine movement
Short height maintains consistent breakout force for digging
Hydraulic quick connect changes attachments in seconds
Do more work with less attachments and machines
Easy Operation
Machine joysticks include Tiltrotator controls, preventing delay between operator command and action
Oil-filled gear box keeps gears constantly lubricated, extending the life of the rotor
Lubrication System has one grease point, which can be attached to the machine’s greasing
Innovative Control System has four unique operator settings
Enhanced Versatility
40⁰ left and right tilt, plus 360° rotation adds capability to fixed attachments
Use grapple module without removing bottom attachment
Mixed configurations enable use of multiple attachment interfaces
Innovative Control system has settings for four unique operators
Stay Safe
Curl to Unlock technology verifies the operator has the coupler or tiltrotator curled in the correct position before it is allowed to unlock during the process of switching attachments. This helps keep your attachments secure while working and connected to the coupler during the uncoupling process.
Grapple module is faster and safer than people manually moving heavy objects
Operator stays in cab while switching attachments
Hydraulic quick connect does not require manual hose change
Double acting tilt cylinders have built-in load holding valves in the event of pressure loss
Configuration Options
Meet your usage and attachment interface needs with a variety of top and bottom configuration options for your tiltrotator depending on your preferred coupler system.
Tiltrotators with a pin-on top are ideal when the tiltrotator is used regularly and compatible attachments are switched out on the bottom side.
Options with a specific coupler interface on top are used with a standard coupler so the tiltrotator can be detached and larger or higher flow requirement attachments can be used with the standard coupler.
Specific coupler interfaces may require attachments or brackets for attachments with that interface.
The following are the current available interfaces for tiltrotators:
Pin-on
CW Dedicated
S Type
Hydraulic Connecting S Type

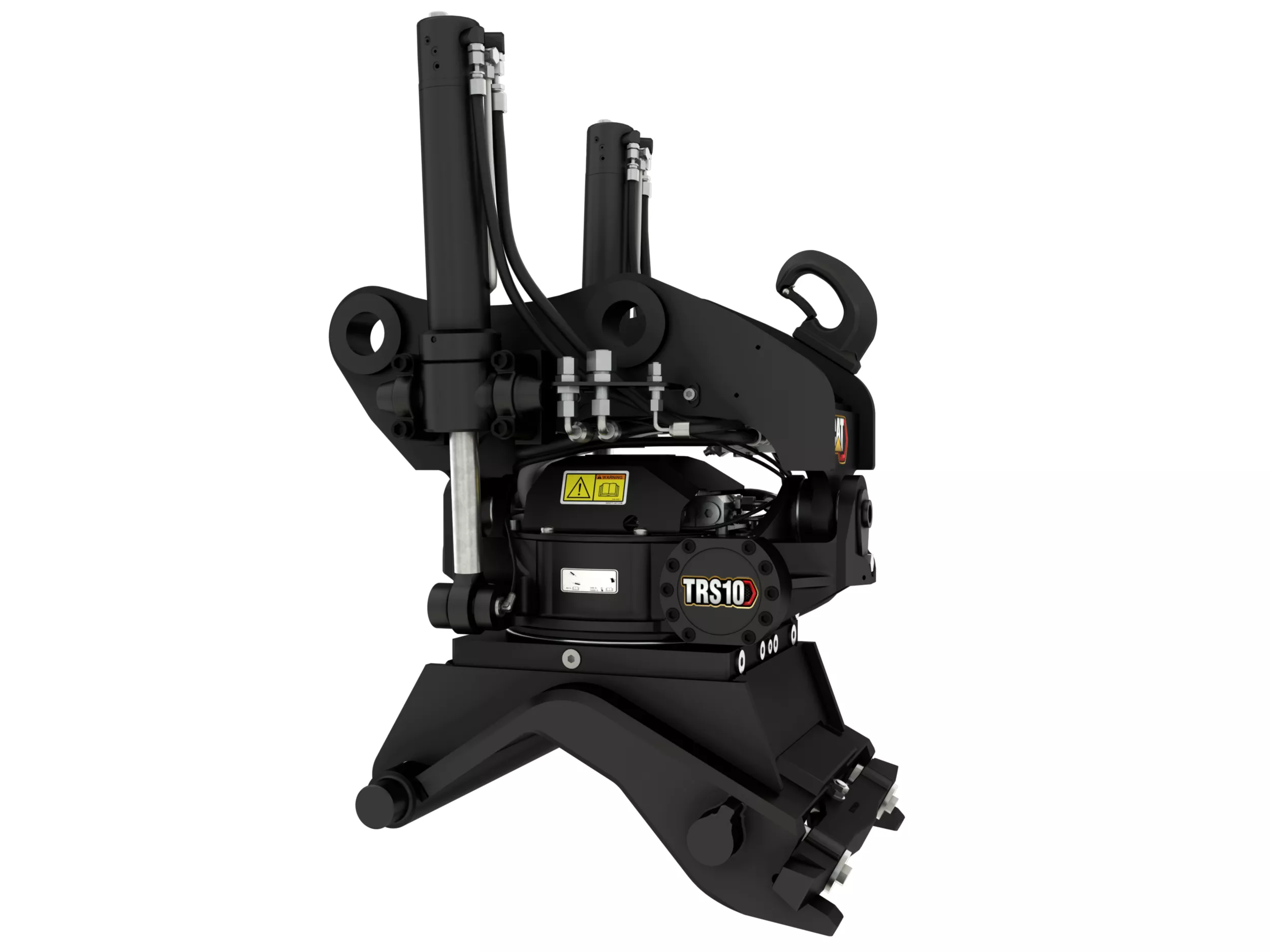

Product Specifications for TRS10 Tiltrotator: 544-1342
Machine Class
11-16 ton Excavators11-16 ton Excavators
Weight
1201 lb545 kg
Interface Options: Top-Bottom
Pin-on / CW-20Pin-on / CW-20
Overall Height
46.46 in1180 mm
Length
31.30 in795 mm
Overall Width
27.17 in690 mm
Rotation Speed
7 seconds, per 1 full rotation7 seconds, per 1 full rotation
Tilt Angle Range
40° Left/Right40° Left/Right
Maximum Bucket Capacity
1.05 yd³0.80 m³
Maximum Bucket Width
63 in1600 mm
Product Specifications for TRS10 Tiltrotator: 544-1342
