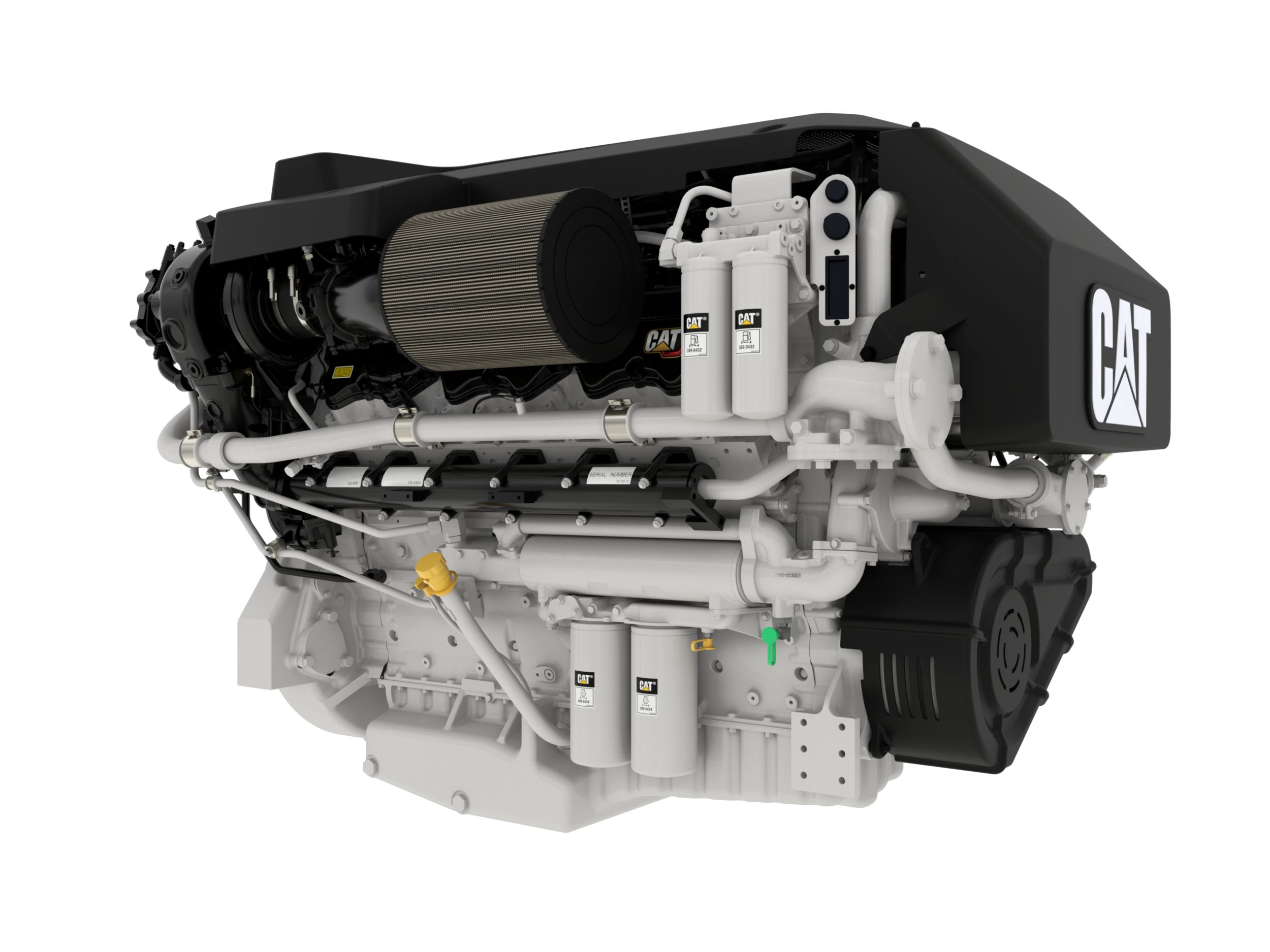

C32B Sequential Turbo High Performance Propulsion Engines

Name: C32B
Brand: Caterpillar

New Used

Request A Price Find Dealer

Key Specs

Application: Yachting; Yachting

Speed Range: 2300 rpm; 2300 rpm

Emissions: IMO II/III, U.S. EPA Tier 3 (recreational), RCD, China II; IMO II/III, U.S. EPA Tier 3 (recreational), RCD, China II

C32B Sequential Turbo
Change model

Overview

Performance Power to Take You Farther Faster

The C32B HP Sequential Turbo marine engine delivers high horsepower performance with the acceleration, response and power density needed for demanding sportfishing and performance yacht applications. Its optimized sequential turbocharging helps provide strong low-speed responsiveness, smooth operation and confident offshore capability, while the compact design helps maximize usable vessel space. Built on proven Cat marine engine performance, the C32B HP helps owners go farther, faster and more comfortably.

Benefits

Fast Confident Acceleration

More Power in Less Space

Smoother Quieter Operation

Features At A Glance

Displaying 1-6 of 6

Sequential Turbocharging

Optimized sequential turbocharging delivers strong low-end torque and rapid throttle response, helping support quick acceleration, confident maneuvering and high-speed runs for sportfishing and performance yachting applications.

High Power Range

Delivers 1800–2400 bhp up to 2300 rpm, providing the horsepower needed for fast offshore runs, responsive operation and demanding high-performance marine applications.

Compact Power Density

High power density with minimal weight increase helps support new builds and repowers, giving owners strong performance without requiring a move to a larger engine platform.

Refined Low-Speed Operation

Reduced noise and vibration at low engine speeds help create a more comfortable onboard experience during trolling, cruising and long days on the water.

Flexible Emissions Options

Certified for IMO II / IMO III with SCR, U.S. EPA Tier 3 Recreational, RCD and China II, with airless aftertreatment options that help reduce system complexity and maintenance needs.

Global Cat Support

Backed by the global Cat dealer network, providing access to marine engine expertise, parts and service support wherever the vessel operates.

Delivers 1800–2400 bhp up to 2300 rpm, providing the horsepower needed for fast offshore runs, responsive operation and demanding high-performance marine applications.

High power density with minimal weight increase helps support new builds and repowers, giving owners strong performance without requiring a move to a larger engine platform.

Reduced noise and vibration at low engine speeds help create a more comfortable onboard experience during trolling, cruising and long days on the water.

Certified for IMO II / IMO III with SCR, U.S. EPA Tier 3 Recreational, RCD and China II, with airless aftertreatment options that help reduce system complexity and maintenance needs.

Backed by the global Cat dealer network, providing access to marine engine expertise, parts and service support wherever the vessel operates.

Specifications Standard Equipment Optional Equipment

Product Specifications for C32B Sequential Turbo

Engine Specifications

Application

Yachting Yachting

Engine

Speed Range	2300 rpm 2300 rpm
Emissions	IMO II/III, U.S. EPA Tier 3 (recreational), RCD, China II IMO II/III, U.S. EPA Tier 3 (recreational), RCD, China II
Aspiration	Sequential Turbocharged - aftercooled Sequential Turbocharged - aftercooled
Bore	5.71 in 145 mm
Stroke	6.38 in 162 mm
Displacement	1959 in³ 32.1 l
Rotation from Flywheel End	Counterclockwise Counterclockwise
Configuration	VEE 12, 4-Stroke Cycle diesel VEE 12, 4-Stroke Cycle diesel
Flywheel Housing	SAE No. O SAE No. O
Cooling	SWAC (Seawater Aftercooler) SWAC (Seawater Aftercooler)
Governor	Electronic (ADEM VI) Electronic (ADEM VI)
Oil Change Interval	250 hrs 250 hrs
Refill Capacity	Lube Oil System w/ oil filter change: 76 L (20 gal) Lube Oil System w/ oil filter change: 76 L (20 gal)

Dimensions & Weights

Dry Weight	7736 lb 3509 kg
Length	87.8 in 2231 mm
Width	58 in 1474 mm
Height	58.1 in 1478 mm

Ratings

Power Range

1800-2400 bhp (1342-1790 bkW) 1800-2400 bhp (1342-1790 bkW)

C32B Sequential Turbo Standard Equipment

Control System

ADEM VI Electronic Control Module

Throttle Input Signal Option

70 Pin Customer Connector

Air Inlet System

Air Cleaner / Closed Crankcase Ventilation

Cooling System

Front and Rear Seawater Pumps

Sea Water Aftercooler

Titanium Plate Heat Exchanger

Gear-Driven Jacket Water and Sea Water Pumps

Exhaust System

Water-Cooled Exhaust Manifolds and Turbochargers

Fuel System

MEUI-C Fuel System

Spin-On Fuel Filters

Shell and Tube Fuel Cooler

Lube System

250 hour Oil Pan (Shallow Sump)

Simplex Oil Filters

General

RH or LH Service Side Options

Flywheel Housing

SAE 0 Flywheel

Lube Sytem

Gear driven Oil pump

C32B Sequential Turbo Optional Equipment

Cooling System

120 V or 240 V Jacket Water Heater

Power Take offs

SAE A or B PTO (RH Rear)

Charging System

75 A, 105 A or 175 A Alternator

Battery Charger 10 A

Battery Sets

Protection

Heat Shielding

Marine Alarm & Protection

SOLAS Shielding

General

Cosmetic Engine Cover

Fuel System

Manual or Electric Fuel Priming Pump

Duplex Fuel Filters

Primary Fuel Filter

Lube System

Deep Sump Oil Pan

Duplex Oil Filters

Exhaust System

U-Flow or L-Flow Aftertreatment Modules (Mandatory for IMO III)

Exhaust Collector (Horizontal or Vertical Outlet)

DEF Filter

DEF Transfer Skid

Muffler

Starting System

Electric Starting Motor

Mounting System

Engine Isolation Mounts

Control System

Dual ECM Option

Alarm and Protection System

Control Sytem

Engine and Transmission Monitoring

Instrumentation

Multiple Display Options

Product Specifications for C32B Sequential Turbo

Download Print

Engine Specifications

Application

Yachting Yachting

Engine

Speed Range	2300 rpm 2300 rpm
Emissions	IMO II/III, U.S. EPA Tier 3 (recreational), RCD, China II IMO II/III, U.S. EPA Tier 3 (recreational), RCD, China II
Aspiration	Sequential Turbocharged - aftercooled Sequential Turbocharged - aftercooled
Bore	5.71 in 145 mm
Stroke	6.38 in 162 mm
Displacement	1959 in³ 32.1 l
Rotation from Flywheel End	Counterclockwise Counterclockwise
Configuration	VEE 12, 4-Stroke Cycle diesel VEE 12, 4-Stroke Cycle diesel
Flywheel Housing	SAE No. O SAE No. O
Cooling	SWAC (Seawater Aftercooler) SWAC (Seawater Aftercooler)
Governor	Electronic (ADEM VI) Electronic (ADEM VI)
Oil Change Interval	250 hrs 250 hrs
Refill Capacity	Lube Oil System w/ oil filter change: 76 L (20 gal) Lube Oil System w/ oil filter change: 76 L (20 gal)

Dimensions & Weights

Dry Weight	7736 lb 3509 kg
Length	87.8 in 2231 mm
Width	58 in 1474 mm
Height	58.1 in 1478 mm

Ratings

Power Range

1800-2400 bhp (1342-1790 bkW) 1800-2400 bhp (1342-1790 bkW)

C32B Sequential Turbo Standard Equipment

Control System

ADEM VI Electronic Control Module

Throttle Input Signal Option

70 Pin Customer Connector

Air Inlet System

Air Cleaner / Closed Crankcase Ventilation

Cooling System

Front and Rear Seawater Pumps

Sea Water Aftercooler

Titanium Plate Heat Exchanger

Gear-Driven Jacket Water and Sea Water Pumps

Exhaust System

Water-Cooled Exhaust Manifolds and Turbochargers

Fuel System

MEUI-C Fuel System

Spin-On Fuel Filters

Shell and Tube Fuel Cooler

Lube System

250 hour Oil Pan (Shallow Sump)

Simplex Oil Filters

General

RH or LH Service Side Options

Flywheel Housing

SAE 0 Flywheel

Lube Sytem

Gear driven Oil pump

C32B Sequential Turbo Optional Equipment

Cooling System

120 V or 240 V Jacket Water Heater

Power Take offs

SAE A or B PTO (RH Rear)

Charging System

75 A, 105 A or 175 A Alternator

Battery Charger 10 A

Battery Sets

Protection

Heat Shielding

Marine Alarm & Protection

SOLAS Shielding

General

Cosmetic Engine Cover

Fuel System

Manual or Electric Fuel Priming Pump

Duplex Fuel Filters

Primary Fuel Filter

Lube System

Deep Sump Oil Pan

Duplex Oil Filters

Exhaust System

U-Flow or L-Flow Aftertreatment Modules (Mandatory for IMO III)

Exhaust Collector (Horizontal or Vertical Outlet)

DEF Filter

DEF Transfer Skid

Muffler

Starting System

Electric Starting Motor

Mounting System

Engine Isolation Mounts

Control System

Dual ECM Option

Alarm and Protection System

Control Sytem

Engine and Transmission Monitoring

Instrumentation

Multiple Display Options
