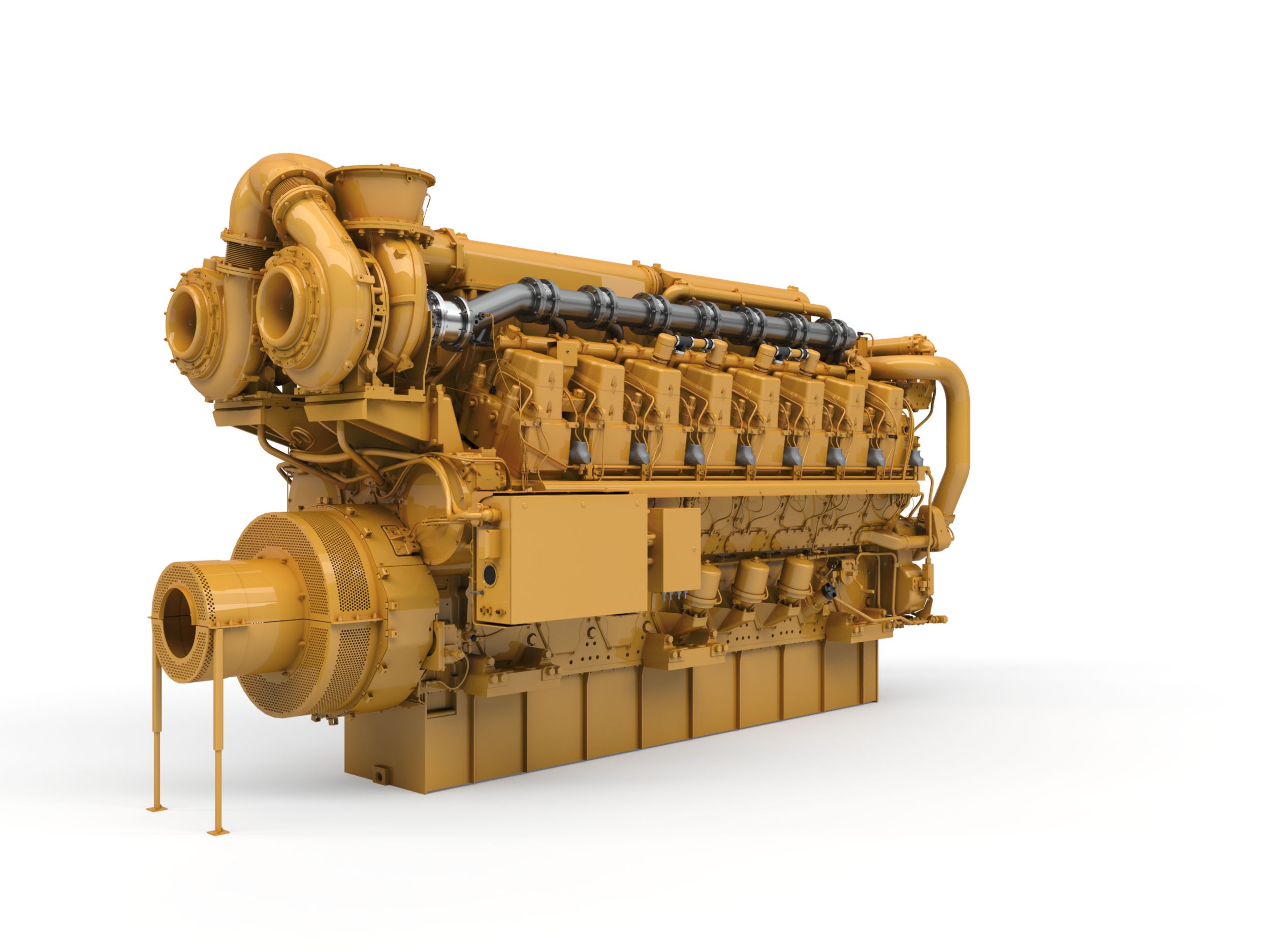

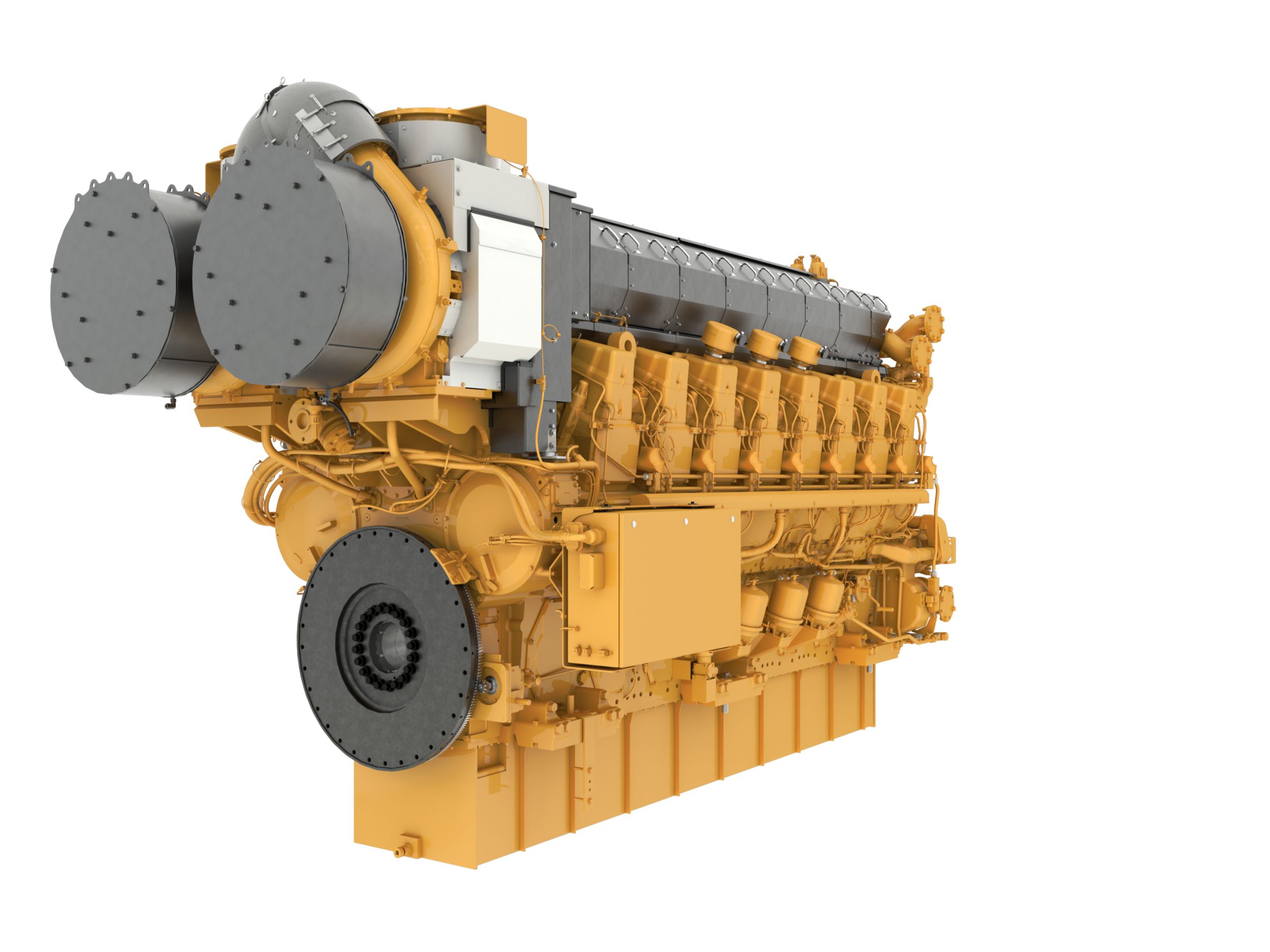

C280-16

Commercial Propulsion Engines C280-16

Key Specs

Power Range
6169-8046 bhp (4600-6000 bkW)
6169-8046 bhp (4600-6000 bkW)
Speed Range
900-1000 rpm
900-1000 rpm
Emissions
IMO II
IMO II

Overview

Building on the durability and reliability of the C280 engine platform, Caterpillar is pleased to offer the C280-16 engine line, now up to 6000 bkW. The core components are the same as the existing C280, including the latest in EUI fuel system capabilities and state-of-the-art ADEM™ A3 Electronic Control Unit (ECU) features. Caterpillar® products continue to deliver more available power while delivering outstanding fuel efficiency. You can also count on long maintenance intervals and worldwide Caterpillar parts and service availability.

Features At A Glance

Displaying 1-6 of 5

Cat

A3 ECU

• CAN J1939 data link • Waterproof connectors • Maintenance-free • Backup ECU for redundant governing • Updated A4 ECU for 6000 bkW
Cat

Electronic Advantages:

• Load feedback • Programmable droop • Adjustable gain • Adjustable fuel/air ratio control • Histograms of engine operation • Cat Messenger display presents diagnostics and other engine parameters
Cat

Data Advantages through J1939 Link:

• Engine speed • Boost pressure • Throttle position • Fuel consumption rate • Inlet manifold temperature • Diagnostic codes and events • Configuration • Desired engine speed • Battery voltage • Engine load • Lifetime totals — engine hours, fuel burned, idle fuel, idle hours • Trip totals — average fuel rate, idle fuel, idle hours, engine hours, fuel burned, trip reset
Cat

Customer Interface Panel

• Interfaces with standard Cat® Marine Monitoring System (PLC in Price List) • Provides visual indication of ECU functionality • Accepts 4 — 20 mA or PWM remote throttle speed input • Marine alarm and protection
Cat

Electronic Unit Injectors

• “Drop-in” installation • No threaded fuel connections • High pressure inside injector only • Does not require double wall fuel lines or leak collection device • Injector synchronization not required
Specifications Standard Equipment Optional Equipment

Product Specifications for C280-16

Download Print
Power Range 6169-8046 bhp (4600-6000 bkW) 6169-8046 bhp (4600-6000 bkW)
Speed Range 900-1000 rpm 900-1000 rpm
Emissions IMO II IMO II
Aspiration TTA TTA
Bore 11 in 280 mm
Stroke 11.8 in 300 mm
Displacement 18062 in³ 296 l
Rotation from Flywheel End Counterclockwise or clockwise Counterclockwise or clockwise
Configuration Vee 16, 4-Stroke-Cycle Diesel Vee 16, 4-Stroke-Cycle Diesel
Minimum Dry Weight 62832 lb 28500 kg
Minimum Length 224 in 5690 mm
Maximum Length 224 in 5690 mm
Minimum Height 134 in 3403 mm
Maximum Height 134 in 3403 mm
Minimum Width 80 in 2032 mm
Maximum Width 80 in 2032 mm

C280-16 Standard Equipment

Print

General

  • LH and RH service availability

Air Inlet System

  • Aftercooler, fresh water, corrosion resistant coated (air side)
  • Dual turbochargers, rear-mounted, engine oil lubricated
  • Breather, crankcase, top-mounted
  • Air inlet adapter - Straight / 90 degree / 35 degree

Control System

  • Dual Caterpillar ADEM A4 Electronic Engine Control Modules
  • Rigid Wiring Harness

Cooling System

  • Aftercooler / Oil cooler and jacket water gear driven pumps
  • Engine coolant water drains
  • Single Circuit / Separate Circuit Aftercooler

Exhaust System

  • Dry exhaust manifold
  • Turbo speed sensors - overspeed protection

Fuel System

  • Fuel transfer pump, gear driven
  • Electronically Controlled Unit Injectors
  • Duplex Fuel filters

Instrumentation

  • CAT Alarm & Protection System

Lube System

  • Oil pump, gear driven
  • 3 element oil cooler, engine mounted
  • Duplex centrifugal oil filter, engine mounted

Lube Systems

  • Oil pump, gear driven
  • Wet sump
  • Prelube pump - air / electric
  • Crankcase explosion relief valves

C280-16 Optional Equipment

Print

Exhaust System

  • Exhaust manifold shielding, soft

Fuel System

  • SOLAS shielding

Lube System

  • Front and rear oil pan drains
  • SOLAS shielding

Protection System

  • Mounted oil mist detector
  • Cylinder pressure relief valves
