Medium Dozers D5 Tier 4 / Stage V

Name: D5 Dozer
Brand: Cat

New Used Rental

Request A Price Find Dealer

Key Specs

Engine Model: Cat C7.1; Cat C7.1

Power - Net: 170 hp; 127 kW

Operating Weight: 42263 lb; 19170 kg

D5
Change model

Overview

PERFORMANCE AND TECHNOLOGY

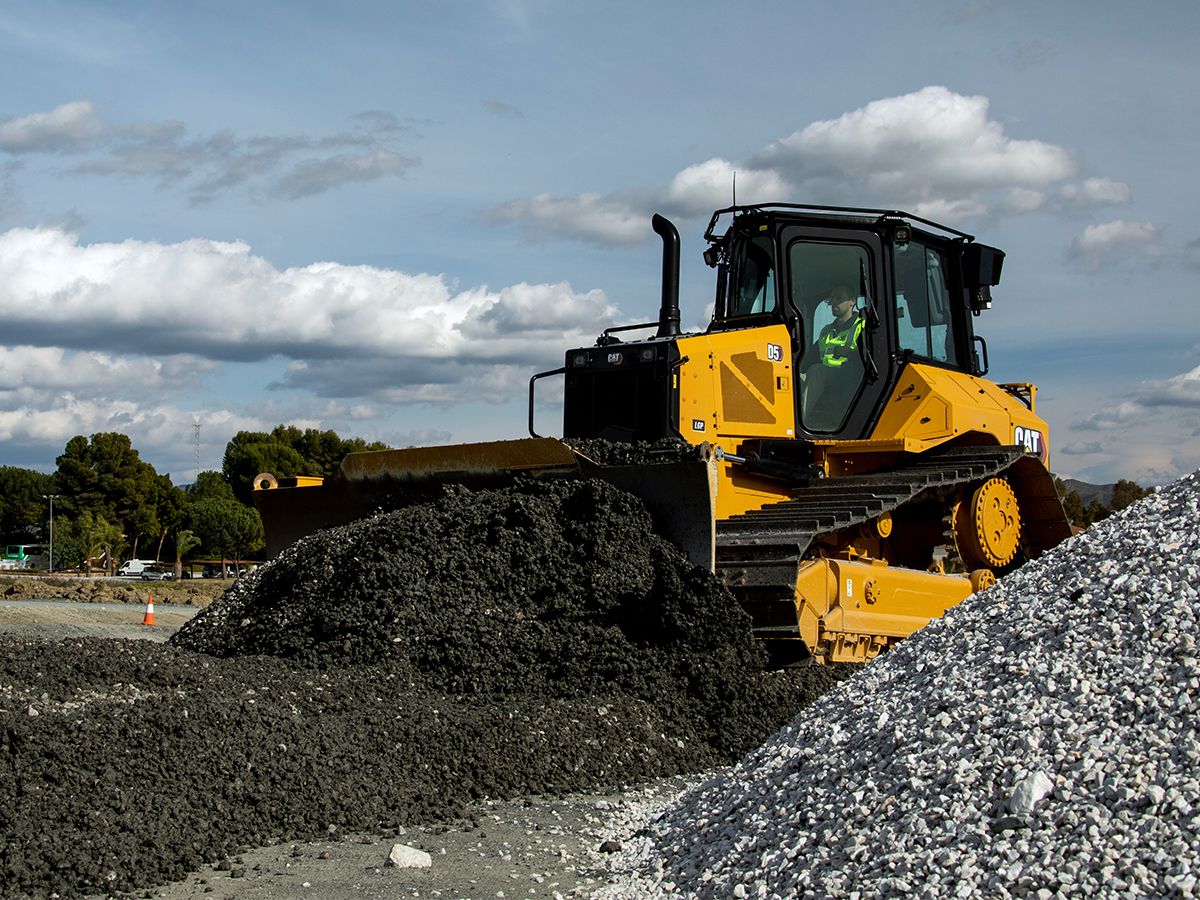

The Cat D5 succeeds the renowned D6N with superior performance, a fully automatic transmission and the broadest choice of technology features to help you get the most from your dozer. Nimble and responsive, it has power for dozing and finesse for grading.

Benefits

Best-in-Class Performance

Nimble, responsive and maneuverable with a fully automatic transmission for seamless acceleration, fast cycle times and long-term durability. Cab sets the standard for visibility, comfort, productivity.

Up To 50% More Productivity with Cat Technology

Grade and Assist technology features help boost productivity and ease of operation for operators of varied skill levels.

More Power to Work

Goes beyond D6N with more power and added performance to get the job done. Stronger structures offer more durability and uptime, while a purpose-built push arm dozer helps you take on heavier work.

Features At A Glance

Displaying 1-6 of 11

NEXT GENERATION PERFORMANCE

Harness added weight and horsepower to take on a wide range of dozing and grading tasks.
Improved steering, tighter turning radius, quicker turns at the end of each pass help you finish jobs faster.
Fully automatic 3-speed transmission gives you seamless acceleration, faster cycle times and more nimble movement around the jobsite.
No need to shift – just set your desired ground speed and the dozer adjusts for maximum fuel efficiency and power to the ground.
Agility and ideal machine balance help you achieve high quality grades quickly.
Take on heavier work with a purpose-built push arm model.
Power train automatically controls brakes, transmission and steering to provide tighter turns and help operators more easily work on slopes.
Comparisons to D6N.

OPERATOR HELPERS

Assist features help make work easier, especially for less experienced operators. Some blade and steering functions are automated so newer operators can work at productivity levels closer to their veteran counterparts. Seasoned operators can enjoy reduced effort and fatigue, along with faster, more accurate results.

Cat Grade with Slope Assist™ automatically maintains pre-established blade position without a GNSS/GPS signal – no additional hardware or software needed. For machines with 3D, operators can easily switch back and forth from full 3D automatics to Slope Assist.
Steer Assist automates track and blade tilt steering. Helps reduce operator fatigue by automatically maintaining straight travel with light loads or heavy loads on flat ground and side slopes. Helps reduce steering inputs up to 75%. No GNSS/GPS required.
Stable Blade works seamlessly with operator inputs to help produce a smoother surface when operating manually.
Blade Load Monitor gives you real-time feedback on current load versus the optimal blade load based on your ground conditions. Actively monitors machine load and track slip to help you reach optimal pushing capacity.*
Traction Control automatically reduces track slip to save you time, fuel and track wear.*
AutoCarry automates blade lift to help you maintain consistent blade load and reduce track slip.*
Slope Indicate is included in the main machine display and shows side slope and uphill/downhill grades to help operators with slope work.
Attachment Ready Option (ARO) provides wiring and mounting provisions for dealer installation of Grade with 3D, Accugrade, UTS, or other grade control systems.

*Feature not operational indoors or in areas where a GNSS/GPS signal is not available.

TOP GRADES

Factory integrated Cat Grade with 3D uses GNSS/GPS to control the blade so you can get to design plan faster.
Cat Grade with 3D has no masts – low profile antennas are integrated into the cab roof and GNSS/GPS receivers are mounted inside the cab for better protection.
Automatically follow guidance lines from design plans with Steer Assist 3D. Stay on curb lines, centerlines, bottom of slope, etc., without operator effort. Track steering is used under light loads and blade tilt steering may be added under heavy loads.
Grade operator interface is intuitive and easier to use: 10-inch (254 mm) touchscreen, Android OS platform, operates like a smart phone.
All Cat Grade systems are compatible with radios and base stations from Trimble, Topcon, and Leica.
Already invested in a grade infrastructure? You can install grade systems from Trimble, Topcon, and Leica onto the machine.
The cab is Third Party Grade Control Ready, equipped with CAN interface, harness pass throughs and mounting features to make it easier to install the grade control system of your choice.

PROVEN ADVANTAGE

Cat Assist and Grade technologies work in the background to help dozer operators of varied skill levels and are especially beneficial to less experienced operators. To demonstrate just how much these built-in technology features help, Caterpillar put them to the test. Two novice operators and two expert operators took on slot dozing, truck dump spreading/grading in sand, and side slope work. Each operator completed three runs of each task – one in manual, one using Assist technology features, and one using Assist plus Cat Grade with 3D. The team measured productivity*, efficiency**, completion time, final surface quality, and operator inputs.
Slot Dozing
• Productivity and Efficiency – Novice operators went from 9% lower productivity and efficiency than the experts in manual to matching the experts when using Assist.
Truck Dump Spreading/Grading in Sand
• Completion Time – Novice operators took 49% more time than the experts in manual and narrowed the gap to 17% using Assist and to 9% by adding Grade.
• Blade Inputs – Novice operator blade inputs were reduced 45% with Assist, and 55% with Assist plus Grade. Expert operator blade inputs were reduced 32% with Assist, and 53% with Assist plus Grade.
• Surface Quality – Novice operator surface quality improved up to 51% using technology while expert operator surface quality improved up to 27% using technology. Novice operators using technology produced similar surface quality to the expert operators in manual.
Side Slope/Steer Assist
• Steering Inputs – Novice and expert operator steering inputs reduced by 75% in forward and by 67% combining forward and reverse.

*Material moved per hour
**Material moved per unit of fuel/Diesel Exhaust Fluid (DEF)
Study conducted by Caterpillar, August 2022

DESIGNED FOR OPERATORS

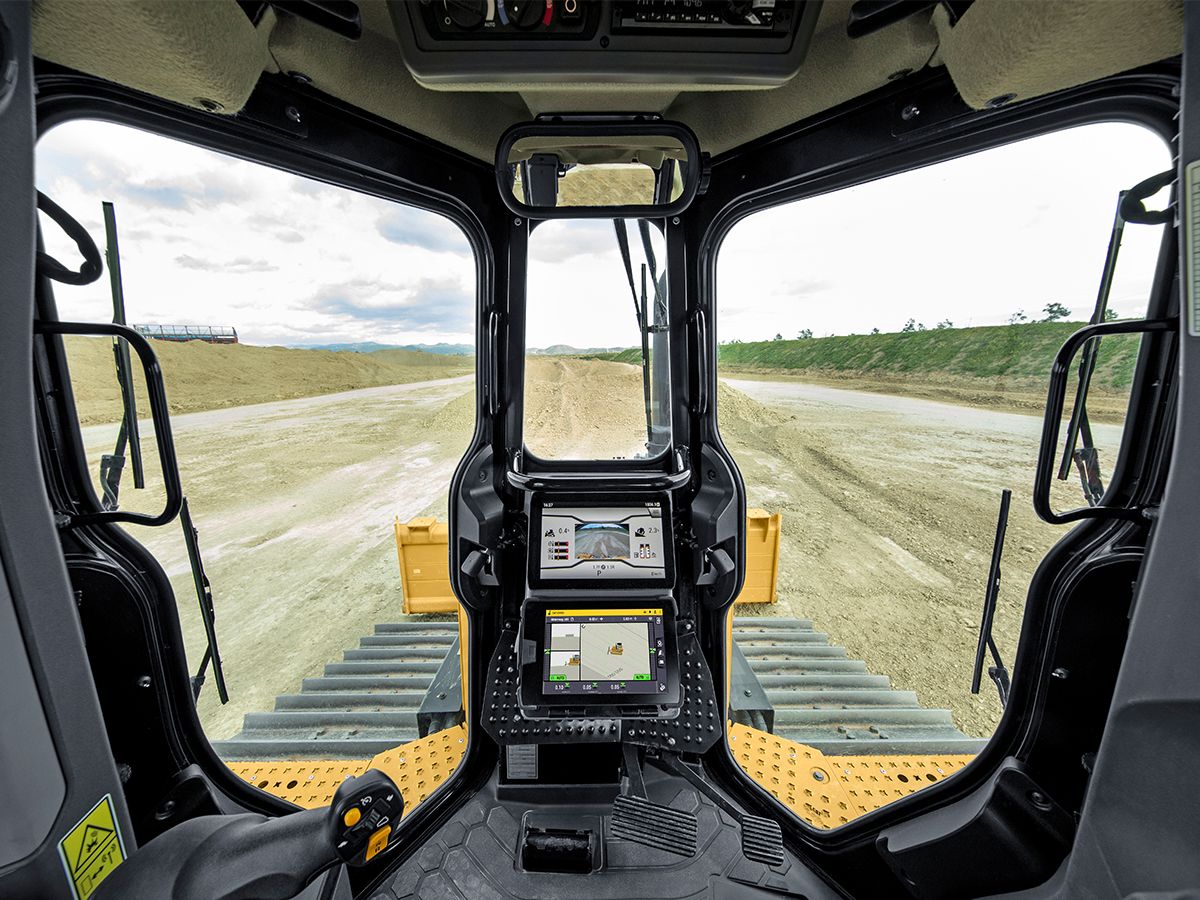

Completely redesigned, more spacious cab sets the standard in comfort and productivity.
More glass area, steeper hood angle provide 30% better forward visibility than the previous model.
10-in (254 mm) touchscreen display with easy-to-use operator interface.
Standard High Definition rearview camera shows prominently in the main display.
Wider air suspension seat has multiple adjustments for personalized comfort.
Entire armrest adjusts forward and backward independent of the seat.
Ample storage spaces throughout the cab.

Comparisons to D6N.

REMOTE CONTROL READY

Cab is Remote Control Ready from the factory with external connector for dealer installation of the Cat Command system.
Cat Command remote control technology provides full dozer maneuverability from a safe distance when working in hazardous environments.
Command offers the choice of line-of-sight consoles or long-distance operator stations (non-line-of-sight).
Take advantage of the dozer’s Grade and Assist features while out of the cab using the Command Station or Console.*

*Not all technology features are available on the Command Console. Please consult your Cat dealer for feature availability by dozer model.

LONG TERM VALUE AND DURABILITY

Heavier, more robust machine helps increase uptime and reduce overall operating cost.
Hydraulic and electrical lines running to the blade are guarded for better protection.
More robust track roller frame gives you added durability to take on heavier work.
Heavy Duty Extended Life undercarriage – HDXL DuraLink™ – offers up to 20% more seal life in high impact conditions.
Cat Abrasion undercarriage is your lowest cost-per-hour solution for high abrasion and low impact jobsites. The design offers double the seal life and eliminates bushing turns, reducing your costs up to 50% per hour compared to traditional undercarriage. Reduces link scalloping for smoother operation.

Comparisons to D6N.

BECAUSE UPTIME COUNTS

Product Link™ collects machine data that can be viewed online through web and mobile applications.
Access information anytime, anywhere with VisionLink® – and use it to make informed decisions that boost productivity, lower costs, simplify maintenance, and improve safety and security on your job site.
The Cat App helps you manage your assets - at any time - right from your smartphone. See fleet location and hours, get critical required maintenance alerts, and even request service from your local Cat dealer.
Remote Troubleshoot saves time and money by allowing your Cat dealer to perform diagnostic testing remotely.*
Remote Flash updates on-board software without a technician being present, at a time that is convenient for you, potentially reducing update time by as much as 50%.

* Contact your Cat dealer for availability date by machine model.

PURPOSE BUILT SPECIALTY MODELS

Waste Handler/Landfill Arrangement is a heavy duty dozer with specialized guarding, striker bars and seals to help protect the machine from impact and airborne/wrapping debris. Cooling is designed for high debris environments and easy cleanout. Cab is designed for high impact and specialized air handling features help deliver cleaner air to the machine. Landfill blades and center-hole track shoes help optimize your waste handler for the job.
Forestry Arrangement is a heavy duty dozer with optional machine protection like sweeps, screens and added guarding to help protect the machine in harsh conditions. Cooling system is designed for high debris environments, with easy access for cleanout.
Fire suppression dozer is outfitted with specialized protection against fire and heat, operator safety features and added machine protection for forest fire fighting and prevention.

SUSTAINABILTY

Optimize machine performance for greatest productivity, while helping improve fuel efficiency and reduce greenhouse gas emissions with a fully automatic 3-speed transmission with lock-up clutch.
The Cat® C7.1 engine meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 and Korea Tier 5 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) ** or 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Cat® Grade with Slope Assist™ helps you avoid costly rework and wasteful fuel burn and greenhouse gas emissions by automating your blade position without a GPS signal.
Cat® Grade with 3D automates blade movements using a GPS signal helping you follow a grade design, reducing fuel burn and greenhouse gas emissions by improving efficiency and accuracy.
AutoCarry™ automates blade lift to reduce track slip for maximum efficiency on each pass to help lower fuel burn and greenhouse gas emissions.
VisionLink® displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.

All comparisons to D6N T4F. Productivity, fuel and CO2 emissions vary by application. CO2 emissions calculations based on a reference work cycle using 2.2 U.S. gallons per hour of #2 U.S. diesel fuel. Applies IPCC2006 methodology using U.S. EPA Emissions Hub emission factors. Includes DEF (diesel exhaust fluid) related CO2. Fuel measurements are at 15°C. Estimated average fuel consumption improvements are based on tests or Product Link™ data where available. Productivity improvements are based on test data.
**Engines with no aftertreatment devices can use higher blends, up to 30% biodiesel.

Harness added weight and horsepower to take on a wide range of dozing and grading tasks.
Improved steering, tighter turning radius, quicker turns at the end of each pass help you finish jobs faster.
Fully automatic 3-speed transmission gives you seamless acceleration, faster cycle times and more nimble movement around the jobsite.
No need to shift – just set your desired ground speed and the dozer adjusts for maximum fuel efficiency and power to the ground.
Agility and ideal machine balance help you achieve high quality grades quickly.
Take on heavier work with a purpose-built push arm model.
Power train automatically controls brakes, transmission and steering to provide tighter turns and help operators more easily work on slopes.
Comparisons to D6N.

Cat Grade with Slope Assist™ automatically maintains pre-established blade position without a GNSS/GPS signal – no additional hardware or software needed. For machines with 3D, operators can easily switch back and forth from full 3D automatics to Slope Assist.
Steer Assist automates track and blade tilt steering. Helps reduce operator fatigue by automatically maintaining straight travel with light loads or heavy loads on flat ground and side slopes. Helps reduce steering inputs up to 75%. No GNSS/GPS required.
Stable Blade works seamlessly with operator inputs to help produce a smoother surface when operating manually.
Blade Load Monitor gives you real-time feedback on current load versus the optimal blade load based on your ground conditions. Actively monitors machine load and track slip to help you reach optimal pushing capacity.*
Traction Control automatically reduces track slip to save you time, fuel and track wear.*
AutoCarry automates blade lift to help you maintain consistent blade load and reduce track slip.*
Slope Indicate is included in the main machine display and shows side slope and uphill/downhill grades to help operators with slope work.
Attachment Ready Option (ARO) provides wiring and mounting provisions for dealer installation of Grade with 3D, Accugrade, UTS, or other grade control systems.

*Feature not operational indoors or in areas where a GNSS/GPS signal is not available.

Factory integrated Cat Grade with 3D uses GNSS/GPS to control the blade so you can get to design plan faster.
Cat Grade with 3D has no masts – low profile antennas are integrated into the cab roof and GNSS/GPS receivers are mounted inside the cab for better protection.
Automatically follow guidance lines from design plans with Steer Assist 3D. Stay on curb lines, centerlines, bottom of slope, etc., without operator effort. Track steering is used under light loads and blade tilt steering may be added under heavy loads.
Grade operator interface is intuitive and easier to use: 10-inch (254 mm) touchscreen, Android OS platform, operates like a smart phone.
All Cat Grade systems are compatible with radios and base stations from Trimble, Topcon, and Leica.
Already invested in a grade infrastructure? You can install grade systems from Trimble, Topcon, and Leica onto the machine.
The cab is Third Party Grade Control Ready, equipped with CAN interface, harness pass throughs and mounting features to make it easier to install the grade control system of your choice.

Completely redesigned, more spacious cab sets the standard in comfort and productivity.
More glass area, steeper hood angle provide 30% better forward visibility than the previous model.
10-in (254 mm) touchscreen display with easy-to-use operator interface.
Standard High Definition rearview camera shows prominently in the main display.
Wider air suspension seat has multiple adjustments for personalized comfort.
Entire armrest adjusts forward and backward independent of the seat.
Ample storage spaces throughout the cab.

Comparisons to D6N.

Cab is Remote Control Ready from the factory with external connector for dealer installation of the Cat Command system.
Cat Command remote control technology provides full dozer maneuverability from a safe distance when working in hazardous environments.
Command offers the choice of line-of-sight consoles or long-distance operator stations (non-line-of-sight).
Take advantage of the dozer’s Grade and Assist features while out of the cab using the Command Station or Console.*

*Not all technology features are available on the Command Console. Please consult your Cat dealer for feature availability by dozer model.

Heavier, more robust machine helps increase uptime and reduce overall operating cost.
Hydraulic and electrical lines running to the blade are guarded for better protection.
More robust track roller frame gives you added durability to take on heavier work.
Heavy Duty Extended Life undercarriage – HDXL DuraLink™ – offers up to 20% more seal life in high impact conditions.
Cat Abrasion undercarriage is your lowest cost-per-hour solution for high abrasion and low impact jobsites. The design offers double the seal life and eliminates bushing turns, reducing your costs up to 50% per hour compared to traditional undercarriage. Reduces link scalloping for smoother operation.

Comparisons to D6N.

Up to 10% lower maintenance costs.
Easy access to maintenance points and a ladder at the back of the machine save you time on daily tasks.
Reversible hydraulic demand fan helps remove debris while you work, saving cleanout and maintenance time.
Extended filter life and longer life LED lights help save you time and money.
Easy access under the cab floor if needed. Cab can be removed in about 30 minutes.

Comparisons to D6N.

Product Link™ collects machine data that can be viewed online through web and mobile applications.
Access information anytime, anywhere with VisionLink® – and use it to make informed decisions that boost productivity, lower costs, simplify maintenance, and improve safety and security on your job site.
The Cat App helps you manage your assets - at any time - right from your smartphone. See fleet location and hours, get critical required maintenance alerts, and even request service from your local Cat dealer.
Remote Troubleshoot saves time and money by allowing your Cat dealer to perform diagnostic testing remotely.*
Remote Flash updates on-board software without a technician being present, at a time that is convenient for you, potentially reducing update time by as much as 50%.

* Contact your Cat dealer for availability date by machine model.

Waste Handler/Landfill Arrangement is a heavy duty dozer with specialized guarding, striker bars and seals to help protect the machine from impact and airborne/wrapping debris. Cooling is designed for high debris environments and easy cleanout. Cab is designed for high impact and specialized air handling features help deliver cleaner air to the machine. Landfill blades and center-hole track shoes help optimize your waste handler for the job.
Forestry Arrangement is a heavy duty dozer with optional machine protection like sweeps, screens and added guarding to help protect the machine in harsh conditions. Cooling system is designed for high debris environments, with easy access for cleanout.
Fire suppression dozer is outfitted with specialized protection against fire and heat, operator safety features and added machine protection for forest fire fighting and prevention.

Optimize machine performance for greatest productivity, while helping improve fuel efficiency and reduce greenhouse gas emissions with a fully automatic 3-speed transmission with lock-up clutch.
The Cat® C7.1 engine meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 and Korea Tier 5 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) ** or 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Cat® Grade with Slope Assist™ helps you avoid costly rework and wasteful fuel burn and greenhouse gas emissions by automating your blade position without a GPS signal.
Cat® Grade with 3D automates blade movements using a GPS signal helping you follow a grade design, reducing fuel burn and greenhouse gas emissions by improving efficiency and accuracy.
AutoCarry™ automates blade lift to reduce track slip for maximum efficiency on each pass to help lower fuel burn and greenhouse gas emissions.
VisionLink® displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.

Specifications Standard Equipment Optional Equipment

Product Specifications for D5

Engine

Engine Model	Cat C7.1 Cat C7.1
Power - Net	170 hp 127 kW
Net Power - Rated - ISO 9249/SAE J1349	170 hp 127 kW
Net Power (Rated) - ISO 9249 (DIN)	172 mhp 172 mhp
Emissions	U.S. EPA Tier 4 Final/EU Stage V/Japan 2014 (Tier 4 Final)/Korea Stage V U.S. EPA Tier 4 Final/EU Stage V/Japan 2014 (Tier 4 Final)/Korea Stage V
Note (1)	Rated horsepower at 1770 rpm. Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. Advertised power is tested per the specified standard in effect at the time of manufacture. Rated horsepower at 1770 rpm. Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)	Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. Engines with no aftertreatment devices can use higher blends, up to 30% biodiesel. Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. Engines with no aftertreatment devices can use higher blends, up to 30% biodiesel.
Note (3)	Basic machine specs provided below. For complete specifications and dimensions by configuration, blade and track shoe offerings and more, please visit the product download section to view the full Technical Specifications document. Basic machine specs provided below. For complete specifications and dimensions by configuration, blade and track shoe offerings and more, please visit the product download section to view the full Technical Specifications document.
Note (4)	Machine Build Number 17B Machine Build Number 17B

Weights

Operating Weight

42263 lb 19170 kg

Transmission

Powertrain

Fully Automatic 3-Speed Fully Automatic 3-Speed

Service Refill Capacities

Fuel Tank	83.2 gal (US) 315 l
DEF Tank	4.2 gal (US) 16 l

VPAT

Operating Weight	37875 lb 17180 kg
Ground Pressure	6.9 psi 47.6 kPa
Width of Standard Shoe	24 in 610 mm
Blade	VPAT VPAT
Blade Capacity	4.6 yd³ 3.5 m³

LGP VPAT

Operating Weight	42263 lb 19170 kg
Ground Pressure	4.7 psi 32.6 kPa
Width of Standard Shoe	33 in 840 mm
Blade	LGP VPAT LGP VPAT
Blade Capacity	5.5 yd³ 4 m³

Fine Grading VPAT

Operating Weight	39198 lb 17780 kg
Ground Pressure	6 psi 41.4 kPa
Width of Standard Shoe	24 in 610 mm
Blade	VPAT VPAT
Blade Capacity	4.6 yd³ 3.5 m³

Push Arm

Operating Weight	38228 lb 17340 kg
Ground Pressure	7 psi 48.2 kPa
Width of Standard Shoe	24 in 610 mm
Blade	Semi-Universal (SU) Semi-Universal (SU)
Blade Capacity	5.6 yd³ 4.3 m³

Sustainability

Recyclability

97% 97%

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.36 kg (3 lb) of refrigerant which has a CO2 equivalent of 1.95 metric tonnes (2.14 tons). The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.36 kg (3 lb) of refrigerant which has a CO2 equivalent of 1.95 metric tonnes (2.14 tons).

Note (1)

Configurations and features may vary by region. Please consult your Cat dealer for availability in your area. Configurations and features may vary by region. Please consult your Cat dealer for availability in your area.

D5 Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

Power Train

Cat C7.1 diesel engine

Fully-automatic 3-speed transmission

Infinite ground speed adjustment

Operator Environment

Fully redesigned cab, sound suppressed, with Integrated Roll Over Protective Structure (IROPS)

Full-color 10-inch (254 mm) touchscreen display

Integrated rearview camera

Premium cab with adjustable operator controls/armrests

Cab mounted modular HVAC system

Added storage areas

Electrohydraulic implement and steering controls

Cloth seat

Lights: 6 LED

Cat Technology

Slope Indicate

Product Link, Cellular

Grade Control Ready Cab

Remote Control Ready

Remote Flash/Remote Troubleshoot

Operator ID

Machine Security - Passcode

Compatibility with radios and base stations from Trimble, Topcon, and Leica

Capability to install 3D grade systems from Trimble, Topcon, and Leica

Blades

VPAT

Semi-Universal

Undercarriage

Heavy Duty (HDXL with DuraLink) or Cat Abrasion

Redesigned track roller frame

Moderate Service or Extreme Service track shoes

Service and Maintenance

30-minute cab removal

Ecology drains

Ground level service center

Hydraulic fan

Rear access ladder

Shovel holder

Attachments

Drawbar

D5 Optional Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

Operator Environment

Deluxe leather heated/ventilated seat

Premium lights: 12 LED

Integrated warning lights

Communication radio ready

Cat Technology

ARO with Assist Package: Includes Attachment Ready Option (ARO), Slope Assist, Steer Assist, Stable Blade, Blade Load Monitor, Traction Control, AutoCarry

Grade 3D with Assist Package: Includes full-color 10-inch (254 mm) touchscreen grade display, Steer Assist 3D, Grade receivers and antennas, Grade Software Enabled Attachment (SEA), ARO with Assist package features

Product Link Dual Cellular/Satellite

Grade Connectivity

Machine Security - Bluetooth

Cat Command for Dozing

Blades

Foldable VPAT

Waste/Landfill

Service and Maintenance

Fast fuel pump

Hydraulics

Independent steering and implement pumps

Load sensing hydraulics

Attachments

Ripper-ready rear hydraulics

Winch-ready rear hydraulics

Ripper with straight or curved shanks

Winch

Side screens

Rear screen: hinged or fixed

Sweeps

Fine Grading arrangement

Forestry and Waste special arrangements

Fire Dozer configuration

Note

Not all features are available in all regions. Please check with your local Cat dealer for specific offering availability in your area.

Product Specifications for D5

Download Print

Engine

Engine Model	Cat C7.1 Cat C7.1
Power - Net	170 hp 127 kW
Net Power - Rated - ISO 9249/SAE J1349	170 hp 127 kW
Net Power (Rated) - ISO 9249 (DIN)	172 mhp 172 mhp
Emissions	U.S. EPA Tier 4 Final/EU Stage V/Japan 2014 (Tier 4 Final)/Korea Stage V U.S. EPA Tier 4 Final/EU Stage V/Japan 2014 (Tier 4 Final)/Korea Stage V
Note (1)	Rated horsepower at 1770 rpm. Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. Advertised power is tested per the specified standard in effect at the time of manufacture. Rated horsepower at 1770 rpm. Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)	Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. Engines with no aftertreatment devices can use higher blends, up to 30% biodiesel. Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. Engines with no aftertreatment devices can use higher blends, up to 30% biodiesel.
Note (3)	Basic machine specs provided below. For complete specifications and dimensions by configuration, blade and track shoe offerings and more, please visit the product download section to view the full Technical Specifications document. Basic machine specs provided below. For complete specifications and dimensions by configuration, blade and track shoe offerings and more, please visit the product download section to view the full Technical Specifications document.
Note (4)	Machine Build Number 17B Machine Build Number 17B

Weights

Operating Weight

42263 lb 19170 kg

Transmission

Powertrain

Fully Automatic 3-Speed Fully Automatic 3-Speed

Service Refill Capacities

Fuel Tank	83.2 gal (US) 315 l
DEF Tank	4.2 gal (US) 16 l

VPAT

Operating Weight	37875 lb 17180 kg
Ground Pressure	6.9 psi 47.6 kPa
Width of Standard Shoe	24 in 610 mm
Blade	VPAT VPAT
Blade Capacity	4.6 yd³ 3.5 m³

LGP VPAT

Operating Weight	42263 lb 19170 kg
Ground Pressure	4.7 psi 32.6 kPa
Width of Standard Shoe	33 in 840 mm
Blade	LGP VPAT LGP VPAT
Blade Capacity	5.5 yd³ 4 m³

Fine Grading VPAT

Operating Weight	39198 lb 17780 kg
Ground Pressure	6 psi 41.4 kPa
Width of Standard Shoe	24 in 610 mm
Blade	VPAT VPAT
Blade Capacity	4.6 yd³ 3.5 m³

Push Arm

Operating Weight	38228 lb 17340 kg
Ground Pressure	7 psi 48.2 kPa
Width of Standard Shoe	24 in 610 mm
Blade	Semi-Universal (SU) Semi-Universal (SU)
Blade Capacity	5.6 yd³ 4.3 m³

Sustainability

Recyclability

97% 97%

Air Conditioning System

Air Conditioning

Note (1)

D5 Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

Power Train

Cat C7.1 diesel engine

Fully-automatic 3-speed transmission

Infinite ground speed adjustment

Operator Environment

Fully redesigned cab, sound suppressed, with Integrated Roll Over Protective Structure (IROPS)

Full-color 10-inch (254 mm) touchscreen display

Integrated rearview camera

Premium cab with adjustable operator controls/armrests

Cab mounted modular HVAC system

Added storage areas

Electrohydraulic implement and steering controls

Cloth seat

Lights: 6 LED

Cat Technology

Slope Indicate

Product Link, Cellular

Grade Control Ready Cab

Remote Control Ready

Remote Flash/Remote Troubleshoot

Operator ID

Machine Security - Passcode

Compatibility with radios and base stations from Trimble, Topcon, and Leica

Capability to install 3D grade systems from Trimble, Topcon, and Leica

Blades

VPAT

Semi-Universal

Undercarriage

Heavy Duty (HDXL with DuraLink) or Cat Abrasion

Redesigned track roller frame

Moderate Service or Extreme Service track shoes

Service and Maintenance

30-minute cab removal

Ecology drains

Ground level service center

Hydraulic fan

Rear access ladder

Shovel holder

Attachments

Drawbar

D5 Optional Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

Operator Environment

Deluxe leather heated/ventilated seat

Premium lights: 12 LED

Integrated warning lights

Communication radio ready

Cat Technology

ARO with Assist Package: Includes Attachment Ready Option (ARO), Slope Assist, Steer Assist, Stable Blade, Blade Load Monitor, Traction Control, AutoCarry

Grade 3D with Assist Package: Includes full-color 10-inch (254 mm) touchscreen grade display, Steer Assist 3D, Grade receivers and antennas, Grade Software Enabled Attachment (SEA), ARO with Assist package features

Product Link Dual Cellular/Satellite

Grade Connectivity

Machine Security - Bluetooth

Cat Command for Dozing

Blades

Foldable VPAT

Waste/Landfill

Service and Maintenance

Fast fuel pump

Hydraulics

Independent steering and implement pumps

Load sensing hydraulics

Attachments

Ripper-ready rear hydraulics

Winch-ready rear hydraulics

Ripper with straight or curved shanks

Winch

Side screens

Rear screen: hinged or fixed

Sweeps

Fine Grading arrangement

Forestry and Waste special arrangements

Fire Dozer configuration

Note

Not all features are available in all regions. Please check with your local Cat dealer for specific offering availability in your area.

Compatible Technology and Services

Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.

Cat AutoCarry for Dozers

Cat® AutoCarry™ for Dozers assists operators with maintaining full blade loads while reducing fatigue. AutoCarry works in tandem with Blade Load Monitor to help improve load consistency with less effort.

Explore Technology
Cat Slope Assist for Dozers

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

Cat® Grade with Slope Assist™ for Dozers makes just about any dozing job faster and easier. The system maintains blade cross slope and/or mainfall for better surface quality, even with a less experienced operator.

Explore Technology
Cat Stable Blade for Dozers

Cat® Stable Blade for Dozers works seamlessly with operator inputs to help produce a smoother surface when operating manually.

Explore Technology
Cat Steer Assist for Dozers

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

Cat® Steer Assist for Dozers automates multiple steering functions to help make operation easier. Increase productivity with less effort, resulting in greater efficiency and reduced operator fatigue.

Explore Technology
Cat Traction Control for Dozers

Cat® Traction Control for Dozers reduces excessive track slippage under full load conditions and improves undercarriage life. It reduces operator fatigue and increases productivity by providing a smoother reverse pass.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Cat® AutoCarry™ for Dozers assists operators with maintaining full blade loads while reducing fatigue. AutoCarry works in tandem with Blade Load Monitor to help improve load consistency with less effort.

Explore Technology

Cat® Grade with Slope Assist™ for Dozers makes just about any dozing job faster and easier. The system maintains blade cross slope and/or mainfall for better surface quality, even with a less experienced operator.

Explore Technology

Cat® Stable Blade for Dozers works seamlessly with operator inputs to help produce a smoother surface when operating manually.

Explore Technology

Cat® Steer Assist for Dozers automates multiple steering functions to help make operation easier. Increase productivity with less effort, resulting in greater efficiency and reduced operator fatigue.

Explore Technology

Cat® Traction Control for Dozers reduces excessive track slippage under full load conditions and improves undercarriage life. It reduces operator fatigue and increases productivity by providing a smoother reverse pass.

Explore Technology

Cat Command Remote Control for Construction

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

Cat Command is an advanced remote control system that takes operators off the machine and away from potential dangers when working with hazardous materials or in unsafe conditions. The system's deep integration with machine systems ensures smooth and precise control for optimal efficiency and productivity.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Cat Command is an advanced remote control system that takes operators off the machine and away from potential dangers when working with hazardous materials or in unsafe conditions. The system's deep integration with machine systems ensures smooth and precise control for optimal efficiency and productivity.

Explore Technology

Cat® Inspect

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

Cat® Inspect allows you to access your equipment data on your mobile device. This easy-to-use app lets you capture inspection data and integrates with your other Cat data systems, so you can keep a close eye on your fleet. More than one million inspections are completed each year, providing convenience and accountability to equipment owners.

Explore Technology
Cat® Remote Flash

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

Remote Flash sends an alert from your Cat dealer, prompting you to update the software on your machine. To minimize downtime, updates can be deployed while on the jobsite without having to wait for a dealer technician to arrive. Remote flash decreases maintenance time and keeps your asset running with maximum efficiency.

Explore Technology
Cat® Remote Troubleshooting

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

Remote Troubleshoot allows your Cat dealer to run testing while the machine is operating. Once the problem is identified, a technician can fix it with the correct parts and tools the first time, saving time and money. Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency.

Explore Technology
VisionLink™

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Cat® Inspect allows you to access your equipment data on your mobile device. This easy-to-use app lets you capture inspection data and integrates with your other Cat data systems, so you can keep a close eye on your fleet. More than one million inspections are completed each year, providing convenience and accountability to equipment owners.

Explore Technology

Remote Flash sends an alert from your Cat dealer, prompting you to update the software on your machine. To minimize downtime, updates can be deployed while on the jobsite without having to wait for a dealer technician to arrive. Remote flash decreases maintenance time and keeps your asset running with maximum efficiency.

Explore Technology

Remote Troubleshoot allows your Cat dealer to run testing while the machine is operating. Once the problem is identified, a technician can fix it with the correct parts and tools the first time, saving time and money. Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency.

Explore Technology

VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

Cat Grade with 3D for Dozers

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

Cat® Grade with 3D for Dozers is a factory-integrated grade control system that helps operators improve grading efficiency, accuracy, and productivity using automated blade movements.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Cat® Grade with 3D for Dozers is a factory-integrated grade control system that helps operators improve grading efficiency, accuracy, and productivity using automated blade movements.

Explore Technology
