Power Rating
| Maximum Power | 173 hp 129 kW |
| Maximum Torque | 546 lb-ft @ 1500 rpm 740 Nm @ 1500 rpm |
| Rated Speed | 2200 rpm 2200 rpm |
| Minimum Power | 173 hp 129 kW |

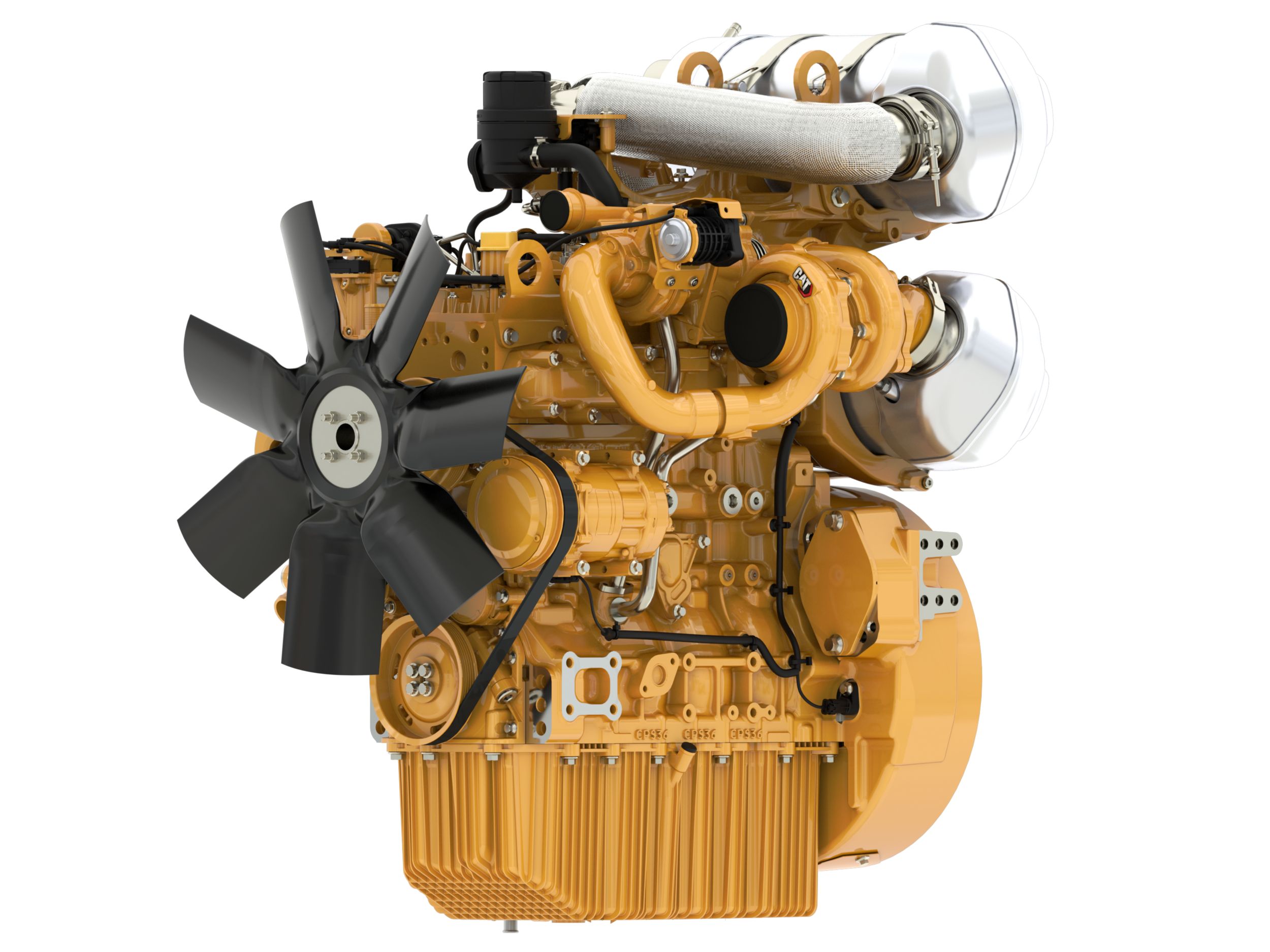

Industrial Diesel Engines C3.6
Key Specs
- Maximum Power
- 173 hp
- 129 kW
- Maximum Torque
- 546 lb-ft @ 1500 rpm
- 740 Nm @ 1500 rpm
- Emissions
- U.S. EPA Tier 4 Final, EU Stage V
- U.S. EPA Tier 4 Final, EU Stage V
Overview
The Cat® C3.6 packs big engine capability into a compact package, delivering up to 129 kW (173 hp) of power and 740 Nm (546 lb ft) of torque. Engineered to meet global emissions standards, it integrates seamlessly into your machine. With extended service intervals, flexible fuel options, and the proven durability expected from Cat engines, the C3.6 is built to keep your machines running strong, day after day.
Features At A Glance
Product Specifications for C3.6
Emission Standards
| Emissions | U.S. EPA Tier 4 Final, EU Stage V U.S. EPA Tier 4 Final, EU Stage V |
General
| Number of Cylinders | 4 4 |
| Displacement | 221 in³ 3.6 l |
| Aspiration | Twin turbocharged-aftercooled (TTA) Twin turbocharged-aftercooled (TTA) |
| Bore | 3.9 in 98 mm |
| Stroke | 3.9 in 98 mm |
| Combustion System | Direct injection Direct injection |
| Compression Ratio | 17.0:1 17.0:1 |
| Aftertreatment | DOC+DPF+SCR DOC+DPF+SCR |
| Total Lubricating Oil Capacity | 4.2 gal (US) 16 l |
| Rotation from Flywheel End | Anti-clockwise Anti-clockwise |
| Cooling System | Liquid Liquid |
Engine Dimensions*
| Length | 33.5 in 850 mm |
| Width | 26.8 in 680 mm |
| Height | 41.8 in 1060 mm |
| Dry Weight | 882 lb 400 kg |
| Wet Weight | 937 lb 425 kg |
Disclaimer
| Note 1 | *Final dimensions dependent on selected options *Final dimensions dependent on selected options |
See how C3.6 compares against frequently compared products.
Industrial
C3.6
Selected
- Maximum Power
- 173 hp
- 129 kW
- Maximum Torque
- 546 lb-ft @ 1500 rpm
- 740 Nm @ 1500 rpm
- Emissions
- U.S. EPA Tier 4 Final, EU Stage V
- U.S. EPA Tier 4 Final, EU Stage V
Industrial
C3.6
- Maximum Power
- 142 hp
- 106 kW
- Maximum Torque
- 417 lb-ft @ 1500 rpm
- 566 Nm @ 1500 rpm
- Emissions
- U.S. EPA Tier 4 Final, EU Stage V, Japan 2014
- U.S. EPA Tier 4 Final, EU Stage V, Japan 2014
Industrial
C3.6 for Tractors
- Maximum Power
- 134 hp
- 100 kW
- Maximum Torque
- 391 lb-ft @ 1500 rpm
- 530 Nm @ 1500 rpm
- Emissions
- U.S. EPA & CARB Tier 4 Final, EU Stage V
- U.S. EPA & CARB Tier 4 Final, EU Stage V
