Overview
1750-2500kW Natural Gas Generator
Caterpillar is leading the power generation marketplace with Fast Response generator sets engineered to deliver unmatched performance, reliability, and cost-effectiveness.
Gas Generator Sets G3520 with FAST RESPONSE
Key Specs
- Gas Standby Rating
- 2500 ekW @ 0.8pf
- 2500 ekW @ 0.8pf
- Fuel Type
- Natural Gas, Hydrogen Blend (up to 5%)
- Natural Gas, Hydrogen Blend (up to 5%)
- Emissions/Fuel Strategy
- U.S. EPA Stationary Non-Emergency Certified
- U.S. EPA Stationary Non-Emergency Certified
Benefits
Meets UL2200 Certification
Leading edge EPA Certification For Non-Emergency, UL2200, UL1446, and more
Ready in 7 Seconds
Complies with industry leading specifications such as NFPA 110 Level 1 Type 10
Ready to accept 100% Block Load
Able to pick up the loads for the entire site in the event of an emergency.
Features At A Glance
Displaying 1-6 of 7
CAT G3520 Gas Engine
Cat G3520 Gas Engine
- Robust high speed block design provides prolonged life and lower owning operationg costs
- Designed for maximum performance on low pressure pipeline natural gas and hydrogen blends
- Simple open chamber combustion system for reliability and fuel flexibility
- Leading edge technology in ignition system and air/fuel ratio control for lower emission and engine efficiency
- One electronic control module handles all engine functions: ignition, governing, air/fuel ratio control and engine protection
Full Range of Attachments
Full Range of Attachments
- Wide range of bolt-on system expansion attachments
- Factory designed and tested
- Flexible packaging options for easy and cost effective installation
Worldwide Product Support
Worldwide Product Support
- Cat dealers have over 1,800 dealer branch stores operating in 200 countries
- Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
SR5 Generator
SR5 Generator
- Designed to match performance and output characteristics of Caterpillar gas engines
- Industry leading mechanical and electrical design
- High efficiency
Cat ECS 100 Control Panel
Cat ECS 100 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Proven System
Proven System
- Field proven in a wide range of applications worldwide
- Fully prototype tested
- Certified torsional vibration analysis available
Product Specifications for G3520 with FAST RESPONSE
Generator Set Specifications
| Gas Standby Rating | 2500 ekW @ 0.8pf 2500 ekW @ 0.8pf |
| Fuel Type | Natural Gas, Hydrogen Blend (up to 5%) Natural Gas, Hydrogen Blend (up to 5%) |
| Emissions/Fuel Strategy | U.S. EPA Stationary Non-Emergency Certified U.S. EPA Stationary Non-Emergency Certified |
| RPM | 1800 rpm 1800 rpm |
| Frequency | 60 Hz 60 Hz |
| Compression Ratio | 11.5 11.5 |
Engine Specifications
| Engine Model | G3520 G3520 |
| Displacement | 5956 in³ 97.6 l |
| Aspiration | TA TA |
| Bore | 6.7 in 170 mm |
| Stroke | 8.5 in 215 mm |
Generator Set Dimensions
| Length | 336 in 8534 mm |
| Width | 94 in 2386 mm |
| Height | 128 in 3230 mm |
| Weight | 48500 lb 22000 kg |
G3520 with FAST RESPONSE Standard Equipment
Air Inlet
- Two-element single-stage air cleaner with enclosure and service indicator
Control Panel
- Cat ECS 100
Cooling
- Jacket water and SCAC engine-driven pumps
- Jacket water and SCAC thermostats
Exhaust
- Cat-flanged face outlet on turbocharger
- Individual exhaust port and turbocharger outlet wired to integrated temperature sensing module (ITSM) with GCEM providing alarms and shutdowns
- Dry exhaust manifolds, insulated and shielded
Fuel System
- Gas pressure regulator
- Engine-installed electronic control valve
- Fuel system is sized for 31.5 to 47.2 MJ/NM3 dry pipeline natural gas with pressure of 10.2 to 34.5KPa to the engine fuel control valve
- 24V DC energized-to-run (ETR) gas shutoff valve
- Throttle plate, 24V DC actuator, controlled by GECM
General
- Crankshaft vibration damper and guard
- Operation and maintenance manuals
- RH Service
- Paint- Caterpillar Yellow with high gloss black rails and radiator
- Parts book
Generator
- SR5
- Permanent Magnet Excitiation
- NEMA Class H insulation
- Winding temperature detectors
- Integrated voltage regulator (IVR)
- Anti-condensation space heater
Starting/Charging
- Battery with cables and rack (shipped loose)
- 24V starting motors
- Electric Starter
- Jacket water heater
Governing System
- ADEM A4
Ignition System
- Electronic Ignition System (controlled by ADEM A4)
- Individual Cylinder Detonation Sensitive Timing (DST)
G3520 with FAST RESPONSE Optional Equipment
Air Inlet
- Air cleaner with precleaner
Control Panel
- Local alarm module
- EMCP 4.4
- Remote annunciator
- Remote PC monitoring
- Engine failure relay
- Local PC monitoring
Circuit Breakers
- 2000A, 2500A, 3000A 3 Pole, UL-100% Rated Masterpact Circuit Breakers
- 100% rated, 3-pole (UL/CSA/IEC) 5th Digit Rating
- 3-pole (IEC 947-2 rated)
- Frame mounting
- 1600A, 2000A 3 Pole, UL-100% Rated R-Frame Circuit Breakers
- S LSI, G LSIG, P LSIG-P, 4th Digit Type
Cooling
- Coolant level drain line with valves, fan with guard
- Package mounted radiator
Exhaust
- 305 mm (12 in.) muffler
- 305 mm (12in.) elbow
- 18, 25 dBA Attenuation
- 305 mm (12 in.) flange
- 305mm (12 in) spark arresting muffler
Fuel System
- 3, 0-100 kPag, 4-20mA gas train pressure sensors
General
- Digital diagnostic tool
Generator
- Low voltage extension box
- Bearing temperature detectors
- European bus bars
- Cable access box
- Generator air filter
Starting/Charging
- 45A, 24V charging alternator (requires engine driven pumps)
- 20A, 24VDC battery charger
Grid Code Compliance
- 60 Hz: USA
assignment Product Brochures and More Are Ready to Download!
Caterpillar product brochures and other informational documents are available for your growing business.
- G3520 NOx Selectable Spec Sheet Downloadable PDF Opens in a New Tab file_download
- Gas Generator Set 50 and 60 Hz Ratings Guide Downloadable PDF Opens in a New Tab file_download
- G3520 EPA Certified Spec Sheet Downloadable PDF Opens in a New Tab file_download
- Electric Power Rating Guide Downloadable PDF Opens in a New Tab file_download
See how G3520 with FAST RESPONSE compares against frequently compared products.
Electric Power
G3520 with FAST RESPONSE
Selected
- Gas Standby Rating
- 2500 ekW @ 0.8pf
- 2500 ekW @ 0.8pf
- Fuel Type
- Natural Gas, Hydrogen Blend (up to 5%)
- Natural Gas, Hydrogen Blend (up to 5%)
- Emissions/Fuel Strategy
- U.S. EPA Stationary Non-Emergency Certified
- U.S. EPA Stationary Non-Emergency Certified
Electric Power
G3520 with FAST RESPONSE
- Gas Standby Rating
- 2000 ekW @ 0.8pf
- 2000 ekW @ 0.8pf
- Fuel Type
- Natural Gas, Hydrogen Blend (up to 5%)
- Natural Gas, Hydrogen Blend (up to 5%)
- Emissions/Fuel Strategy
- U.S. EPA Stationary Non-Emergency Certified
- U.S. EPA Stationary Non-Emergency Certified
Electric Power
G3520K
- Continuous Rating
- 2567 / 2552 ekW @ 1.0pf
- 2567 / 2552 ekW @ 1.0pf
- Fuel Type
- Natural Gas & Propane
- Natural Gas & Propane
- Maximum Electrical Efficiency
- 46.0%
- 46.0%
Use the comparison tool to compare detailed specs of Cat and competitor models.
Compare All ModelsMaintenance and Repairs
Retain genset value with maintenance, upgrade kits, and repair options that extend lifecycles, optimise performance, and help you control costs.
Learn MoreParts
Shop for genuine and Cat Reman parts online, with access to price, inventory, and 24/7 expert support.
Learn MoreCustomize Your Gas Generator Set
Build and customize your own generator set to perfectly fit your needs.
Learn MoreMedia Gallery
Photos
Videos
360 View

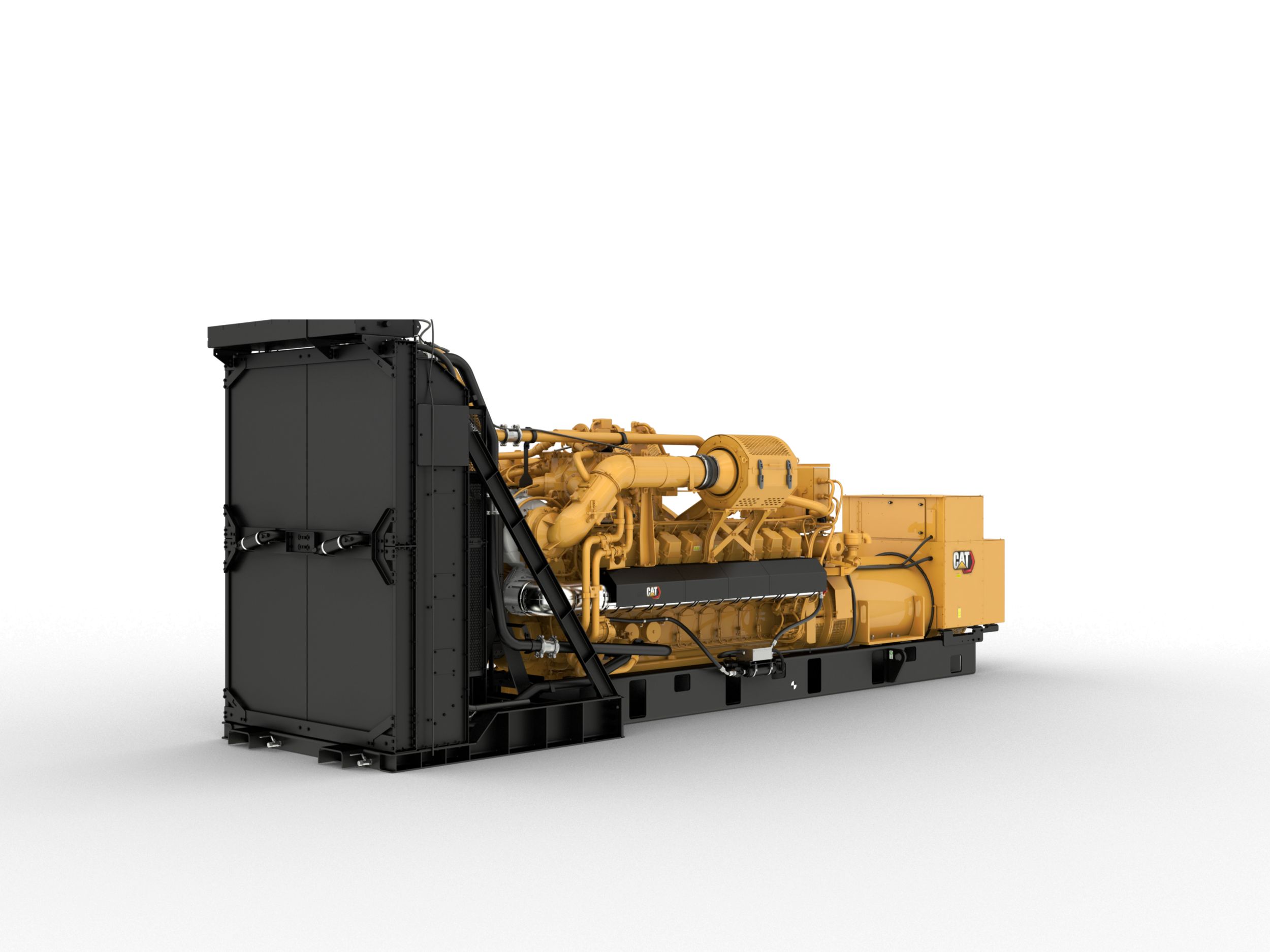

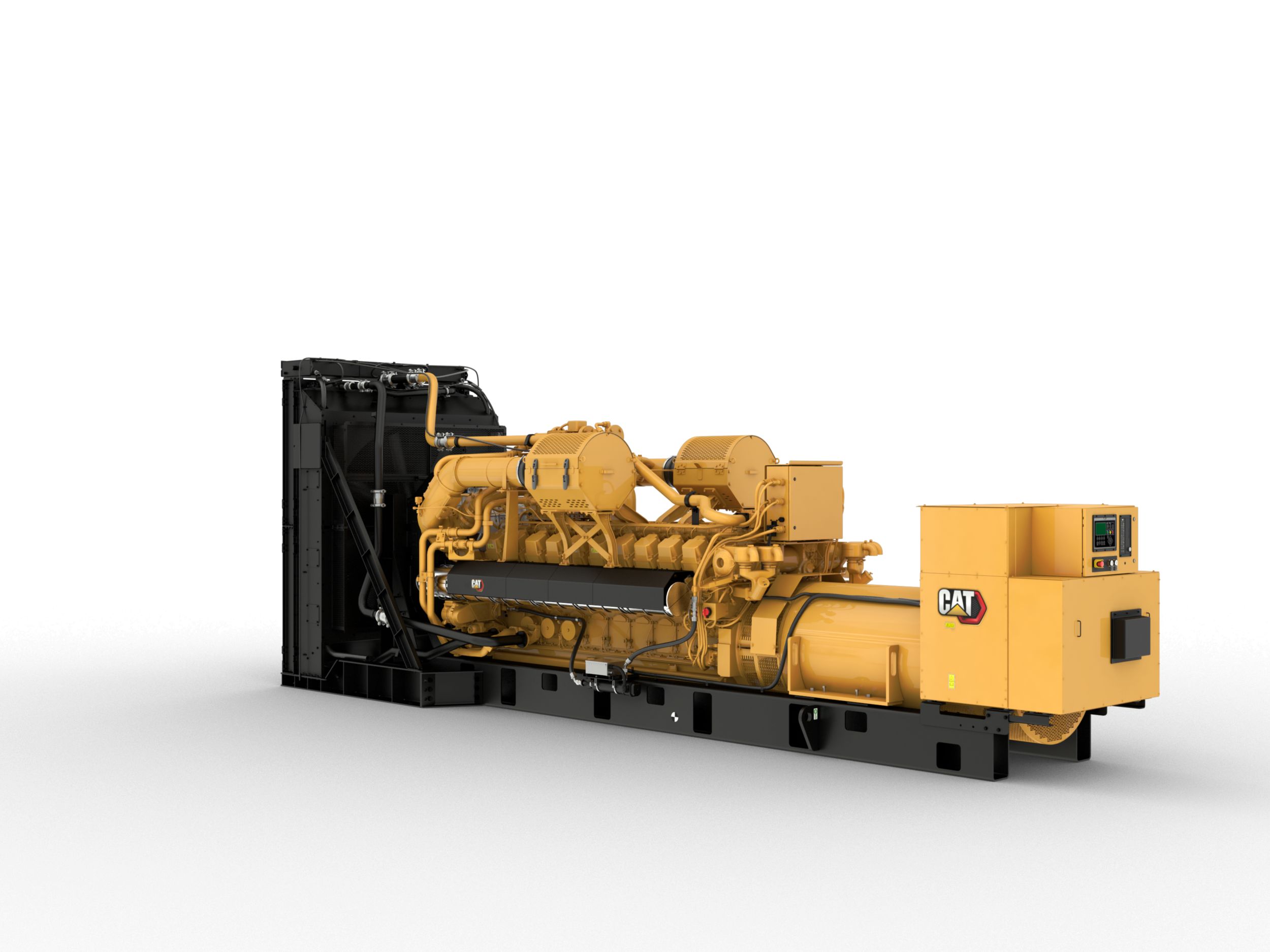

G3520 Gas Generator Set
