Key Specs

Mission Critical: 1500 ekW; 1500 ekW

Standby Rating: 1500 ekW; 1500 ekW

Emissions/Fuel Strategy: Low BSFC; Low BSFC

C32B DE1500S GC (Diesel / 1251 - 1500l kW-kVA / Global - 60 hz kVA)
Change model

Overview

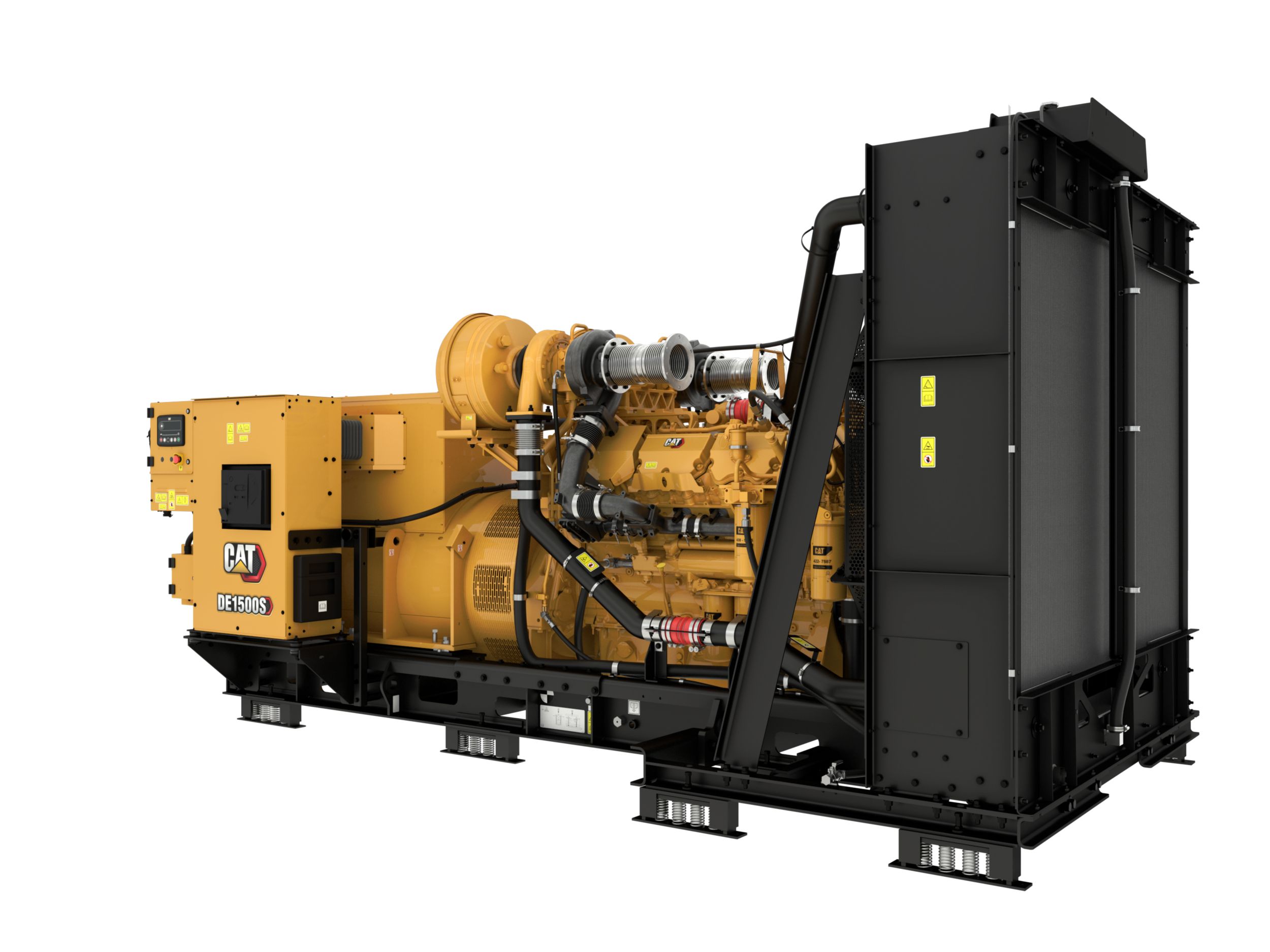

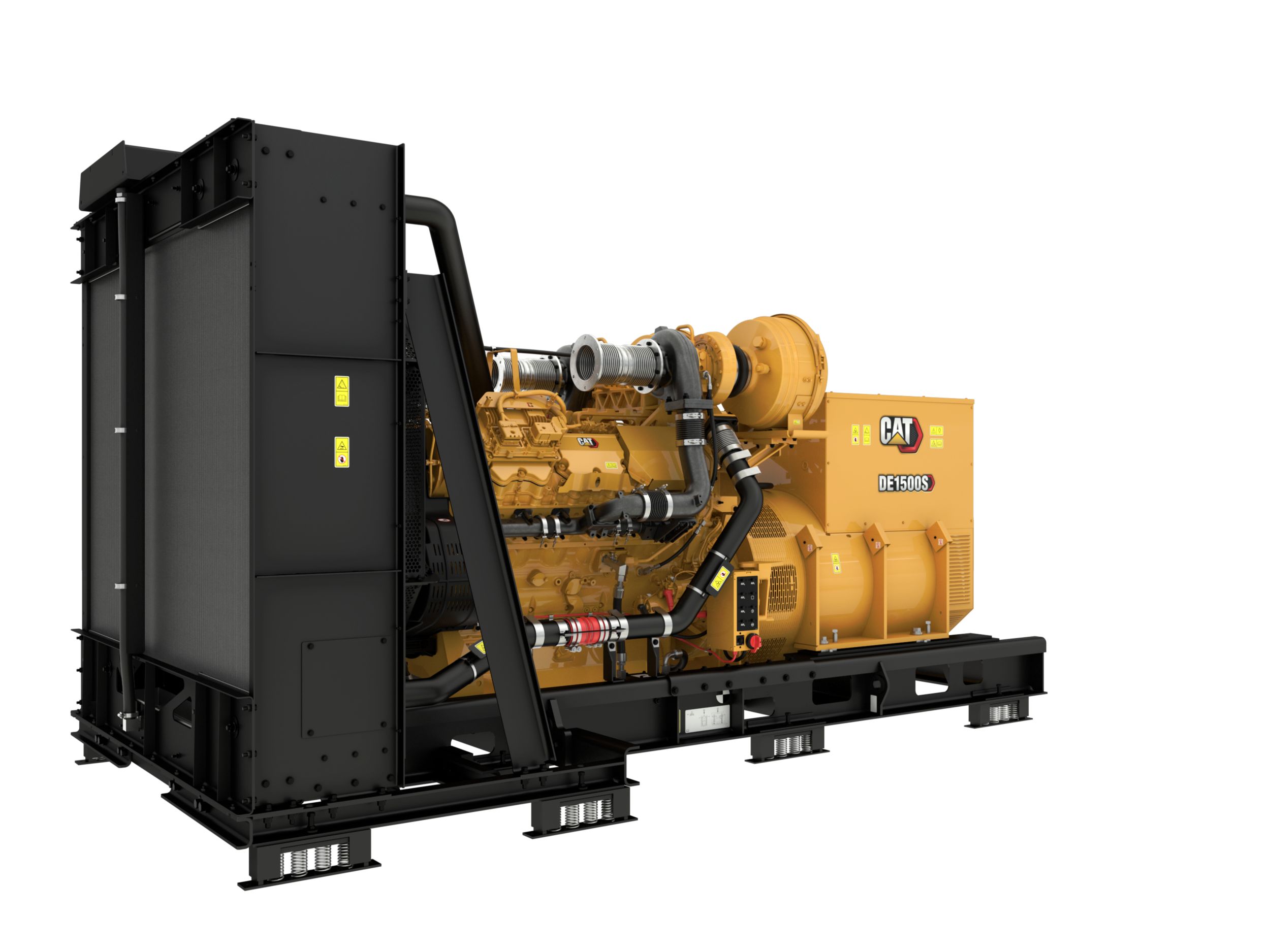

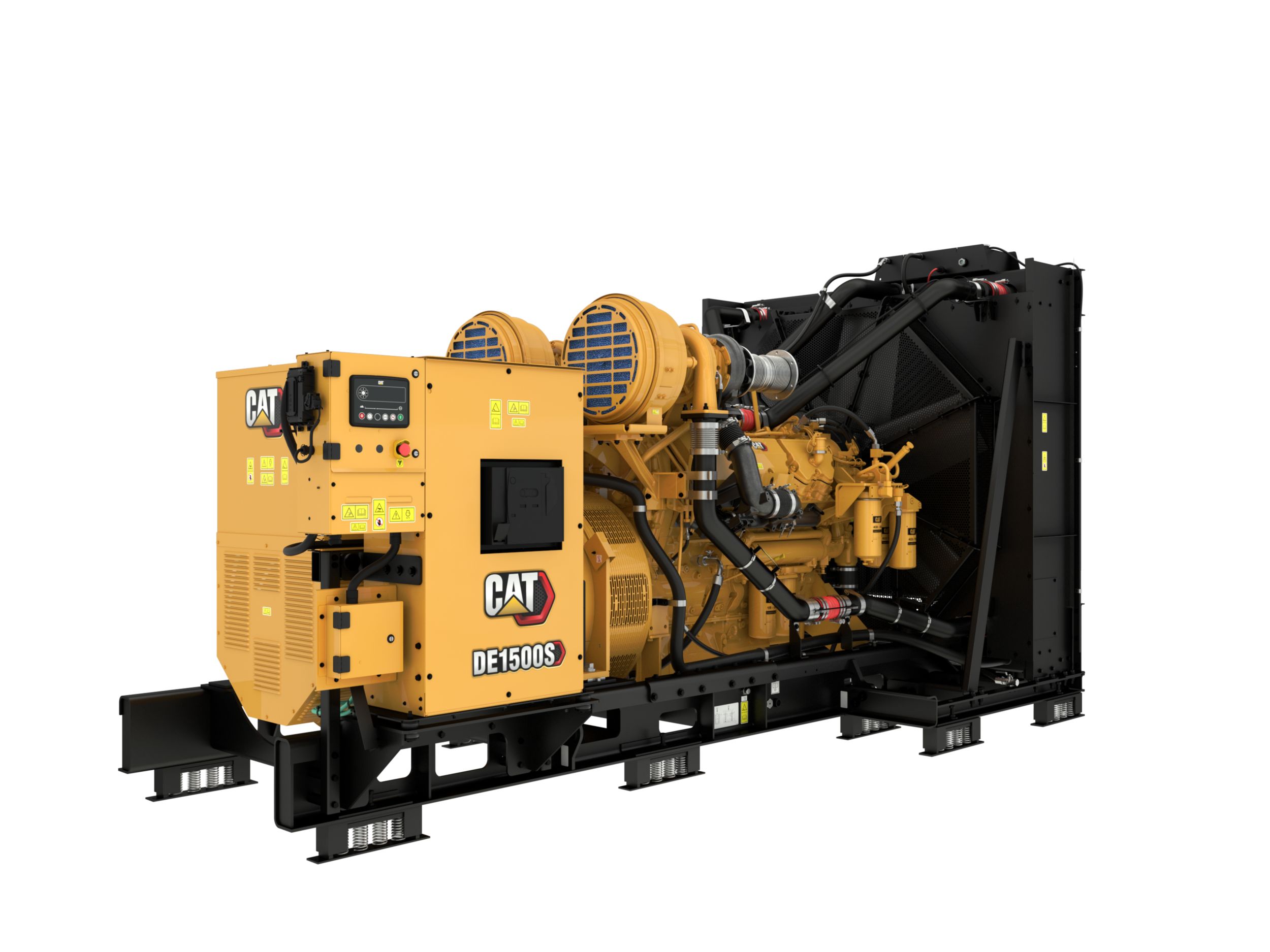

1500 ekW Diesel Generator Set

Producing reliable power at 1500 ekW at 60 Hz, the Caterpillar DE1500S diesel generator set is made to meet the needs of your standby mission critical applications with the new C32B engine with best-in-class power density combining a compact and lighter design.

Benefits

Best in Class Power Density Density

Producing 15 ekW with a 32.1 L engine

Improved Core

Proven durability on C32 platform now with improved core

Reliable Peace of Mind

with single touchpoint for end-to-end service and support

Features At A Glance

Cat generator set packages have been fully prototype tested
Conform to ISO 8528-5 steady state and transient response requirements

Reliable, rugged, durable design
Field-proven in thousands of applications worldwide
Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight

Superior motor starting capability minimizes need for oversizing alternator
Designed to match performance and output characteristics of Cat diesel engines
Robust Class H insulation

User-friendly interface and navigation
Scalable system to meet a wide range of installation requirement
Expansion modules and site-specific programming for specific customer requirements

Designed to operate in standard ambient temperatures up to 50�C (122�F)
Contact your Cat Dealer for specific ambient and altitude capabilities

CE and AEC Certifications

Components used in the generator set are selected at the design stage to provide optimum package performance
The generator set is fully assembled at a Caterpillar facility following our quality guidelines
Each generator set package is tested before leaving the Caterpillar facility
Cat product support, including dealer service, parts and warranty covers the entire Cat power system

Cat dealers have over 1,800 dealer branch stores operating in 200 countries
Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements

Specifications Standard Equipment Optional Equipment

Product Specifications for C32B DE1500S GC (Diesel / 1251 - 1500l kW-kVA / Global - 60 hz kVA)

Definitions and Conditions

Mission Critical

1500 ekW 1500 ekW

Generator Set Specifications

Standby Rating	1500 ekW 1500 ekW
Emissions/Fuel Strategy	Low BSFC Low BSFC
Voltage	400 to 415 Volts 400 to 415 Volts
Frequency	60 Hz 60 Hz
Speed	1500 rpm 1500 rpm
Duty Cycle	Standby, Mission Critical Standby, Mission Critical
Maximum Rating	1500 ekW 1500 ekW
Minimum Rating	1500 ekW 1500 ekW

Engine Specifications

Engine Model	C32B TA, V12, 4-Stroke Diesel C32B TA, V12, 4-Stroke Diesel
Bore	5.7 in 145 mm
Stroke	6.4 in 163 mm
Displacement	1959 in³ 32 l
Compression Ratio	14:1 14:1
Aspiration	TA TA
Fuel System	EUI EUI
Governor Type	ADEM™ A5 ADEM™ A5

Generator Set Dimensions

Length - Minimum	185.43 in 4710 mm
Length - Maximum	185.43 in 4710 mm
Width - Minimum	89.72 in 2279 mm
Width - Maximum	89.72 in 2279 mm
Height - Minimum	100.43 in 2551 mm
Height - Maximum	105.71 in 2685 mm
Dry Weight - Genset (minimum)	18832 lb 8542 kg
Dry Weight - Genset (maximum)	20155 lb 9142 kg

C32B DE1500S GC (Diesel / 1251 - 1500l kW-kVA / Global - 60 hz kVA) Standard Equipment

Air Cleaner

Single Element

Starting

Standard Batteries and Electric Starter

Cooling System

Standard Radiator:

Alternator

380 V

480 V

Alternator Temperature Rise

80�C

105�C

125�C

150�C

Excitation

Control Panel

GCCP 1.3

Connectivity

Cat� Product Link� PL444 cellular

C32B DE1500S GC (Diesel / 1251 - 1500l kW-kVA / Global - 60 hz kVA) Optional Equipment
