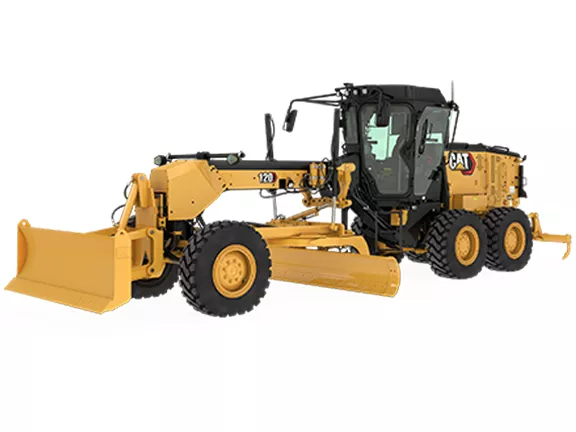

Cat® 120 motor graders are designed to deliver grade accuracy and top performance.

120 Motor Graders Tier 4 / Stage V

Name: 120
Brand: Cat

New Used Rental

Request A Price Find Dealer

Key Specs

Net Power - ISO 9249/SAE J1349: 174 hp; 134 kW

Operating Weight - Typically Equipped: 37,106 lb; 16 831 kg

Blade Width: 12 ft; 3.7 m

120
Change model

Overview

Precision and Comfort with Control Options

Cat® 120 motor graders are designed for road grading, shaping shoulders, and shaping slopes. Available in all wheel drive for extra traction.

Benefits

Fuel-Efficient Power

The 120 delivers increased fuel economy while maintaining a balanced weight-to-power ratio through the C7.1 engine. Power is optimized across all gears to ensure smooth and efficient performance in every operating condition.

Operator-First Design

The cab features an adjustable heated and cooled seat, touchscreen display with Cat Grade tech, automatic climate control, and enhanced rear visibility for improved comfort and efficiency.

Lower maintenance costs

Benefit from longer maintenance intervals, advanced filtration technology, and precise control with the top-adjust drawbar option for consistent, reliable accuracy.

Features At A Glance

Displaying 1-6 of 7

Latest Features (15A) for LVR Configuration

Cab Modernization

Additional Finish Gear which allows improved fine grading work without using the inching pedal or service brakes to control speed.
Gear shifter redesigned to F-N-R, which improves gear shifting and provides better operator ergonomics.
Integrated high definition (HD) rear vision camera.
Display-initiated Remote Flash.
Operator may choose to have rear vision camera on all the time or have it show in display automatically when machine is put in reverse gears.
Larger cross slope screen.
Planned Maintenance (PM) alert sync in display.
Identify apps quickly with a grid list view, abbreviated app names, and categorized menu options.
A new notification center keeps important information visible to the operator and displays messages without shrinking the camera view.
Color coded notifications set critical messages apart from the rest.
Optional integrated warning lights on all 4 sides of the cab improve visibility and protect the lights from getting damaged.

Upgrade to the heavy duty rear ripper/scarifier for increased performance.

Not all features are available in all regions. Please check with your local Cat dealer for specific offering availability in your area. Build Number 15A represents changes to lever configurations only.

MOVE MORE WITH LESS FUEL

Get to work with balanced weight and power in the Cat C7.1 engine.
Increase your fuel economy by using Eco mode in lighter applications.
Cat® Grade with Cross Slope Indicate helps operators reach target grade faster and improves grading accuracy, efficiency, and jobsite productivity.
The powershift transmission works hard with machine balance to ensure drawbar power to the ground.
Powertrain components are specifically made to be rebuilt.

WORK IN COMFORT

Choose your comfort level in the cab with standard, comfort plus, and premium plus options.
View your machine information from fuel levels to Grade with Cross Slope Indicate options and machine alerts. The anti-glare screen makes it easy to read no matter how bright it gets.
The high capacity Heating, Ventilation and Air Conditioning (HVAC) system dehumidifies and pressurizes the cab, circulates fresh air, seals out dust and keeps windows clear from fogging.
Connect your phone with Bluetooth® or auxiliary cord option to listen to music and podcasts throughout your work day.
Easily add a radio to the cab using the built-in mounting location.
Decrease clutter with more storage areas in the cab.
With the auto-controlled climate option, you can set your ideal temperature.
Keep your phone charged with the optional USB charging port along with a spot designed to hold your phone.

TECHNOLOGY THAT GETS WORK DONE

The next generation motor grader offers updated Grade technology displayed on the 254 mm (10 in) color touchscreen option (LVR) or 203 mm (8 in) touchscreen display (JOY).
Use the Digital Blade Slope Meter to get to grade without relying on manual grade checkers.
Cat Grade with Cross Slope Indicate option provides a real-time readout of cross slope and can be scaled for automatic blade movement.
Cat Grade Attachment Ready Option (ARO) gives you the connections that you need to add grade control technologies.
Stable Blade senses blade bounce before you to reduce manual throttle use and site rework.
VisionLinkTM can help you monitor, track, and manage your road grader through sharing data and results with the organization.
Update machine software with Remote Services without taking the machine out of service.

BUILT-IN SAFETY FEATURES

The heated lens keeps the rearview camera clear.
In the event of an engine stall, count on the secondary steering system to turn on to help you stop the machine safely.
Ensure three points of contact when entering and exiting the machine with strategically placed walkways and grab rails.
Ground level engine shut-off switch stops all fuel to the engine when activated and shuts down the machine.
See the rear of your machine with connecting windows.
Work past sundown using the LED light option for increased night time visibility.
Keep your work site safer with Cat Grade technology, which reduces the need for manual grade checking with working machines.
Choose the optional 4-point safety harness for added operator safety

LOWER MAINTENANCE COSTS

Filters, such as fuel, engine air, and oil filters, are grouped together for easy access and preventative maintenance.
The next generation filters help reduce filtration costs.
Maintain roads with the standard drawbar circle moldboard with hardened circle teeth for increased durability.
For tight finish grading, consider the top adjust drawbar option for applications that require maximum accuracy. It offers reductions in maintenance costs over the standard.
Hydraulic brakes are well oiled to keep them maintenance free.
Lower costly repairs to your circle and pinion with the Circle Saver.

Cab Modernization

Additional Finish Gear which allows improved fine grading work without using the inching pedal or service brakes to control speed.
Gear shifter redesigned to F-N-R, which improves gear shifting and provides better operator ergonomics.
Integrated high definition (HD) rear vision camera.
Display-initiated Remote Flash.
Operator may choose to have rear vision camera on all the time or have it show in display automatically when machine is put in reverse gears.
Larger cross slope screen.
Planned Maintenance (PM) alert sync in display.
Identify apps quickly with a grid list view, abbreviated app names, and categorized menu options.
A new notification center keeps important information visible to the operator and displays messages without shrinking the camera view.
Color coded notifications set critical messages apart from the rest.
Optional integrated warning lights on all 4 sides of the cab improve visibility and protect the lights from getting damaged.

Get to work with balanced weight and power in the Cat C7.1 engine.
Increase your fuel economy by using Eco mode in lighter applications.
Cat® Grade with Cross Slope Indicate helps operators reach target grade faster and improves grading accuracy, efficiency, and jobsite productivity.
The powershift transmission works hard with machine balance to ensure drawbar power to the ground.
Powertrain components are specifically made to be rebuilt.

Choose your comfort level in the cab with standard, comfort plus, and premium plus options.
View your machine information from fuel levels to Grade with Cross Slope Indicate options and machine alerts. The anti-glare screen makes it easy to read no matter how bright it gets.
The high capacity Heating, Ventilation and Air Conditioning (HVAC) system dehumidifies and pressurizes the cab, circulates fresh air, seals out dust and keeps windows clear from fogging.
Connect your phone with Bluetooth® or auxiliary cord option to listen to music and podcasts throughout your work day.
Easily add a radio to the cab using the built-in mounting location.
Decrease clutter with more storage areas in the cab.
With the auto-controlled climate option, you can set your ideal temperature.
Keep your phone charged with the optional USB charging port along with a spot designed to hold your phone.

The next generation motor grader offers updated Grade technology displayed on the 254 mm (10 in) color touchscreen option (LVR) or 203 mm (8 in) touchscreen display (JOY).
Use the Digital Blade Slope Meter to get to grade without relying on manual grade checkers.
Cat Grade with Cross Slope Indicate option provides a real-time readout of cross slope and can be scaled for automatic blade movement.
Cat Grade Attachment Ready Option (ARO) gives you the connections that you need to add grade control technologies.
Stable Blade senses blade bounce before you to reduce manual throttle use and site rework.
VisionLinkTM can help you monitor, track, and manage your road grader through sharing data and results with the organization.
Update machine software with Remote Services without taking the machine out of service.

The heated lens keeps the rearview camera clear.
In the event of an engine stall, count on the secondary steering system to turn on to help you stop the machine safely.
Ensure three points of contact when entering and exiting the machine with strategically placed walkways and grab rails.
Ground level engine shut-off switch stops all fuel to the engine when activated and shuts down the machine.
See the rear of your machine with connecting windows.
Work past sundown using the LED light option for increased night time visibility.
Keep your work site safer with Cat Grade technology, which reduces the need for manual grade checking with working machines.
Choose the optional 4-point safety harness for added operator safety

Filters, such as fuel, engine air, and oil filters, are grouped together for easy access and preventative maintenance.
The next generation filters help reduce filtration costs.
Maintain roads with the standard drawbar circle moldboard with hardened circle teeth for increased durability.
For tight finish grading, consider the top adjust drawbar option for applications that require maximum accuracy. It offers reductions in maintenance costs over the standard.
Hydraulic brakes are well oiled to keep them maintenance free.
Lower costly repairs to your circle and pinion with the Circle Saver.

Improve the balance of your machine with the counterweight or push block for increased performance and efficiency.
Ripper and scarifier options are available to assist with grading hardened ground.
The front lift group option is ready for attachments like the straight or front blade.
For more road coverage, add a moldboard extension to add 605 mm (24 in).

Specifications Standard Equipment Optional Equipment

Product Specifications for 120

Engine

Net Power - ISO 9249/SAE J1349	174 hp 134 kW
Engine Model	Cat 7.1 Cat 7.1
Emissions	U.S. EPA Tier 4 Final/EU Stage V emission standards U.S. EPA Tier 4 Final/EU Stage V emission standards
Note (1)	Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 standards in effect at the time of manufacture. Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 standards in effect at the time of manufacture.
Note (2)	Net power advertised is the power available at rated speed of 2,000 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator. Net power advertised is the power available at rated speed of 2,000 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator.

Weights

Operating Weight - Typically Equipped	37,106 lb 16 831 kg
Note	Typically equipped includes 3.7 m (12 ft) plus blade, tires, push plate, ripper, bottom guard, operator, and full fluids. Typically equipped includes 3.7 m (12 ft) plus blade, tires, push plate, ripper, bottom guard, operator, and full fluids.

Moldboard

Blade Width

12 ft 3.7 m

Power Train

Transmission	Direct Drive Powershift, Countershift Direct Drive Powershift, Countershift
Forward/Reverse Gears	9 Forward / 6 Reverse 9 Forward / 6 Reverse

Service Refill Capacities

Fuel Tank	65 gal (US) 246 l
Diesel Exhaust Fluid Tank (Tier 4 Only)	3 gal (US) 11 l

Sustainability

Recyclability

96% 96%

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg (3.5 lb) of refrigerant which has a carbon dioxide equivalent of 2.288 metric tonnes (2.521 tons). The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg (3.5 lb) of refrigerant which has a carbon dioxide equivalent of 2.288 metric tonnes (2.521 tons).

120 Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

Cab

Vinyl Seat

ROPS, Standard Sound Suppression

Heating/Cooling Cab System

Base Cab

254 mm (10 in) Hybrid Information Display

Halogen Lighting

Cat Technology

Product Link

Engine

Cat C7.1

Eco mode

Hydraulic Demand Fan

Drawbar Circle Moldboard

Standard

Circle Drive Slip Clutch

Safety

Parking brake

Signaling/warning horn

Rearview mirror

Hydraulic brakes

Secondary steering system

Side view mirrors

Walkways and Grab Rails

120 Optional Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

Cab

Cloth or Leather Seat

Steering Wheel/Lever Controls

Joystick Controls

Rear Wiper

Comfort Plus

Premium Plus

Seatbelt Indicator

Heated/Cooled Seat

Bluetooth/Auxiliary Radio

LED Lighting

Rear Window Screen

Cat Technology

Cat Grade with Digital Blade Slope Meter

Cat Grade with Cross Slope Indicate

Cat Grade with Cross Slope

Cat Grade Attachment Ready Option (ARO)

Stable Blade

Remote Services

Engine

All-Wheel Drive (AWD)

Drawbar Circle Moldboard

Top Adjust

Circle Saver

Safety

Rearview camera

Versatility

Counterweight

Push Block

Ripper

Scarifier

Front Lift Group

Front Blade

Front Blade

HD Ripper
