Wheel Asphalt Pavers AP1000

New Used Rental

Request A Price Find Dealer

Key Specs

Paving Range with SE60 FM: 3 m - 7.8 m (10' - 25' 6"); 3 m - 7.8 m (10' - 25' 6")

Operating weight with SE60 FM: 42,620 lb; 19332 kg

Maximum Throughput Capacity: 1766 ton(US)/h; 1602 tonnes/hr

AP1000
Change model

Overview

Simple, Mobile, Productive

The Cat AP1000 Asphalt Paver is a wheel paver that delivers a high-return on investment with its fast-heating screed system, low fuel consumption, durable components, and easy to use technology. A variety of screed choices offer versatility and provide high-quality results on interstates, highways, airports, and parking lots.

Benefits

Advanced Technology

with pave start assistant, thermal mapping and hopper level sensors

Up to 15% More Fuel Efficient

with advanced Eco-mode and integrated generator design.

Simple and Quiet Operation

with screed heat-up in as little as 15 minutes.

Features At A Glance

Exclusive 70 kW integrated generator delivers fast, reliable screed heating and is designed for long life by the same team that developed the D7E electric drive dozer.
Fast heating screed leads to more daily production, heating time in as little as 15 minutes.
Excellent turning capability, fast travel leads to increased production.
Exclusive air flow design improves operating conditions for the crew and keeps components cooler for lasting durability.

Pave Start Assistant (option) saves set-up profiles for repeatable use on future job sites including: tow-point height, screed heat temperature, paving speed, paving width, paving depth, crown, extender slope and height, screed assist, and screed locking features.
A hopper level sensor (option) with temperature indication keeps the operator informed of material height and delivery temperatures, indicators are located in each tractor display.
Exclusive screed heating system monitors elements for failure conditions and helps eliminate unnecessary replacement.
Cat® Grade Control option is integrated into the tractor and screed displays for optimized operator efficiency.
Thermal mapping (option) utilizes an infra red camera mounted on a fixed-position mast that captures the entire width of the asphalt surface behind the screed. An LCD display mounted near the screed console provides real-time visibility to the surface being paved.

Versatile screed designs deliver excellent ride, density, and mat texture while providing superior adjustment; available with front-mount extenders, rear-mount extenders, or tamper-bar systems.
The optional Cat® SDX Screed Plate System is designed to increase density and smoothness. The system is available for the SE60 V and SE60 V XW Asphalt Screeds.
Tow-point utilizes exclusive linkage design for optimal screed flotation.
Exclusive 2-speed proportional control on the screed extenders.
Cat Grade Control is a factory-integrated guidance system that helps remove irregularities from the surface and control mat thickness for increased production, lower operating costs, and higher profitability.

Exclusive Eco-mode and Automatic Engine Speed Control, reduce fuel consumption and lower sound levels for better comfort and communication.
4-pump feeder system is designed for high production in Eco-mode, leads to lower fuel consumption.
Million cycle switches provide reliability.
Conveyor bed plates and chain guards designed to minimize labor requirements and provide lower cost replacement.
Heating elements slide out for easy replacement.
Machined screed frames simplify screed plate replacement.
Enhanced hopper flashing with improved memory and temperature resiliency offers better performance during truck exchanges.

Ventilation system draws fumes from the auger chamber and redirects them away from the operator for a more comfortable working environment.
Dual operating station provide back-up capability and complete control from either side of the machine, each station can swing-out beyond the frame for good all-around visibility.
Heated seat option, pneumatic suspension, multiple adjustments, and tilting consoles provide day-long comfort.
Eco-mode provides low sound levels that supports clear communication with the crew.
High visibility 76 mm (3") seat belt helps with crew safety compliance.
USB port simplifies software updates.
Cup holders offer convenience.

Touch-screen displays with adjustable brightness control enable operators to fine-tune performance in various lighting conditions.
Touch-screen access simplifies activation of the generator and auxiliary power, while also providing easy adjustments to screed plate heating temperatures, tamper and vibratory speeds, Cat Grade Control (option), and stored operator preferences.
Operating displays can be tailored to specific language requirements with multiple options available.

VisionLink™ is a cloud based software application that provides data to your desktop or mobile device, taking the guesswork out of fleet management with key insights to maximize performance – regardless of fleet size or equipment manufacturer.
The system provides maintenance needs, machine hours, location, fuel usage, idle time, diagnostic codes, and other machine data to your mobile device, desktop or through an API to other software applications.

The cooling system is available with optional pre-filtration to help prevent buildup and simplify cleaning. Four interchangeable filters located in the center housing on the top deck help prevent fines build-up.
The engine oil filter and drain on the AP1000 and AP1055 are mounted remotely inside the left compartment near the Diesel Exhaust Fluid (DEF) tank, making them easily accessible.
Paver and screed service and repair kits include the parts necessary to complete specific repairs.
Cat genuine parts are manufactured to precise specifications and designed for optimal performance and maximum uptime.
Repair kits are identified by a single part number to make ordering easy.
Select kits are available to be packaged as a kit by the dealer for over the-counter purchases or through the dealer service shop.

Specifications Standard Equipment Optional Equipment

Product Specifications for AP1000

Dimensions

Paving Range with SE60 FM	3 m - 7.8 m (10' - 25' 6") 3 m - 7.8 m (10' - 25' 6")
Paving Range with SE60 V	3 m - 7.65 m (9' 10" - 25') 3 m - 7.65 m (9' 10" - 25')
Paving Range with SE60 V XW	3 m - 7.5 m (10' - 24' 6") 3 m - 7.5 m (10' - 24' 6")
Paving Range with SE60 VT XW	3 m - 6 m (10' - 19' 6") 3 m - 6 m (10' - 19' 6")
Operating Length	22.3 ft 6.8 m
Operating Width	10.8 ft 3.3 m
Overall Height	12.3 ft 3.8 m
Transport Length	20.9 ft 6.4 m
Transport Width	11.9 ft 3.6 m
Transport Height	9.8 ft 3 m

Weights

Operating weight with SE60 FM	42,620 lb 19332 kg
Operating weight with SE60 V	42,360 lb 19214 kg
Operating weight with SE60 V XW	43,848 lb 19889 kg
Shipping Weight - Paver Only	34,228 lb 15526 kg

Service Refill Capacities

Fuel Tank Capacity	92 gal (US) 348 l
DEF Tank	5 gal (US) 19.1 l
Cooling System - Total	12 gal (US) 45 l
Hydraulic Oil Tank	58 gal (US) 219 l
Washdown Spray Tank	7.9 gal (US) 30 l

Engine

Engine Power (1)	225 hp 168 kW
Engine Model	Cat C7.1 Cat C7.1

Operating Specifications

Maximum Throughput Capacity	1766 ton(US)/h 1602 tonnes/hr
Maximum Travel Speed	12 mile/h 19.9 km/h
Maximum Paving Speed	250 ft/min 76 m/min
Maximum Paving Speed - With Tamper Bar Screed	82 ft/min 25 m/min
Inside Turn Radius	4.5 ft 1.5 m

AP1000 Standard Equipment

Operating Environment

Dual operating stations

Steering guide

Ventilation system

Powertrain

Automatic engine speed control

Cat C7.1 Engine

Cooling fan - variable speed

Eco-mode

Electrical system

1400 CCA batteries

100 amp alternator

12-volt power receptacle

Cat Electronic Technician

Generator - 70 kW

Electrical System

Automotive type fuse system

Machine security

Remote jump start receptacle

Material Delivery

Material feed sensor_contact

Push-roller-adjustable

Service and Maintenance

Extended-life coolant

Ground level engine air-filter access

Extended life hydraulic oil

Scheduled oil sampling ports

Remote access drains

Sight gauges, engine coolant, hydraulic oil

Safety

Alarm - backup

Horn

Lights - working

Mirror package

Vandal covers

AP1000 Optional Equipment

Operating Environment

Air-ride seat

Hard top canopy

Deceleration pedal

Heated seats

Side shields

Towpoint indicator (2nd)

Umbrella

Screen visor

Windshield

Technology

Cat Grade Control

Hopper level and material height sensor

Pave start assistant

Thermal mapping

VisionLink™ telematics

Powertrain

All wheel drive

Ballast_front weights

Front wheel assist

Radial drive tires

Sand rib drive tires

Electrical System

Auxiliary power panel_6.6 kW

Material Delivery

Auger extension

Cat SDX Screed Plates

Leveling devices

Mainframe extensions_manual

Mainframe extensions_power

Material feed sensor_sonic

Power folding front apron

Truck hitch

Washdown pump and reel

Washdown tank

Wide width paving packages

Service and Maintenance

Service repair kits

Uptime kits

Safety

Lights_roading

Warning_LED safety beacons

Screed Choices

SE60 FM Screed

Product Specifications for AP1000

Download Print

Dimensions

Paving Range with SE60 FM	3 m - 7.8 m (10' - 25' 6") 3 m - 7.8 m (10' - 25' 6")
Paving Range with SE60 V	3 m - 7.65 m (9' 10" - 25') 3 m - 7.65 m (9' 10" - 25')
Paving Range with SE60 V XW	3 m - 7.5 m (10' - 24' 6") 3 m - 7.5 m (10' - 24' 6")
Paving Range with SE60 VT XW	3 m - 6 m (10' - 19' 6") 3 m - 6 m (10' - 19' 6")
Operating Length	22.3 ft 6.8 m
Operating Width	10.8 ft 3.3 m
Overall Height	12.3 ft 3.8 m
Transport Length	20.9 ft 6.4 m
Transport Width	11.9 ft 3.6 m
Transport Height	9.8 ft 3 m

Weights

Operating weight with SE60 FM	42,620 lb 19332 kg
Operating weight with SE60 V	42,360 lb 19214 kg
Operating weight with SE60 V XW	43,848 lb 19889 kg
Shipping Weight - Paver Only	34,228 lb 15526 kg

Service Refill Capacities

Fuel Tank Capacity	92 gal (US) 348 l
DEF Tank	5 gal (US) 19.1 l
Cooling System - Total	12 gal (US) 45 l
Hydraulic Oil Tank	58 gal (US) 219 l
Washdown Spray Tank	7.9 gal (US) 30 l

Engine

Engine Power (1)	225 hp 168 kW
Engine Model	Cat C7.1 Cat C7.1

Operating Specifications

Maximum Throughput Capacity	1766 ton(US)/h 1602 tonnes/hr
Maximum Travel Speed	12 mile/h 19.9 km/h
Maximum Paving Speed	250 ft/min 76 m/min
Maximum Paving Speed - With Tamper Bar Screed	82 ft/min 25 m/min
Inside Turn Radius	4.5 ft 1.5 m

AP1000 Standard Equipment

Operating Environment

Dual operating stations

Steering guide

Ventilation system

Powertrain

Automatic engine speed control

Cat C7.1 Engine

Cooling fan - variable speed

Eco-mode

Electrical system

1400 CCA batteries

100 amp alternator

12-volt power receptacle

Cat Electronic Technician

Generator - 70 kW

Electrical System

Automotive type fuse system

Machine security

Remote jump start receptacle

Material Delivery

Material feed sensor_contact

Push-roller-adjustable

Service and Maintenance

Extended-life coolant

Ground level engine air-filter access

Extended life hydraulic oil

Scheduled oil sampling ports

Remote access drains

Sight gauges, engine coolant, hydraulic oil

Safety

Alarm - backup

Horn

Lights - working

Mirror package

Vandal covers

AP1000 Optional Equipment

Operating Environment

Air-ride seat

Hard top canopy

Deceleration pedal

Heated seats

Side shields

Towpoint indicator (2nd)

Umbrella

Screen visor

Windshield

Technology

Cat Grade Control

Hopper level and material height sensor

Pave start assistant

Thermal mapping

VisionLink™ telematics

Powertrain

All wheel drive

Ballast_front weights

Front wheel assist

Radial drive tires

Sand rib drive tires

Electrical System

Auxiliary power panel_6.6 kW

Material Delivery

Auger extension

Cat SDX Screed Plates

Leveling devices

Mainframe extensions_manual

Mainframe extensions_power

Material feed sensor_sonic

Power folding front apron

Truck hitch

Washdown pump and reel

Washdown tank

Wide width paving packages

Service and Maintenance

Service repair kits

Uptime kits

Safety

Lights_roading

Warning_LED safety beacons

Screed Choices

SE60 FM Screed

See how AP1000 compares against frequently compared products.

Asphalt Pavers

Selected

AP1000

Paving Range with SE60 FM: 3 m - 7.8 m (10' - 25' 6"); 3 m - 7.8 m (10' - 25' 6")
Operating weight with SE60 FM: 42,620 lb; 19332 kg
Maximum Throughput Capacity: 1766 ton(US)/h; 1602 tonnes/hr

Asphalt Pavers

AP600

Paving Range with SE47 FM: 2.44 m - 6.2 m (8' - 20' 6"); 2.44 m - 6.2 m (8' - 20' 6")
Operating weight with SE47 FM: 36,716 lb; 16659 kg
Maximum Throughput Capacity: 1433 ton(US)/h; 1300 tonnes/hr

View Details

Asphalt Pavers

AP500

Paving Range with SE47 FM: 2.4 m - 5.9 m (8' - 19' 6"); 2.4 m - 5.9 m (8' - 19' 6")
Operating weight with SE47 FM: 32,012 lb; 14518 kg
Maximum Throughput Capacity: 1100 ton(US)/h; 1000 tonnes/hr

View Details

Tools And Expert Help At Every Turn

Find Dealer

Payment Calculator

Current Offers

Rental Options

Used Options

Product Brochures and More Are Ready to Download!

Caterpillar product brochures and other informational documents are available for your growing business.

Media Gallery

Photos

Videos

360 View

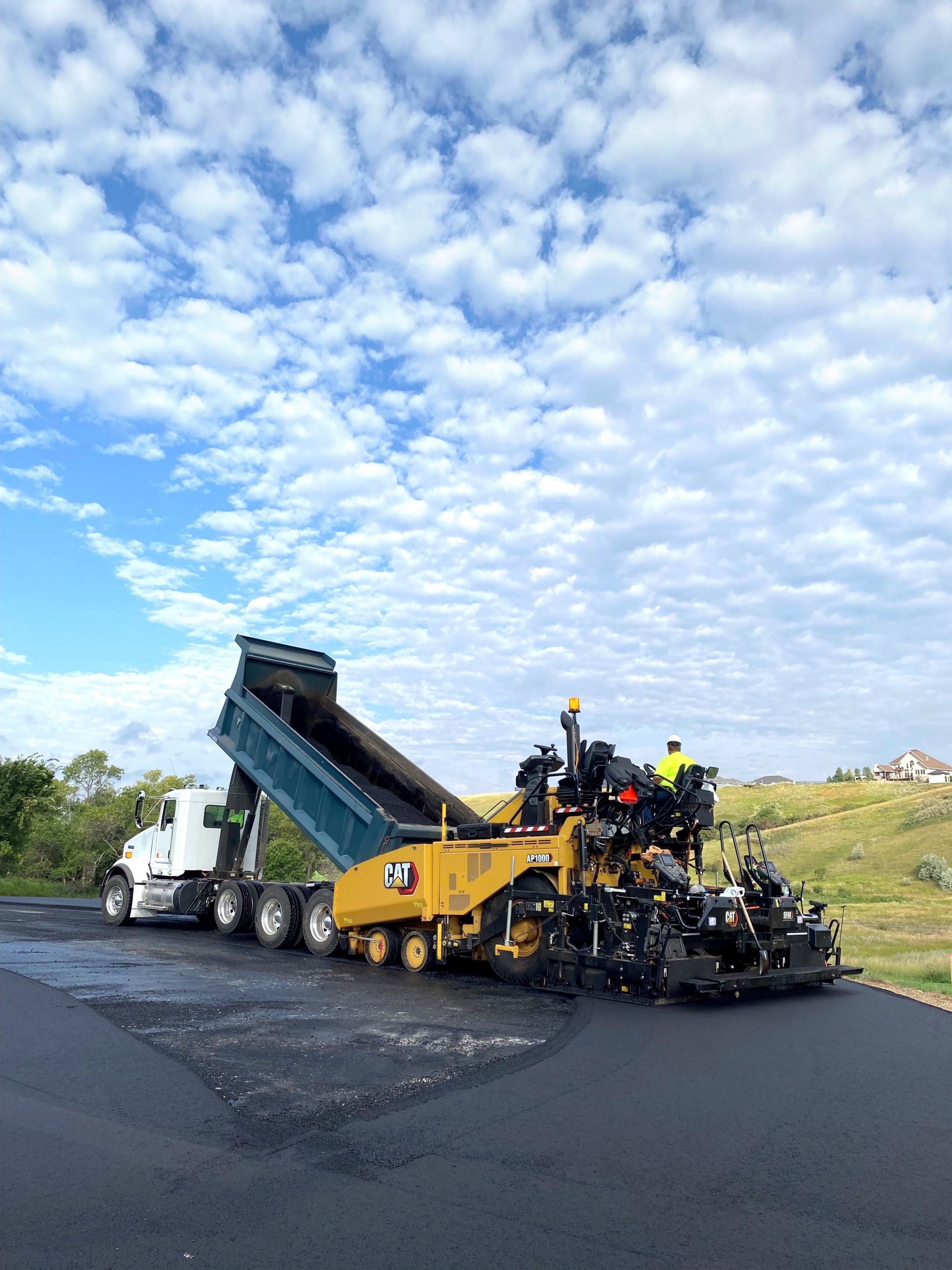

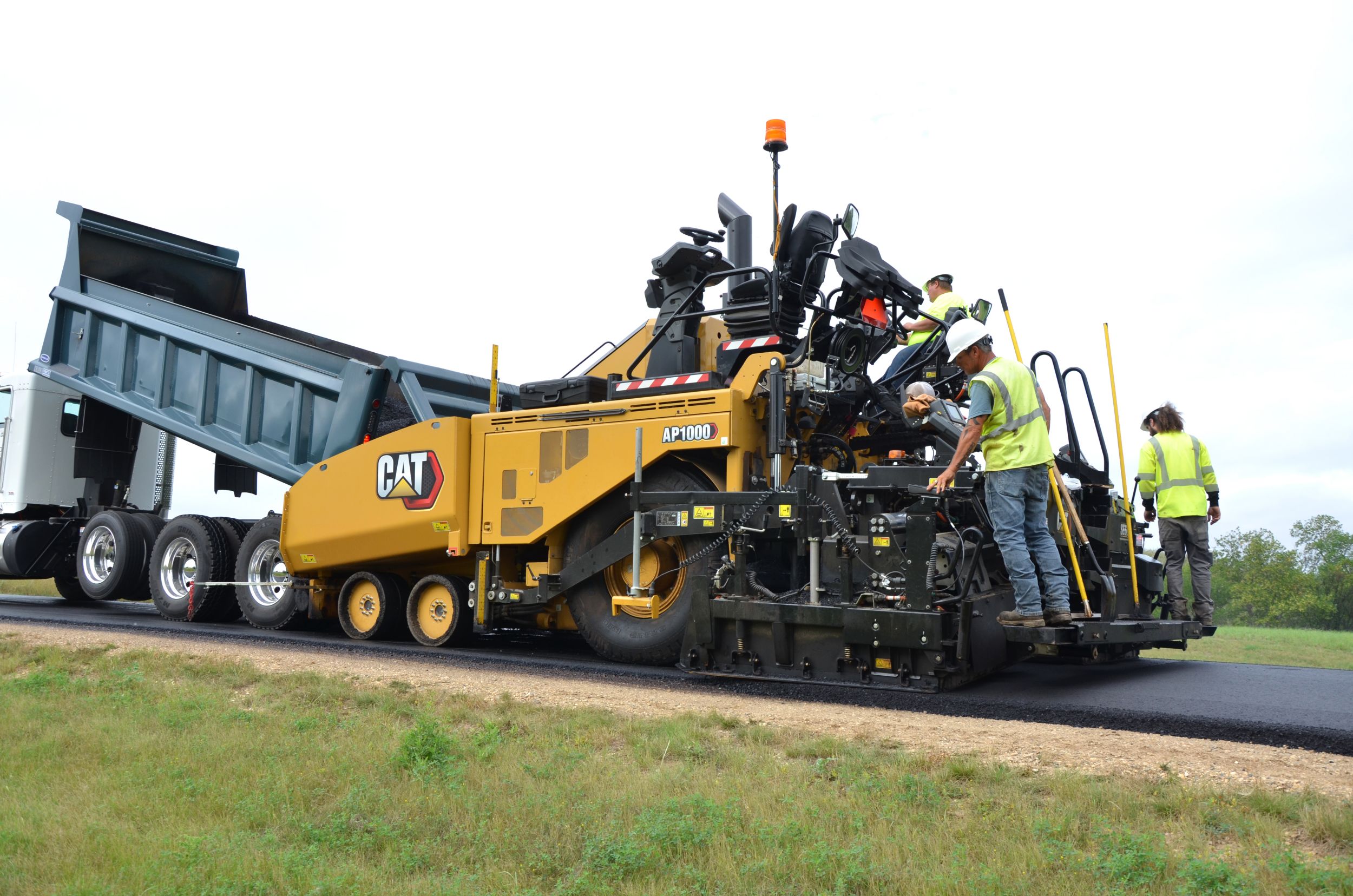

AP1000 Paver

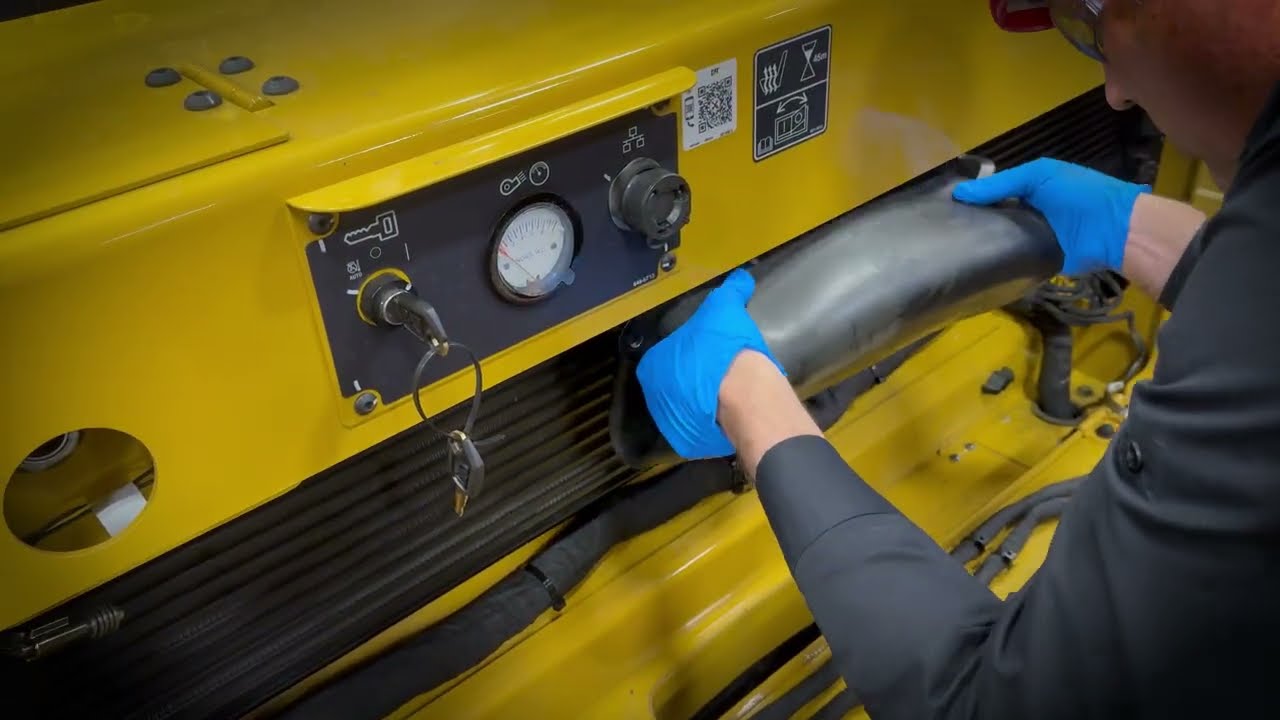

AP1000 (08A) and AP1055 (08A) Cooling System PreFiltration

Revolutionizing the Paving Industry

Paving by the Numbers

Cat Grade Control Setup

AP1000 (08A) and AP1055 (08A) Cooling System PreFiltration

Compatible Technology and Services

Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.

Equipment Management

Grade

Cat® Inspect

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

Cat® Inspect allows you to access your equipment data on your mobile device. This easy-to-use app lets you capture inspection data and integrates with your other Cat data systems, so you can keep a close eye on your fleet. More than one million inspections are completed each year, providing convenience and accountability to equipment owners.

Explore Technology
Cat® Remote Flash

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

Remote Flash sends an alert from your Cat dealer, prompting you to update the software on your machine. To minimize downtime, updates can be deployed while on the jobsite without having to wait for a dealer technician to arrive. Remote flash decreases maintenance time and keeps your asset running with maximum efficiency.

Explore Technology
Cat® Remote Troubleshooting

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

Remote Troubleshoot allows your Cat dealer to run testing while the machine is operating. Once the problem is identified, a technician can fix it with the correct parts and tools the first time, saving time and money. Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency.

Explore Technology
VisionLink™

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Cat® Inspect allows you to access your equipment data on your mobile device. This easy-to-use app lets you capture inspection data and integrates with your other Cat data systems, so you can keep a close eye on your fleet. More than one million inspections are completed each year, providing convenience and accountability to equipment owners.

Explore Technology

Remote Flash sends an alert from your Cat dealer, prompting you to update the software on your machine. To minimize downtime, updates can be deployed while on the jobsite without having to wait for a dealer technician to arrive. Remote flash decreases maintenance time and keeps your asset running with maximum efficiency.

Explore Technology

Remote Troubleshoot allows your Cat dealer to run testing while the machine is operating. Once the problem is identified, a technician can fix it with the correct parts and tools the first time, saving time and money. Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency.

Explore Technology

VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

Cat Grade with Grade and Slope For Pavers

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

The Cat® Grade and Slope system is designed to remove irregularities from the paved surface. The system consists of sensors to control elevation and slope. These sensors can work individually or together to make automatic elevation or cross slope adjustments and maintain the targeted values. Averaging beams equipped with multiple sensors provide a longer averaging area to help remove irregularites for smoother transitions.

Explore Technology
Cat Grade with Thermal Mapping For Pavers

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

Thermal Mapping monitors the surface temperatures of the asphalt utilizing an infra-red camera and a Global Navigation Satellite System (GNSS) enabled by RTK accuracy. Viewing real-time temperatures, contractors can identify variations and take action to manage the plant to paver delivery process and fine-tune paving practices for more uniform lay-down temperatures.

Explore Technology

1 - 8 of 9 Items items

Previous Next

The Cat® Grade and Slope system is designed to remove irregularities from the paved surface. The system consists of sensors to control elevation and slope. These sensors can work individually or together to make automatic elevation or cross slope adjustments and maintain the targeted values. Averaging beams equipped with multiple sensors provide a longer averaging area to help remove irregularites for smoother transitions.

Explore Technology

Thermal Mapping monitors the surface temperatures of the asphalt utilizing an infra-red camera and a Global Navigation Satellite System (GNSS) enabled by RTK accuracy. Viewing real-time temperatures, contractors can identify variations and take action to manage the plant to paver delivery process and fine-tune paving practices for more uniform lay-down temperatures.

Explore Technology

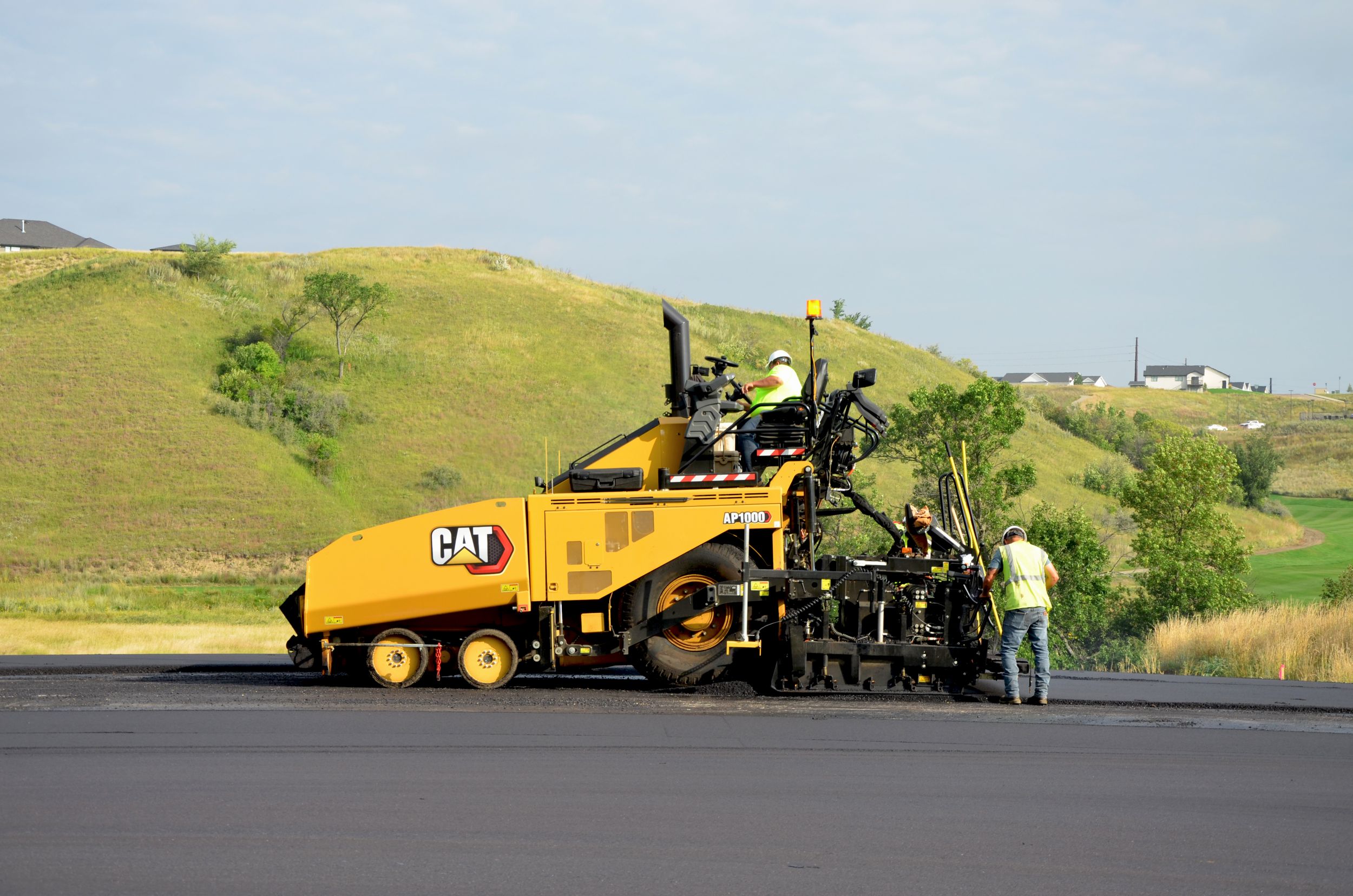

Wheel Asphalt Pavers AP1000

Overview

Simple, Mobile, Productive

Benefits

Advanced Technology

Up to 15% More Fuel Efficient

Simple and Quiet Operation

Features At A Glance

Product Specifications for AP1000

Dimensions

Weights

Service Refill Capacities

Engine

Operating Specifications

AP1000 Standard Equipment

Operating Environment

Powertrain

Electrical system

Electrical System

Material Delivery

Service and Maintenance

Safety

AP1000 Optional Equipment

Operating Environment

Technology

Powertrain

Electrical System

Material Delivery

Service and Maintenance

Safety

Screed Choices

Product Specifications for AP1000

Dimensions

Weights

Service Refill Capacities

Engine

Operating Specifications

AP1000 Standard Equipment

Operating Environment

Powertrain

Electrical system

Electrical System

Material Delivery

Service and Maintenance

Safety

AP1000 Optional Equipment

Operating Environment

Technology

Powertrain

Electrical System

Material Delivery

Service and Maintenance

Safety

Screed Choices

See how AP1000 compares against frequently compared products.

Tools And Expert Help At Every Turn

Find Dealer

Payment Calculator

Current Offers

Rental Options

Used Options

assignment Product Brochures and More Are Ready to Download!

Caterpillar product brochures and other informational documents are available for your growing business.

Media Gallery

Photos

Videos

360 View

Compatible Products

Maximize your equipment investment with Cat related products

Asphalt Pavers

Screeds

Compatible Technology and Services

Cat® Inspect

Cat® Remote Flash

Cat® Remote Troubleshooting

VisionLink™

Cat Grade with Grade and Slope For Pavers

Cat Grade with Thermal Mapping For Pavers

Check out current offers for the AP1000

Product Brochures and More Are Ready to Download!
