Screeds SE60 V Asphalt Screed

Request A Price Find Dealer

Key Specs

Standard Weight: 7826 lb; 3550 kg

Standard Paving Range: 3 - 6 m (9' 10" - 19' 6"'); 3 - 6 m (9' 10" - 19' 6"')

Maximum Paving Width: 24.5 ft; 7.45 m

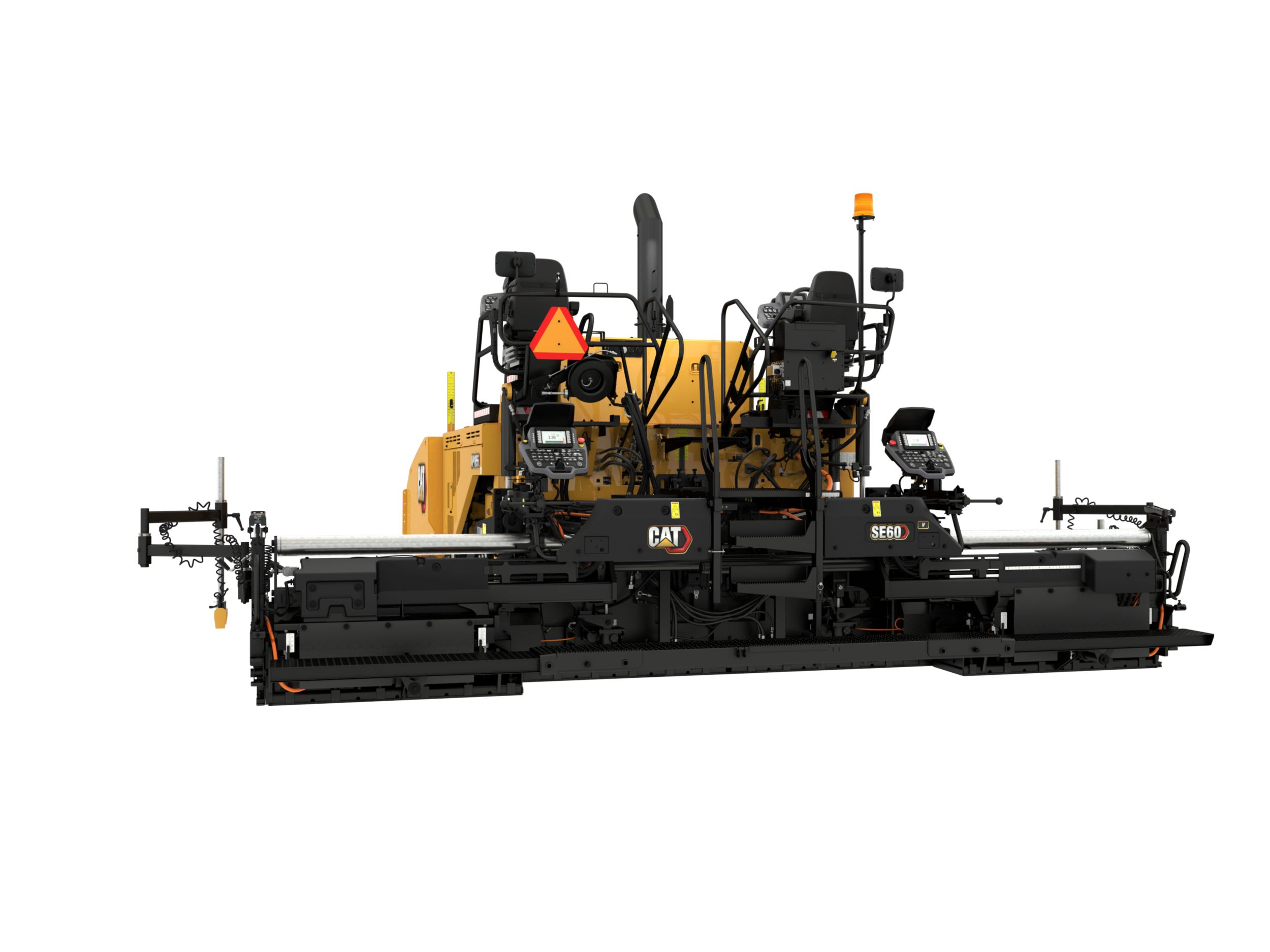

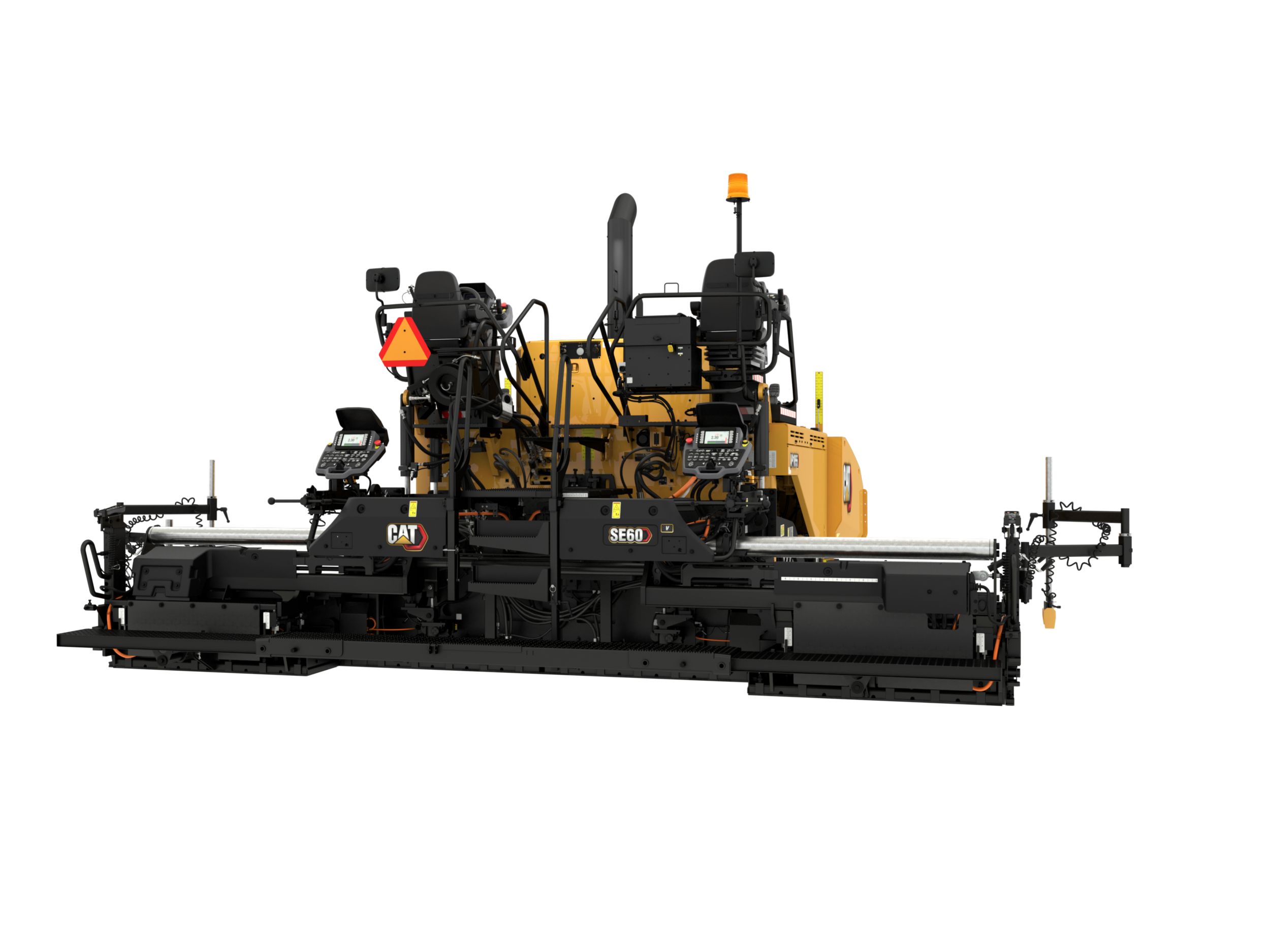

SE60 V Asphalt Screed
Change model

Overview

Low Profile Stability

The Cat® SE60 V Asphalt Screed with rear-mounted extenders provides stability, easy set-up, and a versatile paving range, making it the perfect match for highways, interstates, airports, and many other high-production paving applications.

Benefits

High Quality Paving

The low-profile design optimizes visibility for good operational control.

Simple Operation

Intuitive controls and an optional remote pendent enable simple operation.

Advanced Technology

The advanced screed plate heating system delivers job site efficiency with a fast 15 minute heat-up time.

Features At A Glance

Displaying 1-6 of 9

Cat® SDX Screed Plates

The optional Cat® SDX Screed Plate Technology helps improve road quality with better consistency and higher reliability. This revolutionary design provides dynamic flow through the screed plates to reduce air voids and increase density.
The screed plate design consists of an angular surface on the front of the plates with a tapering smooth surface near the back. A kneading action occurs as the plates manipulate the mix as it passes through the angular grooves.
The innovative design enhances the structural integrity of the asphalt, lessens compactor shoving, strengthens unconfined edges, and promotes better surface temperature uniformity.

Application Versatility

Common applications include large parking lots, highways, intersates, airports and many other high production pay for performance applications
The standard paving range of 3 m - 6 m (9' 10" - 19' 6") provides excellent performance when changing paving widths for both urban and highway paving applications
Simple, bolt-on extensions offer a maximum paving width of 7.45 m (24' 5")

Simple Operation

Operating displays can be tailored to specific language requirements with multiple options available
Exclusive 2-speed, proportional extender control provides smooth adjustment when transitioning paving widths
Screed operating consoles are equipped with ratio adjustment for the augers and conveyors, providing the ability to modify material flow
Power controls for extender slope and height enables operators to quickly manage mat angles and surface textures
Trailing edge screed plate adjusters help maintain an even plane across the width of the screed in order to enhance paving quality and extend screed plate life

Smooth Material Flow

Screed plate depths of 407 mm (16") on both the main and extenders provide stability and good mat textures
The heated end gate option helps prevent material from sticking for better edge profiles and joint matching capability

Pave Start Assistant

Pave Start Assistant saves set-up profiles for repeatable use on future job sites, simply activate the profile for quick, single person setup
Set-up preferences include: tow-point height, screed heat temperature, paving speed, paving width, paving depth, crown, extender slope and height, screed assist, and screed locking features
Setup features are located in the left screed display and can also be viewed through the tractor displays

Quick Heat, Even Distribution

The tractor-integrated generator delivers 15 minute heat-up to 130º C (266º F) for quick starts
Electric heating system with zone monitoring helps ensure even heat distribution and smooth asphalt textures while also allowing heating to continue in the event of a temperature sensor failure

The optional Cat® SDX Screed Plate Technology helps improve road quality with better consistency and higher reliability. This revolutionary design provides dynamic flow through the screed plates to reduce air voids and increase density.
The screed plate design consists of an angular surface on the front of the plates with a tapering smooth surface near the back. A kneading action occurs as the plates manipulate the mix as it passes through the angular grooves.
The innovative design enhances the structural integrity of the asphalt, lessens compactor shoving, strengthens unconfined edges, and promotes better surface temperature uniformity.

Common applications include large parking lots, highways, intersates, airports and many other high production pay for performance applications
The standard paving range of 3 m - 6 m (9' 10" - 19' 6") provides excellent performance when changing paving widths for both urban and highway paving applications
Simple, bolt-on extensions offer a maximum paving width of 7.45 m (24' 5")

Operating displays can be tailored to specific language requirements with multiple options available
Exclusive 2-speed, proportional extender control provides smooth adjustment when transitioning paving widths
Screed operating consoles are equipped with ratio adjustment for the augers and conveyors, providing the ability to modify material flow
Power controls for extender slope and height enables operators to quickly manage mat angles and surface textures
Trailing edge screed plate adjusters help maintain an even plane across the width of the screed in order to enhance paving quality and extend screed plate life

Screed plate depths of 407 mm (16") on both the main and extenders provide stability and good mat textures
The heated end gate option helps prevent material from sticking for better edge profiles and joint matching capability

Pave Start Assistant saves set-up profiles for repeatable use on future job sites, simply activate the profile for quick, single person setup
Set-up preferences include: tow-point height, screed heat temperature, paving speed, paving width, paving depth, crown, extender slope and height, screed assist, and screed locking features
Setup features are located in the left screed display and can also be viewed through the tractor displays

The tractor-integrated generator delivers 15 minute heat-up to 130º C (266º F) for quick starts
Electric heating system with zone monitoring helps ensure even heat distribution and smooth asphalt textures while also allowing heating to continue in the event of a temperature sensor failure

Manual overrides and pause function capability for each auger and each conveyor are available to match changes in material flow requirements
Power slope and height functions assist with profile
Automatic Grade Control activation provides flexibility when working on the outer edge of the screed

Factory-integrated leveling system that helps remove irregularities from the surface and control mat thickness for increased production, lower operating costs, and higher profitability
User-friendly system with text-based displays, split screen-mode, and on-the-go sensor selection
Precise control driven by 10-point auto-calibration, true averaging with 5 transducers in each sonic sensor, and cross coupling feature that maintains slope requirements more consistently when changing elevation

Paver and screed service and repair kits include all the parts necessary to complete specific repairs
Cat genuine parts are manufactured to precise specifications and designed for optimal performance and maximum uptime
Repair kits are identified by a single part number to make ordering easy
Select kits are available to be packaged as a kit by the dealer for over-the- counter purchases or through the dealer service shop

Product Specifications for SE60 V Asphalt Screed

Weights

Standard Weight

7826 lb 3550 kg

Operating Specifications

Standard Paving Range	3 - 6 m (9' 10" - 19' 6"') 3 - 6 m (9' 10" - 19' 6"')
Maximum Paving Width	24.5 ft 7.45 m
Crown Range	-4% to +10% -4% to +10%
Maximum Paving Depth	12 in 305 mm
Vibratory Speed Range	0 - 3000 rpm 0 - 3000 rpm
Heating Time - Maximum Width	25 minutes 25 minutes
Heating Time - Standard Width	15 minutes 15 minutes
Extender Height Range	+50 mm to -20 mm +50 mm to -20 mm
Extender Slope Range	-3% to +10% -3% to +10%

Dimensions

Screed Plate Width - Front to Back	16 in 407 mm
Length - Front to Back, Endgates Attached	94 in 2394 mm
Length - Front to Back, Endgates Removed	68 in 1730 mm

Product Specifications for SE60 V Asphalt Screed

Download Print

Weights

Standard Weight

7826 lb 3550 kg

Operating Specifications

Standard Paving Range	3 - 6 m (9' 10" - 19' 6"') 3 - 6 m (9' 10" - 19' 6"')
Maximum Paving Width	24.5 ft 7.45 m
Crown Range	-4% to +10% -4% to +10%
Maximum Paving Depth	12 in 305 mm
Vibratory Speed Range	0 - 3000 rpm 0 - 3000 rpm
Heating Time - Maximum Width	25 minutes 25 minutes
Heating Time - Standard Width	15 minutes 15 minutes
Extender Height Range	+50 mm to -20 mm +50 mm to -20 mm
Extender Slope Range	-3% to +10% -3% to +10%

Dimensions

Screed Plate Width - Front to Back	16 in 407 mm
Length - Front to Back, Endgates Attached	94 in 2394 mm
Length - Front to Back, Endgates Removed	68 in 1730 mm
