Key Specs

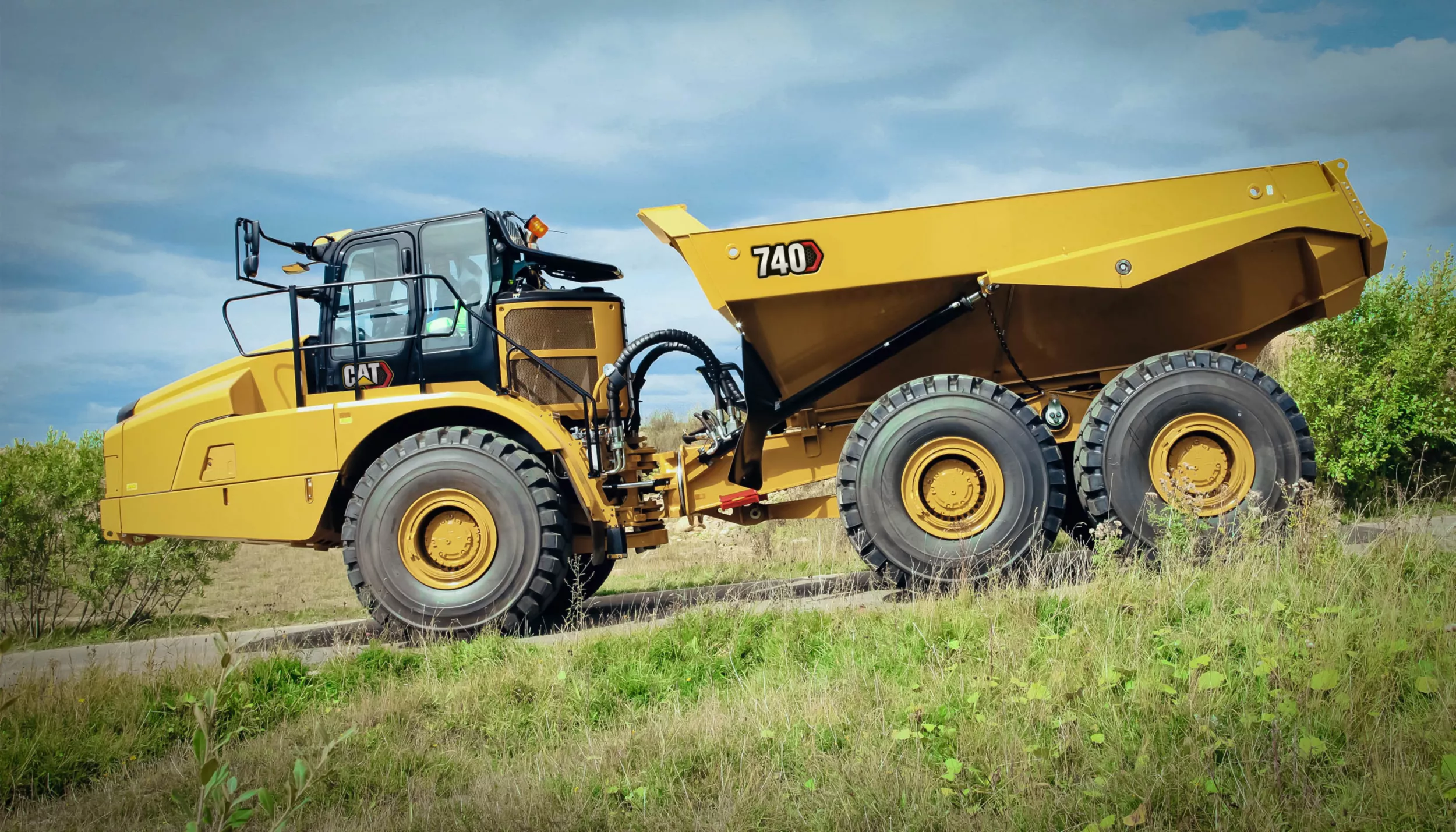

The Cat® 740 raises the bar for operator comfort and control. Its redesigned, world‑class cab is built to deliver a smoother, smarter, more intuitive experience. With upgraded controls, built‑in transmission protection, hoist assist, advanced automatic traction control, stability‑assist rollover warnings, and an ECO mode that cuts fuel use, the 740 is engineered to keep productivity high and operating costs low. []
A uniquely combined hoist and transmission lever allows for easy operation which suits a wide range of operator experience
Versatile configurations and tire options adapt to a variety of jobs, while a redesigned body boosts payload and durability. Adjustable seats and flexible cab layouts elevate comfort and productivity, keeping you efficient all day long.

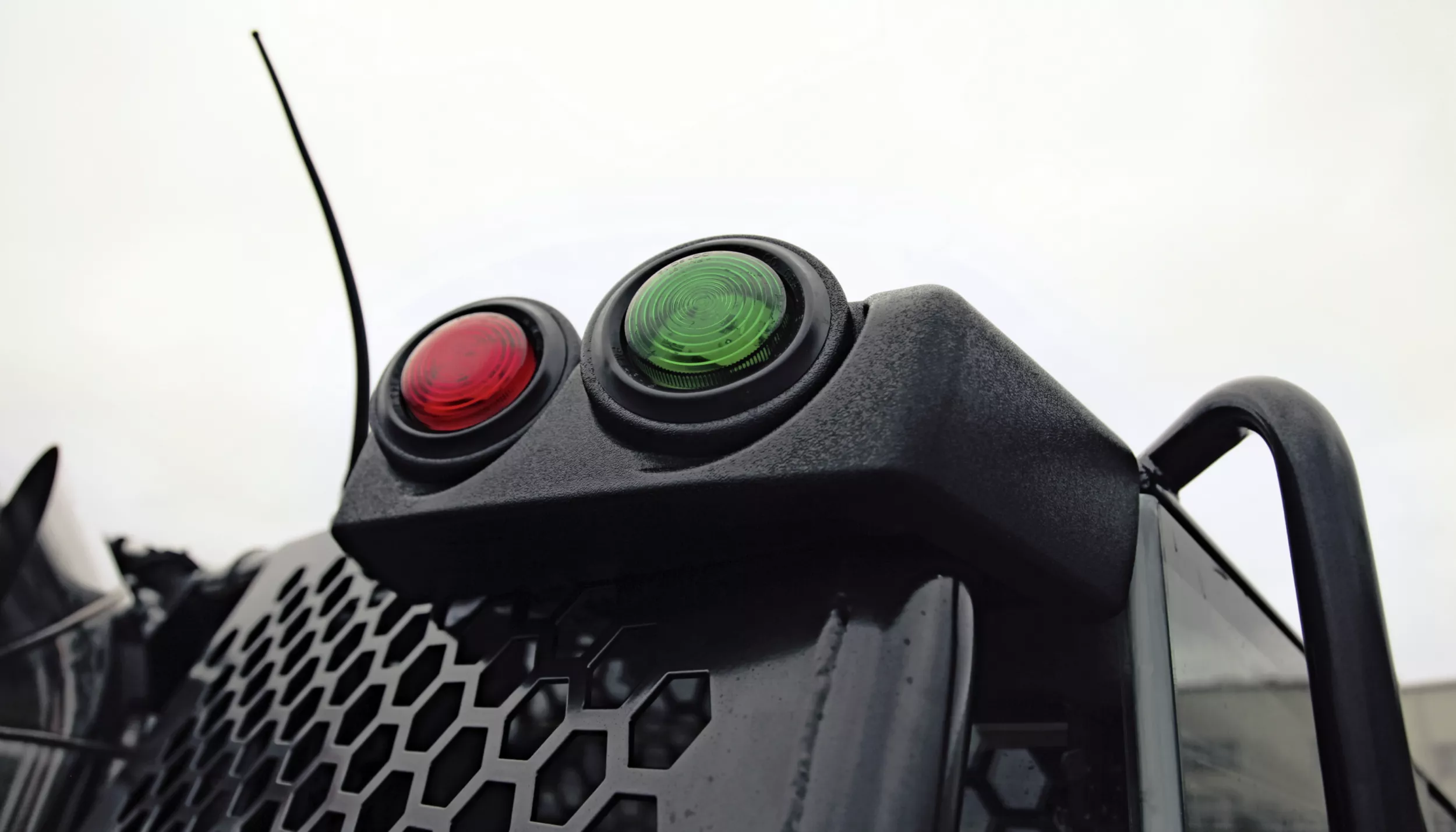

Safety features boost operator confidence by making every shift more secure — from roll‑over prevention that keeps the cab and body stable to improved, cab entry that helps operators climb in with confidence.
Displaying 1-6 of 8

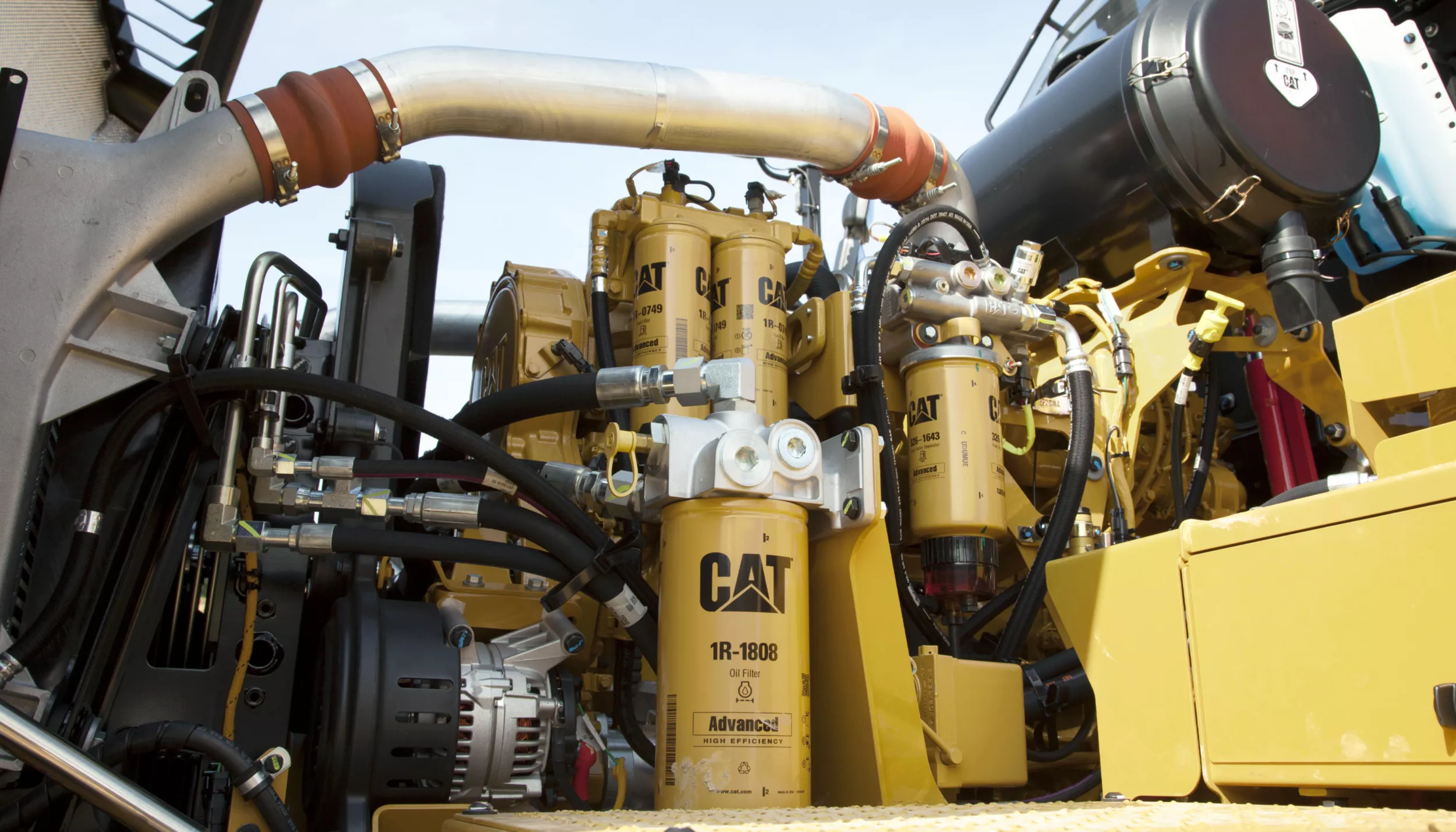

| Engine Model | Cat® C15 Cat® C15 |
| Gross Power (SAE J1995) | 452 hp 337 kW |
| Net Power (SAE J1349) | 439 hp 327 kW |
| Engine Power (ISO 14396) | 447 hp 333 kW |
| Bore | 5.4 in 137 mm |
| Stroke | 6.75 in 171.5 mm |
| Displacement | 926 in³ 15.2 l |
| Note (1) | Advertised power is tested at 1,700 rpm. Advertised power is tested at 1,700 rpm. |
| Note (2) | Advertised power is tested per the specified standard in effect at the time of manufacture. Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note (3) | The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, aftertreatment, and fan at minimum speed. The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, aftertreatment, and fan at minimum speed. |
| Note (4) | Net power when the fan is at maximum speed is 327 kW (439 hp) per the SAE reference conditions. Net power when the fan is at maximum speed is 327 kW (439 hp) per the SAE reference conditions. |
| Note (5) | Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards. Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards. |
| Note (6) | Diesel exhaust fluid (DEF) used in Cat selective catalytic reduction (SCR) systems must meet the requirements outlined in ISO 22241-1. Requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications. Diesel exhaust fluid (DEF) used in Cat selective catalytic reduction (SCR) systems must meet the requirements outlined in ISO 22241-1. Requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications. |
| No Engine De-rating Below | 10000 ft 3050 m |
| Peak Engine Torque Gross (SAE J1995) | 1711 lbf·ft 2320 N·m |
| Peak Engine Torque Net (SAE J1349) | 1670 lbf·ft 2264 N·m |
| Peak Engine Torque Speed | 1200 r/min 1200 r/min |
| Rated Payload | 40 ton (US) 36.3 t |
| Heaped (SAE 2:1) | 29.7 yd³ 22.7 m³ |
| Struck | 23.2 yd³ 17.7 m³ |
| Tailgate Heaped SAE 2:1 | 32 yd³ 24.5 m³ |
| Tailgate Struck | 24.4 yd³ 18.7 m³ |
| Forward - 1 | 4 mile/h 6.4 km/h |
| Forward - 2 | 5.3 mile/h 8.5 km/h |
| Forward - 3 | 7.3 mile/h 11.5 km/h |
| Forward - 4 | 9.2 mile/h 14.8 km/h |
| Forward - 5 | 12.2 mile/h 19.7 km/h |
| Forward - 6 | 14.9 mile/h 24 km/h |
| Forward - 7 | 20.6 mile/h 33.1 km/h |
| Forward - 8 | 24.7 mile/h 39.8 km/h |
| Forward - 9 | 35.7 mile/h 57.5 km/h |
| Reverse - 1 | 4.2 mile/h 6.8 km/h |
| Reverse - 2 | 9.8 mile/h 15.7 km/h |
| Interior Cab | 72 dB(A) 72 dB(A) |
| Note (1) | The declared dynamic operator sound pressure level is 72 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the cooling fan’s maximum speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained. The declared dynamic operator sound pressure level is 72 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the cooling fan’s maximum speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained. |
| Note (2) | Hearing protection may be needed when operating with an open operator station and cab or when not properly maintained or with doors/windows open for extended periods or in noisy environments. Hearing protection may be needed when operating with an open operator station and cab or when not properly maintained or with doors/windows open for extended periods or in noisy environments. |
| Front Axle - Empty | 43200 lb 19595 kg |
| Center Axle - Empty | 14804 lb 6715 kg |
| Rear Axle - Empty | 14562 lb 6605 kg |
| Total - Empty | 72565 lb 32915 kg |
| Front Axle - Rated Load | 7002 lb 3176 kg |
| Center Axle - Rated Load | 36513 lb 16562 kg |
| Rear Axle - Rated Load | 36513 lb 16562 kg |
| Total - Rated Load | 80027 lb 36300 kg |
| Front Axle - Loaded | 50201 lb 22771 kg |
| Center Axle - Loaded | 51317 lb 23277 kg |
| Rear Axle - Loaded | 51074 lb 23167 kg |
| Total - Loaded | 152593 lb 69215 kg |

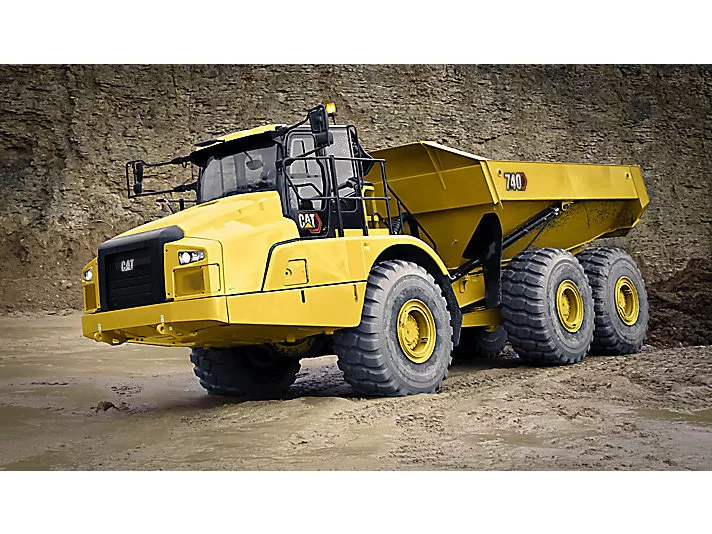

| Type | High strength Brinell HB450 wear resistant steel High strength Brinell HB450 wear resistant steel |
| Front Plate | 0.28 in 7 mm |
| Base Plate | 0.51 in 13 mm |
| Side Plates | 0.43 in 11 mm |
| Fuel Tank | 145.3 gal (US) 550 l |
| Cooling System | 23.7 gal (US) 90 l |
| Brake Cooling Tank | 17.7 gal (US) 67 l |
| Steering/Hoist Hydraulic System | 36.9 gal (US) 140 l |
| Engine Crankcase | 13.7 gal (US) 52 l |
| Transmission - OTG | 19.8 gal (US) 75 l |
| Final Drive - Each | 1.3 gal (US) 5 l |
| Axles - Each | 15.8 gal (US) 60 l |
| DEF Tank | 6.5 gal (US) 25 l |

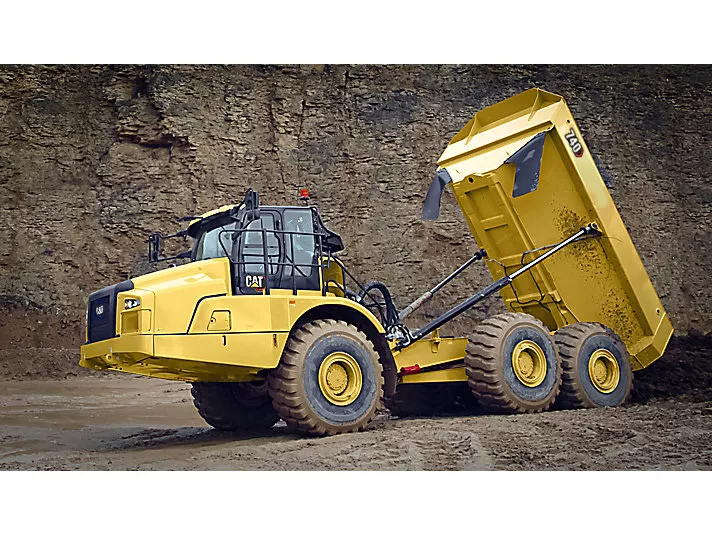

| Raise Time | 12 s 12 s |
| Lower Time | 12 s 12 s |
| Brakes | ISO 3450 – 2011 ISO 3450 – 2011 |
| Cab - FOPS | ISO 3449 Level II – 2005 ISO 3449 Level II – 2005 |
| Cab - ROPS | ISO 3471 – 2008 ISO 3471 – 2008 |
| Steering | ISO 5010 – 2019 ISO 5010 – 2019 |
| Turning Dimensions - Steer Angle - Left/Right | 45° 45° |
| Turning Dimensions - SAE Turning Radius | 303 in 7698 mm |
| Turning Dimensions - Clearance Radius | 330 in 8395 mm |
| Turning Dimensions - Inside Radius | 156 in 3960 mm |
| Turning Dimensions - Aisle Width | 220 in 5595 mm |
| Note | Dimensions are for machines equipped with 29.5 R25 tires. Dimensions are for machines equipped with 29.5 R25 tires. |
| Lock to Lock | 4.75 seconds @ 60 rpm 4.75 seconds @ 60 rpm |
| Hydraulic Excavator: 374 - Passes | 3-4 3-4 |
| Hydraulic Excavator: 352 - Passes | 5-6 5-6 |
| Wheel Loader: 972 - Passes | 3 3 |
| Wheel Loader: 966 - Passes | 4-5 4-5 |
| Wheel Loader: 962 - Passes | 5 5 |
| Note | An optimum system match gives you a major productivity advantage. The 740 is an excellent match for the Cat 374 and 352 Hydraulic Excavators; and Cat 972, 966, and 962 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved. An optimum system match gives you a major productivity advantage. The 740 is an excellent match for the Cat 374 and 352 Hydraulic Excavators; and Cat 972, 966, and 962 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved. |
Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.
Cat Stability Assist for Articulated Trucks increases awareness of machine stability during operation by warning operator if machine is approaching an un-safe angle, ultimately resulting in machine safety and uptime.
Cat Stability Assist for Articulated Trucks increases awareness of machine stability during operation by warning operator if machine is approaching an un-safe angle, ultimately resulting in machine safety and uptime.
Fatigued and distracted equipment operators can pose a severe risk to themselves and others. The consequences can be costly, even fatal. The Cat® Detect Driver Safety System (DSS) is an in-cab detection technology that can help identify and address fatigue and distraction events, enhancing operator safety.
Fatigued and distracted equipment operators can pose a severe risk to themselves and others. The consequences can be costly, even fatal. The Cat® Detect Driver Safety System (DSS) is an in-cab detection technology that can help identify and address fatigue and distraction events, enhancing operator safety.
Cat® Inspect allows you to access your equipment data on your mobile device. This easy-to-use app lets you capture inspection data and integrates with your other Cat data systems, so you can keep a close eye on your fleet. More than one million inspections are completed each year, providing convenience and accountability to equipment owners.
Remote Flash sends an alert from your Cat dealer, prompting you to update the software on your machine. To minimize downtime, updates can be deployed while on the jobsite without having to wait for a dealer technician to arrive. Remote flash decreases maintenance time and keeps your asset running with maximum efficiency.
VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.
Cat® Inspect allows you to access your equipment data on your mobile device. This easy-to-use app lets you capture inspection data and integrates with your other Cat data systems, so you can keep a close eye on your fleet. More than one million inspections are completed each year, providing convenience and accountability to equipment owners.
Remote Flash sends an alert from your Cat dealer, prompting you to update the software on your machine. To minimize downtime, updates can be deployed while on the jobsite without having to wait for a dealer technician to arrive. Remote flash decreases maintenance time and keeps your asset running with maximum efficiency.
VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.
Cat® Production Measurement provides real-time payload weighing to help operators optimize hauling potential and maximize productivity. Automated tracking helps site managers monitor material movement and efficiency metrics to manage production, improve jobsite efficiency, and lower costs.
Cat® Production Measurement provides real-time payload weighing to help operators optimize hauling potential and maximize productivity. Automated tracking helps site managers monitor material movement and efficiency metrics to manage production, improve jobsite efficiency, and lower costs.
VisionLink™ Productivity is an easy-to-use cloud-based platform that gathers and summarizes machine telematics and jobsite data from all your equipment. Actionable performance data is transmitted to the web platform for users to access anywhere, anytime via a mobile, tablet, or desktop device - on or off the jobsite.
VisionLink™ Productivity is an easy-to-use cloud-based platform that gathers and summarizes machine telematics and jobsite data from all your equipment. Actionable performance data is transmitted to the web platform for users to access anywhere, anytime via a mobile, tablet, or desktop device - on or off the jobsite.
