Key Specs

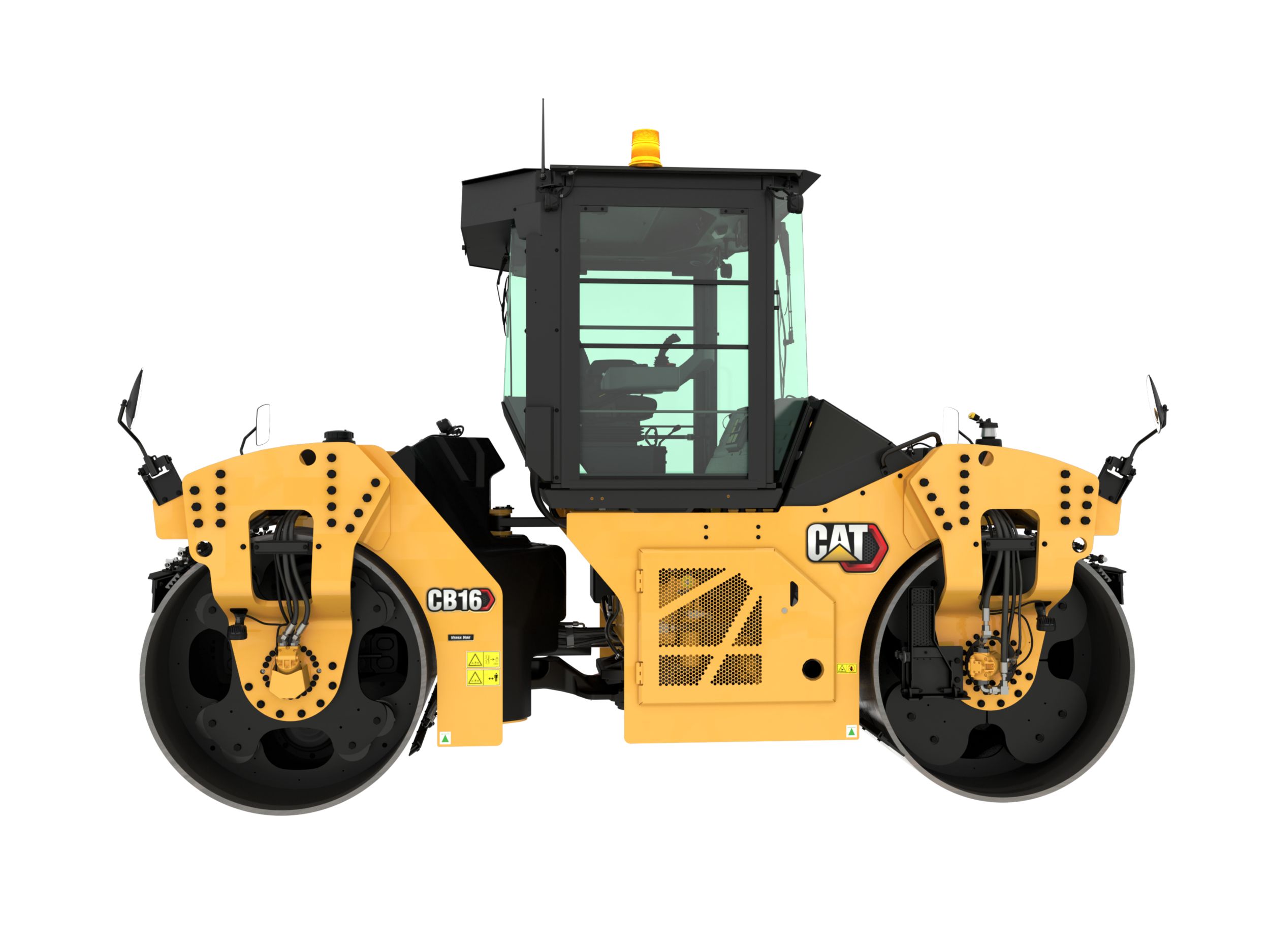

The CB16 asphalt compactor offers enhancements that simplify operation, provide versatility, and deliver excellent fuel economy. Rotary dials, oscillatory vibration, and 360 degreeseating make this compactor a perfect match for urban streets, rural roads, highways, interstates and other high-production applications.
More fuel efficient with standard eco-mode and automatic idle shutdown.
With easy-to-use push button control and LCD screen.
More productivity with optional Intelligent Compaction technologies and flexible vibratory systems.
Displaying 1-6 of 8
| Standard - Operating Weight | 31941 lb 14488 kg |
| Static Linear Load | 204 lb/in 36 kg/cm |
| Maximum Operating Weight | 34255 lb 15538 kg |
| Standard Compaction Width | 84 in 2130 mm |
| Drum Offset | 6 in 170 mm |
| Curb Clearance | 28 in 723 mm |
| Ground Clearance | 11.5 in 292 mm |
| Engine Model | Cat C4.4 Cat C4.4 |
| Gross Power | 142 hp 106 kW |
| High | 8 mile/h 13 km/h |
| Low | 4.5 mile/h 7 km/h |
| Overall Length | 15.5 ft 4742 mm |
| Wheel Base | 11.25 ft 3450 mm |
| Height - With ROPS/FOPS | 10 ft 3068 mm |
| Overall Width | 92 in 2325 mm |
| Centrifugal Force per Drum - Maximum | 31069 lb 138.2 kN |
| Centrifugal Force per Drum - Minimum | 12409 lb 55.2 kN |
| Maximum Amplitude | 0.041 in 1.03 mm |
| Minimum Amplitude | 0.01 in 0.3 mm |
| Maximum Frequency | 3800 VPM 63 Hz |
| Minimum Frequency | 2520 VPM 42 Hz |
| Vibration Selection | Independent per drum, front only, rear only, both Independent per drum, front only, rear only, both |
| Fuel Tank Capacity | 66 gal (US) 250 l |
| Water Spray Tank Capacity | 264 gal (US) 1000 l |
Use the comparison tool to compare detailed specs of Cat and competitor models.
Compare All ModelsWe’re committed to helping you achieve your environmental and business goals.
Learn MoreCB16
CB16
CB16
CB16
CB16
Oscillatory Vibration System
Simplified 8 Button Control Panel
Pass Count and Temperature Mapping
Asphalt Compaction With Oscillation
Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.
Compaction Meter Value is an accelerometer-based system that provides an indication of material stiffness. The system is available on smooth drum vibratory soil compactors and tandem vibratory asphalt compactors. It measures only when the vibratory system is active, and provides a unitless value derived from the recorded data that indicates composite stiffness.
Cat® Compaction with Temperature Indication for asphalt helps operators visualize coverage area while recording Pass-Count and Temperature data. The system utilizes infrared temperature sensors and GPS mapping to keep the operator informed of current mat temperatures, machine position, pass-count and pass coverage.
Compaction Meter Value is an accelerometer-based system that provides an indication of material stiffness. The system is available on smooth drum vibratory soil compactors and tandem vibratory asphalt compactors. It measures only when the vibratory system is active, and provides a unitless value derived from the recorded data that indicates composite stiffness.
Cat® Compaction with Temperature Indication for asphalt helps operators visualize coverage area while recording Pass-Count and Temperature data. The system utilizes infrared temperature sensors and GPS mapping to keep the operator informed of current mat temperatures, machine position, pass-count and pass coverage.
VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.
VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.
