Overview
Your Business Deserves the Best
The Cat® 424 Backhoe Loader delivers exceptional performance, superior fuel efficiency and a comfortable, safe and spacious operator station.

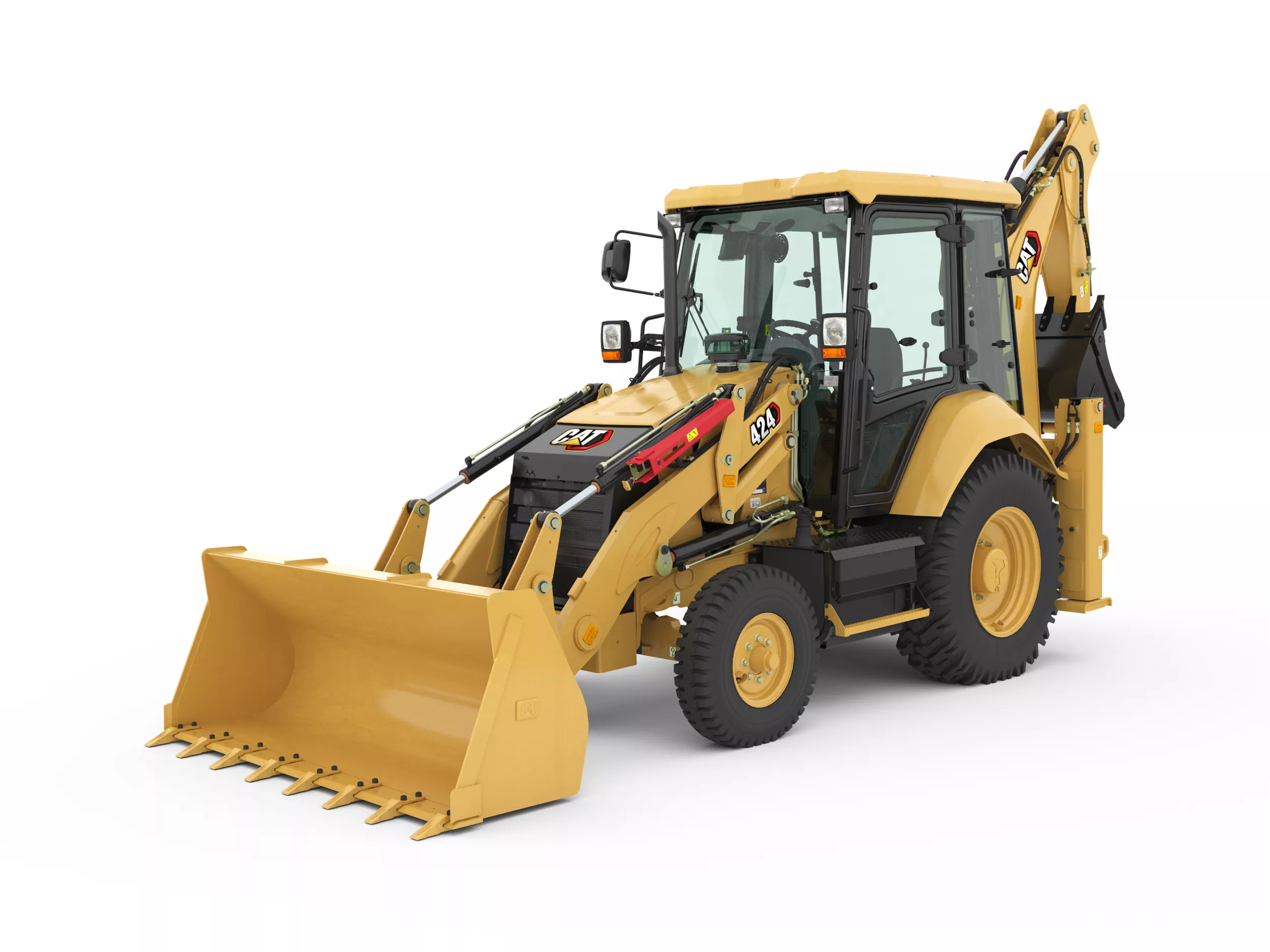

424 Backhoe Loaders
Request A Price Find DealerKey Specs
- Power - Net
- 70 hp
- 52 kW
- Operating Weight - Nominal
- 17593 lb
- 7980 kg
- Operating Weight - Maximum
- 19312 lb
- 8760 kg
Features At A Glance
Displaying 1-6 of 7

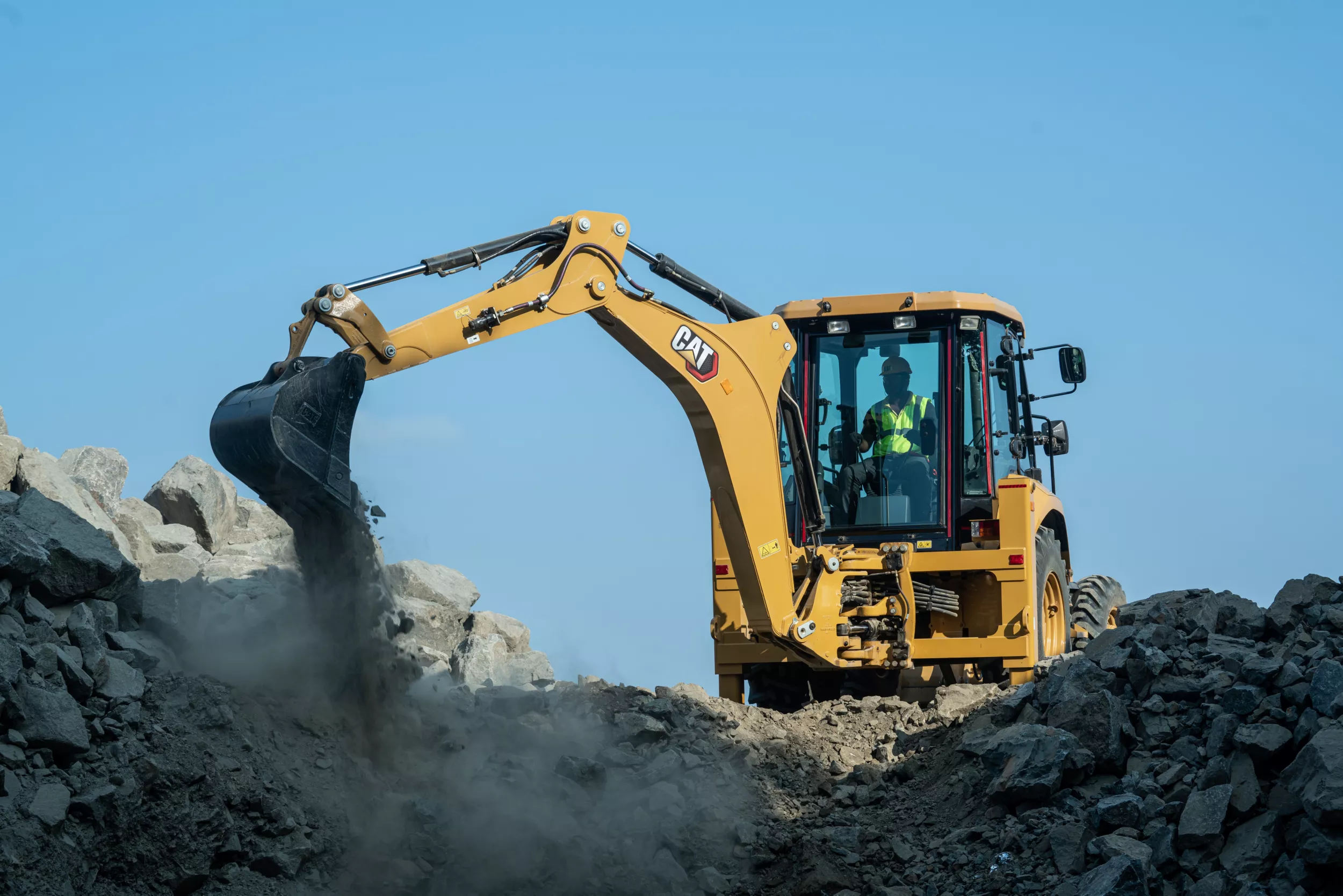

More Fuel Efficient
The Cat® C3.6 engine meets BS-V CMVR emissions standards, a step ahead of current regulatory requirements ensuring longevity in the market. The engine delivers impressive peak torque of up to 424 N·m from an optimized engine capacity of 3.6 L. This provides high fuel efficiency with up to 20% fuel saving over the previous model when operated in the new Eco mode.

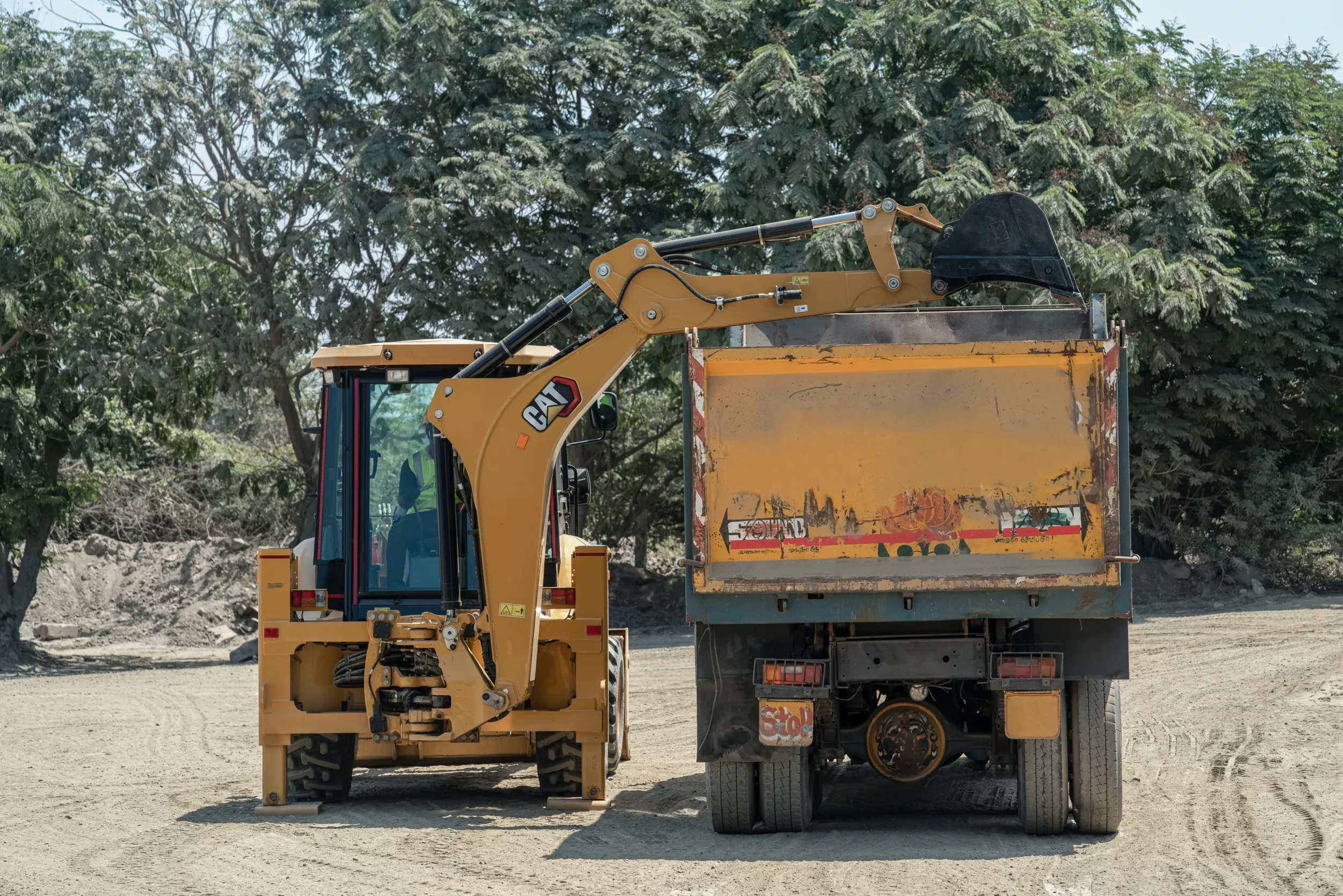

More Performance
The design of the Parallel lift loader gives high breakout forces with capability for dozing and loading and increased dump height. The iconic Cat excavator style boom on the backhoe enables reach over obstacles and better loading capability in narrow spaces. Robust stick design and 205 degrees of bucket rotation give a solid platform to deliver superior material retention and performance, even on tough job sites. This combined with the variable displacement hydraulic pump (132 L/min flow @ 2,200 rpm) provides faster implement speeds and efficiency.
More Comfort and Safety
The cabin is designed to meet ROPS (roll over protective structure) and FOPS (falling object protective structure), so the operator is protected. The stylish, spacious cabin gives excellent all-around visibility with fully integrated operator workstation including; suspension seat, clear information cluster and ergonomic controls. Opening side windows, door windows and large rear window enhance operator comfort, while improved cab mountings and window and door seals lower in cab vibrations and noise. The machine hood is opened from a button inside the cab to prevent vandalism and braking effort is lower to improve safety and reduce operator fatigue. Battery disconnect comes as standard for all machines.

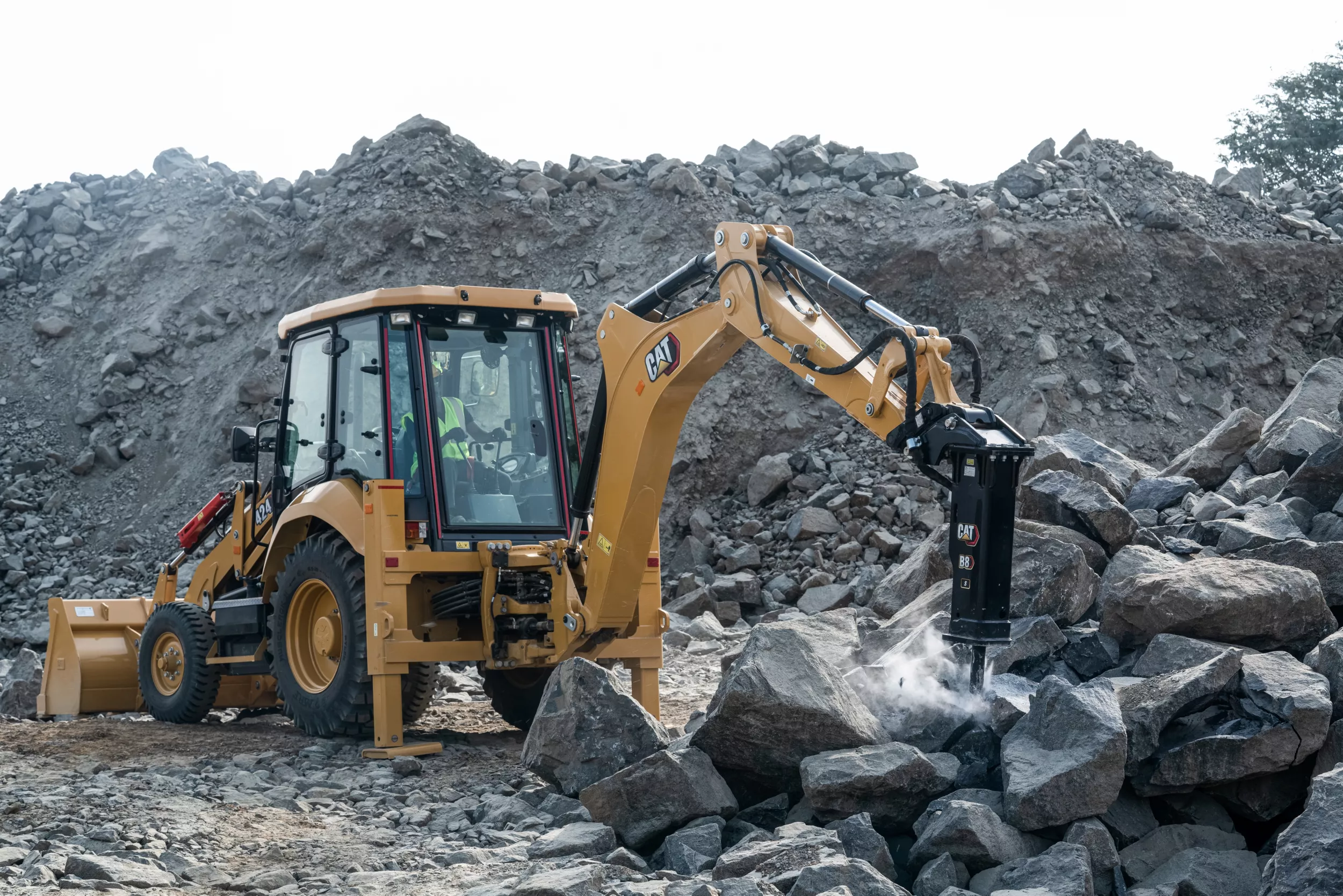

More Worktools
Operators have a wide range of worktool options for their machine. General purpose buckets come as standard with the optional multi-purpose loader buckets providing the operator the extra ability to grab, backfill, doze and grade. At the rear of the machine there are a variety of hoe bucket options from 0.12 to 0.3 m3, the Cat B8S hammer and other attachments can be supported through multiple auxiliary options including lines and brackets as well as manual hoe quick coupler.

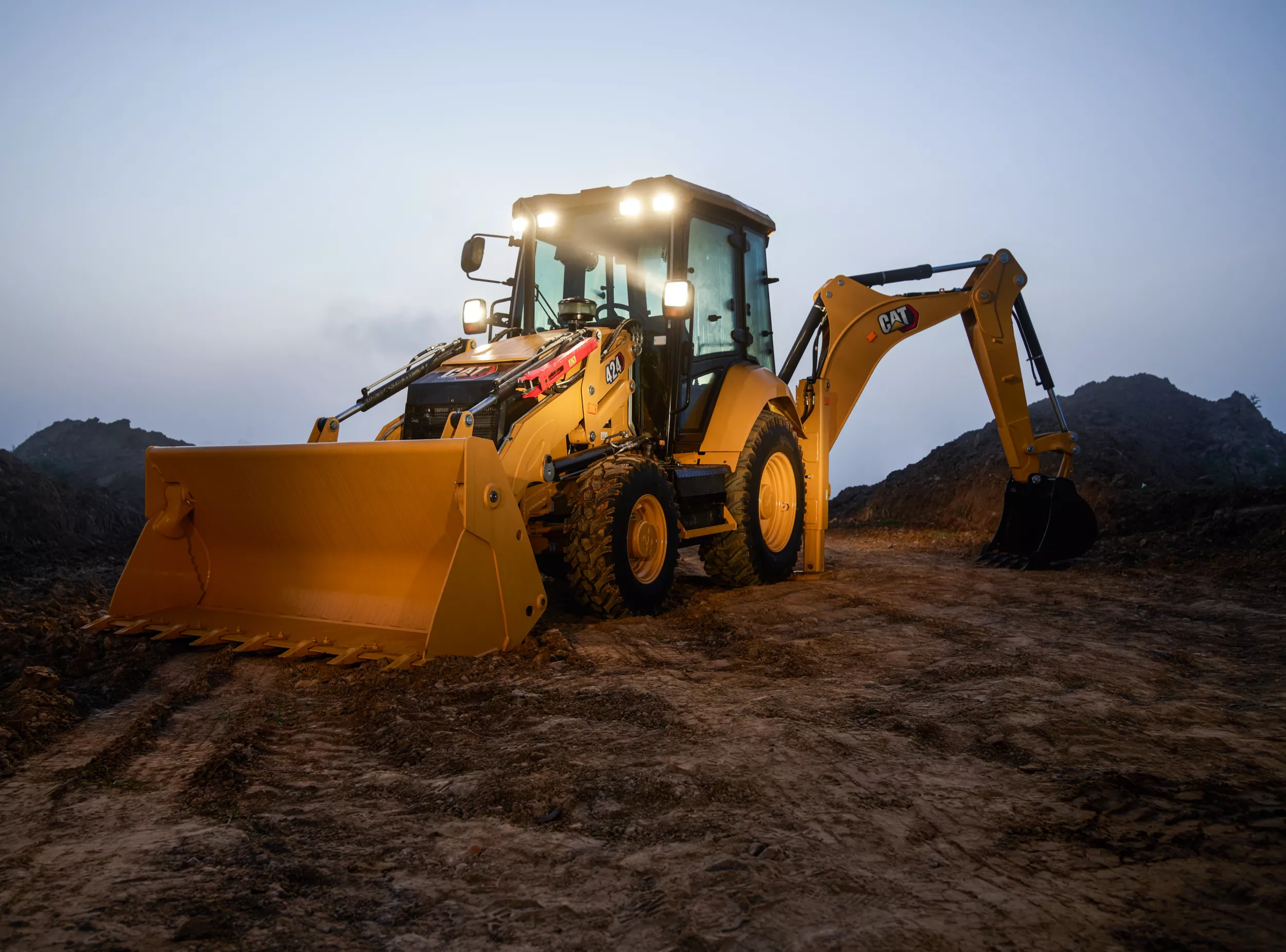

More Options
The machine options are designed to enhance the versatility of the backhoe loader. 2WD and 4WD options are available to better handle terrain. The operator can be more comfortable with air conditioning and adjustable vents that give optimal cooling. Additional front work lamps and sun visor increase operator visibility whether working night or day.

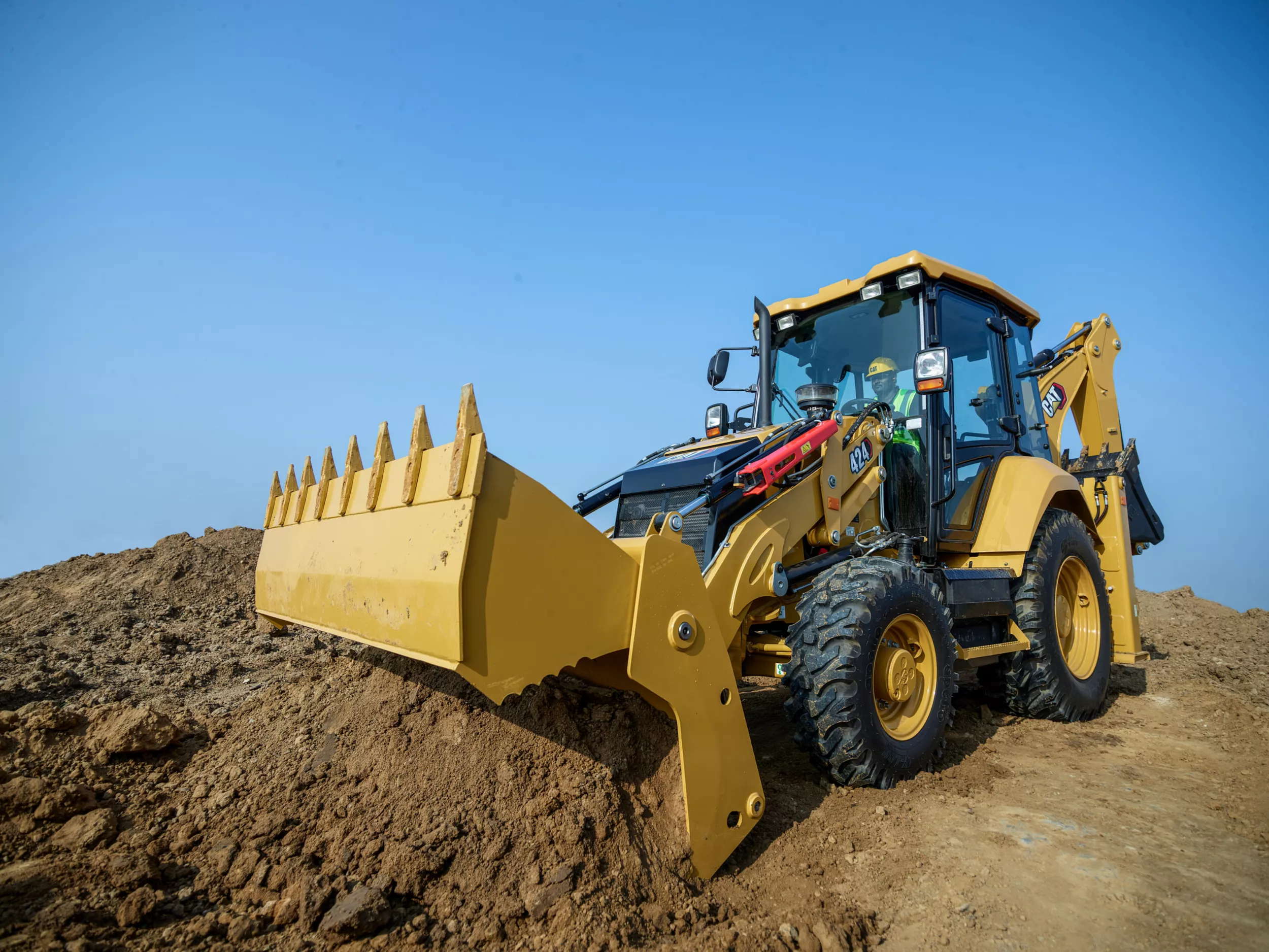

More Robust
Components and structures on the machine are designed for high performance and to deliver rugged durability. The performance increases of this machine have been matched with increased weight and strength of structures. The large torque tube on the loader arms and bucket, strengthened frame, reinforced excavator style boom, proven engine and drivetrain and robust hydraulic components all deliver superior machine life and performance.
Product Specifications for 424
Engine
| Power - Net | 70 hp 52 kW |
| Engine Model | Cat C3.6* 55 kW Electronic Turbo Intercooled Cat C3.6* 55 kW Electronic Turbo Intercooled |
| Displacement | 220 in³ 3.6 l |
| Torque Rise - 1,200 rpm - Net | 86% 86% |
| Bore | 3.9 in 98 mm |
| Stroke | 4.7 in 120 mm |
| Note | *Meets India Bharat Stage V emission standards. *Meets India Bharat Stage V emission standards. |
| Ratings @ 2,200 rpm - Gross Power ISO 14396 | 55 kW/74 hp/75 mhp 55 kW/74 hp/75 mhp |
| Ratings @ 2,200 rpm - Gross Power SAE J1995 | 56 kW/75 hp/76 mhp 56 kW/75 hp/76 mhp |
| Net Power Rating @ 2,200 rpm - ISO 9249 | 51 kW/69 hp/70 mhp 51 kW/69 hp/70 mhp |
| Net Power Rating @ 2,200 rpm - SAE J1349 | 52 kW/70 hp/71 mhp 52 kW/70 hp/71 mhp |
Weights
| Operating Weight - Nominal | 17593 lb 7980 kg |
| Operating Weight - Maximum | 19312 lb 8760 kg |
| Air Conditioning | 99 lb 45 kg |
| Total Gross Weight Not to Exceed | 19312 lb 8760 kg |
| Counterweights - Base | 254 lb 115 kg |
| Cab - ROPS/FOPS | 260 lb 118 kg |
| Counterweights - Maximum | 661 lb 300 kg |
| Note | Machine configuration: standard engine, standard stick hoe, standard cab with air conditioning, 2WD, 1.05 m³ GP loader bucket, 0.27 m³ standard duty hoe bucket, industrial tire, 115 kg counterweight, 80 kg operator, full fuel tank. Machine configuration: standard engine, standard stick hoe, standard cab with air conditioning, 2WD, 1.05 m³ GP loader bucket, 0.27 m³ standard duty hoe bucket, industrial tire, 115 kg counterweight, 80 kg operator, full fuel tank. |
| Operating Weight - Maximum - ROPS Capacity | 8760 kg 19,312 lb |
Hydraulic System
| System Pressure - Loader | 3553 psi 245 bar |
| System Pressure - Backhoe | 3553 psi 245 bar |
| Type | Closed Center Closed Center |
| Pump Type | Variable-Flow, Axial Piston Variable-Flow, Axial Piston |
| Pump Capacity @ 2,200 rpm | 34.9 gpm 132 L/min |
Steering
| Turning Circle (inner wheel not braked) - Outside Widest Loader Bucket | 40 ft 12.2 m |
| Type | Front Wheel Front Wheel |
| Power Steering | Hydrostatic Hydrostatic |
| Turning Circle - (inner wheel not braked) - Outside Front Wheels | 30.5 ft 9.3 m |
| 2WD Cylinder, One (1) Double Acting - Bore | 3 in 75 mm |
| 2WD Cylinder, One (1) Double Acting - Axle Oscillation | 9 ° 9 ° |
| 2WD Cylinder, One (1) Double Acting - Stroke | 4.6 in 118 mm |
| Turning Circle | 2WD 2WD |
| 2WD Cylinder, One (1) Double Acting - Rod Diameter | 1.8 in 45 mm |
Transmission
| Power Shuttle Transmission - Reverse 4th | 23.3 mile/h 37.5 km/h |
| Power Shuttle Transmission - Forward 3rd | 14.3 mile/h 23 km/h |
| Power Shuttle Transmission - Reverse 2nd | 6 mile/h 9.6 km/h |
| Power Shuttle Transmission - Forward 2nd | 6 mile/h 9.6 km/h |
| Note | Travel speeds of backhoe loader at full throttle, when equipped with Industrial tires (16.9-28 Rear Tires). Travel speeds of backhoe loader at full throttle, when equipped with Industrial tires (16.9-28 Rear Tires). |
| Power Shuttle Transmission - Reverse 3rd | 14.3 mile/h 23 km/h |
| Power Shuttle Transmission - Forward 4th | 23.3 mile/h 37.5 km/h |
| Power Shuttle Transmission - Forward 1st | 3.5 mile/h 5.7 km/h |
| Power Shuttle Transmission - Reverse 1st | 3.5 mile/h 5.7 km/h |
Service Refill Capacities
| Hydraulic Tank | 11.1 gal (US) 42 l |
| Transmission - Power Shuttle - 2WD | 3.7 gal (US) 14 l |
| Cooling System - A/C | 5.3 gal (US) 20 l |
| Hydraulic System | 28 gal (US) 106 l |
| Engine Oil - With Filter | 2.4 gal (US) 9 l |
| Fuel Tank | 42.3 gal (US) 160 l |
Axle Ratings
| Rear Axle - Dynamic | 16861 lb 7648 kg |
| Rear Axle - Static | 19120 kg 42152 lb |
Machine Dimensions - Parallel Lift Loader - GP - 1.05 m3
| Overall Width (excluding loader bucket) | 7.7 ft 2346 mm |
| Ground Clearance (minimum) (300 kg counterweight) | 1.3 ft 386 mm |
| Wheelbase 2WD/AWD | 7.2 ft 2200 mm |
| Rear Axle Centerline to Front Grill | 8.9 ft 2705 mm |
| Height to Loader Hinge Pin (transport) | 1.1 ft 350 mm |
| Height to Top of Exhaust Stack | 8.9 ft 2715 mm |
| Ground Clearance (minimum) (stabilizer feet) | 1.1 ft 350 mm |
| Rear Wheel Tread Gauge | 5.5 ft 1688 mm |
| Ground Clearance (minimum) (LH step) | 1.5 ft 454 mm |
| Front Wheel Tread Gauge | 6.3 ft 6.3 ft |
| Note | Dimensions and performance specifications shown are for machines equipped with industrial tires, standard cab, standard stick, 0.27 m3 heavy duty bucket, and 1.05 m3 GP loader bucket and standard equipment unless otherwise specified. Dimensions and performance specifications shown are for machines equipped with industrial tires, standard cab, standard stick, 0.27 m3 heavy duty bucket, and 1.05 m3 GP loader bucket and standard equipment unless otherwise specified. |
| Overall Length in Roading Position (15 degree approach angle and hoe stowed to side) | 18.7 ft 5686 mm |
| Overall Transportation Length (loader on ground and hoe stowed to side) | 18.7 ft 5708 mm |
| Height to Top of Cab | 9.6 ft 2928 mm |
| Overall Transportation Height | 12.2 ft 3732 mm |
| Overall Length (loader on ground hoe stowed to machine centerline) | 24.1 ft 7359 mm |
Loader Bucket Dimensions and Performance - Parallel Lift Loader - GP - 1.05 m3
| Width | 2262 mm 7.4 ft³ |
| Grill to Bucket Cutting Edge, Carry Position | 4.8 ft 1477 mm |
| Dump Height at Maximum Angle | 9.2 ft 2794 mm |
| Lift Capacity at Maximum Height | 7906 lb 3586 kg |
| Tilt Breakout Force | 11861 lbf 52762 N |
| Lift Breakout Force | 11907 lbf 52967 N |
| Maximum Bucket Rollback at Ground Level | 38 38 |
| Maximum Grading Angle | 114 114 |
| Capacity (SAE rated) | 37.1 ft³ 1.05 m³ |
| Dump Reach at Maximum Angle | 9.2 ft 808 mm |
| Maximum Operating Height | 14.4 ft 4394 mm |
| Maximum Hinge Pin Height | 11.4 ft 3473 mm |
| Digging Depth | 0.3 ft 87 mm |
| Tipping Load at Breakout Point | 15144 lb 6869 kg |
| Weight (does not include teeth or forks) | 1168 lb 530 kg |
| Width of Dozer Cutting Edge | NA NA |
| Jaw Opening Maximum | NA NA |
| Dump Angle at Full Height | 45 45 |
| Bucket Jaw Clamping Force | NA NA |
Loader Bucket Dimensions and Performance - Parallel Lift Loader - MP - 1.0 m3
| Width of Dozer Cutting Edge | 7.4 ft 2262 mm |
| Maximum Operating Height | 14.3 ft 4372 mm |
| Jaw Opening Maximum | 790 mm 2.6 ft |
| Maximum Hinge Pin Height | 11.4 ft 3473 mm |
| Weight (does not include teeth or forks) | 1501 lb 681 kg |
| Maximum Bucket Rollback at Ground Level | 39 39 |
| Grill to Bucket Cutting Edge, Carry Position | 4.7 ft 1447 mm |
| Dump Height at Maximum Angle | 9.2 ft 2794 mm |
| Tipping Load at Breakout Point | 15355 lb 6965 kg |
| Capacity (SAE rated) | 35.3 ft³ 1 m³ |
| Tilt Breakout Force | 13304 lbf 59180 N |
| Dump Angle at Full Height | 45 45 |
| Width | 7.4 ft 2262 mm |
| Bucket Jaw Clamping Force | 13324 lbf 59268 N |
| Dump Reach at Maximum Angle | 2.4 ft 731 mm |
| Lift Breakout Force | 11793 lbf 52458 N·m |
| Digging Depth | 0.4 ft 119 mm |
| Maximum Grading Angle | 116 116 |
| Lift Capacity at Maximum Height | 7608 lb 3451 kg |
Backhoe Dimensions and Performance - Standard Stick
| Loading Reach | 5 ft 1521 mm |
| Swing Arc | 180 180 |
| Loading Height | 13.2 ft 4015 mm |
| Bucket Dig Force | 12653 lbf 56282 N |
| Reach from Rear Axle Centerline at Ground Line | 22.9 ft 6978 mm |
| Stick Dig Force | 7853 lbf 34933 N |
| Digging Depth, 600 mm (2 ft) Flat Bottom | 13.5 ft 4114 mm |
| Reach from Swing Pivot at Ground Line | 18.4 ft 5612 mm |
| Digging Depth, 2440 mm (8 ft) Flat Bottom | 12.3 ft 3762 mm |
| Stabilizer Overall Width | 7.4 ft 2242 mm |
| Digging Depth, SAE Maximum | 13.6 ft 4138 mm |
| Maximum Operating Height | 18.7 ft 5701 mm |
| Bucket Rotation | 205 205 |
| Digging Depth, Manufacturer’s Maximum | 15.5 ft 4729 mm |
| Stabilizer Spread | NA NA |
| Digging Depth, 610 mm (2 ft) Flat Bottom, Manufacturer’s Maximum | 184.6 in 4690 mm |
Machine Dimensions - Parallel Lift Loader - MP - 1.0 m3
| Ground Clearance (minimum) (LH step) | 1.5 ft 454 mm |
| Rear Wheel Tread Gauge | 5.5 ft 1688 mm |
| Rear Axle Centerline to Front Grill | 8.9 ft 2705 mm |
| Height to Top of Exhaust Stack | 8.9 ft 2715 mm |
| Ground Clearance (minimum) (stabilizer feet) | 1.1 ft 350 mm |
| Wheelbase 2WD/AWD | 7.2 ft 2200 mm |
| Height to Loader Hinge Pin (transport) | 1.2 ft 352 mm |
| Overall Width (excluding loader bucket) | 7.7 ft 2346 mm |
| Note | Dimensions and performance specifications shown are for machines equipped with industrial tires, standard cab, standard stick, 0.27 m3 heavy duty bucket, and 1.05 m3 GP loader bucket and standard equipment unless otherwise specified. Dimensions and performance specifications shown are for machines equipped with industrial tires, standard cab, standard stick, 0.27 m3 heavy duty bucket, and 1.05 m3 GP loader bucket and standard equipment unless otherwise specified. |
| Front Wheel Tread Gauge | 1910 mm 1910 mm |
| Ground Clearance (minimum) (300 kg counterweight) | 1.3 ft 386 mm |
| Overall Transportation Length (loader on ground and hoe stowed to side) | 18.5 ft 5653 mm |
| Overall Length (loader on ground hoe stowed to machine centerline) | 24 ft 7329 mm |
| Overall Length in Roading Position (15 degree approach angle and hoe stowed to side) | 18.6 ft 5657 mm |
| Overall Transportation Height | 12.2 ft 3732 mm |
| Height to Top of Cab | 9.6 ft 2928 mm |
424 Standard Equipment
Cab ROPS and FOPS
- Cab, Standard
Tires/Steering/Brakes
- Two Wheel Drive
Engine
- Engine, Cat® C3.6 55 kW

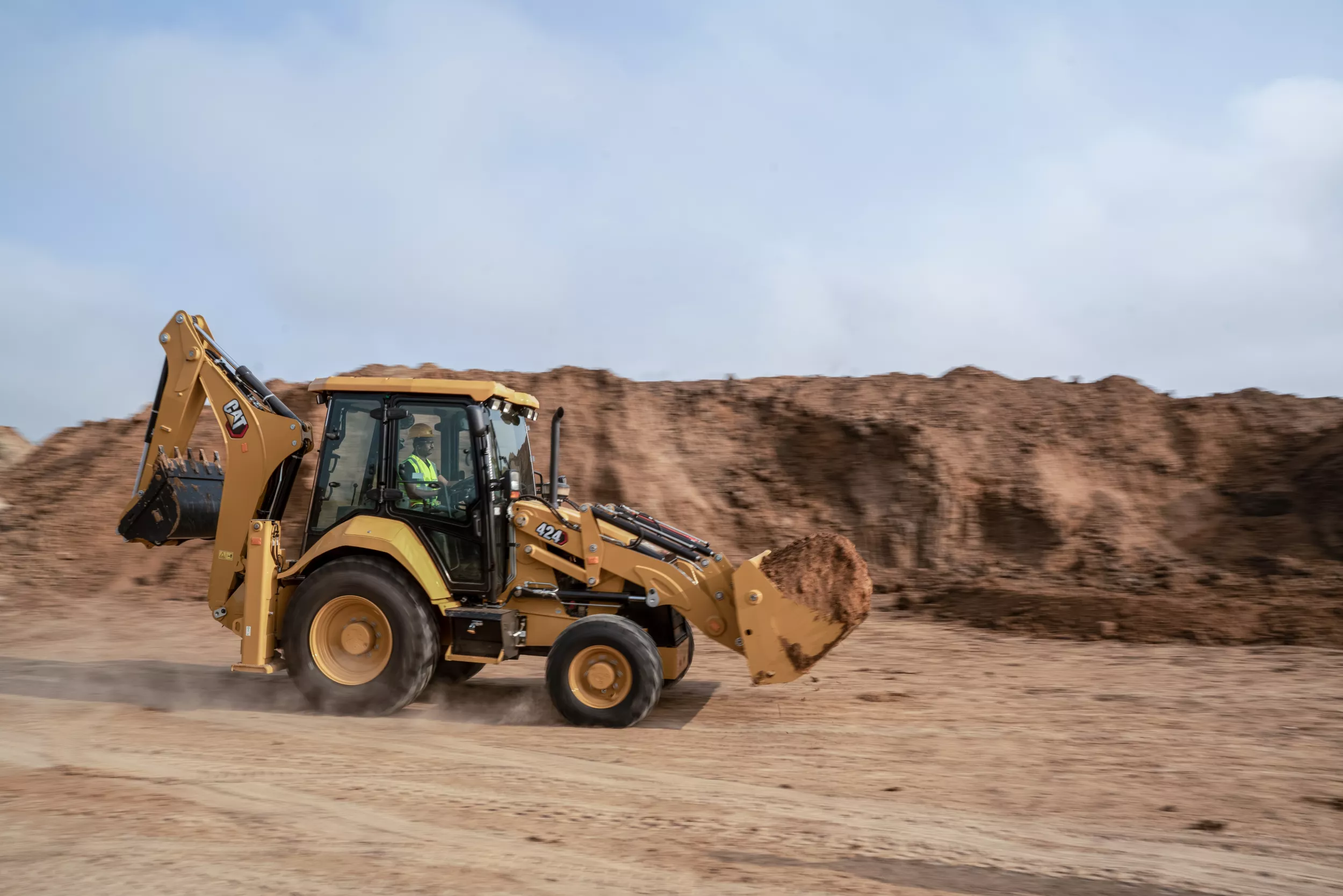

Product Link™
- PL 243
424 Optional Equipment
Hydraulics (Choose One)
- Hoe, 6 Bank Valve
- Hoe, 7 Bank Valve (Hammer/Work Tools)
Loader Bucket (Choose One)
- GP, 1.05 m³ Bucket
- MP, 1.0 m³ Bucket
Hoe Bucket (Choose One)
- 0.27 m³ Bucket
- 0.24 m³ Bucket
- 0.12 m³ Bucket
- 0.30 m³ Bucket
Other Options
- Air Conditioning
- Hydraulic Lines, One Way
- Hoe Coupler
- Additional Work Lamps
- Sun Visor
Other Attachments
- B8S Hammer
Counterweight (Choose One)*
- Counterweight, None
- Counterweight, 115 kg
- Counterweight, 240 kg
- Counterweight, 300 kg
- *For correct counterweight selection, please contact your local Cat dealer.
assignment Product Brochures and More Are Ready to Download!
Caterpillar product brochures and other informational documents are available for your growing business.
- 424 (2WD) Small Product Brochure Downloadable PDF Opens in a New Tab file_download
- 424 (4WD) Small Product Brochure Downloadable PDF Opens in a New Tab file_download
- 424 (2WD) Large Product Brochure Downloadable PDF Opens in a New Tab file_download
- 424 (4WD) Large Product Brochure Downloadable PDF Opens in a New Tab file_download
- Options and Accessories Kit Guide for Backhoe Loaders Downloadable PDF Opens in a New Tab file_download
- Cat Attachments for Backhoe Loaders Brochure Downloadable PDF Opens in a New Tab file_download
Media Gallery
Photos
Videos
360 View
424 Backhoe Loader
424 Backhoe Loader
424 Backhoe Loader
424 Backhoe Loader
424 Backhoe Loader
424 Backhoe Loader
Cat® 424 Backhoe Loader Customer Story - Kalyani Patel firm - 12,500 hours of use (India)
Cat® 424 Backhoe Loader Customer Story - Narendra Kumar Patel - 12,500 hours of use (India)
Cat® 424 Backhoe Loader Customer Story - Dinesh Manikpuri - 12,000 hours of use (India)
Cat® 424 Backhoe Loader Customer Story - Shweta Construction - 9,000 hours of use (India)
Cat® 424 Backhoe Loader Customer Story - Deepak Giri - 9,000 hours of use (India)
Cat® 424 Backhoe Loader Customer Story - Anant Iyer - 7,500 hours of use (India)
Cat® 424 Backhoe Loader Customer Story - Annapurna Iyer - 7,500 hours of use (India)
Cat® 424 Backhoe Loader Customer Story - Ram Avatar - 7,000 hours of use (India)
Cat® 424 Backhoe Loader Customer Story - Sandeep Kumar Chaurasia - 7,000 hours of use (India)
Cat® 424 Backhoe Loader Customer Story - Shahadat Ali - 5,100 hours of use (India)
Compatible Products
Maximize your equipment investment with Cat related products
Augers
Brooms
Buckets - Backhoe Rear
Buckets - Compact Wheel Loader
Buckets - Loader
Cold Planers
Compactors
Couplers - Backhoe Rear
Hammers
Rippers/Scarifiers
Snow Products
Thumbs
Compatible Technology and Services
Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.
-
VisionLink™
VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.
1
-
8
of
9 Items
items
VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.
Asia - English
