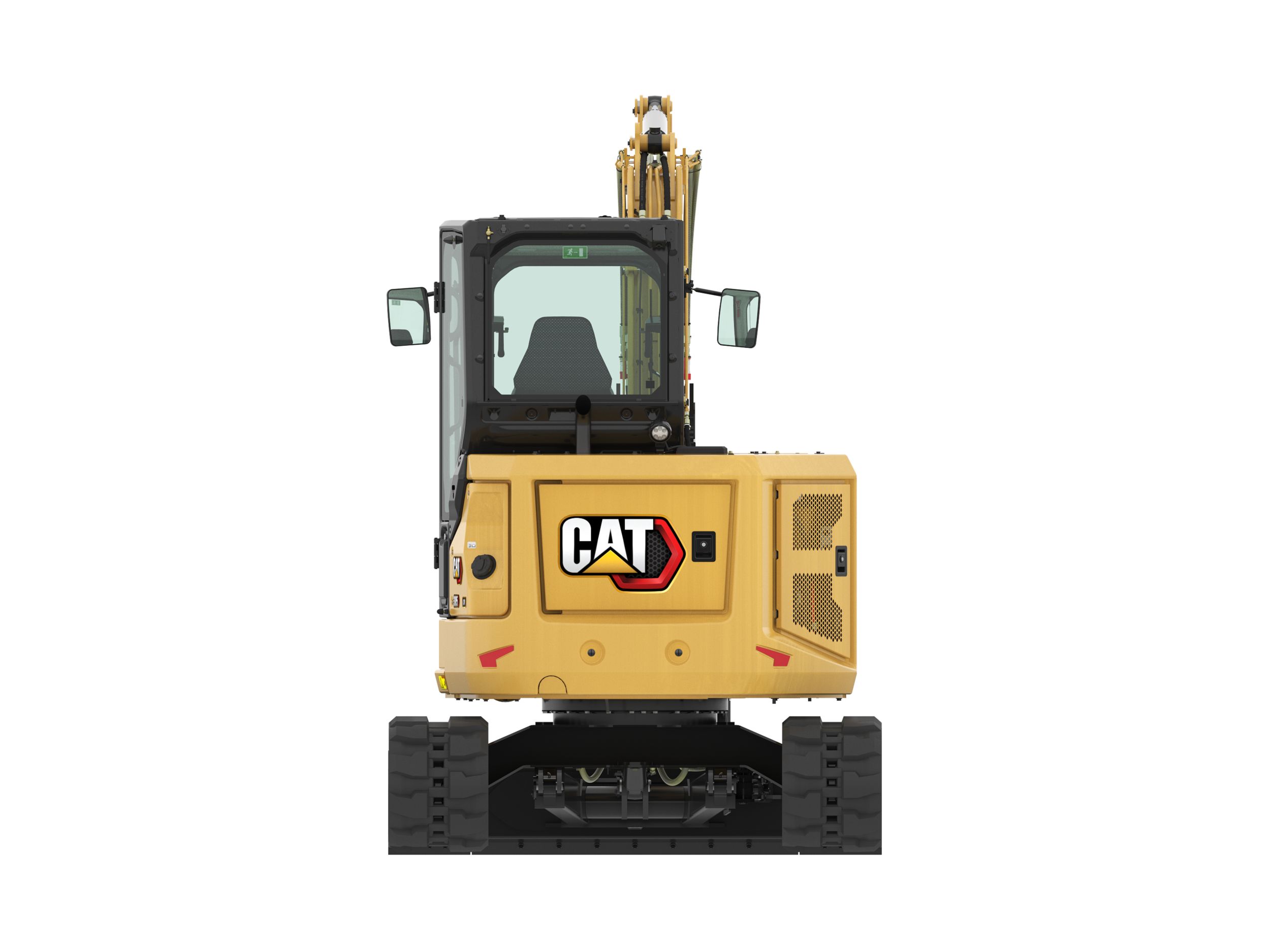

Mini Excavators 305 CR - Tier 3

Request A Price Find Dealer

Key Specs

Net Power: 36.5 hp; 27.2 kW

Operating Weight: 12555 lb; 5695 kg

Dig Depth: 144.5 in; 3670 mm

305 CR - Tier 3
Change model

Overview

Mini Excavators Inspired by Our Customers

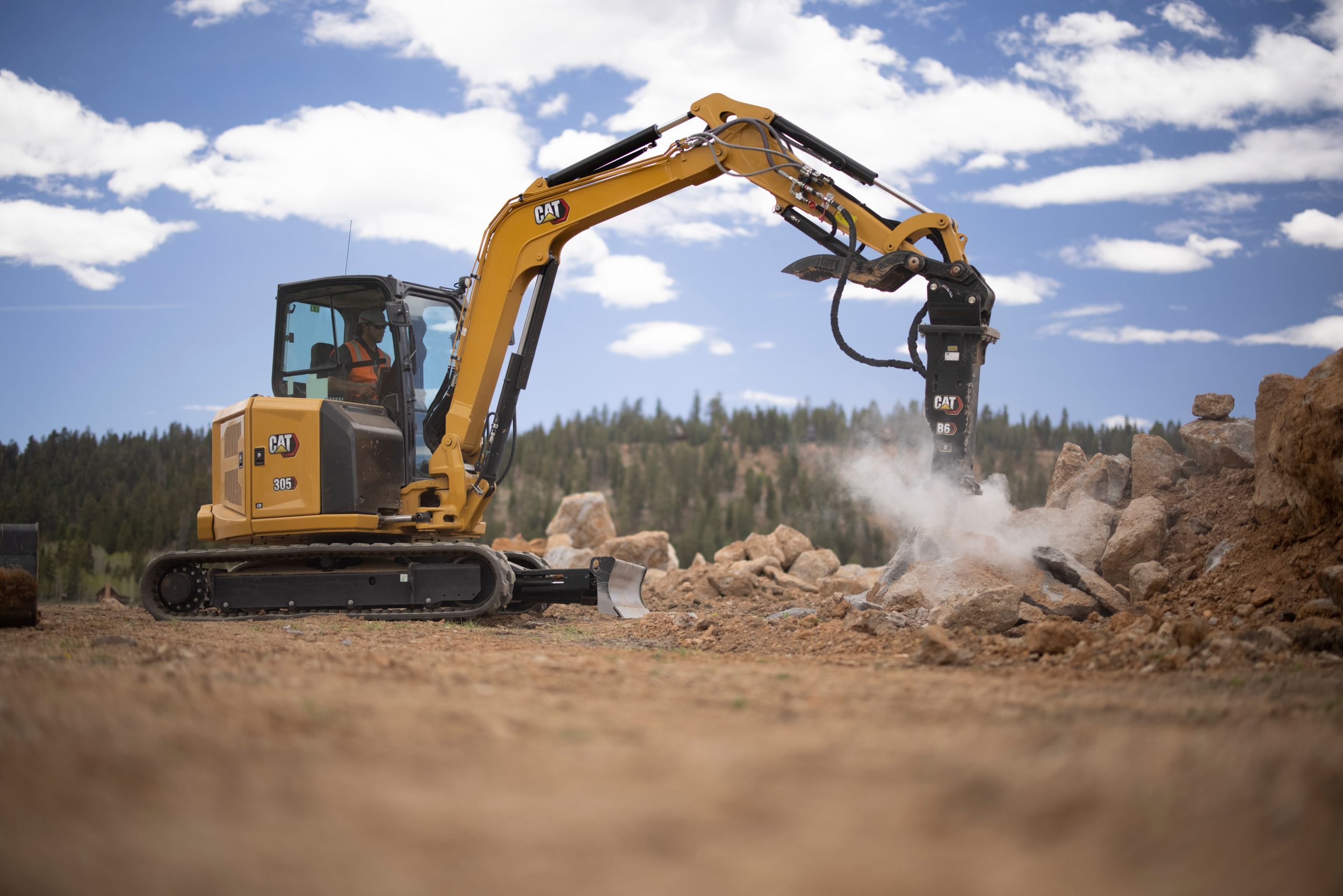

The Cat® 305 CR Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.

Benefits

4 Industry First Features

Cat Exclusives in a Mini Excavator

Up to 10% Lower Total Ownership Costs

with extended service intervals, lower repair costs and easy service access

Up to 20% More Performance

in lifting, digging and multi-function capability

Features At A Glance

Displaying 1-6 of 8

ALL DAY COMFORT

Choose either a canopy (not available in some regions) or a sealed and pressurized cab with air conditioning, adjustable wrist rests, and a suspension seat to help keep you working comfortably all day long.

EASY TO OPERATE

Controls are easy to use and the intuitive Next Generation LCD monitor provides machine information in a clear and easy to read format.

STICK STEER TRAVEL MODE

Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls to move the machine and to operate the blade. The benefit of less effort and improved control is in your hands!

BIG PERFORMANCE IN A COMPACT DESIGN

Strong lift and dig performance help you get the job done faster. The compact radius design allows you to access and work in the tightest areas. Dozer float enables easy clean up. An angle blade is also an option for finished grading and easier backfilling applications.

SAFETY ON THE JOB SITE

Your safety is our top priority. The Cat mini excavator is designed to help keep you safe on the job. Courtesy work lights, a fluorescent retractable seat belt and seat belt reminder are just a few of the safety features we’ve built into the machine.

SIMPLE SERVICE FOR LESS DOWNTIME

Maintenance is quick and easy on the Cat mini excavator. Routine check points are easy to access at ground level through the side doors.

Choose either a canopy (not available in some regions) or a sealed and pressurized cab with air conditioning, adjustable wrist rests, and a suspension seat to help keep you working comfortably all day long.

Controls are easy to use and the intuitive Next Generation LCD monitor provides machine information in a clear and easy to read format.

Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls to move the machine and to operate the blade. The benefit of less effort and improved control is in your hands!

Strong lift and dig performance help you get the job done faster. The compact radius design allows you to access and work in the tightest areas. Dozer float enables easy clean up. An angle blade is also an option for finished grading and easier backfilling applications.

Your safety is our top priority. The Cat mini excavator is designed to help keep you safe on the job. Courtesy work lights, a fluorescent retractable seat belt and seat belt reminder are just a few of the safety features we’ve built into the machine.

Maintenance is quick and easy on the Cat mini excavator. Routine check points are easy to access at ground level through the side doors.

Equipped with features such as auto idle, auto engine shutdown, increased service intervals, and efficient hydraulics with a variable displacement pump, the Cat mini excavator was designed with reducing your operating costs in mind.

Your Cat dealer is here to help you reach your business goals. From providing equipment solutions to operator training, service needs and beyond, your Cat dealer is ready to help.

Specifications Standard Equipment Optional Equipment

Product Specifications for 305 CR - Tier 3

Engine

Net Power	36.5 hp 27.2 kW
Engine Model	C1.7 Turbo C1.7 Turbo
Stroke	3.9 in 100 mm
Displacement	101 in³ 1.662 l
Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC	36.5 hp 27.2 kW
Note (1)	Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load. Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.
Bore	3.3 in 84 mm
Gross Power - 2,400 rpm - SAE J1995:2014	38.9 hp 29 kW
Note	Meets Brazil MAR-1 emission standards. Equivalent to EU Stage IIIA emission standards. Meets Brazil MAR-1 emission standards. Equivalent to EU Stage IIIA emission standards.

Weights

Operating Weight	12555 lb 5695 kg
Note (1)	Maximum Weight is based on steel tracks with pads, operator, full fuel tank, long stick, straight blade, extra counterweight and no bucket. Maximum Weight is based on steel tracks with pads, operator, full fuel tank, long stick, straight blade, extra counterweight and no bucket.
Minimum Operating Weight with Cab*	11100 lb 5035 kg
Maximum Operating Weight with Canopy**	12337 lb 5596 kg
Note	Minimum Weight is based on rubber tracks, operator, full fuel tank, standard stick, straight blade, no bucket and no extra counterweight. Minimum Weight is based on rubber tracks, operator, full fuel tank, standard stick, straight blade, no bucket and no extra counterweight.
Minimum Operating Weight with Canopy*	10882 lb 4936 kg
Maximum Operating Weight with Cab**	12555 lb 5695 kg

Dimensions - Long Stick

Dig Depth	144.5 in 3670 mm
Overall Shipping Length*	210.2 in 5340 mm
Maximum Blade Height	15.7 in 400 mm
Boom Swing - Right	34.1 in 865 mm
Track Width	78 in 1980 mm
Maximum Dig Height	210.8 in 5355 mm
Tail Swing with Counterweight	47.2 in 1200 mm
Maximum Reach	235.8 in 5990 mm
Maximum Dump Clearance	151.4 in 3845 mm
Maximum Reach - Ground Level	229.7 in 5835 mm
O/A Shipping Height	100.4 in 2550 mm
Ground Clearance	13.2 in 335 mm
Stick Length	63 in 1601 mm
O/A Undercarriage Length	101.8 in 2585 mm
Boom In Reach	101.6 in 2580 mm
Swing Bearing - Height	24.4 in 619 mm
Boom Height - Shipping Position	74.6 in 1895 mm
Tail Swing without Counterweight	43.1 in 1095 mm
Note	Overall Shipping Length depends on blade position during shipment. Overall Shipping Length depends on blade position during shipment.
Track Belt/Shoe Width	15.7 in 400 mm
Vertical Wall	100.8 in 2560 mm
Maximum Blade Depth	25.6 in 650 mm
Boom Swing - Left	24.2 in 615 mm

Dimensions - Standard Stick

Maximum Blade Height	15.7 in 400 mm
Boom Swing - Left	24.2 in 615 mm
Vertical Wall	91.9 in 2335 mm
Maximum Blade Depth	25.6 in 650 mm
O/A Undercarriage Length	101.8 in 2585 mm
Boom Swing - Right	34.1 in 865 mm
Dig Depth	134.6 in 3420 mm
Tail Swing with Counterweight	47.2 in 1200 mm
Note	Overall Shipping Length depends on blade position during shipment. Overall Shipping Length depends on blade position during shipment.
Stick Length	53.2 in 1351 mm
Overall Shipping Length*	208.9 in 5305 mm
Track Width	78 in 1980 mm
Tail Swing without Counterweight	43.1 in 1095 mm
Maximum Dig Height	205.3 in 5215 mm
O/A Shipping Height	100.4 in 2550 mm
Ground Clearance	13.2 in 335 mm
Track Belt/Shoe Width	15.7 in 400 mm
Swing Bearing - Height	24.4 in 619 mm
Maximum Dump Clearance	145.7 in 3700 mm
Maximum Reach	226.6 in 5755 mm
Maximum Reach - Ground Level	220.1 in 5590 mm
Boom Height - Shipping Position	71.7 in 1820 mm
Boom In Reach	101.2 in 2570 mm

Sound

Average Exterior Sound Pressure (ISO 6395:2008)	97 dB(A) 97 dB(A)
Operator Sound Pressure (ISO 6396:2008)	76 dB(A) 76 dB(A)
Note	European Union Directive “2000/14/EC” European Union Directive “2000/14/EC”

Hydraulic System

Auxiliary Circuit - Secondary - Flow	7 gpm 28 L/min
Pump Flow at 2,400 rpm	35 gpm 133 L/min
Auxiliary Circuit - Secondary - Pressure	3843 psi 265 bar
Digging Force - Stick - Standard	6362 lbf 28.3 kN
Auxiliary Circuit - Primary - Flow	21 gpm 80 L/min
Auxiliary Circuit - Primary - Pressure	3843 psi 265 bar
Digging Force - Stick - Long	5665 lbf 25.2 kN
Operating Pressure - Swing	2901 psi 200 bar
Operating Pressure - Equipment	3843 psi 265 bar
Note	Flow and pressure are not combinable. Under load, as flow rises pressure goes down. Flow and pressure are not combinable. Under load, as flow rises pressure goes down.
Type	Load Sensing Hydraulics with Variable Displacement Piston Pump Load Sensing Hydraulics with Variable Displacement Piston Pump
Operating Pressure - Travel	3843 psi 265 bar
Digging Force - Bucket	11061 lbf 49.2 kN

Blade

Angle Blade Width	78 in 1980 mm
Straight Blade Height	16.3 in 415 mm
Angle Blade Height	15.7 in 400 mm
Angle Blade - Left	25 degrees 25 degrees
Angle Blade - Right	25 degrees 25 degrees
Straight Blade Width	78 in 1980 mm

Service Refill Capacities

Engine Oil	1.6 gal (US) 6 l
Cooling System	2.9 gal (US) 11 l
Hydraulic Tank	20 gal (US) 75 l
Hydraulic System	16 gal (US) 60 l
Fuel Tank	17 gal (US) 63 l

Weight Increase from Minimum Configuration

Steel Tracks with Pads	827 lb 375 kg
Long Stick	75 lb 34 kg
Angle Blade	203 lb 92 kg
Counterweight	534 lb 242 kg

Swing System

Machine Swing Speed	9 r/min 9 r/min
Boom Swing - Right	50 ° 50 °
Boom Swing - Left	72 ° 72 °

Travel System

Ground Pressure - Maximum Weight	4.6 psi 31.8 kPa
Travel Speed - Low	1.7 mile/h 2.8 km/h
Ground Pressure - Minimum Weight	3.9 psi 26.9 kPa
Maximum Traction Force - Low Speed	11353 lbf 50.5 kN
Maximum Traction Force - High Speed	5553 lbf 24.7 kN
Gradeability - Maximum	30 degrees 30 degrees
Travel Speed - High	2.8 mile/h 4.5 km/h

Certification - Cab and Canopy

Roll Over Protective Structure (ROPS)	ISO 12117-2:2008 ISO 12117-2:2008
Tip Over Protective Structure (TOPS)	ISO 12117:1997 ISO 12117:1997
Top Guard	ISO 10262:1998 Level I ISO 10262:1998 Level I

305 CR - Tier 3 Standard Equipment

ENGINE

Cat C1.7 Turbo Engine (Brazil MAR-1, equivalent to EU Stage IIIA)

Power on Demand (not available in all regions)

Load Sensing/Flow Sharing Hydraulics

Automatic Engine Idle

Variable Displacement Piston Pump

Automatic Engine Shutdown

Fuel Water Separator

Automatic Two Speed Travel

HYDRAULICS

Accumulator

Continuous Auxiliary Flow

One and Two Way Auxiliary Flow

Auxiliary Line Quick Disconnects

Automatic Swing Brake

Auxiliary Hydraulic Lines

Smart Tech Electronic Pump

OPERATOR ENVIRONMENT

Cup Holder

TOPS - ISO 12117:1997

Interior Light (Cab only)

Boom Light, Halogen (not available in all regions)

Top Guard ISO 10262:1998 Level I

Signaling/Warning Horn

Control Pattern Changer (optional in some regions)

Travel Cruise Control

Travel Pedals and Hand Levers

Storage Pocket

Skylight

Fabric Suspension Seat (Cab only)

Machine Security -Standard Key with Pass Code

Next Generation Color LCD Monitor (IP66)
-Fuel Level and Coolant Temperature Gauges
-Maintenance and Machine Monitoring
-Performance and Machine Adjustments
-Numeric Security Code -Multiple Languages
- Hour Meter with Wake Up Switch
-Jog Dial (Cab only)

Canopy or Cab

Vinyl Suspension Seat (Canopy only)

Retractable High Visibility Seat Belt (75 mm/3 in)

Adjustable Wrist Rests

ROPS - ISO 12117-2:2008

Mounting Bosses for Front

Washable Floor Mat

Control Pattern Changer (optional in some regions)

Hydraulic Lockout - All Controls

Utility Space for Mobile Phone

Stick Steer Mode

Coat Hook

UNDERCARRIAGE

Dozer Straight Blade

Rubber Belt (400 mm/15.7 in)

Dozer Blade Float

Tie Downs on Track Frame

BOOM, STICK AND LINKAGES

Thumb Ready

Standard Stick (1351 mm/53.2 in)

One Piece Boom (2716 mm/106.9 in)

Front Shovel Capable
-Pin-On

Certified Lifting Eye (optional in some regions)

ELECTRICAL

Battery Disconnect

12 Volt Power Socket

Maintenance Free Battery

12 Volt Battery

Product Link PL243 (regulations apply)

Software (machine and monitor)

305 CR - Tier 3 Optional Equipment

OPERATOR ENVIRONMENT

LED Boom Light

Mirrors, Left, Right and Rear

Camera

LED Front and Rear Lights

Machine Security -Push to Start with Key Fob/Pass Code

USB (charging only) (Cab only)

LED Front Lights

No Travel Pedals and Hand Levers (optional in some regions)

Cab with Air Conditioning

Radio – Bluetooth®, Auxiliary, Microphone, USB (charging only) (Cab only)

Radio - Bluetooth, Auxiliary, Microphone,

UNDERCARRIAGE

Steel Track (400 mm/15.7 in)

Angle Blade

Steel Track with Rubber Pads

BOOM, STICK AND LINKAGES

Attachments including Couplers, Thumbs, Buckets, Augers and Hammers

Boom Lowering Check Valve

Long Stick (1601 mm/63.0 in)

Hydraulic Quick Coupler Lines

2nd Auxiliary Hydraulic Lines

Bucket Divert Lines

Stick Lowering Check Valve

Front Shovel Capable
-Dual Lock Manual Coupler
-Hydraulic Coupler

2nd Auxiliary Hydraulic Lines

ELECTRICAL

Rotating Beacon

Product Link PLE643 (regulations apply)

GUARDING

Polycarbonate Half Height Front Guard (Canopy only)

Polycarbonate Front Guard (ISO 10262:1998 Level I and EN356 P5A)

Travel Alarm (optional in some regions)

Heavy Duty Front Guard ISO 10262:1998 Level II

OTHER

Eco Drain

Water Jacket Heater

Bio Oil Capable

Counterweight (242 kg/534 lb)

Product Specifications for 305 CR - Tier 3

Download Print

Engine

Net Power	36.5 hp 27.2 kW
Engine Model	C1.7 Turbo C1.7 Turbo
Stroke	3.9 in 100 mm
Displacement	101 in³ 1.662 l
Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC	36.5 hp 27.2 kW
Note (1)	Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load. Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.
Bore	3.3 in 84 mm
Gross Power - 2,400 rpm - SAE J1995:2014	38.9 hp 29 kW
Note	Meets Brazil MAR-1 emission standards. Equivalent to EU Stage IIIA emission standards. Meets Brazil MAR-1 emission standards. Equivalent to EU Stage IIIA emission standards.

Weights

Operating Weight	12555 lb 5695 kg
Note (1)	Maximum Weight is based on steel tracks with pads, operator, full fuel tank, long stick, straight blade, extra counterweight and no bucket. Maximum Weight is based on steel tracks with pads, operator, full fuel tank, long stick, straight blade, extra counterweight and no bucket.
Minimum Operating Weight with Cab*	11100 lb 5035 kg
Maximum Operating Weight with Canopy**	12337 lb 5596 kg
Note	Minimum Weight is based on rubber tracks, operator, full fuel tank, standard stick, straight blade, no bucket and no extra counterweight. Minimum Weight is based on rubber tracks, operator, full fuel tank, standard stick, straight blade, no bucket and no extra counterweight.
Minimum Operating Weight with Canopy*	10882 lb 4936 kg
Maximum Operating Weight with Cab**	12555 lb 5695 kg

Dimensions - Long Stick

Dig Depth	144.5 in 3670 mm
Overall Shipping Length*	210.2 in 5340 mm
Maximum Blade Height	15.7 in 400 mm
Boom Swing - Right	34.1 in 865 mm
Track Width	78 in 1980 mm
Maximum Dig Height	210.8 in 5355 mm
Tail Swing with Counterweight	47.2 in 1200 mm
Maximum Reach	235.8 in 5990 mm
Maximum Dump Clearance	151.4 in 3845 mm
Maximum Reach - Ground Level	229.7 in 5835 mm
O/A Shipping Height	100.4 in 2550 mm
Ground Clearance	13.2 in 335 mm
Stick Length	63 in 1601 mm
O/A Undercarriage Length	101.8 in 2585 mm
Boom In Reach	101.6 in 2580 mm
Swing Bearing - Height	24.4 in 619 mm
Boom Height - Shipping Position	74.6 in 1895 mm
Tail Swing without Counterweight	43.1 in 1095 mm
Note	Overall Shipping Length depends on blade position during shipment. Overall Shipping Length depends on blade position during shipment.
Track Belt/Shoe Width	15.7 in 400 mm
Vertical Wall	100.8 in 2560 mm
Maximum Blade Depth	25.6 in 650 mm
Boom Swing - Left	24.2 in 615 mm

Dimensions - Standard Stick

Maximum Blade Height	15.7 in 400 mm
Boom Swing - Left	24.2 in 615 mm
Vertical Wall	91.9 in 2335 mm
Maximum Blade Depth	25.6 in 650 mm
O/A Undercarriage Length	101.8 in 2585 mm
Boom Swing - Right	34.1 in 865 mm
Dig Depth	134.6 in 3420 mm
Tail Swing with Counterweight	47.2 in 1200 mm
Note	Overall Shipping Length depends on blade position during shipment. Overall Shipping Length depends on blade position during shipment.
Stick Length	53.2 in 1351 mm
Overall Shipping Length*	208.9 in 5305 mm
Track Width	78 in 1980 mm
Tail Swing without Counterweight	43.1 in 1095 mm
Maximum Dig Height	205.3 in 5215 mm
O/A Shipping Height	100.4 in 2550 mm
Ground Clearance	13.2 in 335 mm
Track Belt/Shoe Width	15.7 in 400 mm
Swing Bearing - Height	24.4 in 619 mm
Maximum Dump Clearance	145.7 in 3700 mm
Maximum Reach	226.6 in 5755 mm
Maximum Reach - Ground Level	220.1 in 5590 mm
Boom Height - Shipping Position	71.7 in 1820 mm
Boom In Reach	101.2 in 2570 mm

Sound

Average Exterior Sound Pressure (ISO 6395:2008)	97 dB(A) 97 dB(A)
Operator Sound Pressure (ISO 6396:2008)	76 dB(A) 76 dB(A)
Note	European Union Directive “2000/14/EC” European Union Directive “2000/14/EC”

Hydraulic System

Auxiliary Circuit - Secondary - Flow	7 gpm 28 L/min
Pump Flow at 2,400 rpm	35 gpm 133 L/min
Auxiliary Circuit - Secondary - Pressure	3843 psi 265 bar
Digging Force - Stick - Standard	6362 lbf 28.3 kN
Auxiliary Circuit - Primary - Flow	21 gpm 80 L/min
Auxiliary Circuit - Primary - Pressure	3843 psi 265 bar
Digging Force - Stick - Long	5665 lbf 25.2 kN
Operating Pressure - Swing	2901 psi 200 bar
Operating Pressure - Equipment	3843 psi 265 bar
Note	Flow and pressure are not combinable. Under load, as flow rises pressure goes down. Flow and pressure are not combinable. Under load, as flow rises pressure goes down.
Type	Load Sensing Hydraulics with Variable Displacement Piston Pump Load Sensing Hydraulics with Variable Displacement Piston Pump
Operating Pressure - Travel	3843 psi 265 bar
Digging Force - Bucket	11061 lbf 49.2 kN

Blade

Angle Blade Width	78 in 1980 mm
Straight Blade Height	16.3 in 415 mm
Angle Blade Height	15.7 in 400 mm
Angle Blade - Left	25 degrees 25 degrees
Angle Blade - Right	25 degrees 25 degrees
Straight Blade Width	78 in 1980 mm

Service Refill Capacities

Engine Oil	1.6 gal (US) 6 l
Cooling System	2.9 gal (US) 11 l
Hydraulic Tank	20 gal (US) 75 l
Hydraulic System	16 gal (US) 60 l
Fuel Tank	17 gal (US) 63 l

Weight Increase from Minimum Configuration

Steel Tracks with Pads	827 lb 375 kg
Long Stick	75 lb 34 kg
Angle Blade	203 lb 92 kg
Counterweight	534 lb 242 kg

Swing System

Machine Swing Speed	9 r/min 9 r/min
Boom Swing - Right	50 ° 50 °
Boom Swing - Left	72 ° 72 °

Travel System

Ground Pressure - Maximum Weight	4.6 psi 31.8 kPa
Travel Speed - Low	1.7 mile/h 2.8 km/h
Ground Pressure - Minimum Weight	3.9 psi 26.9 kPa
Maximum Traction Force - Low Speed	11353 lbf 50.5 kN
Maximum Traction Force - High Speed	5553 lbf 24.7 kN
Gradeability - Maximum	30 degrees 30 degrees
Travel Speed - High	2.8 mile/h 4.5 km/h

Certification - Cab and Canopy

Roll Over Protective Structure (ROPS)	ISO 12117-2:2008 ISO 12117-2:2008
Tip Over Protective Structure (TOPS)	ISO 12117:1997 ISO 12117:1997
Top Guard	ISO 10262:1998 Level I ISO 10262:1998 Level I

305 CR - Tier 3 Standard Equipment

ENGINE

Cat C1.7 Turbo Engine (Brazil MAR-1, equivalent to EU Stage IIIA)

Power on Demand (not available in all regions)

Load Sensing/Flow Sharing Hydraulics

Automatic Engine Idle

Variable Displacement Piston Pump

Automatic Engine Shutdown

Fuel Water Separator

Automatic Two Speed Travel

HYDRAULICS

Accumulator

Continuous Auxiliary Flow

One and Two Way Auxiliary Flow

Auxiliary Line Quick Disconnects

Automatic Swing Brake

Auxiliary Hydraulic Lines

Smart Tech Electronic Pump

OPERATOR ENVIRONMENT

Cup Holder

TOPS - ISO 12117:1997

Interior Light (Cab only)

Boom Light, Halogen (not available in all regions)

Top Guard ISO 10262:1998 Level I

Signaling/Warning Horn

Control Pattern Changer (optional in some regions)

Travel Cruise Control

Travel Pedals and Hand Levers

Storage Pocket

Skylight

Fabric Suspension Seat (Cab only)

Machine Security -Standard Key with Pass Code

Next Generation Color LCD Monitor (IP66)
-Fuel Level and Coolant Temperature Gauges
-Maintenance and Machine Monitoring
-Performance and Machine Adjustments
-Numeric Security Code -Multiple Languages
- Hour Meter with Wake Up Switch
-Jog Dial (Cab only)

Canopy or Cab

Vinyl Suspension Seat (Canopy only)

Retractable High Visibility Seat Belt (75 mm/3 in)

Adjustable Wrist Rests

ROPS - ISO 12117-2:2008

Mounting Bosses for Front

Washable Floor Mat

Control Pattern Changer (optional in some regions)

Hydraulic Lockout - All Controls

Utility Space for Mobile Phone

Stick Steer Mode

Coat Hook

UNDERCARRIAGE

Dozer Straight Blade

Rubber Belt (400 mm/15.7 in)

Dozer Blade Float

Tie Downs on Track Frame

BOOM, STICK AND LINKAGES

Thumb Ready

Standard Stick (1351 mm/53.2 in)

One Piece Boom (2716 mm/106.9 in)

Front Shovel Capable
-Pin-On

Certified Lifting Eye (optional in some regions)

ELECTRICAL

Battery Disconnect

12 Volt Power Socket

Maintenance Free Battery

12 Volt Battery

Product Link PL243 (regulations apply)

Software (machine and monitor)

305 CR - Tier 3 Optional Equipment

OPERATOR ENVIRONMENT

LED Boom Light

Mirrors, Left, Right and Rear

Camera

LED Front and Rear Lights

Machine Security -Push to Start with Key Fob/Pass Code

USB (charging only) (Cab only)

LED Front Lights

No Travel Pedals and Hand Levers (optional in some regions)

Cab with Air Conditioning

Radio – Bluetooth®, Auxiliary, Microphone, USB (charging only) (Cab only)

Radio - Bluetooth, Auxiliary, Microphone,

UNDERCARRIAGE

Steel Track (400 mm/15.7 in)

Angle Blade

Steel Track with Rubber Pads

BOOM, STICK AND LINKAGES

Attachments including Couplers, Thumbs, Buckets, Augers and Hammers

Boom Lowering Check Valve

Long Stick (1601 mm/63.0 in)

Hydraulic Quick Coupler Lines

2nd Auxiliary Hydraulic Lines

Bucket Divert Lines

Stick Lowering Check Valve

Front Shovel Capable
-Dual Lock Manual Coupler
-Hydraulic Coupler

2nd Auxiliary Hydraulic Lines

ELECTRICAL

Rotating Beacon

Product Link PLE643 (regulations apply)

GUARDING

Polycarbonate Half Height Front Guard (Canopy only)

Polycarbonate Front Guard (ISO 10262:1998 Level I and EN356 P5A)

Travel Alarm (optional in some regions)

Heavy Duty Front Guard ISO 10262:1998 Level II

OTHER

Eco Drain

Water Jacket Heater

Bio Oil Capable

Counterweight (242 kg/534 lb)

See how 305 CR - Tier 3 compares against frequently compared products.

Excavators

Selected

305 CR - Tier 3

Net Power: 36.5 hp; 27.2 kW
Operating Weight: 12555 lb; 5695 kg
Dig Depth: 144.5 in; 3670 mm

Excavators

303.5 CR

Net Power: 23.6 hp; 17.6 kW
Operating Weight: 9239 lb; 4190 kg
Dig Depth: 122.4 in; 3110 mm

View Details

Excavators

307.5 - Tier 3

Net Power: 46.8 hp; 34.9 kW
Operating Weight: 18152 lb; 8233 kg
Dig Depth: 183 in; 4649 mm

View Details

Use the comparison tool to compare detailed specs of Cat and competitor models.

Compare All Models

Tools And Expert Help At Every Turn

Product Brochures and More Are Ready to Download!

Caterpillar product brochures and other informational documents are available for your growing business.

Media Gallery

Photos

Videos

360 View

305 CR Mini Hydraulic Excavator

Front View

Top View

Left View

Rear View

Right View

Bottom View

Introducing the Next Generation Cat 304 and 305 CR Mini Excavators

Overview of the Next Generation Cat 304 and 305 CR Mini Excavators

Standard Monitor on the Next Generation Cat Mini Excavators

Comparing the Next Generation Cat 304 and 305 CR Mini Excavators to the E2 Series

Cat 305 CR Mini Excavator Customer Story - Ohob, Ltd. (United Kingdom)

Introducing the Next Generation Cat 304 and 305 CR Mini Excavators

Overview of the Next Generation Cat 304 and 305 CR Mini Excavators

Standard Monitor on the Next Generation Cat Mini Excavators

Comparing the Next Generation Cat 304 and 305 CR Mini Excavators to the E2 Series

Cat 305 CR Mini Excavator Customer Story - Ohob, Ltd. (United Kingdom)

Compatible Technology and Services

Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.

VisionLink™

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

1 - 8 of 9 Items items

Previous Next

VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

Mini Excavators 305 CR - Tier 3

Overview

Mini Excavators Inspired by Our Customers

Benefits

4 Industry First Features

Up to 10% Lower Total Ownership Costs

Up to 20% More Performance

Features At A Glance

ALL DAY COMFORT

EASY TO OPERATE

STICK STEER TRAVEL MODE

BIG PERFORMANCE IN A COMPACT DESIGN

SAFETY ON THE JOB SITE

SIMPLE SERVICE FOR LESS DOWNTIME

LOWER OPERATING COSTS

UNMATCHED DEALER SUPPORT

Product Specifications for 305 CR - Tier 3

Engine

Weights

Dimensions - Long Stick

Dimensions - Standard Stick

Sound

Hydraulic System

Blade

Service Refill Capacities

Weight Increase from Minimum Configuration

Swing System

Travel System

Certification - Cab and Canopy

305 CR - Tier 3 Standard Equipment

ENGINE

HYDRAULICS

OPERATOR ENVIRONMENT

UNDERCARRIAGE

BOOM, STICK AND LINKAGES

ELECTRICAL

305 CR - Tier 3 Optional Equipment

OPERATOR ENVIRONMENT

UNDERCARRIAGE

BOOM, STICK AND LINKAGES

ELECTRICAL

GUARDING

OTHER

Product Specifications for 305 CR - Tier 3

Engine

Weights

Dimensions - Long Stick

Dimensions - Standard Stick

Sound

Hydraulic System

Blade

Service Refill Capacities

Weight Increase from Minimum Configuration

Swing System

Travel System

Certification - Cab and Canopy

305 CR - Tier 3 Standard Equipment

ENGINE

HYDRAULICS

OPERATOR ENVIRONMENT

UNDERCARRIAGE

BOOM, STICK AND LINKAGES

ELECTRICAL

305 CR - Tier 3 Optional Equipment

OPERATOR ENVIRONMENT

UNDERCARRIAGE

BOOM, STICK AND LINKAGES

ELECTRICAL

GUARDING

OTHER

See how 305 CR - Tier 3 compares against frequently compared products.

Tools And Expert Help At Every Turn

Find Dealer

Payment Calculator

Current Offers

Rental Options

Used Options

assignment Product Brochures and More Are Ready to Download!

Caterpillar product brochures and other informational documents are available for your growing business.

Media Gallery

Product Brochures and More Are Ready to Download!
