Overview

UNDERCARRIAGE OPTIONS FOR HYDRAULIC MINING SHOVELS

Cat^® undercarriage for hydraulic mining shovels is engineered for high performance and low costs per ton in tough underfoot conditions. Designed to work as a system with Cat equipment, our undercarriage precisely matches your machines and the demands of your application.

HANDLE HIGH FIELD LOADS

Heavier track chain handles high field loads.

INCREASED STRENGTH

Larger diameter track pins increase strength.

REDUCE WEAR, EXTEND LIFE

Reduced pitch extension wear extends track chain life.

Undercarriage for Hydraulic Mining Shovels

Delivering longer wear life and lower cost per hour so you can move more material more efficiently.

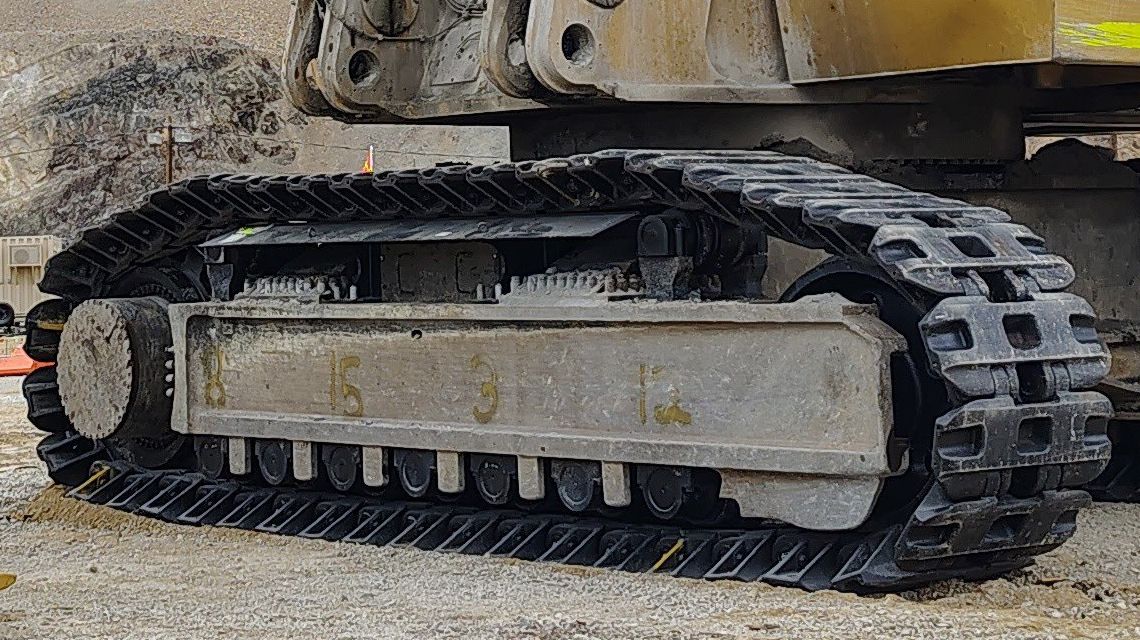

Cat Heavy Duty Track

Designed and proven through on-machine load analysis to maintain a long life in abrasive conditions, Cat Heavy Duty tracks are engineered to precisely match your machine and application.

Heavy Duty Undercarriage for Hydraulic Mining Shovels

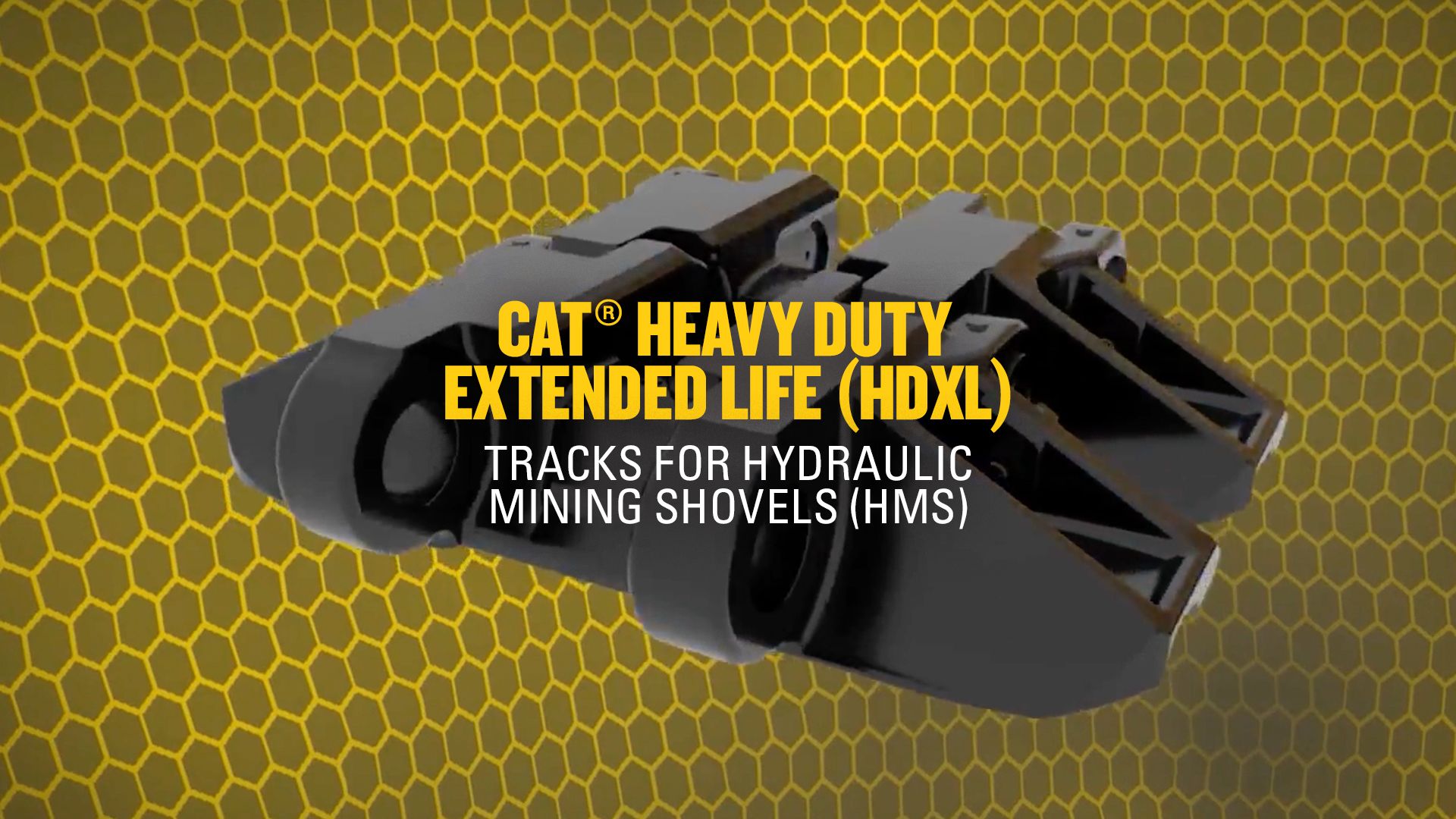

Cat Heavy Duty Extended Life with DuraLink™

Take your Heavy Duty undercarriage to the next level by choosing Cat HDXL, with additional steel in its patented crowned link design to tackle rigorous terrain without breaking.

Heavy Duty Extended Life Undercarriage for Mining

Cat Grease Lubricated Track (GLT)

The grease between the pin and bushing on Cat GLT helps eliminate contact and friction wear elements, reduce internal wear, increase external wear life and decrease track noise.

Grease Lubricated Track Undercarriage for Hydraulic Mining Shovels

Positive Pin Retention 2 (PPR2) Track for Mining

Take on high-impact and high-travel applications with the PPR2 design. It resists pin walking and link cracking by mechanically locking the link to the pin, minimizing your owning and operating costs.

DOWNLOAD RESOURCES

Caterpillar product brochures and other informational documents are available for your growing business.

UC Sales Sheet

Discover more about the value of Cat Undercarriage

UC FOR MINING BROCHURE

Find out how Cat undercarriage options can support your operation in more detail.

Undercarriage for 6030-6090

Cat Heavy Duty Undercarriage for 6030-6090 Hydraulic Mining Shovels is designed to withstand the conditions of any mining environment.

Undercarriage for 6015-6020

Cat Heavy Duty Undercarriage for hydraulic mining shovels takes on the toughest mine site conditions.

Repair Options for 6030

Because undercarriage can represent up to 50% of your dozer operating costs, it’s important to maintain it properly. Find out about repair options.

Repair Options for 6060

Your Cat dealer can help you with bushing turns and replacements — whatever it takes to get the best return on your undercarriage investment.

Learn more from your dealer

Cat dealers have trained undercarriage experts who can support you in making the best decisions –– for your machine and application as well as owning and operating needs.

Contact Your Dealer

Custom Track Service (CTS) PRO

Monitor undercarriage performance, predict wear rates and lower your total costs. Explore more about what CTS Pro can do for your operation.
