Small Wheel Loaders 926

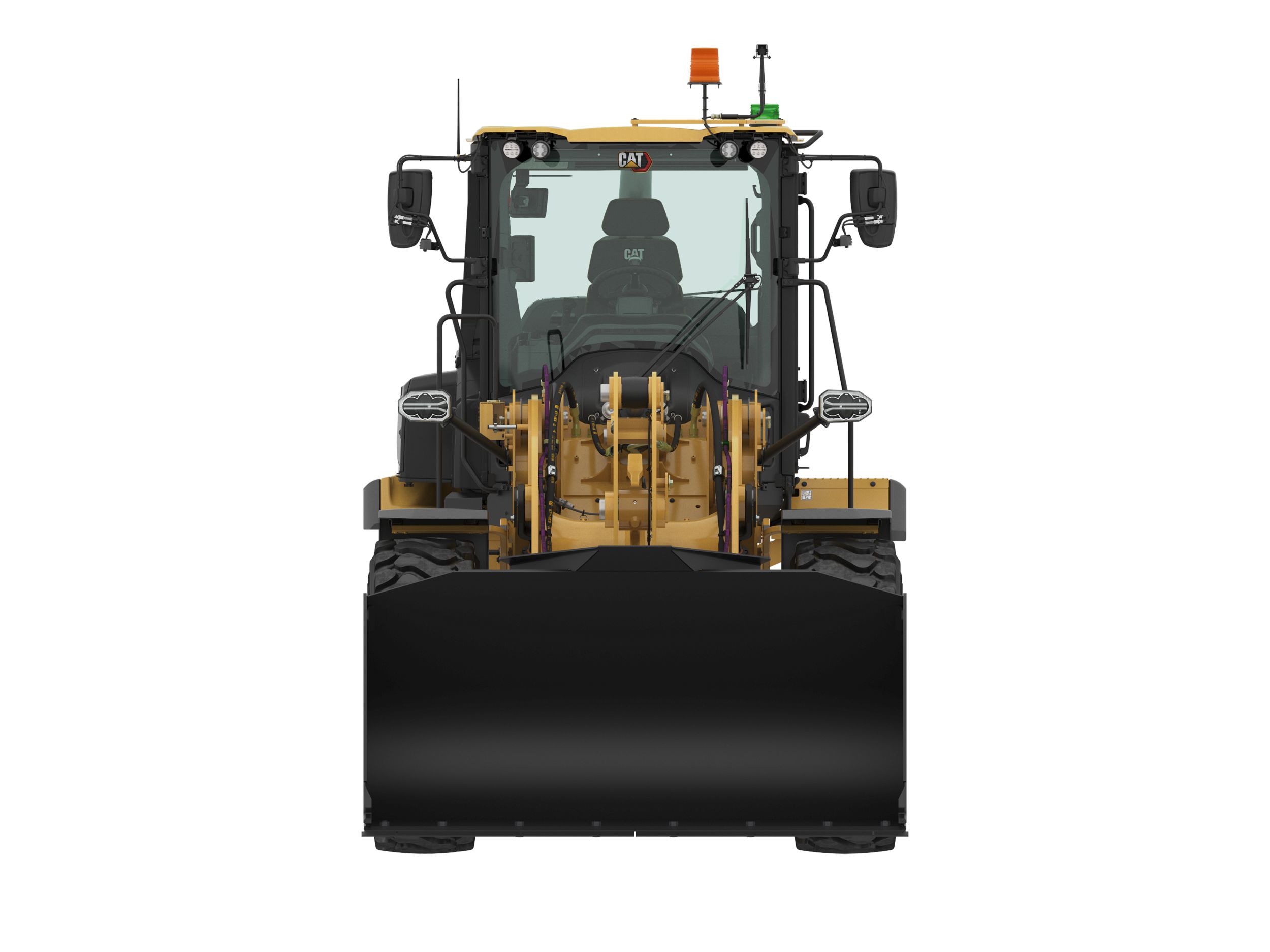

Name: 926 Small Wheel Loader
Brand: Cat

New Used Rental

Request A Price Find Dealer

Key Specs

Rated Gross Power - SAE J1995: 170 hp; 127 kW

Operating Weight: 27972 lb; 12688 kg

Bucket Capacities: 1.9-5 m3 (2.5-6.5 yd3); 1.9-5 m3 (2.5-6.5 yd3)

926
Change model

Overview

Configured for Success

The 926 Small Wheel Loader sets the standard for productivity, fuel efficiency, operator comfort and low operating costs. Experience the industry benchmark.

Benefits

AUTO ENGINE MODE

Reduces fuel consumption at low idle.

Extended Service Intervals

From 500 to 1000 hours, substantially lowers service costs.

AUTO WHEEL TORQUE

Adjusts rim pull, reducing tire spin and tire wear.

Features At A Glance

Displaying 1-6 of 8

Enjoy All Day Comfort

Have a seat in the new Cat small wheel loader and enjoy automatic temperature control, class leading sound levels, enhanced all-around visibility and low-effort joystick controls that move with you on a fully adjustable seat suspension. A large spacious operator environment combined with Caterpillar hydraulic cylinder damping and smooth predictable controls make this the most comfortable seat on your jobsite.
An upgrade to multi-view camera and rear object detection gives you an extra eye on the jobsite while the new optional force feedback joystick steering keeps you feeling confident on those long shifts. The operator not present function helps to isolate the machine if you leave the environment; while seat belt notifications give you a gentle reminder to buckle up.

Efficiently Powerful

Experience the difference with an intelligent hydrostatic power train and industry leading fuel savings through a lower maximum engine speed working in combination with a new auto engine RPM mode. This provides efficiency as standard with a boost in power when you need it. Optimize traction and minimize wheel slip with a new Auto Wheel Torque system tuned to provide peak performance while maximizing tire life and keeping operating costs low. Track your production and accurately hit your load targets with Cat Payload.

Work Made Easy

Move more with the Caterpillar patented quick loading performance series buckets and optimized Z-bar linkage with enhanced forward visibility that combines the digging efficiency of a traditional Z-bar with tool carrier capabilities. The parallel lift and high tilt forces throughout the working range allow you to confidently handle loads with precise control.
Multi-function work has never been easier with dedicated pumps for each system and a flow sharing implement valve governed by an intelligent power management system. Simultaneously lift, steer, and drive without compromise. Upgrade to autolube and tire pressure monitoring to make service easy and get to work quicker. Light the way with auto roading lights that come on at night fall.

Customize Your Experience

Meet your application requirements and individual preferences with Caterpillar industry first Hystat™ Operator Modes featuring four unique power train settings. Select classic torque converter for smooth rollout, conventional hystat for aggressive engine braking, an ice mode that maximizes your control on slippery underfoot, and an all new singlepedal mode for simplified use.
Fine tune machine performance with adjustments at your fingertips through programmable joysticks, soft touch buttons, and a new jog dial that works in combination with a standard touch screen display. Quickly recall attachment profiles that maintain key settings for versatility on the jobsite and optimal efficiency.

Upgrades and Services

Enjoy a full range of upgrades and accessories to configure your small wheel loader for a broader range of applications.
Utilize readily available services and maintenance parts, including a range of self-service options (SSO) and dealer installed kits.

Purpose Built: Handlers Arrangements - Aggregate Handler

Increased Payload: Additional counterweight improves stability without reducing ground clearance or departure angle to maximize performance.
Long Life Sand and Gravel Buckets: Performance series buckets deliver higher fill factors and better material retention for significant productivity and fuel efficiency improvements. Buckets feature a long floor, open throat, curved side bars and additional serviceable wear plates including corner guards.
Protect your Power Train: Increase your fording depth with optional elevated breathers. Remote mounted high on the machine for the front and rear axles and hydrostatic gear box. Allows settling pond cleanout without contamination.

Purpose Built: Handlers Arrangements - Waste Handler

Guard Your Investment: Choose from a complete range of optional guarding to protect your machine from the harsh environment of a waste handling application. Machine guarding is purpose built to protect the machine’s major components.
Breathe Clean: Maximize your engine life and extend filter cleaning intervals with a turbine pre-cleaner. Keep cool with a reversing fan to purge the single plane, widely spaced core cooling package and brush-less sealed alternator. Breathe clean with a powered pre-cleaner for the operator environment.
Maximize Tire Life: Fine tune your wheel torque to match the underfoot conditions and maximize performance while extending tire life. Standard auto wheel torque is ideal for waste handling applications.

Sustainability

The Cat® C7.1 engine meets U.S. EPA Tier 4 Final, EU Stage V and Korea Tier 5 emission standards.
Engine Idle Management System (EIMS) helps maximize fuel efficiency and reduce greenhouse gas emissions while maintaining machine performance.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Performance Series Buckets have rounded side boards, a longer floor and open angle to carry more and load quicker so each pass is the most efficient.
Rimpull Control is a quick way to adjust the torque to the tires for less slipping and tire wear.
Cat® Production Measurement provides real-time payload weighing which help you maximize productivity, reduce fuel burn and greenhouse gas emissions, all while improving job site efficiency and lowering costs.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
Power on Demand, transparent to the operator, provides full-time efficiency and power when you need it.
Tire Pressure Monitoring provides real-time tire pressure information to the operator to help increase tire wear and achieve better fuel efficiency and reduced greenhouse gas emissions.
Intelligent Hystat Transmission helps improves control and reduces fuel consumption and greenhouse gas emissions in load and carry applications.
Variable Displacement Pumps match power to load as application requirements change.

Have a seat in the new Cat small wheel loader and enjoy automatic temperature control, class leading sound levels, enhanced all-around visibility and low-effort joystick controls that move with you on a fully adjustable seat suspension. A large spacious operator environment combined with Caterpillar hydraulic cylinder damping and smooth predictable controls make this the most comfortable seat on your jobsite.
An upgrade to multi-view camera and rear object detection gives you an extra eye on the jobsite while the new optional force feedback joystick steering keeps you feeling confident on those long shifts. The operator not present function helps to isolate the machine if you leave the environment; while seat belt notifications give you a gentle reminder to buckle up.

Experience the difference with an intelligent hydrostatic power train and industry leading fuel savings through a lower maximum engine speed working in combination with a new auto engine RPM mode. This provides efficiency as standard with a boost in power when you need it. Optimize traction and minimize wheel slip with a new Auto Wheel Torque system tuned to provide peak performance while maximizing tire life and keeping operating costs low. Track your production and accurately hit your load targets with Cat Payload.

Move more with the Caterpillar patented quick loading performance series buckets and optimized Z-bar linkage with enhanced forward visibility that combines the digging efficiency of a traditional Z-bar with tool carrier capabilities. The parallel lift and high tilt forces throughout the working range allow you to confidently handle loads with precise control.
Multi-function work has never been easier with dedicated pumps for each system and a flow sharing implement valve governed by an intelligent power management system. Simultaneously lift, steer, and drive without compromise. Upgrade to autolube and tire pressure monitoring to make service easy and get to work quicker. Light the way with auto roading lights that come on at night fall.

Meet your application requirements and individual preferences with Caterpillar industry first Hystat™ Operator Modes featuring four unique power train settings. Select classic torque converter for smooth rollout, conventional hystat for aggressive engine braking, an ice mode that maximizes your control on slippery underfoot, and an all new singlepedal mode for simplified use.
Fine tune machine performance with adjustments at your fingertips through programmable joysticks, soft touch buttons, and a new jog dial that works in combination with a standard touch screen display. Quickly recall attachment profiles that maintain key settings for versatility on the jobsite and optimal efficiency.

Enjoy a full range of upgrades and accessories to configure your small wheel loader for a broader range of applications.
Utilize readily available services and maintenance parts, including a range of self-service options (SSO) and dealer installed kits.

Increased Payload: Additional counterweight improves stability without reducing ground clearance or departure angle to maximize performance.
Long Life Sand and Gravel Buckets: Performance series buckets deliver higher fill factors and better material retention for significant productivity and fuel efficiency improvements. Buckets feature a long floor, open throat, curved side bars and additional serviceable wear plates including corner guards.
Protect your Power Train: Increase your fording depth with optional elevated breathers. Remote mounted high on the machine for the front and rear axles and hydrostatic gear box. Allows settling pond cleanout without contamination.

Guard Your Investment: Choose from a complete range of optional guarding to protect your machine from the harsh environment of a waste handling application. Machine guarding is purpose built to protect the machine’s major components.
Breathe Clean: Maximize your engine life and extend filter cleaning intervals with a turbine pre-cleaner. Keep cool with a reversing fan to purge the single plane, widely spaced core cooling package and brush-less sealed alternator. Breathe clean with a powered pre-cleaner for the operator environment.
Maximize Tire Life: Fine tune your wheel torque to match the underfoot conditions and maximize performance while extending tire life. Standard auto wheel torque is ideal for waste handling applications.

The Cat® C7.1 engine meets U.S. EPA Tier 4 Final, EU Stage V and Korea Tier 5 emission standards.
Engine Idle Management System (EIMS) helps maximize fuel efficiency and reduce greenhouse gas emissions while maintaining machine performance.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Performance Series Buckets have rounded side boards, a longer floor and open angle to carry more and load quicker so each pass is the most efficient.
Rimpull Control is a quick way to adjust the torque to the tires for less slipping and tire wear.
Cat® Production Measurement provides real-time payload weighing which help you maximize productivity, reduce fuel burn and greenhouse gas emissions, all while improving job site efficiency and lowering costs.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
Power on Demand, transparent to the operator, provides full-time efficiency and power when you need it.
Tire Pressure Monitoring provides real-time tire pressure information to the operator to help increase tire wear and achieve better fuel efficiency and reduced greenhouse gas emissions.
Intelligent Hystat Transmission helps improves control and reduces fuel consumption and greenhouse gas emissions in load and carry applications.
Variable Displacement Pumps match power to load as application requirements change.

Specifications Standard Equipment Optional Equipment

Product Specifications for 926

Engine

Rated Gross Power - SAE J1995	170 hp 127 kW
Engine Model	Cat C7.1* Cat C7.1*
Performance Mode	Automatic Automatic
Rated Gross Power - Rated Engine Speed	1800 r/min 1800 r/min
Rated Gross Power - SAE J1995 (DIN)	172 mhp 172 mhp
Rated Engine Power - ISO 14396	168 hp 125 kW
Rated Engine Power - ISO 14396 (DIN)	170 mhp 170 mhp
Rated Net Power - SAE J1349 at Minimum Fan Speed	165 hp 123 kW
Rated Net Power - ISO 9249 at Minimum Fan Speed	165 hp 123 kW
Rated Net Power - ISO 9249 (DIN) at Minimum Fan Speed	167 mhp 167 mhp
Maximum Gross Torque - Engine Speed	1400 r/min 1400 r/min
Maximum Gross Torque - SAE J1995	608 ft·lbf 824 N·m
Maximum Gross Torque - ISO 14396	601 ft·lbf 815 N·m
Maximum Net Torque - SAE J1349	593 ft·lbf 804 N·m
Maximum Net Torque - ISO 9249	595 ft·lbf 807 N·m
Displacement	427 in³ 7.01 l
Bore	4 in 105 mm
Stroke	5 in 135 mm
Note	Meets U.S EPA Tier 4 Final, EU Stage V off-highway, and Japan 2014 emission standards. Meets U.S EPA Tier 4 Final, EU Stage V off-highway, and Japan 2014 emission standards.
Note (1)	Advertised power is tested per the specified standard in effect at the time of manufacture Advertised power is tested per the specified standard in effect at the time of manufacture
Note (2)	Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when engine is equipped with alternator, air cleaner, emission components and fan at specified speed. Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when engine is equipped with alternator, air cleaner, emission components and fan at specified speed.
Note (3)	No derating required up to 3000 m (10,000 ft) altitude. Auto derate protects hydraulic and transmission systems. No derating required up to 3000 m (10,000 ft) altitude. Auto derate protects hydraulic and transmission systems.

Weights

Operating Weight	27972 lb 12688 kg
Operating Weight - High Lift	28767 lb 13049 kg

Buckets

Bucket Capacities

1.9-5 m3 (2.5-6.5 yd3) 1.9-5 m3 (2.5-6.5 yd3)

Steering

Steering Cylinder - Bore Diameter	2.8 in 70 mm
Steering Cylinder - Rod Diameter	1.6 in 40 mm
Steering Cylinder - Stroke	17.2 in 438 mm
Maximum Flow - Steering Pump	34 gpm 130 L/min
Maximum Working Pressure - Steering Pump	3500 psi 24130 kPa
Steering Cycle Times (Full Left to Full Right) - Minimum RPM: Pump Flow Limited	2.8 s 2.8 s
Steering Cycle Times (Full Left to Full Right) - Maximum RPM: 90 RPM Steering Wheel Speed	2.4 s 2.4 s

Loader Hydraulic System

Maximum Flow - Implement Pump	40 gpm 150 L/min
Maximum Flow - Implement Pump - 3rd Function Maximum Flow*	40 gpm 150 L/min
Maximum Flow - Implement Pump - 4th Function Maximum Flow*	40 gpm 150 L/min
Maximum Working Pressure - Implement Pump	3771 psi 26000 kPa
Relief Pressure - Tilt Cylinder	4061 psi 28000 kPa
Relief Pressure - Tilt Cylinder - 3rd and 4th Function Maximum Working Pressure	3771 psi 26000 kPa
Relief Pressure - Tilt Cylinder - 3rd and 4th Function Relief Pressure	4061 psi 28000 kPa
Lift Cylinder: Standard Lift Linkage - Bore Diameter	1.3 in 110 mm
Lift Cylinder: Standard Lift Linkage - Rod Diameter	2.4 in 60 mm
Lift Cylinder: Standard Lift Linkage - Stroke	28.7 in 728 mm
Tilt Cylinder: Standard Lift Linkage - Bore Diameter	5.5 in 140 mm
Tilt Cylinder: Standard Lift Linkage - Rod Diameter	3 in 75 mm
Tilt Cylinder: Standard Lift Linkage - Stroke	20.3 in 516 mm
Hydraulic Cycle Time - Raise, Ground Level to Maximum Lift	5.5 s 5.5 s
Hydraulic Cycle Time - Dump (at Maximum Lift Height)	1.5 s 1.5 s
Hydraulic Cycle Time - Float Down, Maximum Lift to Ground Level	2.6 s 2.6 s
Hydraulic Cycle Time - Total Cycle Time	9.6 s 9.6 s
Note	3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display when equipped. 3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display when equipped.

Service Refill Capacities

Fuel Tank	51.5 gal (US) 195 l
Cooling System	7.9 gal (US) 30 l
Engine Crankcase	5.3 gal (US) 20 l
Transmission - Gear Box	2.2 gal (US) 8.5 l
Front Axles	6.9 gal (US) 26 l
Rear Axles	6.6 gal (US) 25 l
Hydraulic System - Including Tank	42.3 gal (US) 160 l
Hydraulic Tank	23.8 gal (US) 90 l
Diesel Exhaust Fluid (DEF) Tank	5 gal (US) 19 l
Note	DEF used in Cat systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1:2019. DEF used in Cat systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1:2019.

Transmission

Forward and Reverse - Range 1*	1-13 km/h (0.6-8 mph) 1-13 km/h (0.6-8 mph)
Forward and Reverse - Range 2	8 mile/h 13 km/h
Forward and Reverse - Range 3	17 mile/h 27 km/h
Forward and Reverse - Range 4	25 mile/h 40 km/h
Note	Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display when equipped. Factory default is 7 km/h (4.4 mph). Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display when equipped. Factory default is 7 km/h (4.4 mph).

Tires

Standard Size	20.5 R25, radial (L-3) 20.5 R25, radial (L-3)
Other Choices Include	20.5 R25, radial (L-2), 20.5 R25, radial (L-5), 20.5-25 12PR (L-2), 20.5-25 12PR (L-3), 20.5-25 16PR (L-5), 17.5 R25, radial (L-2), 17.5 R25, radial (L-3), 17.5 R25, radial (L-5), 550/65 R25 radial (L-3), Skidder/Agriculture 20.5 R25, radial (L-2), 20.5 R25, radial (L-5), 20.5-25 12PR (L-2), 20.5-25 12PR (L-3), 20.5-25 16PR (L-5), 17.5 R25, radial (L-2), 17.5 R25, radial (L-3), 17.5 R25, radial (L-5), 550/65 R25 radial (L-3), Skidder/Agriculture
Note (1)	Other tire choices are available. Contact your Cat dealer for details. Other tire choices are available. Contact your Cat dealer for details.
Note (2)	In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities. In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities.
Note (3)	Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model. Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.

Cab

ROPS	ISO 3471:2008 ISO 3471:2008
FOPS	ISO 3449:2005 LEVEL II ISO 3449:2005 LEVEL II

Axles

Front	Fixed; Locking differential (standard) Fixed; Locking differential (standard)
Rear	Oscillating ± 11 degrees; Open differential (standard); Limited slip differential (optional) Oscillating ± 11 degrees; Open differential (standard); Limited slip differential (optional)

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg (4.2 lb) of refrigerant which has a CO2 equivalent of 2.717 metric tonnes (2.99 tons). The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg (4.2 lb) of refrigerant which has a CO2 equivalent of 2.717 metric tonnes (2.99 tons).

Sound

Operator Sound Pressure (ISO 6396:2008)	68 dB(A) 68 dB(A)
Average Exterior Sound Pressure (ISO 6395:2008)	101 dB(A) 101 dB(A)
Note (1)	European Union Directive 2000/14/EC and UK Noise Regulation 2001 No. 1701. European Union Directive 2000/14/EC and UK Noise Regulation 2001 No. 1701.

Sustainability

Recyclability

95% 95%

Dimensions with Bucket - Standard Lift

Height - Ground to Cab**	10.92 ft 3340 mm
Height - Ground to Beacon**	12.17 ft 3707 mm
Height - Ground to Axle Center**	2.25 ft 685 mm
Height - Ground Clearance**	1.33 ft 397 mm
Length - Overall*	24.25 ft 7388 mm
Length - Rear Axle to Bumper	6.42 ft 1958 mm
Length - Hitch to Front Axle	4.92 ft 1500 mm
Length - Wheel Base	9.83 ft 3000 mm
Clearance - Bucket at 45°*	9.42 ft 2881 mm
Clearance - Load over Height**	11 ft 3351 mm
Clearance - Level Bucket**	11.75 ft 3576 mm
Height - Bucket Pin**	12.83 ft 3903 mm
Height - Overall**	16.67 ft 5072 mm
Reach - Bucket at 45°*	3.08 ft 928 mm
Carry Height - Bucket Pin	1.25 ft 382 mm
Dig Depth**	3.9 in 100 mm
Width - Bucket	8.33 ft 2550 mm
Width - Tread Center	6.33 ft 1930 mm
Turning Radius - Over Bucket	19.33 ft 5903 mm
Width - Over Tires	8.33 ft 2540 mm
Turning Radius - Outside of Tires	17.75 ft 5402 mm
Turning Radius - Inside of Tires	9.33 ft 2851 mm
Rack Angle at Full Lift	53 ° 53 °
Dump Angle at Full Lift	50 ° 50 °
Rack Angle at Carry	41 ° 41 °
Departure Angle	33 ° 33 °
Articulation Angle	40 ° 40 °
Operating Weight	27972 lb 12688 kg
Note (1)	Vary with bucket. Vary with bucket.
Note (2)	Vary with tire. Vary with tire.
Note (3)	Dimensions listed are for a machine configured with 1.9 m³ (2.5 yd³) general purpose Fusion™ bucket, bolt-on cutting edge, standard counterweights, additional guarding, 80 kg (176 Ib) operator and 20.5 R25 (L-3) XHA2 tires. Dimensions listed are for a machine configured with 1.9 m³ (2.5 yd³) general purpose Fusion™ bucket, bolt-on cutting edge, standard counterweights, additional guarding, 80 kg (176 Ib) operator and 20.5 R25 (L-3) XHA2 tires.

Dimensions with Bucket - High Lift

Height - Ground to Cab**	10.92 ft 3340 mm
Height - Ground to Beacon**	12.17 ft 3707 mm
Height - Ground to Axle Center**	2.25 ft 685 mm
Height - Ground Clearance**	1.33 ft 397 mm
Length - Overall*	26.5 ft 8065 mm
Length - Rear Axle to Bumper	6.42 ft 1958 mm
Length - Hitch to Front Axle	4.92 ft 1500 mm
Length - Wheel Base	9.83 ft 3000 mm
Clearance - Bucket at 45°*	11.08 ft 3378 mm
Clearance - Load over Height**	11.67 ft 3550 mm
Clearance - Level Bucket**	13.33 ft 4073 mm
Height - Bucket Pin**	14.42 ft 4400 mm
Height - Overall**	18.25 ft 5569 mm
Reach - Bucket at 45°*	4.17 ft 1261 mm
Carry Height - Bucket Pin	1.92 ft 582 mm
Dig Depth**	5.3 in 135 mm
Width - Bucket	8.33 ft 2550 mm
Width - Tread Center	6.33 ft 1930 mm
Turning Radius - Over Bucket	20.42 ft 6226 mm
Width - Over Tires	8.33 ft 2540 mm
Turning Radius - Outside of Tires	17.75 ft 5402 mm
Turning Radius - Inside of Tires	9.33 ft 2851 mm
Rack Angle at Full Lift	51 ° 51 °
Dump Angle at Full Lift	49 ° 49 °
Rack Angle at Carry	47 ° 47 °
Departure Angle	33 ° 33 °
Articulation Angle	40 ° 40 °
Operating Weight	28787 lb 13049 kg
Note (1)	Vary with bucket. Vary with bucket.
Note (2)	Vary with tire. Vary with tire.
Note (3)	Dimensions listed are for a machine configured with 1.9 m³ (2.5 yd³) general purpose Fusion™ bucket, bolt-on cutting edge, standard counterweights, additional guarding, 80 kg (176 Ib) operator and 20.5 R25 (L-3) XHA2 tires. Dimensions listed are for a machine configured with 1.9 m³ (2.5 yd³) general purpose Fusion™ bucket, bolt-on cutting edge, standard counterweights, additional guarding, 80 kg (176 Ib) operator and 20.5 R25 (L-3) XHA2 tires.

926 Standard Equipment

NOTE: Not all features are available in all regions.

OPERATOR ENVIRONMENT

75 mm (3 in) retractable seatbelt

Automatic temperature control

Cab, enclosed ROPS/FOPS pressurized and sound suppressed

Push to Start

8 Inch Touch Screen

Jog Dial with screen control

Programmable Joystick

Cup holders

External mirrors with lower parabolic

Ground level cab door release

Hydraulic control lockout

Interior cab lighting, door

Lunch box storage

Operator Not Present system

Radio ready speakers

Rear window defrost, electric

Seat mounted electronic implement controls, adjustable

Sliding glass on side window

Column mounted multi function control lights, wipers, turn signal

Suspension seat, fabric

Tilt steering wheel

Tinted front glass

Wet arm wiper/washer, 2-speed and intermittent, front

Wet arm wiper washer, rear

Mounting Provision

Digital hour meter, odometer and tachometer

Digital ground speedometer and direction indicator

Engine coolant temperature gauge

Fuel and diesel exhaust fluid levels

Hydraulic oil temperature gauge

POWER TRAIN

Cat C7.1 engine

Auto idle shut down feature

Auto Engine RPM

Tier 4 Final/EU Stage V compliant

Turbocharged and aftercooled

Filtered crankcase breather

Diesel particulate filter

Selective catalyst reduction

Dry type air cleaner

Coolant protection to –34 °C (–29 °F)

Fuel priming pump, automatic

Fuel water separator

Differential lock in front axle

Axle seal guards

Enclosed wet disc full hydraulic brakes

Parking brake, electric

Lubed for life driveshafts

Hydrostatic transmission with electronic control

Operator modes (TC, Hystat,

Single Pedal and Ice)

Directional shift aggressiveness (fast, medium, slow)

Auto Wheel Torque control, adjust wheel torque

Creeper control, adjust ground speed

Single plane cooling package, wide 6 fins per inch density

Hydraulically driven demand cooling fan

Scheduled Oil Sampling (S·O·SSM) port, engine, coolant, transmission

HYDRAULICS

Automatic lift and bucket kickouts, adjustable in-cab

Bucket and fork modes, adjustable in-cab

Cylinder damping at kickout and mechanical end stops

Fine mode control (fast, medium, slow)

Hydraulic response setting (fast, medium, slow)

Hydraulic diagnostic connectors and

S·O·S ports

Hydraulic sight gauge, visible

Load sensing hydraulics and steering

Seat mounted hydraulic joystick controls

Cat Payload

ELECTRICAL

Alternator, 115-amp, heavy duty

12V power supply in cab (2)

Batteries, 1,000 CCA (2) 24-volt system, disconnect switch

Back up alarm

Emergency shutdown switch

LED rear stop and turn lights

Heavy duty gear reduction starter

Product Link™ Elite

Remote jump start post

Resettable main and critical function breakers

Roading lights front and rear

OTHER

Large-access enclosure doors with adjustable close/open force

Parallel lift loader linkage

Recovery hitch with pin

Remote mounted lubrication points

Lockable compartments

1000-hour Service Intervals (after initial 500)

926 Optional Equipment

NOTE: Not all features are available in all regions.

OPERATOR ENVIRONMENT

Joystick steering – 25 mph (40 kph) capable

Radio packages

Telescoping Steering Column

Deluxe seat – fully adjustable fabric air suspension seat with mid seat backrest

Premium seat – fully adjustable leather and fabric air suspension with high backrest and air lumbar support. Seat is heated and ventilated on bottom cushion and backrest.

Rear Object Detection

Multi View Camera

Front View Camera, roof mounted

Heated external Mirrors (2)

Electrically adjustable and heated external mirrors (2)

Internal Mirrors (2)

Sunscreen, front and rear

Windshield Washing Platform

Powered precleaned for cab air

Cab guarding

POWER TRAIN

Differential, limited slip, rear

Powertrain Guarding

Tire Pressure Monitoring (TPM)

Range of Tire Options

Fenders (extended cover and full coverage)

HYDRAULICS

Auxiliary flow, third and fourth function

Connect Under Pressure Disconnects

Ride Control System, adjustable via display

Autolube, integrated in display

Biodegradable Oil

Debris packages (low, medium, high)

ELECTRICAL

Cold start package

Ether starting aid, block heater and additional batteries, 1,000 CCA (4 total)

Lights, auxiliary, halogen or LED with engine and DEF compartment lights

Beacon light, strobe

Light Guarding

OTHER OPTIONAL EQUIPMENT

Linkage, high lift

Coupler, (Fusion and ISO 23727:2009)

Aggregate Counterweight

Cat Payload Printer

Cylinder Guarding

Range of Work Tool Attachments

Product Specifications for 926

Download Print

Engine

Rated Gross Power - SAE J1995	170 hp 127 kW
Engine Model	Cat C7.1* Cat C7.1*
Performance Mode	Automatic Automatic
Rated Gross Power - Rated Engine Speed	1800 r/min 1800 r/min
Rated Gross Power - SAE J1995 (DIN)	172 mhp 172 mhp
Rated Engine Power - ISO 14396	168 hp 125 kW
Rated Engine Power - ISO 14396 (DIN)	170 mhp 170 mhp
Rated Net Power - SAE J1349 at Minimum Fan Speed	165 hp 123 kW
Rated Net Power - ISO 9249 at Minimum Fan Speed	165 hp 123 kW
Rated Net Power - ISO 9249 (DIN) at Minimum Fan Speed	167 mhp 167 mhp
Maximum Gross Torque - Engine Speed	1400 r/min 1400 r/min
Maximum Gross Torque - SAE J1995	608 ft·lbf 824 N·m
Maximum Gross Torque - ISO 14396	601 ft·lbf 815 N·m
Maximum Net Torque - SAE J1349	593 ft·lbf 804 N·m
Maximum Net Torque - ISO 9249	595 ft·lbf 807 N·m
Displacement	427 in³ 7.01 l
Bore	4 in 105 mm
Stroke	5 in 135 mm
Note	Meets U.S EPA Tier 4 Final, EU Stage V off-highway, and Japan 2014 emission standards. Meets U.S EPA Tier 4 Final, EU Stage V off-highway, and Japan 2014 emission standards.
Note (1)	Advertised power is tested per the specified standard in effect at the time of manufacture Advertised power is tested per the specified standard in effect at the time of manufacture
Note (2)	Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when engine is equipped with alternator, air cleaner, emission components and fan at specified speed. Net power ratings are tested at the reference conditions for the specified standard and denote power available at the flywheel when engine is equipped with alternator, air cleaner, emission components and fan at specified speed.
Note (3)	No derating required up to 3000 m (10,000 ft) altitude. Auto derate protects hydraulic and transmission systems. No derating required up to 3000 m (10,000 ft) altitude. Auto derate protects hydraulic and transmission systems.

Weights

Operating Weight	27972 lb 12688 kg
Operating Weight - High Lift	28767 lb 13049 kg

Buckets

Bucket Capacities

1.9-5 m3 (2.5-6.5 yd3) 1.9-5 m3 (2.5-6.5 yd3)

Steering

Steering Cylinder - Bore Diameter	2.8 in 70 mm
Steering Cylinder - Rod Diameter	1.6 in 40 mm
Steering Cylinder - Stroke	17.2 in 438 mm
Maximum Flow - Steering Pump	34 gpm 130 L/min
Maximum Working Pressure - Steering Pump	3500 psi 24130 kPa
Steering Cycle Times (Full Left to Full Right) - Minimum RPM: Pump Flow Limited	2.8 s 2.8 s
Steering Cycle Times (Full Left to Full Right) - Maximum RPM: 90 RPM Steering Wheel Speed	2.4 s 2.4 s

Loader Hydraulic System

Maximum Flow - Implement Pump	40 gpm 150 L/min
Maximum Flow - Implement Pump - 3rd Function Maximum Flow*	40 gpm 150 L/min
Maximum Flow - Implement Pump - 4th Function Maximum Flow*	40 gpm 150 L/min
Maximum Working Pressure - Implement Pump	3771 psi 26000 kPa
Relief Pressure - Tilt Cylinder	4061 psi 28000 kPa
Relief Pressure - Tilt Cylinder - 3rd and 4th Function Maximum Working Pressure	3771 psi 26000 kPa
Relief Pressure - Tilt Cylinder - 3rd and 4th Function Relief Pressure	4061 psi 28000 kPa
Lift Cylinder: Standard Lift Linkage - Bore Diameter	1.3 in 110 mm
Lift Cylinder: Standard Lift Linkage - Rod Diameter	2.4 in 60 mm
Lift Cylinder: Standard Lift Linkage - Stroke	28.7 in 728 mm
Tilt Cylinder: Standard Lift Linkage - Bore Diameter	5.5 in 140 mm
Tilt Cylinder: Standard Lift Linkage - Rod Diameter	3 in 75 mm
Tilt Cylinder: Standard Lift Linkage - Stroke	20.3 in 516 mm
Hydraulic Cycle Time - Raise, Ground Level to Maximum Lift	5.5 s 5.5 s
Hydraulic Cycle Time - Dump (at Maximum Lift Height)	1.5 s 1.5 s
Hydraulic Cycle Time - Float Down, Maximum Lift to Ground Level	2.6 s 2.6 s
Hydraulic Cycle Time - Total Cycle Time	9.6 s 9.6 s
Note	3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display when equipped. 3rd and 4th function flow is fully adjustable from 20% to 100% of maximum flow through the secondary display when equipped.

Service Refill Capacities

Fuel Tank	51.5 gal (US) 195 l
Cooling System	7.9 gal (US) 30 l
Engine Crankcase	5.3 gal (US) 20 l
Transmission - Gear Box	2.2 gal (US) 8.5 l
Front Axles	6.9 gal (US) 26 l
Rear Axles	6.6 gal (US) 25 l
Hydraulic System - Including Tank	42.3 gal (US) 160 l
Hydraulic Tank	23.8 gal (US) 90 l
Diesel Exhaust Fluid (DEF) Tank	5 gal (US) 19 l
Note	DEF used in Cat systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1:2019. DEF used in Cat systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1:2019.

Transmission

Forward and Reverse - Range 1*	1-13 km/h (0.6-8 mph) 1-13 km/h (0.6-8 mph)
Forward and Reverse - Range 2	8 mile/h 13 km/h
Forward and Reverse - Range 3	17 mile/h 27 km/h
Forward and Reverse - Range 4	25 mile/h 40 km/h
Note	Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display when equipped. Factory default is 7 km/h (4.4 mph). Creeper control allows maximum speed range adjustability from 1 km/h (0.6 mph) to 13 km/h (8 mph) in Range 1 through the secondary display when equipped. Factory default is 7 km/h (4.4 mph).

Tires

Standard Size	20.5 R25, radial (L-3) 20.5 R25, radial (L-3)
Other Choices Include	20.5 R25, radial (L-2), 20.5 R25, radial (L-5), 20.5-25 12PR (L-2), 20.5-25 12PR (L-3), 20.5-25 16PR (L-5), 17.5 R25, radial (L-2), 17.5 R25, radial (L-3), 17.5 R25, radial (L-5), 550/65 R25 radial (L-3), Skidder/Agriculture 20.5 R25, radial (L-2), 20.5 R25, radial (L-5), 20.5-25 12PR (L-2), 20.5-25 12PR (L-3), 20.5-25 16PR (L-5), 17.5 R25, radial (L-2), 17.5 R25, radial (L-3), 17.5 R25, radial (L-5), 550/65 R25 radial (L-3), Skidder/Agriculture
Note (1)	Other tire choices are available. Contact your Cat dealer for details. Other tire choices are available. Contact your Cat dealer for details.
Note (2)	In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities. In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities.
Note (3)	Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model. Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.

Cab

ROPS	ISO 3471:2008 ISO 3471:2008
FOPS	ISO 3449:2005 LEVEL II ISO 3449:2005 LEVEL II

Axles

Front	Fixed; Locking differential (standard) Fixed; Locking differential (standard)
Rear	Oscillating ± 11 degrees; Open differential (standard); Limited slip differential (optional) Oscillating ± 11 degrees; Open differential (standard); Limited slip differential (optional)

Air Conditioning System

Air Conditioning

Sound

Operator Sound Pressure (ISO 6396:2008)	68 dB(A) 68 dB(A)
Average Exterior Sound Pressure (ISO 6395:2008)	101 dB(A) 101 dB(A)
Note (1)	European Union Directive 2000/14/EC and UK Noise Regulation 2001 No. 1701. European Union Directive 2000/14/EC and UK Noise Regulation 2001 No. 1701.

Sustainability

Recyclability

95% 95%

Dimensions with Bucket - Standard Lift

Height - Ground to Cab**	10.92 ft 3340 mm
Height - Ground to Beacon**	12.17 ft 3707 mm
Height - Ground to Axle Center**	2.25 ft 685 mm
Height - Ground Clearance**	1.33 ft 397 mm
Length - Overall*	24.25 ft 7388 mm
Length - Rear Axle to Bumper	6.42 ft 1958 mm
Length - Hitch to Front Axle	4.92 ft 1500 mm
Length - Wheel Base	9.83 ft 3000 mm
Clearance - Bucket at 45°*	9.42 ft 2881 mm
Clearance - Load over Height**	11 ft 3351 mm
Clearance - Level Bucket**	11.75 ft 3576 mm
Height - Bucket Pin**	12.83 ft 3903 mm
Height - Overall**	16.67 ft 5072 mm
Reach - Bucket at 45°*	3.08 ft 928 mm
Carry Height - Bucket Pin	1.25 ft 382 mm
Dig Depth**	3.9 in 100 mm
Width - Bucket	8.33 ft 2550 mm
Width - Tread Center	6.33 ft 1930 mm
Turning Radius - Over Bucket	19.33 ft 5903 mm
Width - Over Tires	8.33 ft 2540 mm
Turning Radius - Outside of Tires	17.75 ft 5402 mm
Turning Radius - Inside of Tires	9.33 ft 2851 mm
Rack Angle at Full Lift	53 ° 53 °
Dump Angle at Full Lift	50 ° 50 °
Rack Angle at Carry	41 ° 41 °
Departure Angle	33 ° 33 °
Articulation Angle	40 ° 40 °
Operating Weight	27972 lb 12688 kg
Note (1)	Vary with bucket. Vary with bucket.
Note (2)	Vary with tire. Vary with tire.
Note (3)	Dimensions listed are for a machine configured with 1.9 m³ (2.5 yd³) general purpose Fusion™ bucket, bolt-on cutting edge, standard counterweights, additional guarding, 80 kg (176 Ib) operator and 20.5 R25 (L-3) XHA2 tires. Dimensions listed are for a machine configured with 1.9 m³ (2.5 yd³) general purpose Fusion™ bucket, bolt-on cutting edge, standard counterweights, additional guarding, 80 kg (176 Ib) operator and 20.5 R25 (L-3) XHA2 tires.

Dimensions with Bucket - High Lift

Height - Ground to Cab**	10.92 ft 3340 mm
Height - Ground to Beacon**	12.17 ft 3707 mm
Height - Ground to Axle Center**	2.25 ft 685 mm
Height - Ground Clearance**	1.33 ft 397 mm
Length - Overall*	26.5 ft 8065 mm
Length - Rear Axle to Bumper	6.42 ft 1958 mm
Length - Hitch to Front Axle	4.92 ft 1500 mm
Length - Wheel Base	9.83 ft 3000 mm
Clearance - Bucket at 45°*	11.08 ft 3378 mm
Clearance - Load over Height**	11.67 ft 3550 mm
Clearance - Level Bucket**	13.33 ft 4073 mm
Height - Bucket Pin**	14.42 ft 4400 mm
Height - Overall**	18.25 ft 5569 mm
Reach - Bucket at 45°*	4.17 ft 1261 mm
Carry Height - Bucket Pin	1.92 ft 582 mm
Dig Depth**	5.3 in 135 mm
Width - Bucket	8.33 ft 2550 mm
Width - Tread Center	6.33 ft 1930 mm
Turning Radius - Over Bucket	20.42 ft 6226 mm
Width - Over Tires	8.33 ft 2540 mm
Turning Radius - Outside of Tires	17.75 ft 5402 mm
Turning Radius - Inside of Tires	9.33 ft 2851 mm
Rack Angle at Full Lift	51 ° 51 °
Dump Angle at Full Lift	49 ° 49 °
Rack Angle at Carry	47 ° 47 °
Departure Angle	33 ° 33 °
Articulation Angle	40 ° 40 °
Operating Weight	28787 lb 13049 kg
Note (1)	Vary with bucket. Vary with bucket.
Note (2)	Vary with tire. Vary with tire.
Note (3)	Dimensions listed are for a machine configured with 1.9 m³ (2.5 yd³) general purpose Fusion™ bucket, bolt-on cutting edge, standard counterweights, additional guarding, 80 kg (176 Ib) operator and 20.5 R25 (L-3) XHA2 tires. Dimensions listed are for a machine configured with 1.9 m³ (2.5 yd³) general purpose Fusion™ bucket, bolt-on cutting edge, standard counterweights, additional guarding, 80 kg (176 Ib) operator and 20.5 R25 (L-3) XHA2 tires.

926 Standard Equipment

NOTE: Not all features are available in all regions.

OPERATOR ENVIRONMENT

75 mm (3 in) retractable seatbelt

Automatic temperature control

Cab, enclosed ROPS/FOPS pressurized and sound suppressed

Push to Start

8 Inch Touch Screen

Jog Dial with screen control

Programmable Joystick

Cup holders

External mirrors with lower parabolic

Ground level cab door release

Hydraulic control lockout

Interior cab lighting, door

Lunch box storage

Operator Not Present system

Radio ready speakers

Rear window defrost, electric

Seat mounted electronic implement controls, adjustable

Sliding glass on side window

Column mounted multi function control lights, wipers, turn signal

Suspension seat, fabric

Tilt steering wheel

Tinted front glass

Wet arm wiper/washer, 2-speed and intermittent, front

Wet arm wiper washer, rear

Mounting Provision

Digital hour meter, odometer and tachometer

Digital ground speedometer and direction indicator

Engine coolant temperature gauge

Fuel and diesel exhaust fluid levels

Hydraulic oil temperature gauge

POWER TRAIN

Cat C7.1 engine

Auto idle shut down feature

Auto Engine RPM

Tier 4 Final/EU Stage V compliant

Turbocharged and aftercooled

Filtered crankcase breather

Diesel particulate filter

Selective catalyst reduction

Dry type air cleaner

Coolant protection to –34 °C (–29 °F)

Fuel priming pump, automatic

Fuel water separator

Differential lock in front axle

Axle seal guards

Enclosed wet disc full hydraulic brakes

Parking brake, electric

Lubed for life driveshafts

Hydrostatic transmission with electronic control

Operator modes (TC, Hystat,

Single Pedal and Ice)

Directional shift aggressiveness (fast, medium, slow)

Auto Wheel Torque control, adjust wheel torque

Creeper control, adjust ground speed

Single plane cooling package, wide 6 fins per inch density

Hydraulically driven demand cooling fan

Scheduled Oil Sampling (S·O·SSM) port, engine, coolant, transmission

HYDRAULICS

Automatic lift and bucket kickouts, adjustable in-cab

Bucket and fork modes, adjustable in-cab

Cylinder damping at kickout and mechanical end stops

Fine mode control (fast, medium, slow)

Hydraulic response setting (fast, medium, slow)

Hydraulic diagnostic connectors and

S·O·S ports

Hydraulic sight gauge, visible

Load sensing hydraulics and steering

Seat mounted hydraulic joystick controls

Cat Payload

ELECTRICAL

Alternator, 115-amp, heavy duty

12V power supply in cab (2)

Batteries, 1,000 CCA (2) 24-volt system, disconnect switch

Back up alarm

Emergency shutdown switch

LED rear stop and turn lights

Heavy duty gear reduction starter

Product Link™ Elite

Remote jump start post

Resettable main and critical function breakers

Roading lights front and rear

OTHER

Large-access enclosure doors with adjustable close/open force

Parallel lift loader linkage

Recovery hitch with pin

Remote mounted lubrication points

Lockable compartments

1000-hour Service Intervals (after initial 500)

926 Optional Equipment

NOTE: Not all features are available in all regions.

OPERATOR ENVIRONMENT

Joystick steering – 25 mph (40 kph) capable

Radio packages

Telescoping Steering Column

Deluxe seat – fully adjustable fabric air suspension seat with mid seat backrest

Premium seat – fully adjustable leather and fabric air suspension with high backrest and air lumbar support. Seat is heated and ventilated on bottom cushion and backrest.
