432

Side Shift Backhoe Loaders 432

Key Specs

Maximum Gross Power – SAE J1995: 2014
83.1 kW (113 hp) / 86.5 kW (118 hp)
83.1 kW (113 hp) / 86.5 kW (118 hp)
Operating Weight - Nominal
18671 lb
8469 kg
Operating Weight - Maximum
24251 lb
11000 kg

Overview

TAKE CONTROL IN YOUR NEW BACKHOE LOADER

New machines, original DNA – The first Cat® backhoe loader hit the road in 1985. The machine was co-developed by a team of designers in Illinois, U.S. and a manufacturing team in Desford, UK. The machines are still designed by experts to meet the needs of today’s operators. Every model provides reliability, power and a top-quality operator environment to see you through the toughest projects. The latest backhoe loader range is crafted from 35 years of passion, expertise and experience.

Benefits

MORE CONTROL FOR YOU

  • SAVE FUEL – Save up to 10% in fuel with the new Cat C3.6 engine, which is designed to meet the latest emissions standards.
  • SEAT-MOUNTED CONTROLS – Operate in comfort with ergonomic, seat-mounted electro-hydraulic controls. These are designed to give you more control over every move.
  • CHOOSE YOUR SETTINGS – Use the display screen to set your personal operator preferences, so you can work at a pace that suits you, every time.
  • EASY TO OWN AND OPERATE – With monthly payment options, fuel savings and best-quality parts and engineering, it’s easier and more affordable than ever to own and operate a Cat backhoe loader.

Features At A Glance

Displaying 1-6 of 8

FLOW-SHARING VALVES

POWERFUL LOAD SENSING HYDRAULIC SYSTEM

FLOW-SHARING VALVES

Actively manage the flow of oil between each function of the machine. When the operator demands multiple operations the machine responds, providing smooth, effortless operation.

VARIABLE DISPLACEMENT PISTON PUMP

A high capacity variable displacement piston pump allows for perfect matching of power and operator demand, providing power when it is needed whilst contributing to great fuel economy.

MORE COMFORT AND CONTROL

With Electro-Hydraulic controls, the operator can customize both the speed and responsiveness of the rear hydraulics to get the perfect feeling of control. This, as well as the pattern changer, is managed through the display screen. Adjustable aux flow can also be adjusted through the display screen allowing the operator to perfectly match machine and attachment.
HIGH-ROTATION LINKAGE

BACKHOE – BUILT FOR THE TASK

HIGH-ROTATION LINKAGE

The Cat backhoe linkage provides an industry-leading 205 degrees of bucket rotation. This design helps with material retention when truck loading and with vertical wall-trenching. Improved performance and efficiency are achieved by the ability to do more with less movement.

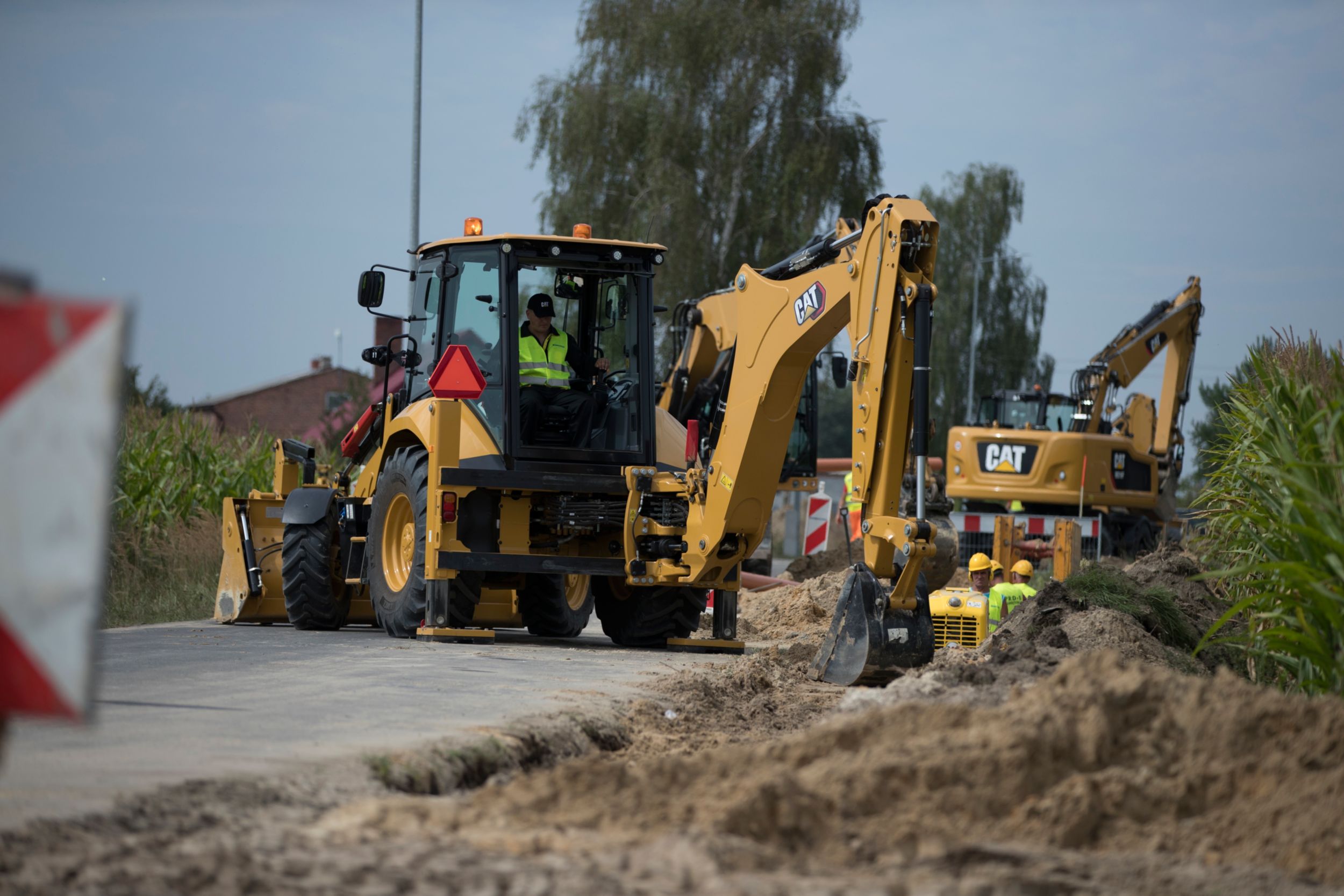

EXCAVATOR-STYLE BOOM

Whether close-up truck loading or digging over obstacles, the iconic excavator-style boom tackles the toughest jobs with ease. Combine this versatility with powerful breakout forces, controllability, a powerful hydraulic system and the 432 is capable of high levels of productivity with minimum effort. The boom is a narrow design, ensuring maximum visibility to the attachment and ground. The hoe comes with the choice of either a 4.3 m or 4.9 m stick option.

CAT CUSHION SWING

The standard Cat Cushion Swing System smooths the backhoe swing function when returning to the trench. Operators will immediately appreciate being able to line up the bucket edge on the trench wall faster and with more control.

SIDE SHIFT FRAME

The Side Shift Frame has exterior lock clamps, with no disassembly needed when servicing. The frame is a solid design with E-Coat protection preventing material build up in the frame, reducing the risk of rust and increasing the life of the frame.

EXTENDIBLE STICK

The extendible stick comes as an option for applications where more versatility is needed. Increasing dig depth and reach capability by 922 mm reduces the amount of machine repositioning and therefore reducing site damage and increasing productivity. A sliding inner section design helps to ensure the wear pads remain as dirt free as possible, prolonging adjustment and replacement intervals. Auxiliary lines, for operating hydraulic attachments, have been routed so that they are protected from damage when working in the narrowest of trenches.

POWERED SIDE SHIFT (OPTIONAL)

Available as an option either from the factory or as a dealer fitted kit, the powered side shift solution provides a hydraulic service to allow the operator to easily position the backhoe across the full width of the Side Shift Frame. Ideal for use in areas with minimal space and utility applications such as gas, electrical, and telecoms.
C3.6 ENGINE

POWER TRAIN – POWERFUL, PROVEN AND EFFICIENT

C3.6 ENGINE

The Cat C3.6 engine, which meets EU Stage V emission standards, reduces owning and operating costs while maintaining the same performance and power as the C4.4 engine. The aftertreatment is a compact, maintenance-free solution of DOC, SCR and DPF. The Cat C3.6 engine is a turbocharged in-line four-cylinder, four-stroke cycle with direct injection diesel engine. Cold starting capability down to –25˚C comes as standard with a cold starting package option allowing the machine to start down to –47˚C. This engine has a 12 volt starting motor with a 750 CCA maintenance-free battery. This engine gives up to 10% fuel savings, based upon application and machine setting, compared to the C4.4 engine.

POWER MANAGEMENT MODES

Three power management modes are available: Eco, Standard and Standard Plus. Depending upon application or performance needs, the operator can select the mode that gives optimum results. Eco mode limits both pump flow and engine speed giving higher fuel saving benefits whereas Standard Plus gives maximum pump flow and engine speed, providing increased power and performance where needed.

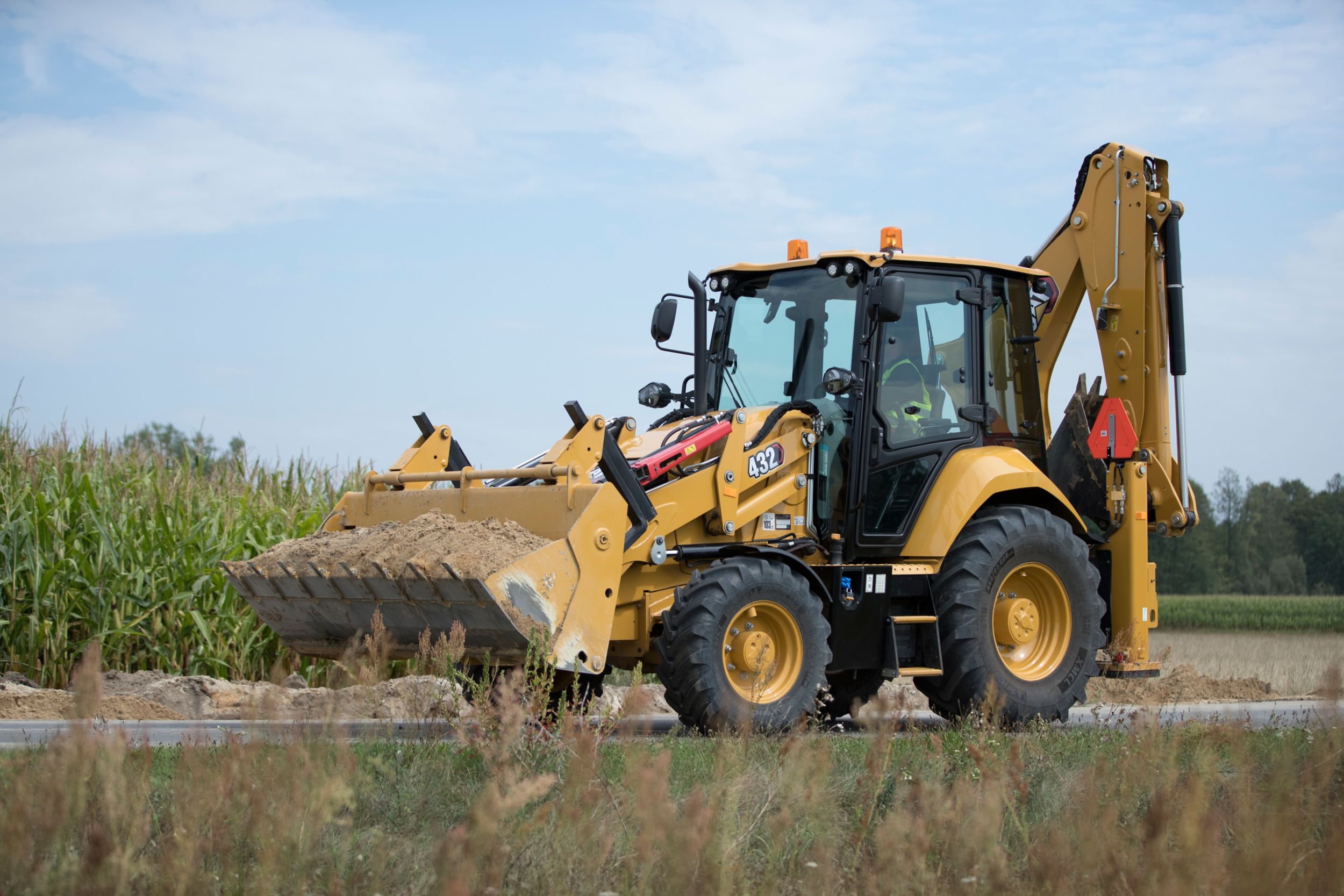

TRANSMISSIONS

A 4-speed powershift transmission comes as standard on the 432. Improved operator comfort and reduced fatigue is achieved by operation through the directional control lever, rather than floor mounted lever, to shift gears. The 6-speed automatic shift transmission is available as an option, providing greater efficiency by ensuring that the correct gear is always selected. The Lock-up Torque Converter option is ideal for those who do a lot of roading as it can give up to 15% fuel efficiency savings on the road and maintain travel speed in hilly environments.

AXLES AND DIFFERENTIAL LOCK

Heavy duty axles and a 100% locking rear differential come as standard on Cat backhoe loaders. The axles provide high durability whilst providing superb traction on uneven surfaces. No daily greasing is required on the front axle helping to save both time and money, keeping owning and operating costs as low as possible. The Diff-lock improves performance by giving maximum traction in all conditions.
PARALLEL LIFT

LOADER PERFORMANCE – MAKING LIGHT WORK OF LIFTING AND LOADING

PARALLEL LIFT

Parallel lift loader arms offer excellent forward visibility and self-leveling, ensuring excellent material retention throughout the lift and lower cycles.

RIDE CONTROL

This option offers loader suspension to improve operator comfort and productivity. When moving around the job site or transporting the machine on the road, ride control provides extra stability which creates an easier ride for the operator and helps material retention to improve operator efficiency.

RETURN TO DIG

Return to Dig allows the operator to return the bucket to a preset level, this is great for applications with repetitive work cycles especially when working with forks. When not required, for instance when grading with the loader bucket, Return to Dig can be turned off within the display screen.

IT QUICK COUPLER

This option is available from the factory or as a kit, providing the extra versatility needed when working in multiple applications. This coupler allows a quick and safe change between multiple attachments from the inside of the cab.
LCD OPERATOR DISPLAY

THE CLASS LEADING OPERATOR ENVIRONMENT JUST GOT BETTER – SET YOUR MACHINE PERFORMANCE TO INCREASE PRODUCTIVITY AND EFFICIENCY

LCD OPERATOR DISPLAY

The LCD operator display comes standard as a softkey display or can be upgraded to touchscreen. Through the interactive display you can get updates on machine diagnostics and upcoming service intervals, as well as being able to configure various performance parameters dependent on configuration. This helps to match machine performance to operator preference further increasing productivity and efficiency. Optional machine security system is embedded into the display screen helping to keep your Cat backhoe loader secure.

OPERATOR COMFORT

To reduce operator fatigue and increase efficiency, the air suspension seat comes as standard with switches and controls being ergonomically located within reach of the operator. Diff-Lock button, Transmission kickdown and auxiliary controls are all located on the loader control joystick giving power and control at the operator’s fingertips. Great visibility allows the operator to get the job done in a safe and efficient manner.

SEAT-MOUNTED CONTROLS

The all new Electro Hydraulic Seat Mounted controls offer the ultimate in comfort and control for operators. The loader or excavator can be operated from any seated position, even whilst sat offset helping to improve productivity and performance all in a safe and efficient manner. The Electro Hydraulic solution also offers operators the ability to speed up or slow down the hydraulics to match machine performance to either their preference or the job at hand.
A WIDE RANGE OF CATERPILLAR ATTACHMENTS ARE AVAILABLE TO MEET THE NEEDS OF YOUR JOB SITE APPLICATIONS.

ATTACHMENTS

A WIDE RANGE OF CATERPILLAR ATTACHMENTS ARE AVAILABLE TO MEET THE NEEDS OF YOUR JOB SITE APPLICATIONS.

Our attachments are engineered, balanced and tested to each Cat backhoe loader model, promising to minimize stress and optimize performance.

LOADER BUCKETS

General Purpose loader buckets are available as well as the hydraulically operated Multi-Purpose bucket.
OTHER AVAILABLE LOADER TOOLS INCLUDE:
  • Brooms
  • Material Handling Arms
  • Truss Booms
  • Forks
  • Blades

EXCAVATING BUCKETS

Cat Attachments provide a range of buckets in various sizes. It is easy to find the correct bucket for the application with a range including:
  • Standard Duty
  • Heavy Duty
  • High Capacity HD
  • Ditch Cleaning
  • Cribbing
  • Grading
OTHER AVAILABLE BACKHOE TOOLS INCLUDE:
  • Cold Planers
  • Hammers
  • Augers
  • Vibratory Compaction Plates
  • Ripper

BACKHOE QUICK COUPLER

Manual or hydraulic backhoe couplers make rear tool exchange quick, easy and safe. Cat dual-lock couplers have a self-adjusting wedge design to ensure a tight fit. They also feature a safety lock which automatically engages.
Specifications Standard Equipment Optional Equipment

Product Specifications for 432

Download Print
Maximum Gross Power – SAE J1995: 2014 83.1 kW (113 hp) / 86.5 kW (118 hp) 83.1 kW (113 hp) / 86.5 kW (118 hp)
Power 74.4 kW or 82 kW 74.4 kW or 82 kW
Operating Weight - Nominal 18671 lb 8469 kg
Operating Weight - Maximum 24251 lb 11000 kg
Operating Weight 18671 lb 8469 kg
Counterweights - Maximum 1014 lb 460 kg
Operating Weight - Maximum - ROPS Capacity 24251 lb 11000 kg
Ride Control 33 lb 15 kg
Counterweights - Base 254 lb 115 kg
Air Conditioning 99 lb 45 kg
MP Bucket (1.03 m³/1.3 yd³) - without Fold-over Forks 1486 lb 674 kg
Total Gross Weight Not to Exceed 24251 lb 11000 kg
Minimum Counterweight Recommendations - Standard Stick - Loader Bucket - No QC - MP 0 lb 0 kg
Power-Shift Transmission Standard Standard
Minimum Counterweight Recommendations - Standard Stick - Loader Bucket - IT Loader with QC - MP 1014 lb 460 kg
Cab - ROPS/FOPS Standard Standard
Minimum Counterweight Recommendations - Standard Stick - Loader Bucket - IT Loader with QC - GP 1014 lb 460 kg
MP Bucket (1.03 m³/1.3 yd³) - with Fold-over Forks 1896 lb 860 kg
Minimum Counterweight Recommendations - Extendible Stick - Loader Bucket - IT Loader with QC - MP 1014 lb 460 kg
Minimum Counterweight Recommendations - Extendible Stick - Loader Bucket - No QC - GP 1014 lb 460 kg
Minimum Counterweight Recommendations - Standard Stick - Loader Bucket - No QC - GP 529 lb 240 kg
Minimum Counterweight Recommendations - Extendible Stick - Loader Bucket - No QC - MP 254 lb 115 kg
Note Machine Configuration – HRC 74.5 kW engine; 4.3 m standard stick hoe; standard cab with A/C; AWD powershift transmission; 1.03 m³ MP loader bucket; 600 mm standard duty hoe bucket; 340/80-20 and 480/80-26 tires; no counterweight; One Way Aux Lines; AWD Guard; Front Fenders; HD Battery; 80 kg operator; full fuel tank. Machine Configuration – HRC 74.5 kW engine; 4.3 m standard stick hoe; standard cab with A/C; AWD powershift transmission; 1.03 m³ MP loader bucket; 600 mm standard duty hoe bucket; 340/80-20 and 480/80-26 tires; no counterweight; One Way Aux Lines; AWD Guard; Front Fenders; HD Battery; 80 kg operator; full fuel tank.
Minimum Counterweight Recommendations - Extendible Stick - Loader Bucket - IT Loader with QC - GP 1014 lb 460 kg
Counterweights - Mid 529 lb 240 kg
Loader QC 408 lb 185 kg
4.3 m Extendible Stick 439 lb 199 kg
4.9 m Extendible Stick 783 lb 355 kg
Torque Rise (net) 48% @ 1,500 rpm 48% @ 1,500 rpm
Stroke 4.72 in 120 mm
Note (1) Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator.
Displacement 220 in³ 3.6 l
Net Torque - SAE J1349 322 lbf 436 N·m
Bore 3.86 in 98 mm
Engine C3.6 74.4 kW Electronic Turbo Intercooled C3.6 74.4 kW Electronic Turbo Intercooled
Note (2) No derating required up to 3048 m altitude. Auto derate protects hydraulic and transmission systems. No derating required up to 3048 m altitude. Auto derate protects hydraulic and transmission systems.
Emissions Meets EU Stage V emission standards. Meets EU Stage V emission standards.
Ratings at 2,200 rpm - Gross Power SAE J1995:2014 83.1 kW/113 hp 83.1 kW/113 hp
Ratings at 2,200 rpm - Engine Power ISO 14396:2002 74 kW/101 hp 74 kW/101 hp
Net Power Rating @ 2,200 rpm - ISO 9249:2007 68 kW/92 hp 68 kW/92 hp
Net Power Rating @ 2,200 rpm - SAE J1349:2011 68 kW/92 hp 68 kW/92 hp
Note (1) Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator.
Torque Rise (net) 48% @ 1,500 rpm 48% @ 1,500 rpm
Bore 3.86 in 98 mm
Net Torque - SAE J1349 358 ft-lb 485 N·m
Stroke 4.72 in 120 mm
Displacement 220 in³ 3.6 l
Note (2) No derating required up to 3048 m altitude. Auto derate protects hydraulic and transmission systems. No derating required up to 3048 m altitude. Auto derate protects hydraulic and transmission systems.
Engine C3.6 82 kW Electronic Turbo Intercooled C3.6 82 kW Electronic Turbo Intercooled
Emissions Meets EU Stage V emission standards. Meets EU Stage V emission standards.
Net Power Rating @ 2,200 rpm - SAE J1349:2011 76 kW/103 hp 76 kW/103 hp
Ratings at 2,200 rpm - Gross Power SAE J1995:2014 86.5 kW/118 hp 86.5 kW/118 hp
Net Power Rating @ 2,200 rpm - ISO 9249:2007 75 kW/102 hp 75 kW/102 hp
Note (3) Advertised power is tested per the specified standard in effect at the time of manufacture. Advertised power is tested per the specified standard in effect at the time of manufacture.
Ratings at 2,200 rpm - Engine Power ISO 14396:2002 82 kW/111 hp 82 kW/111 hp
Note Travel speeds of backhoe loader at full throttle, when equipped with 480/80-26 rear tires. Travel speeds of backhoe loader at full throttle, when equipped with 480/80-26 rear tires.
Reverse - 1st 3.7 mile/h 6 km/h
Forward - 1st 3.7 mile/h 6 km/h
Forward - 2nd 6.2 mile/h 10 km/h
Reverse - 2nd 8.1 mile/h 13 km/h
Forward - 4th 24.9 mile/h 40 km/h
Reverse - 3rd 17 mile/h 27.3 km/h
Forward - 3rd 12.4 mile/h 20 km/h
Forward - 6th 24.9 mile/h 40 km/h
Reverse - 1st 3.7 mile/h 6 km/h
Forward - 1st 3.7 mile/h 6 km/h
Forward - 5th 16.8 mile/h 27 km/h
Forward - 2nd 6.2 mile/h 10 km/h
Forward - 3rd 8.1 mile/h 13 km/h
Reverse - 3rd 17 mile/h 27.3 km/h
Forward - 4th 12.4 mile/h 20 km/h
Reverse - 2nd 8.1 mile/h 13 km/h
Forward - 1st 3.7 mile/h 6 km/h
Reverse - 3rd 17 mile/h 27.3 km/h
Reverse - 2nd 8.1 mile/h 13 km/h
Forward - 5th 16.8 mile/h 27 km/h
Forward - 2nd 6.2 mile/h 10 km/h
Forward - 4th 12.4 mile/h 20 km/h
Forward - 6th 24.9 mile/h 40 km/h
Reverse - 1st 3.7 mile/h 6 km/h
Forward - 3rd 8.1 mile/h 13 km/h
Rear Axle - Dynamic 22046 lb 10000 kg
Rear Axle - Static 58423 lb 26500 kg
Front Axle - Dynamic 19842 lb 9000 kg
Front Axle - Static 51809 lb 23500 kg
System Pressure - Backhoe 3626 psi 250 bar
System Pressure - Loader 3626 psi 250 bar
Pump Capacity @ 2,200 rpm 49.4 gpm 187 L/min
Type Closed Center Closed Center
Pump Type Variable-Flow, Axial Piston Variable-Flow, Axial Piston
AWD Cylinder, One (1) Double Acting - Rod Diameter 1.6 in 40 mm
Power Steering Hydrostatic Hydrostatic
AWD Cylinder, One (1) Double Acting - Stroke 4.2 in 106 mm
AWD Cylinder, One (1) Double Acting - Bore 2.6 in 65 mm
Type Front Wheel Front Wheel
Turning Circle - AWD (inner wheel not braked) - Outside, Widest Loading Bucket 38.1 ft 11622 mm
Turning Circle - AWD (inner wheel not braked) - Outside, Front Wheels 30.4 ft 9273 mm
Cooling System - A/C 4.8 gal (US) 18 l
Rear Axle 4.2 gal (US) 16 l
Engine Oil - With Filter 2.4 gal (US) 9 l
Hydraulic Tank 11.1 gal (US) 42 l
Rear Axle - Planetaries 0.4 gal (US) 1.7 l
Fuel Tank 42.3 gal (US) 160 l
Diesel Exhaust Fluid 5 gal (US) 19 l
Hydraulic System 25.1 gal (US) 95 l
Front Axle - Planetaries 0.02 gal (US) 0.7 l
Front Axle 2.9 gal (US) 11 l
Transmission (Powershift/Autoshift) 4.18 Gal 19 l
Breakout Force 12297 ft·lbf 54.7 kN
Controls Seat Mounted Controls with Dual Mode Seat Mounted Controls with Dual Mode
Dig Depth 4778 mm/6150 mm (E-Stick) 4778 mm/6150 mm (E-Stick)

432 Standard Equipment

Print

Cab ROPS and FOPS

  • Cab, Standard

Tires/Steering/Brakes

  • All Wheel Drive
  • 100% Differential Lock
  • Hydraulic Boosted Brakes
  • Tires 26 inch

Engine/Transmission

  • Engine, C3.6 74.4 kW
  • Battery, 750 CCA, Standard
  • Hinged Radiator Pack
  • Auto Idle
  • Eco Mode
  • Standard Mode
  • Standard + Mode
  • Transmission Neutralizer
  • Transmission, Four Speed Powershift

Controls

  • Controls, Electro Hydraulic Seat Mounted
  • Pattern Selector (ISO/SAE)
  • Power Steering, Hydrostatic

Electrical

  • Display Screen, Soft Key
  • Product Link Cellular
  • Reversing Alarm
  • Stabilizer Alarm

Hydraulics

  • Variable Displacement Piston Pump
  • Side Shift Lock
  • Hydraulic Oil Cooler
  • Loader Kickout, Float
  • Loader Kickout, Return to Dig
  • Continuous Flow
  • Programmable Auxiliary Flow

Booms, Sticks and Linkages

  • Stick Standard, 4.3 m
  • Transport Lock, Swing
  • Transport Lock, Boom

Other Attachments

  • External Tool Box
  • Transport Tie Downs

432 Optional Equipment

Print

Cab ROPS and FOPS

  • Cab, Deluxe

Tires/Steering/Brakes

  • Tires 28 inch

Engine/Transmission

  • Engine, C3.6 82 kW
  • Battery, 750 CCA, Heavy Duty
  • Engine Block Heater
  • Transmission, Six Speed Automatic
  • Transmission, Six Speed Autoshift with Lock-Up Torque Converter

Electrical

  • Display Screen, Touchscreen
  • Product Link, Dual Mode (cellular and satellite)
  • Beacon, Rotating
  • Beacon, Strobe

Hydraulics

  • Hydraulic Quick Disconnects
  • Hydraulic Lines, One Way
  • Hydraulic Lines, Two Way
  • Powered Side Shift
  • Ride Control

Booms, Sticks and Linkages

  • Stick Extending, 4.3 m
  • Stick Extending, 4.9 m
  • Hoe Quick Coupler, Mechanical
  • Hoe Quick Coupler, Hydraulic
  • Loader Quick Coupler, Hydraulic

Other Attachments

  • Counterweight, 115 kg
  • Counterweight, 240 kg
  • Counterweight, 460 kg
  • Front Fenders
  • Street Pads, Stabilizers

See how 432 compares against frequently compared products.

Backhoe Loaders
Selected
432
432
Maximum Gross Power – SAE J1995: 2014
83.1 kW (113 hp) / 86.5 kW (118 hp)
83.1 kW (113 hp) / 86.5 kW (118 hp)
Operating Weight - Nominal
18671 lb
8469 kg
Operating Weight - Maximum
24251 lb
11000 kg
Backhoe Loaders
428
428
Maximum Gross Power – SAE J1995: 2014
55.8 kW (76 hp) / 71.3 kW (97 hp) / 83.1 kW (113 hp)
55.8 kW (76 hp) / 71.3 kW (97 hp) / 83.1 kW (113 hp)
Operating Weight - Nominal
18232 lb
8270 kg
Operating Weight - Maximum
24251 lb
11000 kg
View Details
Backhoe Loaders
434
434
Maximum Gross Power – SAE J1995: 2014
83.1 kW (113 hp)
83.1 kW (113 hp)
Operating Weight - Nominal
20216 lb
9170 kg
Operating Weight - Maximum
25353 lb
11500 kg
View Details

Use the comparison tool to compare detailed specs of Cat and competitor models.

Compare All Models

Tools And Expert Help At Every Turn

Find Dealer
Payment Calculator
Current Offers
Rental Options
Used Options

Product Brochures and More Are Ready to Download!

Media Gallery

432 Backhoe Loader

432 Backhoe Loader

432 Backhoe Loader

Maximize your equipment investment with Cat related products

Buckets - Backhoe Rear

Coral Buckets

Cribbing Buckets

Ditch Cleaning Buckets

Grading Buckets

Heavy Duty Buckets

Heavy Duty Rock Buckets

High Capacity Buckets

Soil Excavation Buckets

Standard Duty Buckets

Tilting Ditch Cleaning Buckets

Trapezoidal Buckets

Compatible Technology and Services

Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.

1 - 8 of 9 Items items
Previous Next

VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

Check out current offers for the 432

View More Offers
