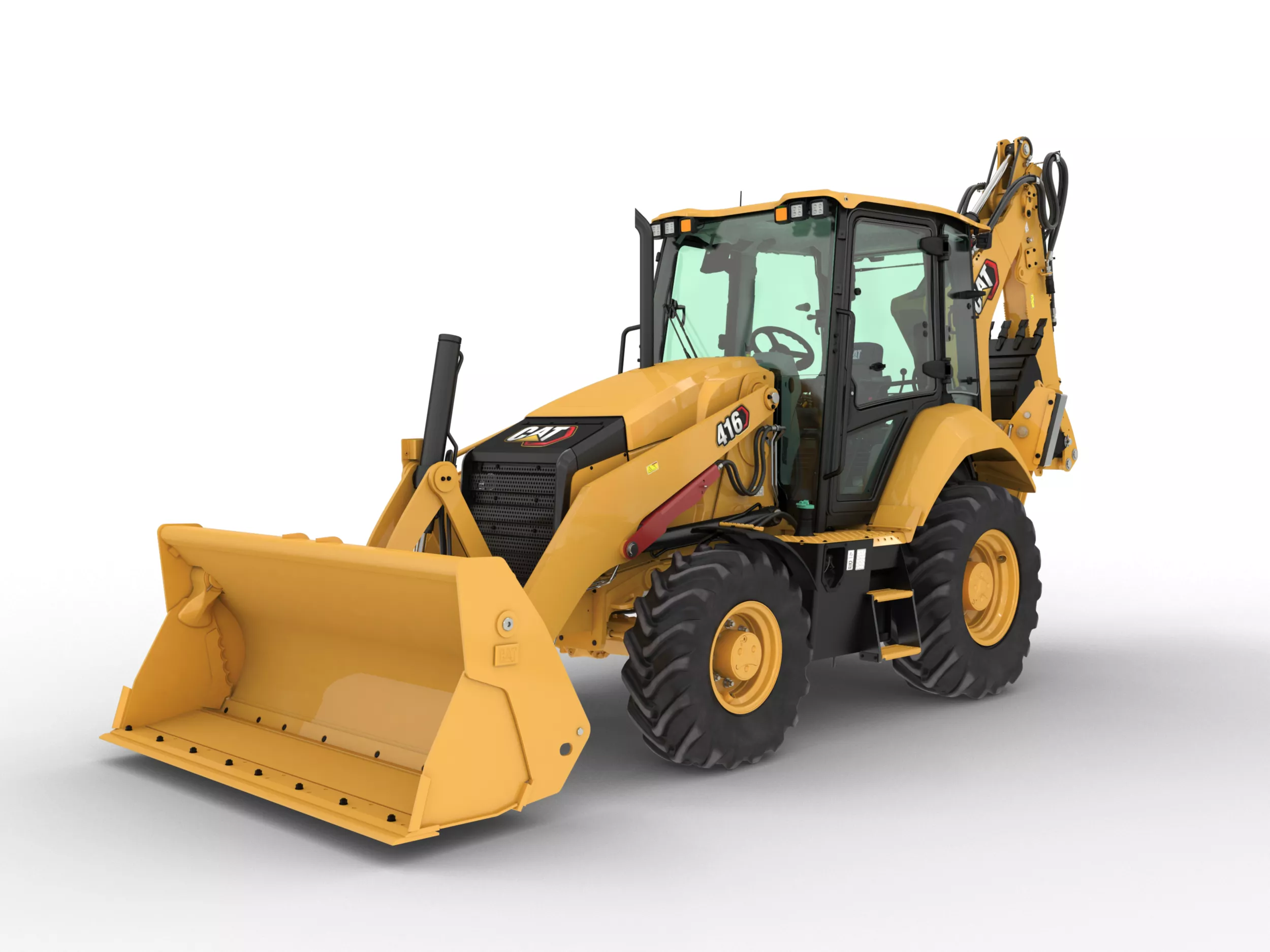

Center-Pivot Backhoe Loaders 416

Product Specifications for 416

416 Standard Equipment

STANDARD EQUIPMENT

• Air cleaner

• Alarm, back-up

• Audible system fault alarm

• Backhoe controls, mechanical two lever

• Battery, maintenance-free, 850 CCA

• Battery disconnect switch

• Boom transport lock

• Brace, lift cylinder

• Brake, parking, mechanical

• Brakes, hydraulically boosted, oil disc, dual pedals, interlocking

• Bucket level indicator

• Canopy, ROPS/FOPS

• Coat restraint

• Coolant/antifreeze, extended life

• Counterweight, bumper

• Dome light (cab only)

• Diagnostic port for engine

• Differential lock, loader joystick

• Drink holders, two

• Engine, Cat C3.6 (Direct Injection Turbocharged), meets Tier 4 Final/Stage V emission standards, Selective Catalytic Reduction, Diesel Oxidation Catalyst (DOC)

• Engine enclosure, sound suppression, removable side panels

• Face seals, O-ring

• Fan, suction and guard

• Fast reversing shuttle, all gears

• Fenders, rear

• Filters, spin-on: fuel, engine oil, transmission oil, water separator

• Filters, bowl and cartridge: hydraulic fluid

• Flashing hazards/signal lights

• Floor mat

• Four wheel drive

• Four wheel drive shaft guard

• Fuel tank, fully enclosed

• Fully hinged front grill for cooling package cleaning access

• Gauge cluster: coolant temperature, fuel level, torque converter temperature, DEF level

• Ground level fuel fill and DEF fill

• Halogen lights, working (4 front, 4 rear)

• High ambient cooling package

• Hood lock, inside cab

• Hydraulic hose, XT™

• Hydraulic oil cooler

• Hydraulic oil level sight gauge

• Hydraulic valves, loader 2 function

• Hydraulic valves, backhoe 5 function

• Hydraulics, load sensing with variable displacement piston pump

• Indicator lights: wait to start, water in fuel, engine warning, warning lamp, emissions module malfunction, low battery/charging system warning, high hydraulic oil temperature: LCD warnings: engine oil pressure, machine locked, service due, air filter blocked, high coolant temperature, auto idle shutdown, high torque converter temperature, hydraulic filter bypass

• Instrument panel lights

• Key start/stop system

• LCD operator display with soft key controls: engine speed, hour meter, gear/direction, battery voltage, hydraulic oil temperature, torque converter temperature, coolant temperature, trip totals (fuel and hours), lifetime totals (fuel and hours), operator settings (units, brightness, programmable hoe auxiliary flow), service mode diagnostics, maintenance intervals, ECM/system info

• Loader, self-leveling, return-to-dig and transmission disconnect switch

• Loader, single tilt

• Mechanical two lever controls

• Mirror, interior, rearview

• Open circuit breather

• Power receptacle, 5 volt USB, 1 internal

• Power receptacle, 12 volt, 2 internal, 1 external

• Power steering, hydrostatic

• Product Link™, cellular, network manager

• Product Link, satellite, network manager

• Seat belt, retractable, 51 mm (2 in)

• Socket, two roof

• Stabilizer shoes, street

• Steering column, tilting

• Steering knob

• Seat, air suspension, vinyl cover, with armrest

• Starting system, glow plugs

• Storage compartment, lockable

• Storage tray

• Stop and tail lights

• Swing transport lock

• Tilt steering column

• Tires

• Toolbox, external, lockable

• Torque converter

• Throttle, hand and foot, electronic

• Transmission, four speed, manual, syncromesh

• Transmission neutralizer switch

• Transport tie-downs

• Vandalism locks, four

• Warning horn, electric

416 Optional Equipment

OPTIONAL EQUIPMENT

• Auxiliary hydraulics, rear, adjustable flow

• Battery, additional, 850 CCA

• Brake, parking, Spring Applied Hydraulically Release (SAHR)

• Cab, standard

• Cold weather fuel (–30° C/–22° F)

• Cold weather package, including additional battery, engine block heater, radiator antifreeze (–50° C/–58° F), cold weather fuel (–30° C/–22° F) and mounting for an ether bottle

• Counterweights, 115 kg (255 lb), 240 kg (530 lb) or 460 kg (1,015 lb)

• Fenders, front with integral steps

• Guard, boom protection plate

• Guard, stabilizer, rock

• Hydraulic valves, loader (3rd valve for MP or Quick Coupler)

• Hydraulic valves, backhoe (with 6th function)

• Hydraulic lines, combined function auxiliary

• Joystick controls: pilot operated, excavator style with pattern changer

• LED lights, working (4 front, 4 rear)

• Pattern changer, in cab

• Quick Coupler, hydraulic, dual lock

• Quick Coupler, manual, dual lock

• Quick Coupler, manual, pin lock

• Radio and CD player, Bluetooth®

• Ride Control

• Rotating beacon, magnetic mount

• Seat, air suspension, fabric with armrest

• Seat belt, retractable, 75 mm (3 in)

• Security system, Bluetooth

• Security System, operator display

• Side mirrors, cab, external

• Single Tilt Loader Coupler, Integrated Tool Carrier (IT) Interface

• Stabilizer pads, grouser type

• Stabilizer pads, reversible

• Stick, extendible

• Transmission, 4 speed, powershift

• Vandalism protection, gauge cover

• Work Tool Attachments such as buckets, forks, material handling arms, augers, hammers, brooms, cold planers and vibratory plate compactors. See your Cat dealer for more information.
