Pin On (Pin Grabber) Coupler / Pin Grabber Coupler
Pin On (Pin Grabber) Coupler / Pin Grabber Coupler
Product Availability by Country
Starting at MSRP
Price listed is Manufacturer's Suggested Retail Price, this price does not include shipping and handling, expedite charges, taxes, dealer installation costs or other dealer charges. Dealers set actual prices, including invoicing currency. The MSRP displayed is for the region selected.
Starting at MSRP
This is not an offer for sale. The MSRP price displayed is for informational purposes. Please note that the MSRP may vary by authorized Cat dealer for the same product. The actual price and terms and conditions of sale for all products are to be solely determined by the selling authorized Cat dealer at the time of sale. Taxes, shipping & handling charges, surcharges, assembly charges, destination, freight and/or delivery charges are not included in the MSRP shown and such charges will be material in some locations (including but not limited to Alaska, Hawaii, Guam, and the Pacific Islands). The displayed pricing identified as the “MSRP” price includes features shown for the lowest priced machine configuration on the page accessed through the “Shop Now” button and does not include any attachments or protection plans.
Dealer Price
The displayed pricing identified as "Price" is the price that the Dealer sets for the particular machine configuration shown. The Price shown includes the features and attachments (if any) shown as being included at no cost with the machine configuration as well as all reasonable Dealer handling, preparation or similar costs or fees. The Price does not include taxes, shipping, surcharges, assembly charges, destination, freight and/or delivery charges. In addition, the Price does not include (i) any attachments not shown as being included at no cost with the machine configuration, or (ii) any protection plans, such as a Customer Value Agreement or Equipment Protection Plan. This is not an offer for sale. The Price displayed is for informational purposes only. The actual prices and terms and conditions of sale for all products are to be solely determined by the selling authorized Cat dealer and agreed to with the purchaser at the time of a final sale. The price shown is in U.S. Dollars and is for products sold in the US.
Cat® Tiltrotators help you maneuver obstacles in your work area without the need for repositioning your machine.
Features At A Glance
Displaying 1-6 of 13
Complete 360 Degree Rotation and 40 Degree Angling
Provides optimal control of your work tools to provide greater working flexibility. All tiltrotators include rotation and tilting sensors.
Integrated Central Lubrication System
A single point of entry for grease allows the entire unit to be greased quickly and easily.
TRS Control System
Compatible with either the standard or advanced machine display, the TRS uses the existing machine display to view position information and to adjust settings. This eliminates the need for additional displays that clutter up the cab of your excavator.
Oil Filled Gearbox
A maintenance free solution that more effectively distributes heat, providing better lubrication than grease.
Heavy Duty Worm Gear
Worm gear box with high rotation torque and self locking ability allows digging in all directions with full power, allowing the gear to accept the maximum machine forces and split the load through the entire TRS construction.
Double Acting Cylinders with Load Hold Valves
Valves sustain holding pressures and prevent cylinders movement under load constraints required by directives.
Visual Verification Indicator
The visual verification indicator allows the operator to visibly confirm, from the cab, that the coupler has successfully locked the attachment into place properly.
Optional Grapple Attachment
Used to pick up objects such as pipe and debris. (not compatible with the pin grabber bottom option)
Locking Control System (LCS)
LCS incorporates an electronic position sensor integrated into the quick coupler hydraulic cylinder. This sensor provides precise and reliable input to an electronic processor mounted inside the quick coupler. This microprocessor provides digital communication to the Next Generation MHE machine Electronic Control Module (ECM) by way of an electrical harness. This data is then displayed on the operators display screen, and will provide audible indications when that locking status changes.
Bucket Shake
Automatically spread material evenly and quickly or release material stuck in bucket.
Auto Return Function
Return to a rotation and tilt position that has been set by the operator.
Auxiliary Port Options
Auxiliary hydraulic ports (Aux 1 and Aux 2 on TRS6 and TRS8, Aux 1 on TRS4) allow the use of various accessories that are available for tiltrotators, including grapples.
Optional Grade Control (RPS)
Grade control systems allow operators to reach finish grade faster with fewer personnel on the ground checking grade. Optional 2D and 3D grade control systems available on all TRS models.
Features At A Glance
Provides optimal control of your work tools to provide greater working flexibility. All tiltrotators include rotation and tilting sensors.
A single point of entry for grease allows the entire unit to be greased quickly and easily.
Compatible with either the standard or advanced machine display, the TRS uses the existing machine display to view position information and to adjust settings. This eliminates the need for additional displays that clutter up the cab of your excavator.
A maintenance free solution that more effectively distributes heat, providing better lubrication than grease.
Worm gear box with high rotation torque and self locking ability allows digging in all directions with full power, allowing the gear to accept the maximum machine forces and split the load through the entire TRS construction.
Valves sustain holding pressures and prevent cylinders movement under load constraints required by directives.
The visual verification indicator allows the operator to visibly confirm, from the cab, that the coupler has successfully locked the attachment into place properly.
Used to pick up objects such as pipe and debris. (not compatible with the pin grabber bottom option)
LCS incorporates an electronic position sensor integrated into the quick coupler hydraulic cylinder. This sensor provides precise and reliable input to an electronic processor mounted inside the quick coupler. This microprocessor provides digital communication to the Next Generation MHE machine Electronic Control Module (ECM) by way of an electrical harness. This data is then displayed on the operators display screen, and will provide audible indications when that locking status changes.
Automatically spread material evenly and quickly or release material stuck in bucket.
Return to a rotation and tilt position that has been set by the operator.
Auxiliary hydraulic ports (Aux 1 and Aux 2 on TRS6 and TRS8, Aux 1 on TRS4) allow the use of various accessories that are available for tiltrotators, including grapples.
Grade control systems allow operators to reach finish grade faster with fewer personnel on the ground checking grade. Optional 2D and 3D grade control systems available on all TRS models.

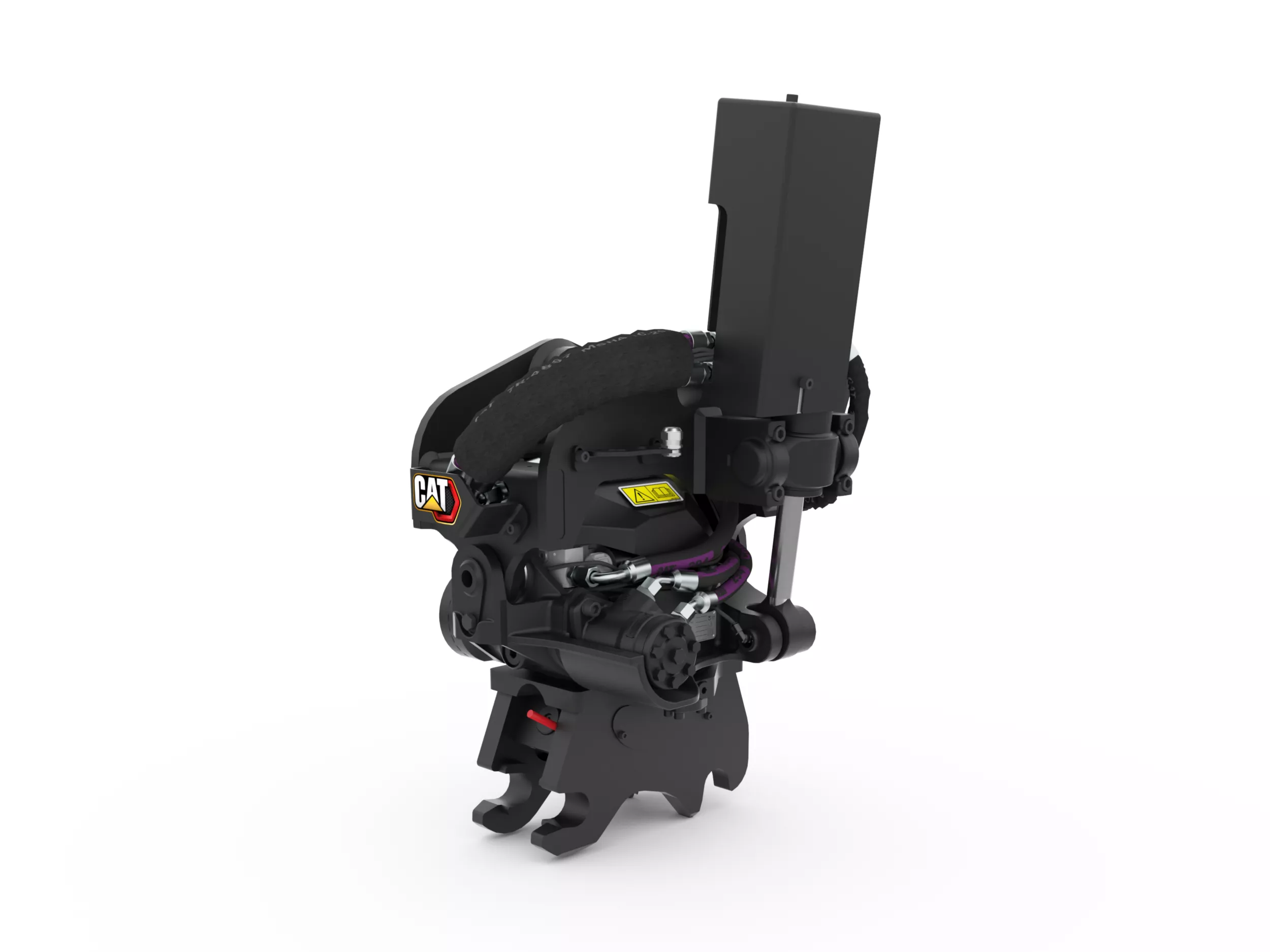

Product Specifications for TRS6, Pin On (Pin Grabber)/Pin Grabber, 5-6 Ton Mini Excavators
Machine Class
5-6 Ton Mini Excavators5-6 Ton Mini Excavators
Weight
410.1 lb186 kg
Interface Options: Top-Bottom
Pin On (Pin Grabber) Coupler / Pin Grabber CouplerPin On (Pin Grabber) Coupler / Pin Grabber Coupler
Overall Height
35.7 in907 mm
Length
23.9 in608 mm
Overall Width
19.1 in485 mm
Rotation Speed
7 Seconds per 1 full rotation7 Seconds per 1 full rotation
Tilt Angle Range
40° Left/Right40° Left/Right
Maximum Bucket Capacity
8.8 ft³250 l
Maximum Bucket Width
47.2 in1200 mm
Optimal Hydraulic Flow
30-70 L/min (8-19 gpm)30-70 L/min (8-19 gpm)
Maximum Operating Pressure
3625.9 psi25000 kPa
Required Hydraulics
1st Auxiliary1st Auxiliary
Tilting Torque
10620.9 lb/ft14400 N·m
Turning Torque
2876.5 lb/ft3900 N·m
Product Specifications for TRS6, Pin On (Pin Grabber)/Pin Grabber, 5-6 Ton Mini Excavators
