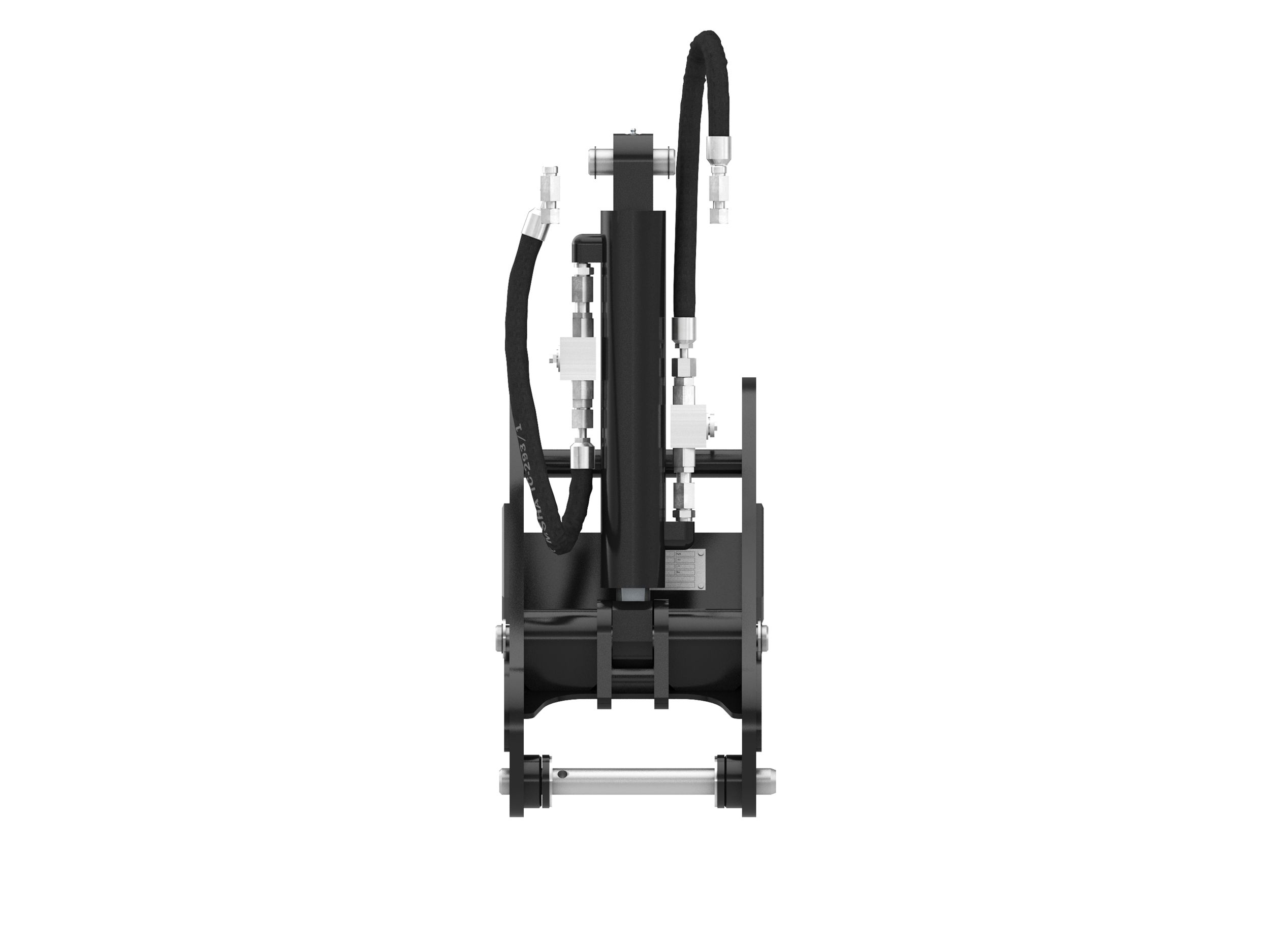

Utility Thumbs 292 mm (11 in) 5 Teeth/2 Tines

Request A Price Shop Now

Key Specs

Length: 22.6 in; 574 mm

Stored Height: 12.7 in; 323 mm

Overall Width: 11.5 in; 292 mm

292 mm (11 in) 5 Teeth/2 Tines
Change model

Overview

Utility Thumbs offer hydraulic functionality, with maximum interchangeability.

Features At A Glance

Displaying 1-6 of 8

Application

Cat® Utility thumbs are utilitarian in design. This style is perfect for the excavator that could benefit from a thumb for handling smaller size and lighter weight material on an occasional basis. They are best suited for the machine that does not handle material all day long.

Versatile

Utility thumbs are universal in that they work well with most all buckets and couplers. They are well-suited for fleets with a mix of machines with varying bucket and coupler combinations.

Easy Installation

An optional bracket can be welded onto the stick allowing for an easy installation if machine was not already fitted with one from the factory.

Cylinder Snubber

A snubber in the thumb cylinder cushions the thumb as it retracts to it's stored position, thus reducing wear on components from unnecessary jolts and frees operator to focus on other tasks.

Shut-Off Valves/Quick Couplings

Allows for attachment of other work tools without removing thumb (ex. Hammer). The shut-off valve also functions as a hydraulic lock when not in use. Quick couplings allow the thumb to be disconnected and another tool used while the thumb is still attached to the stick.

Retractable Thumb

Retractable thumb allows normal bucket loading when not in use.

Utility thumbs are universal in that they work well with most all buckets and couplers. They are well-suited for fleets with a mix of machines with varying bucket and coupler combinations.

An optional bracket can be welded onto the stick allowing for an easy installation if machine was not already fitted with one from the factory.

A snubber in the thumb cylinder cushions the thumb as it retracts to it's stored position, thus reducing wear on components from unnecessary jolts and frees operator to focus on other tasks.

Retractable thumb allows normal bucket loading when not in use.

Maintains rigidity while offering optimized visibility for better site into bucket when lifting irregular loads.

Optimized tine and bucket tooth spacing allows thumb and bucket to mesh together without interference. Different width buckets can be used with the same thumb for maximum flexibility.

Product Specifications for 292 mm (11 in) 5 Teeth/2 Tines

Length	22.6 in 574 mm
Stored Height	12.7 in 323 mm
Overall Width	11.5 in 292 mm
Weight	105.8 lb 48 kg
Rotation	112 degrees 112 degrees
Number of Teeth/Tines	5/2 5/2
Tine Spacing	9.6 in 243 mm
Tine Thickness	0.6 in 16 mm
Tines Included	Yes Yes
Machine Class	1 Ton Mini Excavators 1 Ton Mini Excavators
Interface Type	Pin On Pin On

Product Specifications for 292 mm (11 in) 5 Teeth/2 Tines

Download Print

Length	22.6 in 574 mm
Stored Height	12.7 in 323 mm
Overall Width	11.5 in 292 mm
Weight	105.8 lb 48 kg
Rotation	112 degrees 112 degrees
Number of Teeth/Tines	5/2 5/2
Tine Spacing	9.6 in 243 mm
Tine Thickness	0.6 in 16 mm
Tines Included	Yes Yes
Machine Class	1 Ton Mini Excavators 1 Ton Mini Excavators
Interface Type	Pin On Pin On
