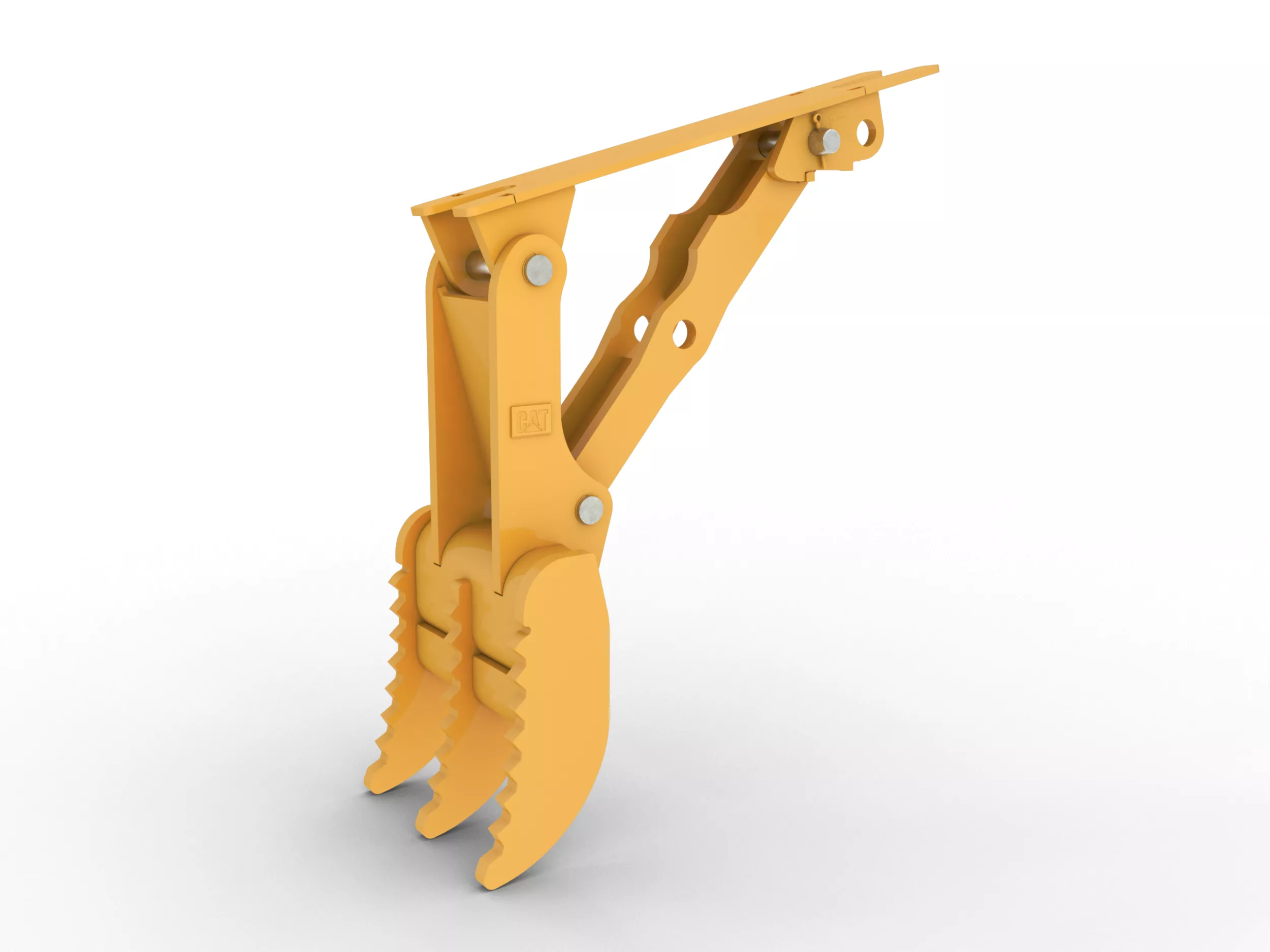

Stiff Link Thumb 3-tooth 446 mm (18 in): 584-7229 Stiff Link Thumbs

Request A Price Shop Now

Key Specs

Number of Teeth/Tines
3
3
Stored Height
22 in
559 mm
Overall Width
17.6 in
446 mm

Features At A Glance

Displaying 1-6 of 4

Increase the Productivity of Your Machine

Increase the Productivity of Your Machine

  • Two static working positions at 90° and 105°
  • Closed face design holds fine materials better, provides better retention when working in loose material, and prevents material from packing in the frame.
  • Expanded machine compatibility range due to a lighter design
  • Increase the productivity with periodic use where a bucket or rake alone would fall short
More Versatility, More Work Done

More Versatility, More Work Done

  • Works with bucket or rake to grab, pick, sort, and move materials
  • Stiff Link Thumbs are universal to across range of bucket sizes, making them easier to pair to buckets in a mixed fleet
  • Get the best thumb for your tasks. With three tine configurations, select the best option for a wide or narrow grip, shorter center times for straddling the boom during transport.
  • Managing multiple attachments for a fleet is easier with a coupler system. Select thumb models are compatible with Cat Pin Grabber Couplers, allowing for machines of similar sizes to share thumbs and other attachments.
Simple to Operate

Simple to Operate

  • Patented alignment system allows for one person to easily deploy or store the thumb
  • Folds against machine boom for easy storage during travel or other activities
  • Simple installation, maintenance, and overall operation make thumbs a simpler, more affordable owning and operating choice than grapples
Boost Efficiency and Productivity with Integrated Technology

Boost Efficiency and Productivity with Integrated Technology

  • Never waste time looking for your thumbs again. Cat asset tracking is available for your attachments or anything in your fleet you need to track.
  • Track your entire fleet of attachments and machines from one source. View thumbs with asset tracking within VisionLink® alongside Product Link™subscribed equipment.
  • Keep your assets secure. Thumbs with an asset tracker send an alert if they leave an easy-to-setup site boundary.

Product Specifications for Stiff Link Thumb 3-tooth 446 mm (18 in): 584-7229

Number of Teeth/Tines 3 3
Stored Height 22 in 559 mm
Overall Width 17.6 in 446 mm
Weight 958 lb 435 kg
Length 75.5 in 1918 mm
Rotation Two static working positions at 90° and 105° Two static working positions at 90° and 105°
Tines Included Yes Yes
Machine Class 20 to 25 ton excavators 20 to 25 ton excavators
Interface Type Pin-on Pin-on
