Overview
Pro Series Hydraulic Thumbs (Pro and Pro Plus models) offer the best load control.

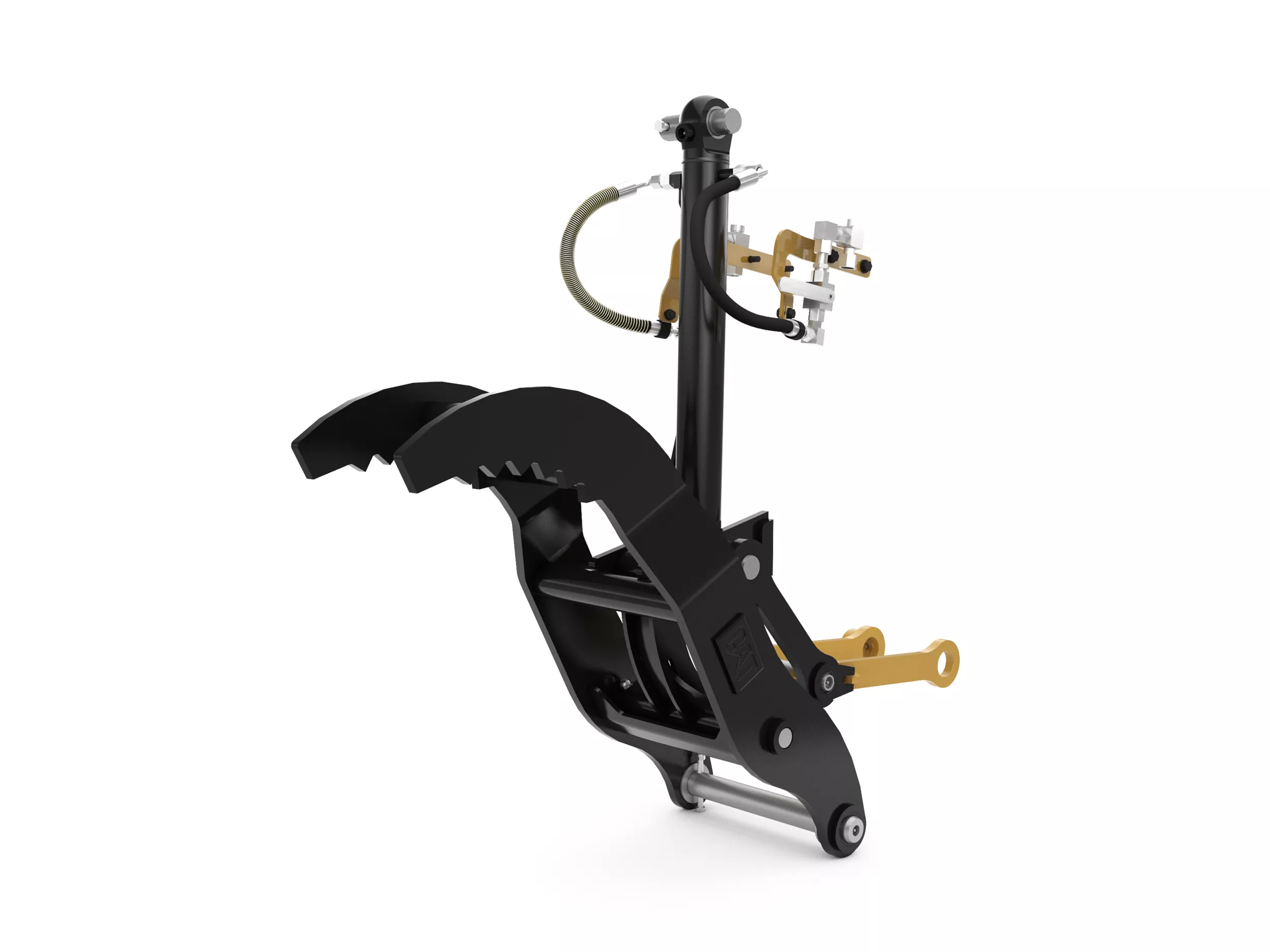

Pro Series Hydraulic Thumbs 858 mm (34 in) 6 Teeth/2 Tines
Request A Price Shop NowKey Specs
- Number of Teeth/Tines
- 6/2
- 6/2
- Stored Height
- 33.8 in
- 858 mm
- Overall Width
- 17.7 in
- 449 mm
Features At A Glance
Displaying 1-6 of 7
Application
Cat® Pro Series Hydraulic Thumbs allow precise load control. They are well suited for day-in and day-out use of handling larger, longer items.
Maximum Bucket Coverage
Pro Plus thumbs feature extra links to push the thumb farther, providing 100% coverage of bucket rotation.
Maximum Control
Have full thumb control at maximum bucket and thumb extension. This also allows for greater thumb control when bucket is closer to machine and below grade.
Shut-Off Valves
Allows for attachment of other work tools without removing thumb (ex. Hammer). The shut-off valve also functions as a hydraulic lock when not in use.
Retractable Thumb
Retractable thumb allows normal bucket loading when not in use.
Cross-Tube Design
Maintains rigidity while offering optimized visibility for better site into bucket when lifting irregular loads.
Product Specifications for 858 mm (34 in) 6 Teeth/2 Tines
| Number of Teeth/Tines | 6/2 6/2 |
| Stored Height | 33.8 in 858 mm |
| Overall Width | 17.7 in 449 mm |
| Weight | 412.3 lb 187 kg |
| Length | 46.7 in 1185 mm |
| Rotation | 165 degrees 165 degrees |
| Tine Spacing | 10 in 254 mm |
| Tine Thickness | 0.8 in 20 mm |
| Tines Included | Yes Yes |
| Machine Class | 8 Ton Mini Excavators 8 Ton Mini Excavators |
| Interface Type | Pin On Pin On |
See how 858 mm (34 in) 6 Teeth/2 Tines compares against frequently compared products.
Thumbs
858 mm (34 in) 6 Teeth/2 Tines
Selected
- Number of Teeth/Tines
- 6/2
- 6/2
- Stored Height
- 33.8 in
- 858 mm
- Overall Width
- 17.7 in
- 449 mm
Thumbs
671 mm (26 in) 4 Teeth/2 Tines
- Number of Teeth/Tines
- 4/2
- 4/2
- Stored Height
- 26.4 in
- 671 mm
- Overall Width
- 17.7 in
- 449 mm
Thumbs
Pro Thumb 3-tooth 563 mm (22 in): 633-1730
- Number of Teeth/Tines
- 3
- 3
- Stored Height
- 25.9 in
- 657 mm
- Overall Width
- 22.2 in
- 563 mm
assignment Product Brochures and More Are Ready to Download!
Caterpillar product brochures and other informational documents are available for your growing business.
Media Gallery
Photos
Videos
Studio Shot
Front View
Top View
Left View
Rear View
Bottom View
Right View
Cat® Cat Thumbs at Work
Cat® 1-Ton Thumb at Work
An Attachment for Every Job - Cat® Work Tool Attachments
