Ripper / Scarifiers 1765 mm (70 in)

Request A Price Shop Now

Key Specs

Overall Width: 69.5 in; 1765 mm

Length: 43.9 in; 1115 mm

Height: 54.1 in; 1373 mm

1765 mm (70 in)
Change model

Overview

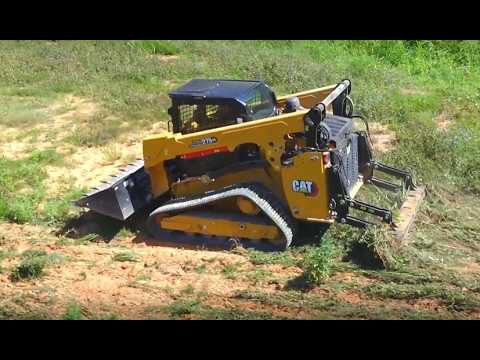

The Cat® Ripper / Scarifier is designed to loosen and condition the surface layer of compacted soil.

Features At A Glance

Displaying 1-6 of 8

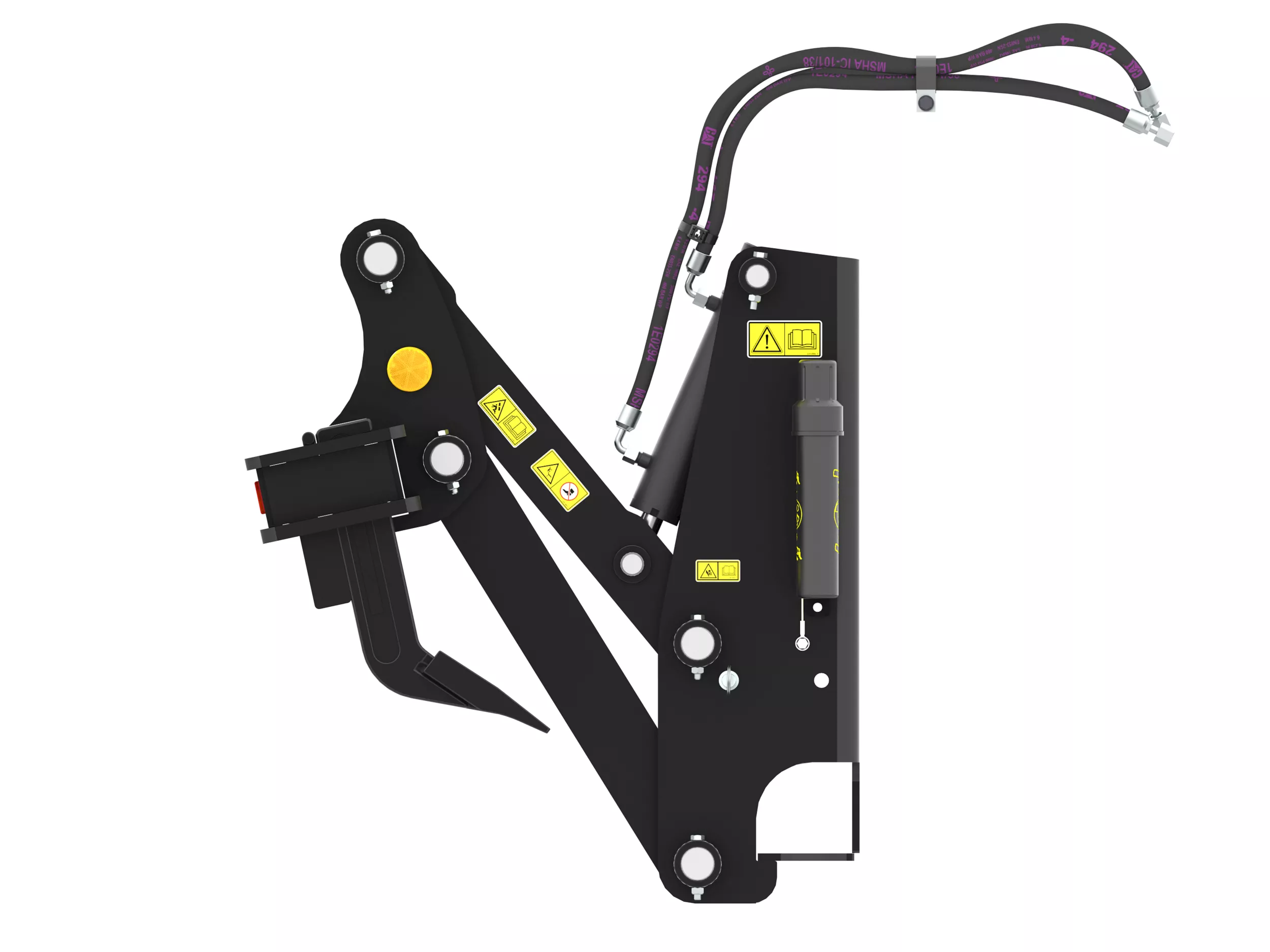

Unique Linkage

Unique parallelogram linkage design (patent pending) allows shanks/teeth to rotate inward when raised to maximize machine departure angle.

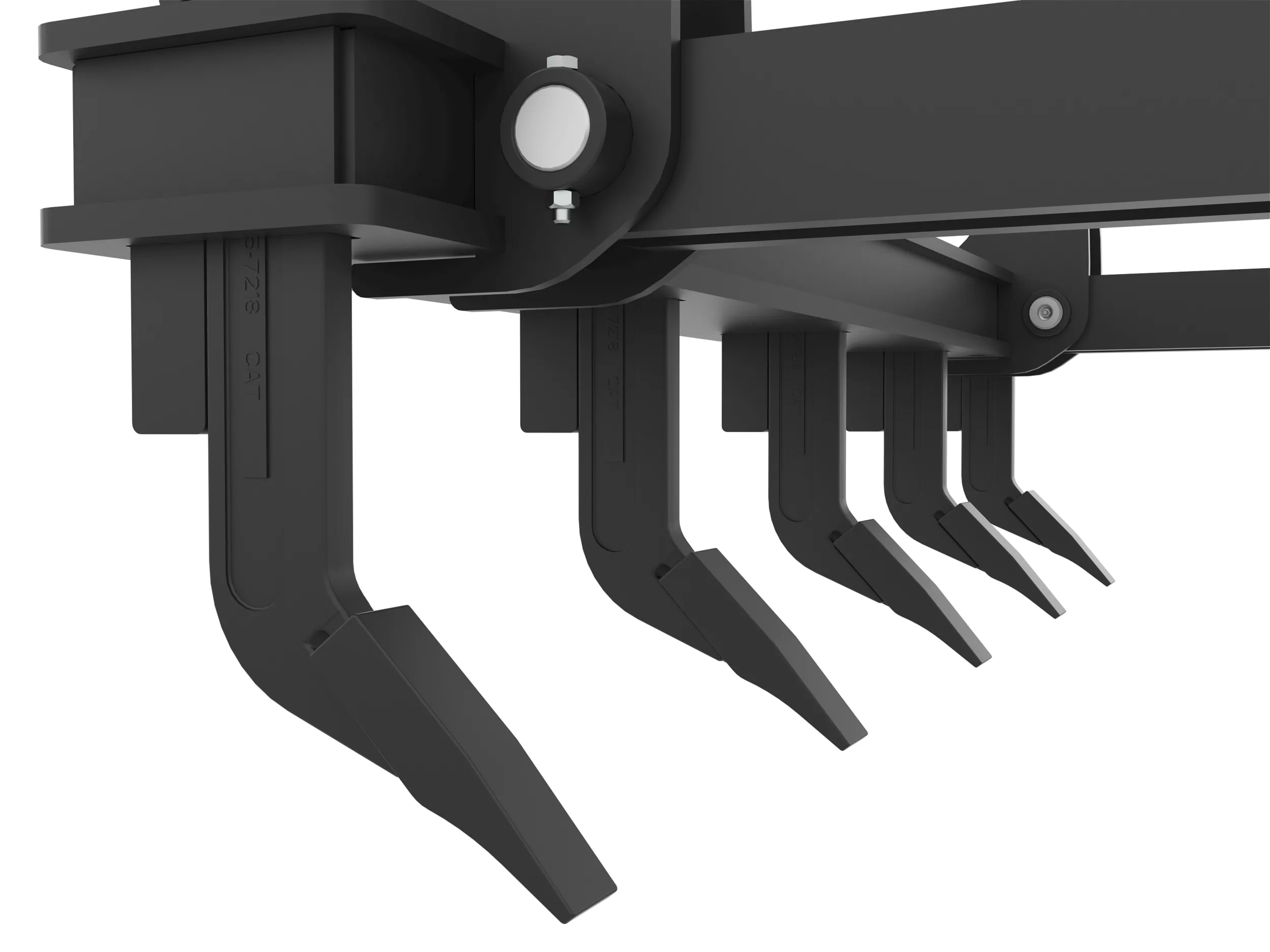

Proven Shank and Tooth Design

Utilizes the same robust shank and tooth design proven tough on Cat® motor graders. Multi-shank design allows operator to select the number of shanks necessary for each application. Shanks and teeth are removeable and replaceable.

Dedicated Operational Control

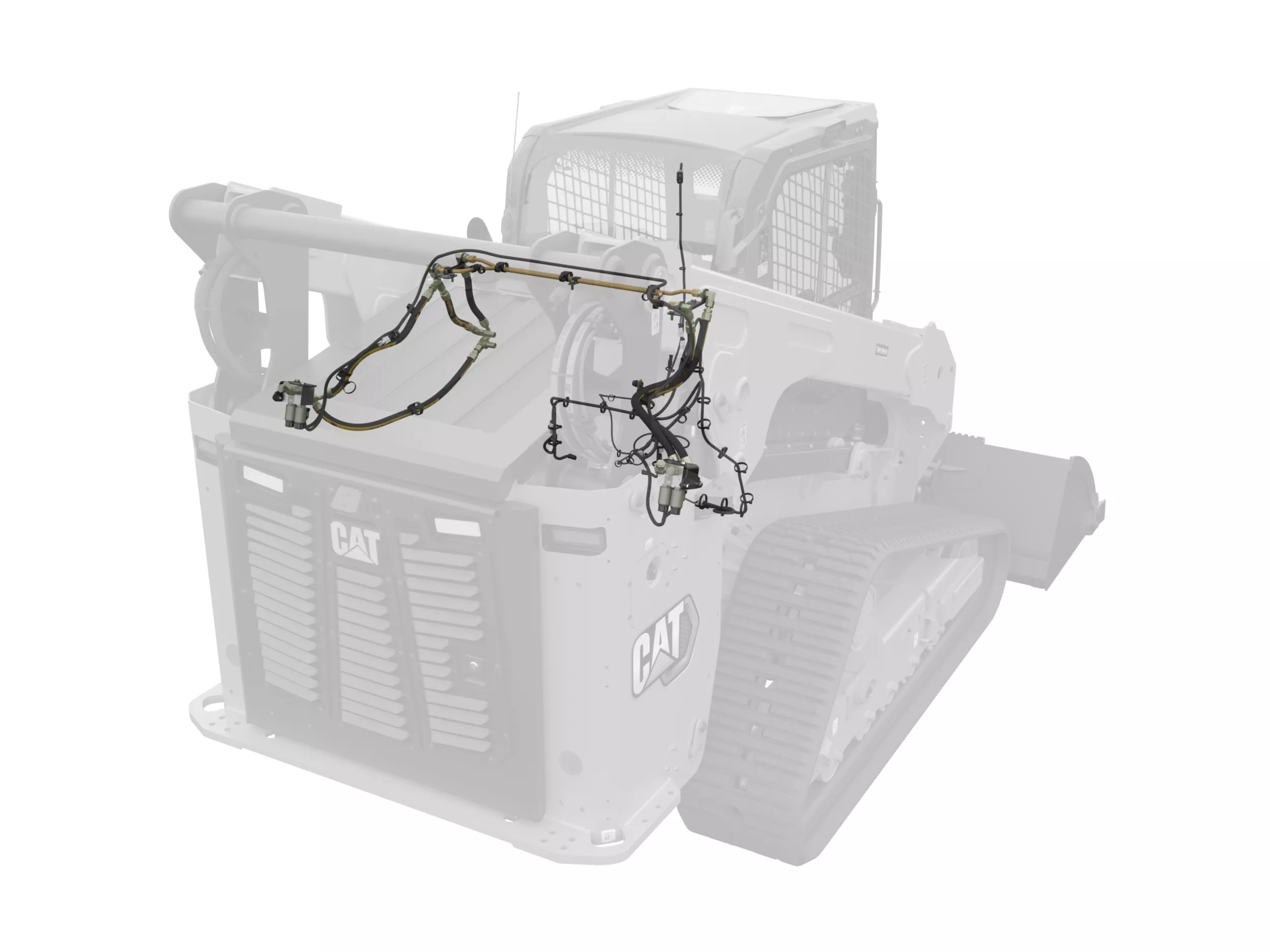

The ripper/Scarifier requires optional machine rear auxiliary hydraulics, available from factory or as a dealer installed kit. Control is Integrated with the advanced joystick controls (Aux 9 / Aux 10).

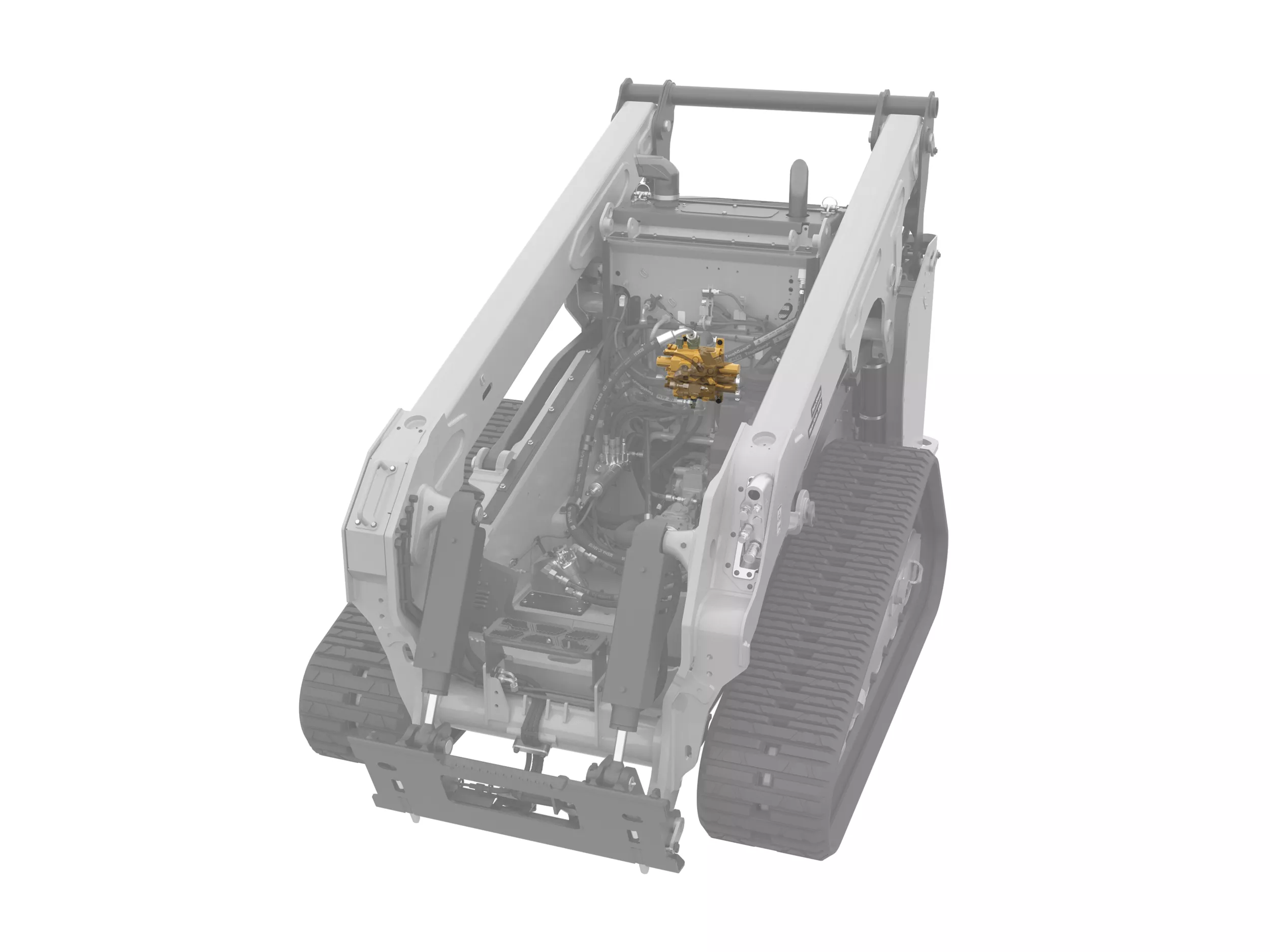

Adjustable Rear Hydraulic Flow

Raise/lower speed may be adjusted via flow control valves based on operator preference.

Full Service Access

In the lowered position, the engine bay door is unobstructed for easy access and daily service tasks.

Transportation Configuration

Scarifier shanks can be reoriented in ripper frame for increased machine departure angle while trailer loading machine. Two lock-out pins retain the ripper linkage in the fully raised position to prevent hydraulic cylinder drift during transport.

Unique parallelogram linkage design (patent pending) allows shanks/teeth to rotate inward when raised to maximize machine departure angle.

Raise/lower speed may be adjusted via flow control valves based on operator preference.

In the lowered position, the engine bay door is unobstructed for easy access and daily service tasks.

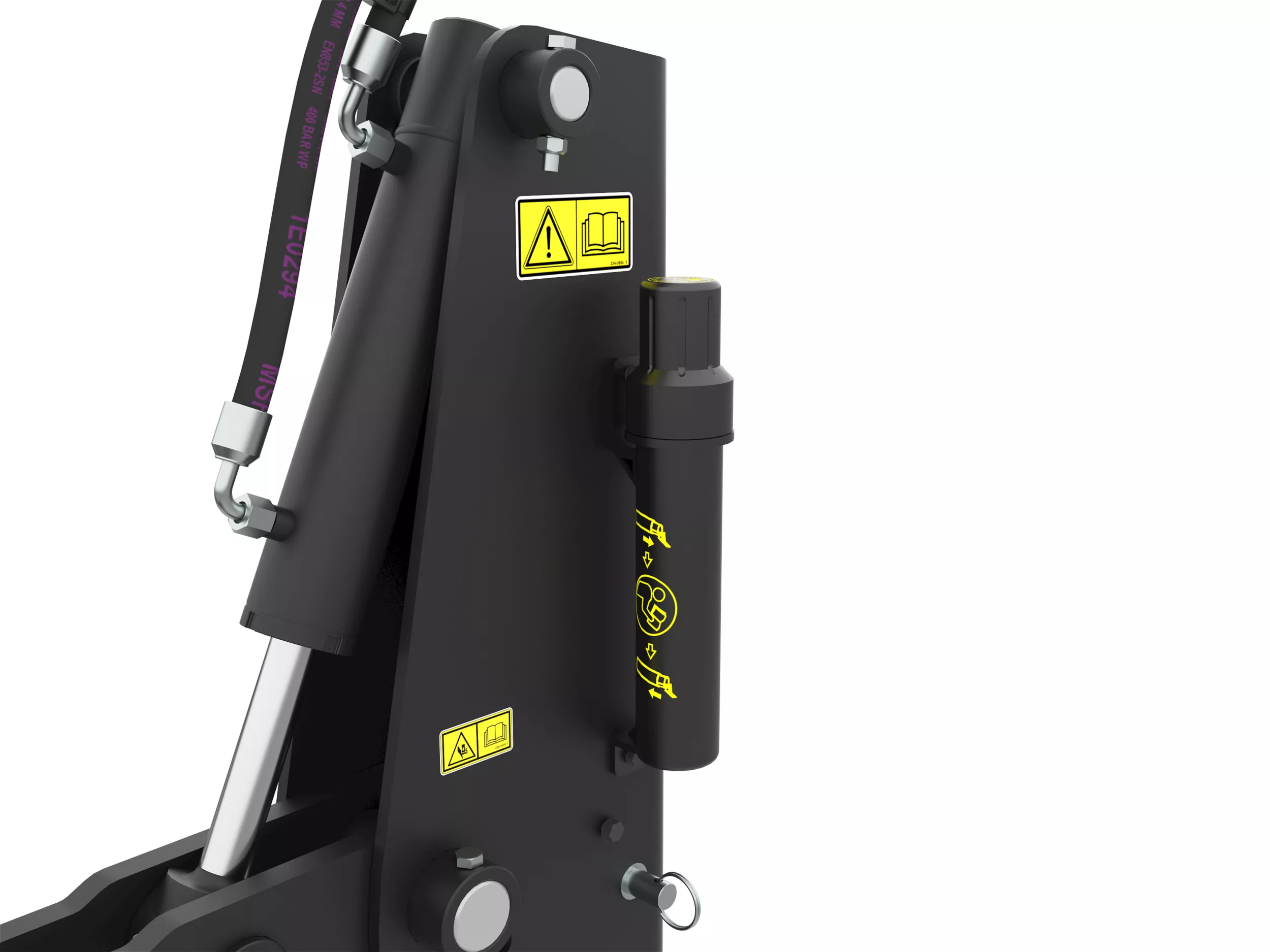

Tool mounted and sealed from the elements, this holder includes all the operation manuals and maintenance guides required for proper operation of the tool.

Special key function would allow the ripper / scarifier to be lowered to a position that allows easy engine bay access if the engine and/or battery are dead.

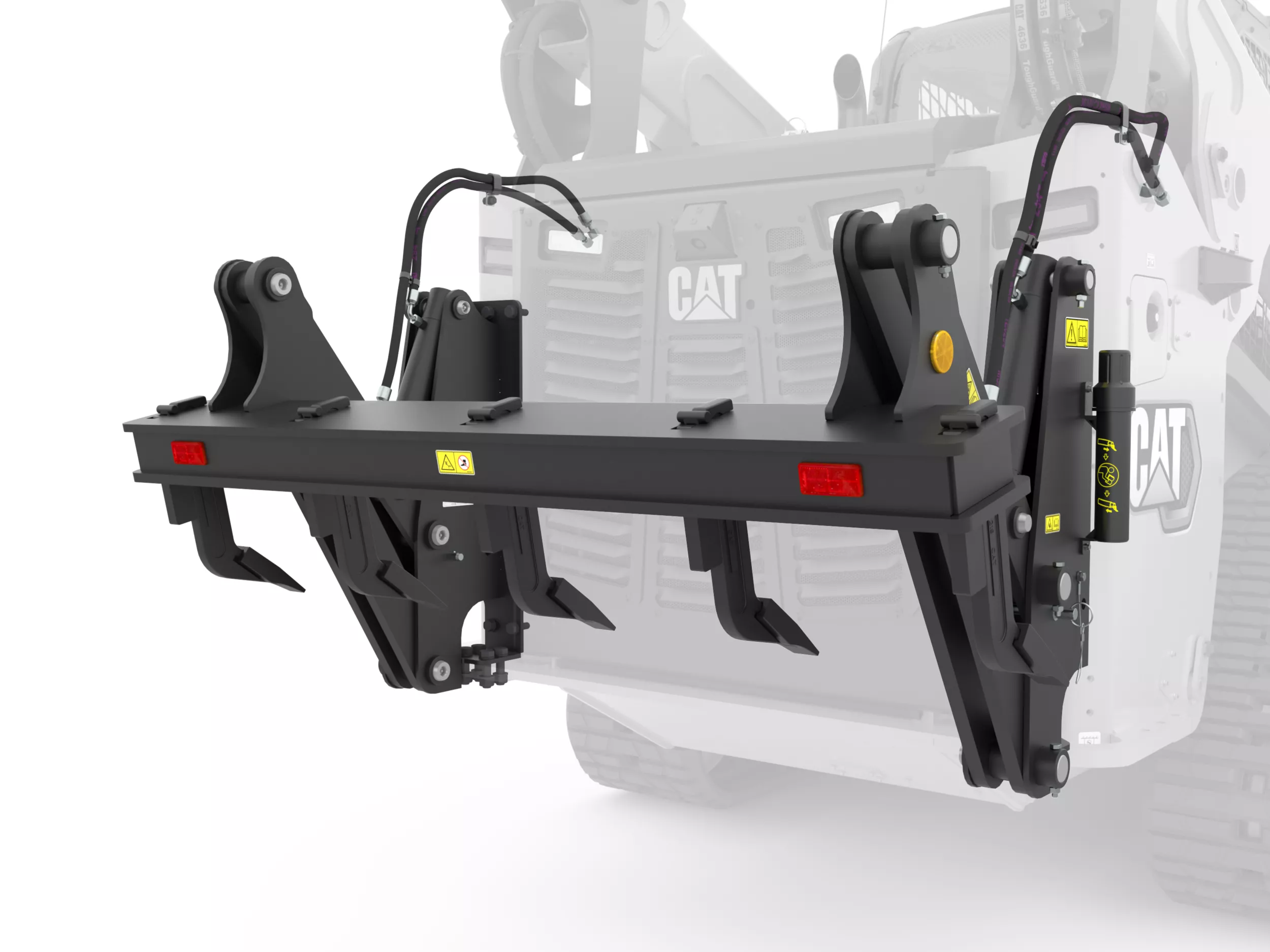

Product Specifications for 1765 mm (70 in)

Overall Width	69.5 in 1765 mm
Length	43.9 in 1115 mm
Height	54.1 in 1373 mm
Shank Spacing	14.7 in 374 mm
Weight	994.3 lb 451 kg
Optimal Hydraulic Pressure	3495.4 psi 24100 kPa
Optimal Hydraulic Flow	3.4 gpm 13 L/min
Cycle Time	2.5 seconds 2.5 seconds

Product Specifications for 1765 mm (70 in)

Download Print

Overall Width	69.5 in 1765 mm
Length	43.9 in 1115 mm
Height	54.1 in 1373 mm
Shank Spacing	14.7 in 374 mm
Weight	994.3 lb 451 kg
Optimal Hydraulic Pressure	3495.4 psi 24100 kPa
Optimal Hydraulic Flow	3.4 gpm 13 L/min
Cycle Time	2.5 seconds 2.5 seconds
