Overview
Used in industrial, construction and agricultural applications, to pick-up, carry and load a variety of materials and equipment.

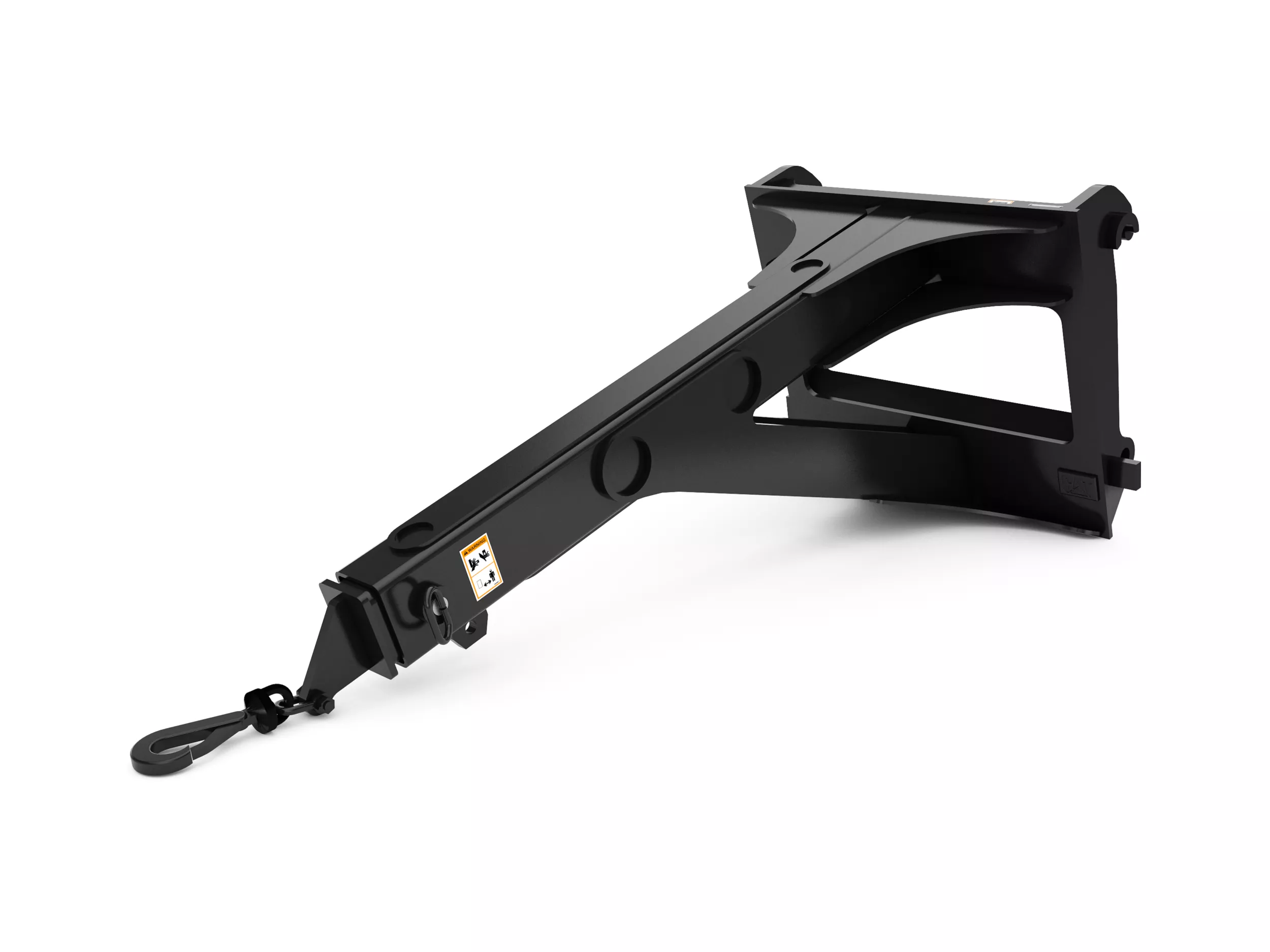

Material Handling Arms 4203 mm (165 in), HPL-ISO Coupler
Request A Price Shop NowKey Specs
- Overall Width
- 29.8 in
- 758 mm
- Maximum Load Rating
- 5361.6 lb
- 2432 kg
- Maximum Horizontal Reach
- 165.7 in
- 4208 mm
Features At A Glance
Displaying 1-6 of 5
Application
Designed to pick up, carry and load a variety of materials and equipment. Also well suited for loading, carrying and setting trees and large shrubs in landscaping applications.
Heavy Duty Design
Heavy duty design provides extra rigidity and strength.
Telescoping Inner Boom
Telescoping inner boom is pre-drilled for easy positioning. Arm length can easily be manually adjusted with a locking pin to match job and loading conditions.
Heavy Duty Locking Clasp
Heavy duty locking clasp swivels full 360 degrees.
Extendable to Three Lengths
Extendable from face of coupler to three lengths - All with the ease of pulling a single pin.
Product Specifications for 4203 mm (165 in), HPL-ISO Coupler
| Overall Width | 29.8 in 758 mm |
| Maximum Load Rating | 5361.6 lb 2432 kg |
| Maximum Horizontal Reach | 165.7 in 4208 mm |
| Weight | 1075.9 lb 488 kg |
| Overall Height | 40.8 in 1035.4 mm |
| Extended Length | 165.5 in 4203 mm |
| Retracted Length | 102.5 in 2603 mm |
| Number of Adjustments | 3 3 |
| Length Between Adjustments | 31.5 in 800 mm |
| Interface Type | HPL-ISO Coupler HPL-ISO Coupler |
See how 4203 mm (165 in), HPL-ISO Coupler compares against frequently compared products.
Material Handling
4203 mm (165 in), HPL-ISO Coupler
Selected
- Overall Width
- 29.8 in
- 758 mm
- Maximum Load Rating
- 5361.6 lb
- 2432 kg
- Maximum Horizontal Reach
- 165.7 in
- 4208 mm
Material Handling
3941 mm (155 in), IT Coupler
- Overall Width
- 26 in
- 660 mm
- Maximum Load Rating
- 4618.7 lb
- 2095 kg
- Maximum Horizontal Reach
- 155.2 in
- 3941 mm
Material Handling
4585mm (180in) Mat'l handing Arm, Fusion™
- Maximum Load Rating
- 19000 lb
- 8616 kg
- Retracted Length
- 120 in
- 3061 mm
- Extended Length
- 187 in
- 4762 mm
