Hammers B1

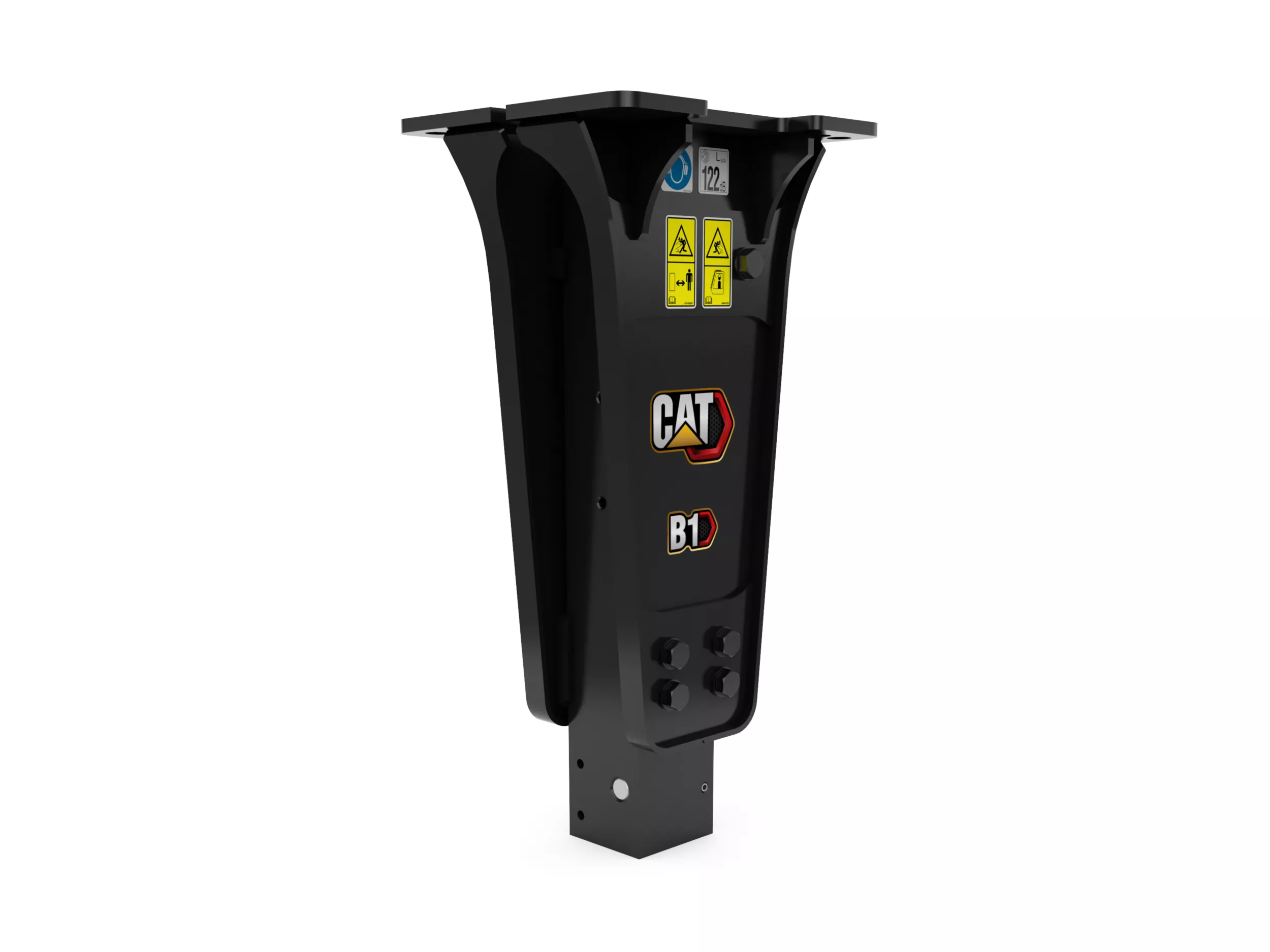

Name: B1 Non-Sillenced Hydraulic Hammer
Brand: Cat

New Used Rental

Request A Price Shop Now

Key Specs

Operating Weight - With Tool: 183.2 lb; 83.1 kg

Energy Class: 147.5 ft·lbf; 200 J

Machine Class: 1-2 Ton Mini Excavators; 1-2 Ton Mini Excavators

B1
Change model

Overview

Used for demolition and construction applications.

Features At A Glance

Displaying 1-6 of 6

Application

CatÂ® B Hammers are suitable for use in a wide range of construction and light demolition applications â€“ such as breaking concrete sidewalks and driveways, pavement, roads, masonry, site prep and landscaping, and breaking frozen ground for utility repairs.

Ergonomically Positioned Hydraulic Lines

Ergonomically positioned hydraulic lines are designed to optimize serviceability, are easily accessible and require no special tools. Housing has been positioned to protect against force and dirt during impact but allow for wrench access. Hydraulic lines and back head pressure can be checked and charged while breaker is mounted to machine, allowing quick monitoring of breakerâ€™s condition.

Gas Fired Design

Gas fired design delivers consistently high production over time making the breaker reliable in applications such as concrete, asphalt, rock and light trenching.

Flat Top/Top Mount Style

Flat top/top-mount style provides a larger work area and excellent operator visibility with a common footprint and hole pattern for optimum versatility. Top-mount style increases impact power by keeping breaker force and stick force in line. A top-mount bracket will transfer back significantly less recoil and bending stress into the end of the stick, resulting in reduced impact on machine structures. Full complement of mounting brackets is available to suite coupler or pin-on preference.

Slip Fit Bushings

Slip fit bushings are field replaceable and easy to maintain due to one locking pin, extending wear life and reducing owning and operating costs. Upper bushing rotates 360Â°, lower bushing has two positions and can be rotated 90Â°.

Included with Each B Series Hammer

Every B Series Hammer comes with:

Tool Kit w/Storage Box
2 Tools (1 x Conical and 1 x Transverse Chisel)
Maintenance Kit

Gas fired design delivers consistently high production over time making the breaker reliable in applications such as concrete, asphalt, rock and light trenching.

Every B Series Hammer comes with:

Tool Kit w/Storage Box
2 Tools (1 x Conical and 1 x Transverse Chisel)
Maintenance Kit

Product Specifications for B1

Operating Weight - With Tool	183.2 lb 83.1 kg
Energy Class	147.5 ft·lbf 200 J
Machine Class	1-2 Ton Mini Excavators 1-2 Ton Mini Excavators
Tool Shaft Diameter	1.6 in 40 mm
Impact Frequency	800-1400 bpm 800-1400 bpm
Minimum Operating Pressure	1276 psi 8798 kPa
Minimum Carrier Weight	2420.7 lb 1098 kg
Optimal Hydraulic Flow	15-25 lpm (4-6.6 gpm) 15-25 lpm (4-6.6 gpm)
Overall Width	11.8 in 300 mm
Overall Length	13.4 in 340 mm
Overall Height	38.1 in 968 mm
Height - Without Tool	27.1 in 688 mm
Sound Level	122 dB 122 dB
Mounting Bracket Size	Small-Medium Small-Medium
