Overview
Increase machine versatility and improve overall production.
Dual Lock™ Pin Grabber Couplers - Mini Excavator 10 Ton Mini Excavators Hydraulic
Key Specs
- Weight
- 337.3 lb
- 153 kg
- Width
- 14.9 in
- 379 mm
- Length
- 30.5 in
- 775 mm
Features At A Glance
Hydraulic Cylinder Lock
Hydraulic cylinder lock maintains positive pressure on bucket pin, ensuring a consistent and reliable connection to your attachment.
Secondary Lock
The secondary lock is independent of the cylinder and ensures the connection of the attachment to the machine.
Visual Verification Tab
The visual verification tab allows the operator to visibly confirm, from the cab, that the coupler has successfully locked the attachment into place properly.
Product Specifications for 10 Ton Mini Excavators Hydraulic
| Weight | 337.3 lb 153 kg |
| Width | 14.9 in 379 mm |
| Length | 30.5 in 775 mm |
| Overall Height | 7.6 in 348 mm |
| Pin Diameter | 2.4 in 60 mm |
| Machine Class | 10 Ton Mini Excavators 10 Ton Mini Excavators |
| Interface Type | Pin On Pin On |
| Required Hydraulics | Dedicated Factory Installed Dedicated Factory Installed |
See how 10 Ton Mini Excavators Hydraulic compares against frequently compared products.
Couplers - Excavator
10 Ton Mini Excavators Hydraulic
Selected
- Weight
- 337.3 lb
- 153 kg
- Width
- 14.9 in
- 379 mm
- Length
- 30.5 in
- 775 mm
Couplers - Excavator
8 Ton Mini Excavators Manual
- Weight
- 196.2 lb
- 89 kg
- Width
- 11.5 in
- 292 mm
- Length
- 23.3 in
- 591 mm
Couplers - Excavator
8 Ton Mini Excavators Hydraulic
- Weight
- 211.6 lb
- 96 kg
- Width
- 14.6 in
- 370 mm
- Length
- 23.4 in
- 595 mm
assignment Product Brochures and More Are Ready to Download!
Caterpillar product brochures and other informational documents are available for your growing business.
Media Gallery
Photos
Videos
Studio Shot
Front View
Top View

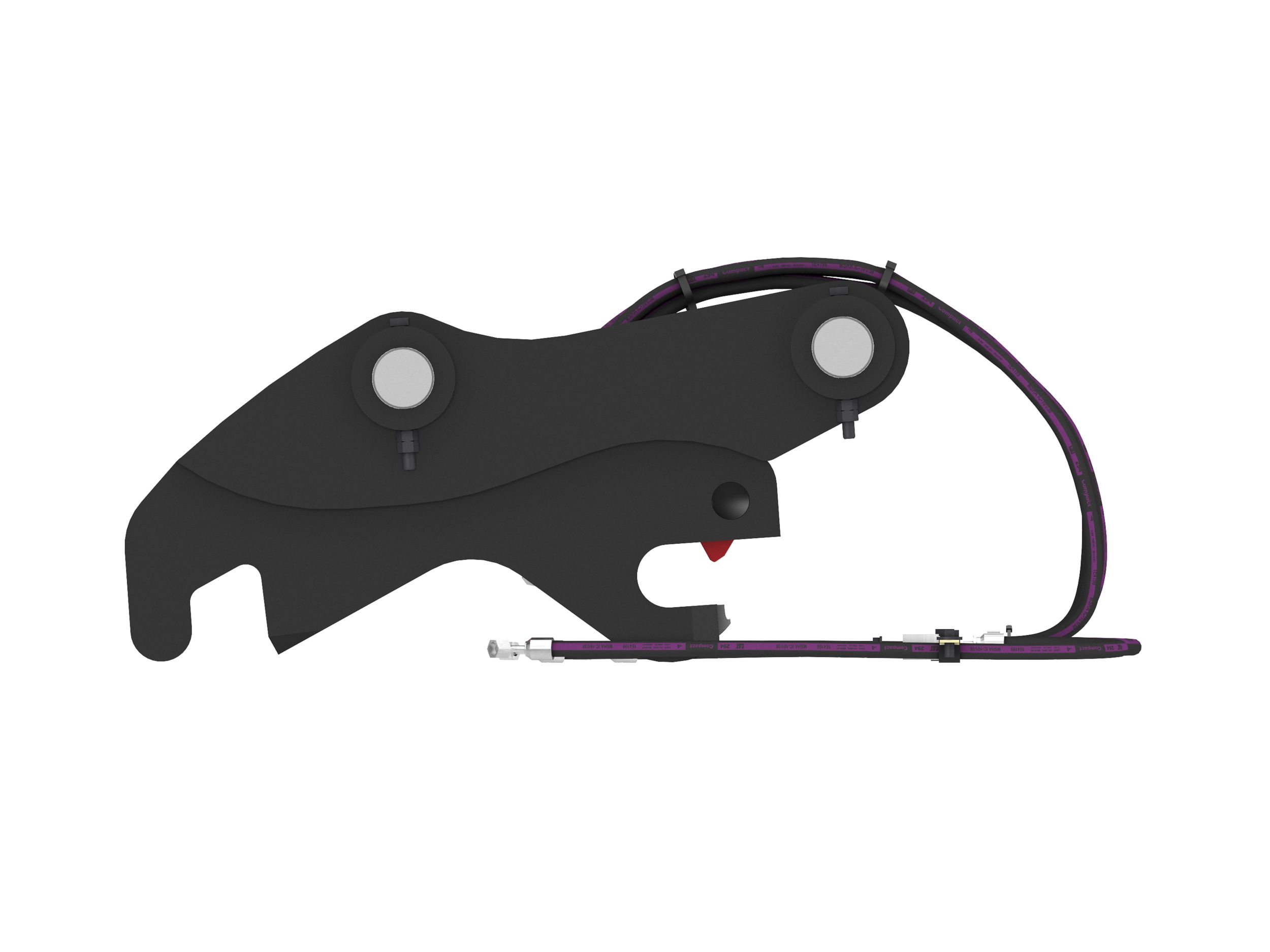

Left View

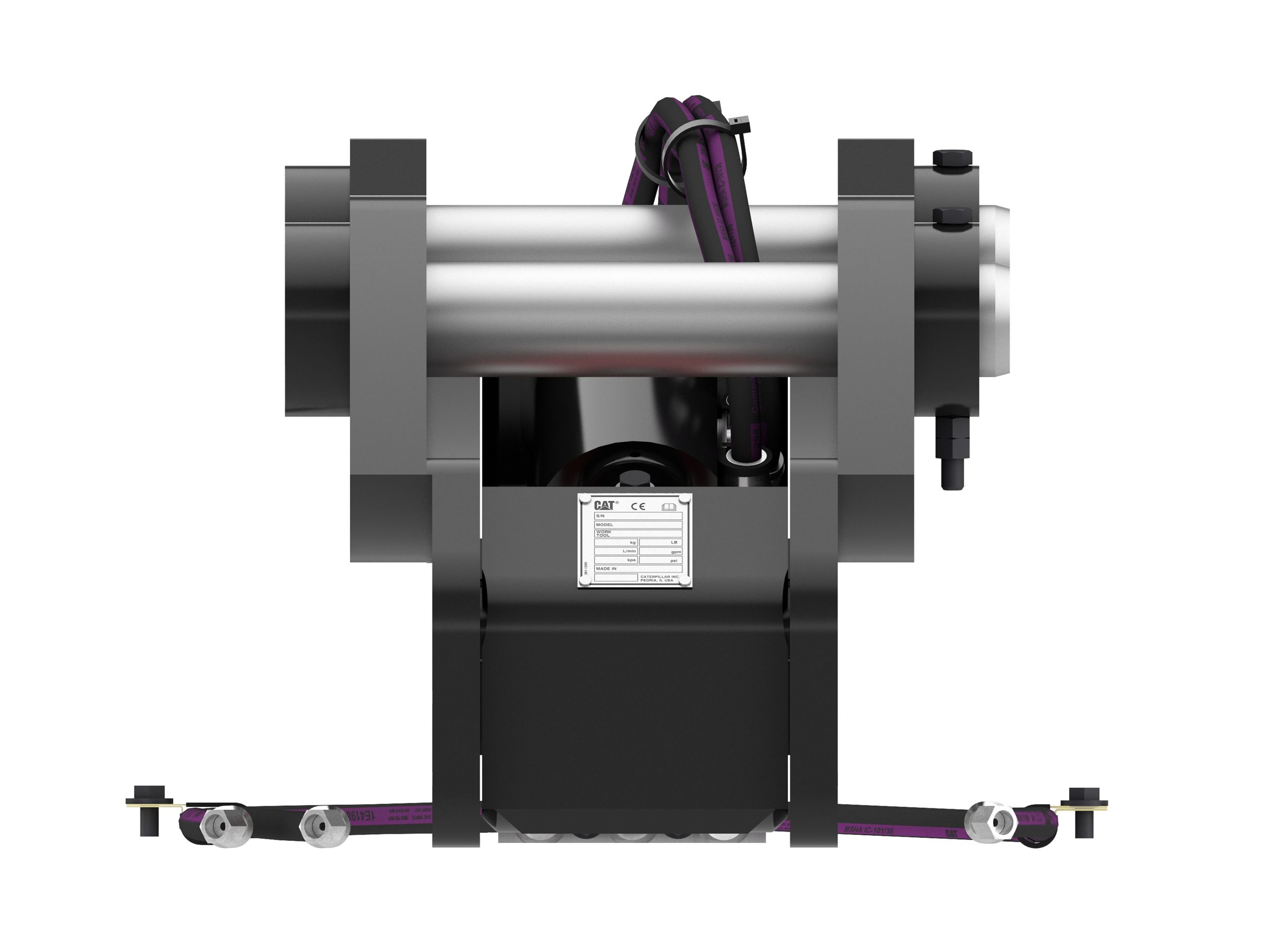

Rear View
Bottom View

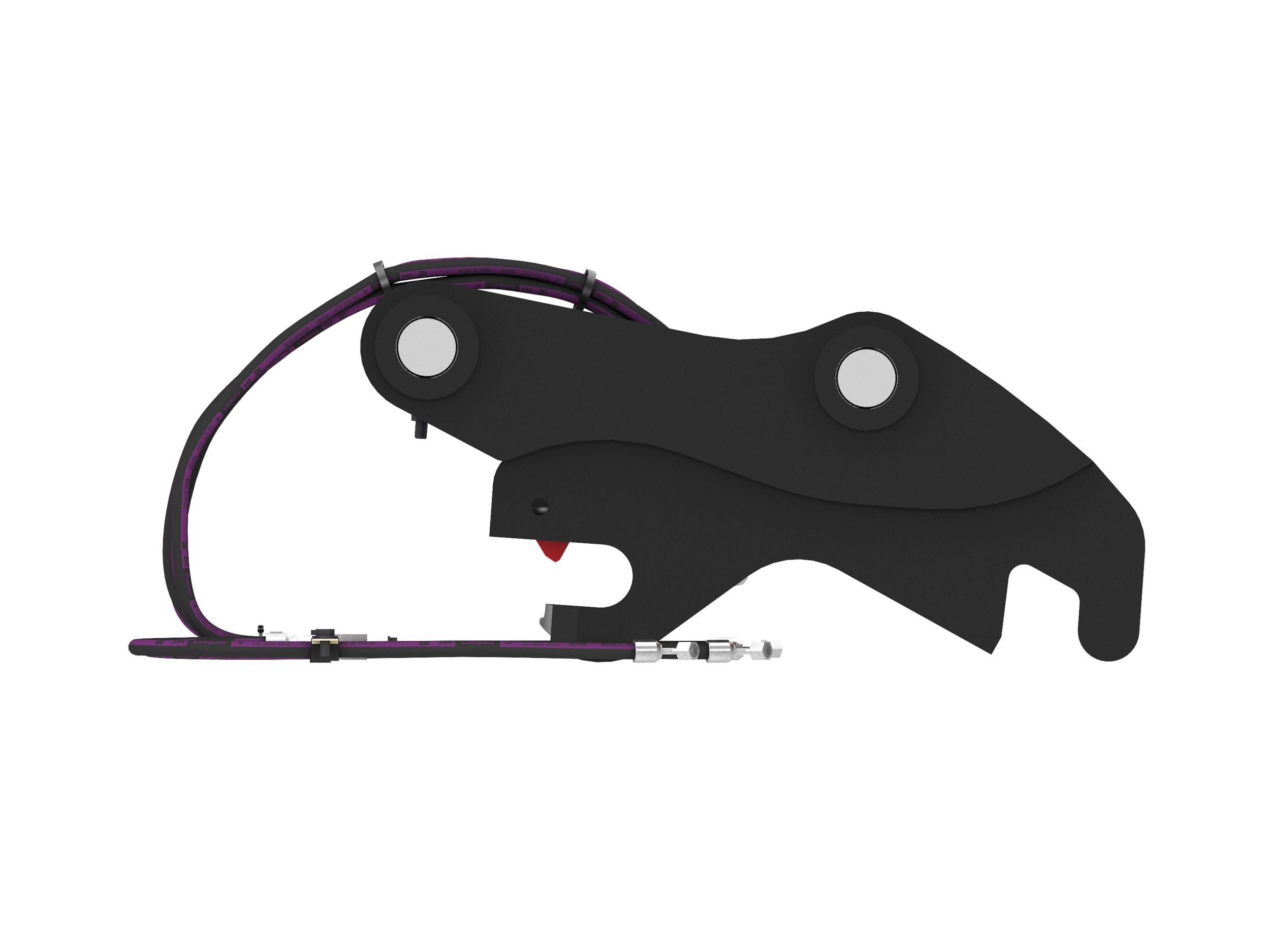

Right View
Cat® Manual Dual Lock™ Coupler Overview
Cat® Hydraulic Dual Lock™ Coupler Overview
An Attachment for Every Job - Cat® Work Tool Attachments
