Dual Lock™ Pin Grabber Couplers - Mini Excavator 1 Ton Mini Excavators Manual


Key Specs

Weight
31.7 lb
14.4 kg
Width
7.2 in
182 mm
Length
11.7 in
297 mm

Overview

Increase machine versatility and improve overall production.

Features At A Glance

Displaying 1-6 of 5

Manual Cylinder Lock

Manual Cylinder Lock

Manual cylinder lock maintains positive pressure on bucket pin, ensuring a consistent and reliable connection to your attachment.
Secondary Lock

Secondary Lock

The secondary lock is independent of the cylinder and ensures the connection of the attachment to the machine.
Included Adjustment Wrench

Included Adjustment Wrench

The included ratcheting wrench is used to tighten the coupler onto your attachment to maintain a positive lock.
Cylinder Lock Adjustment

Cylinder Lock Adjustment

Rotate nut to engage/disengage cylinder lock.
Secondary Lock Adjustment

Secondary Lock Adjustment

Down-Disengage. Up-Engage.

Product Specifications for 1 Ton Mini Excavators Manual

Weight 31.7 lb 14.4 kg
Width 7.2 in 182 mm
Length 11.7 in 297 mm
Overall Height 7 in 179 mm
Pin Diameter 1.2 in 30 mm
Machine Class 1-2 Ton Mini Excavators 1-2 Ton Mini Excavators
Interface Type Pin On Pin On

See how 1 Ton Mini Excavators Manual compares against frequently compared products.

Product Brochures and More Are Ready to Download!

Media Gallery

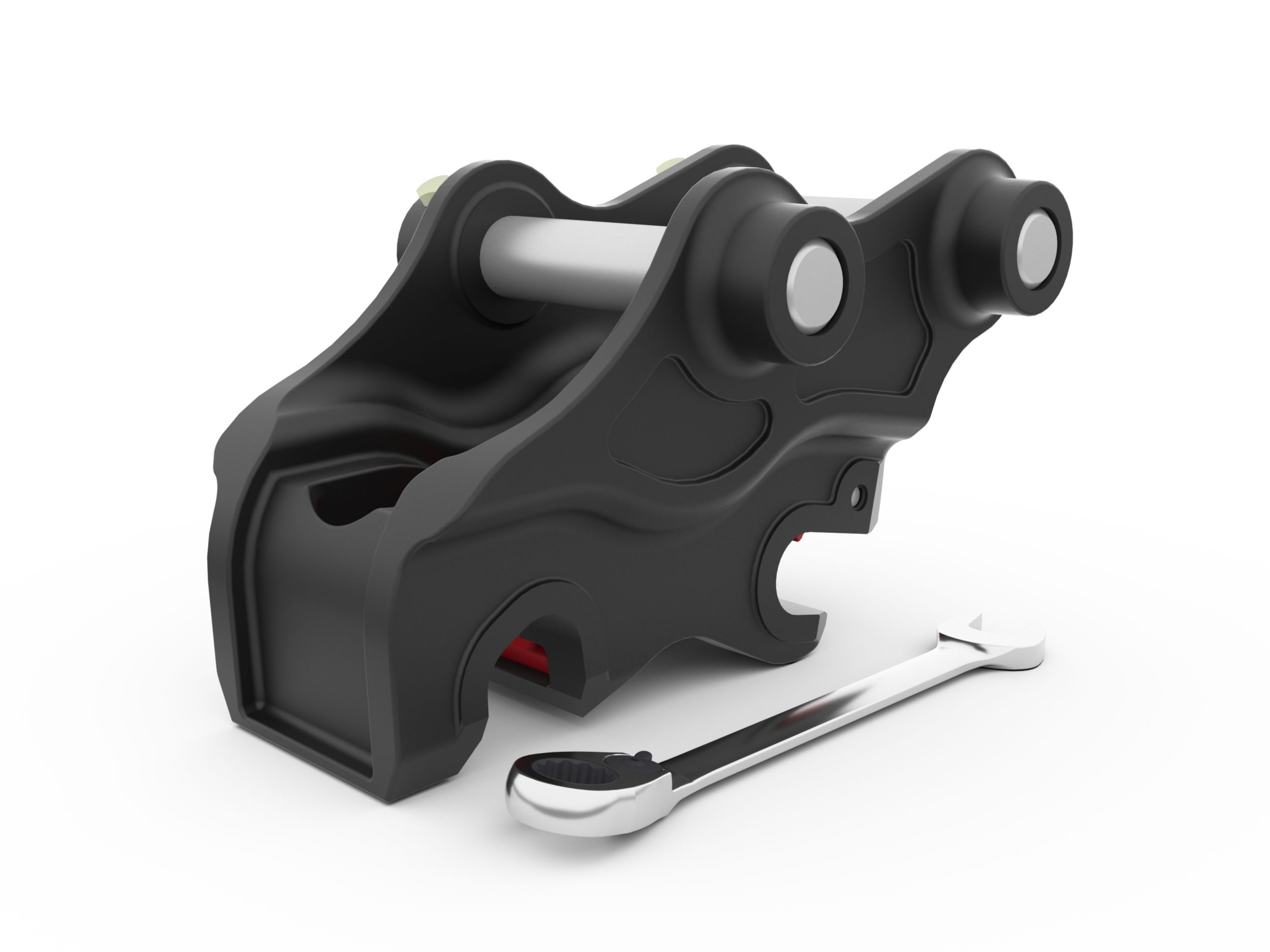

Studio Shot

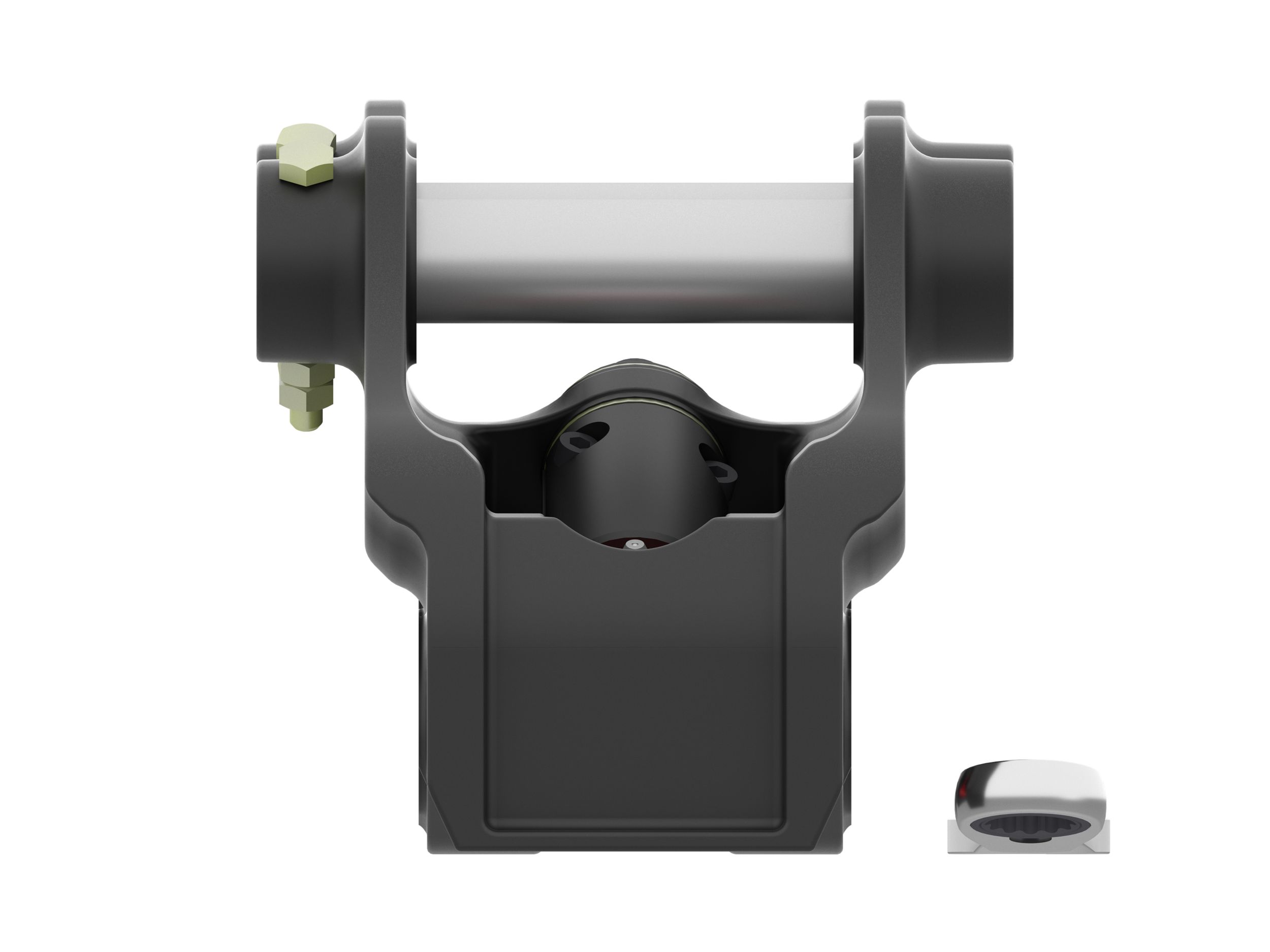

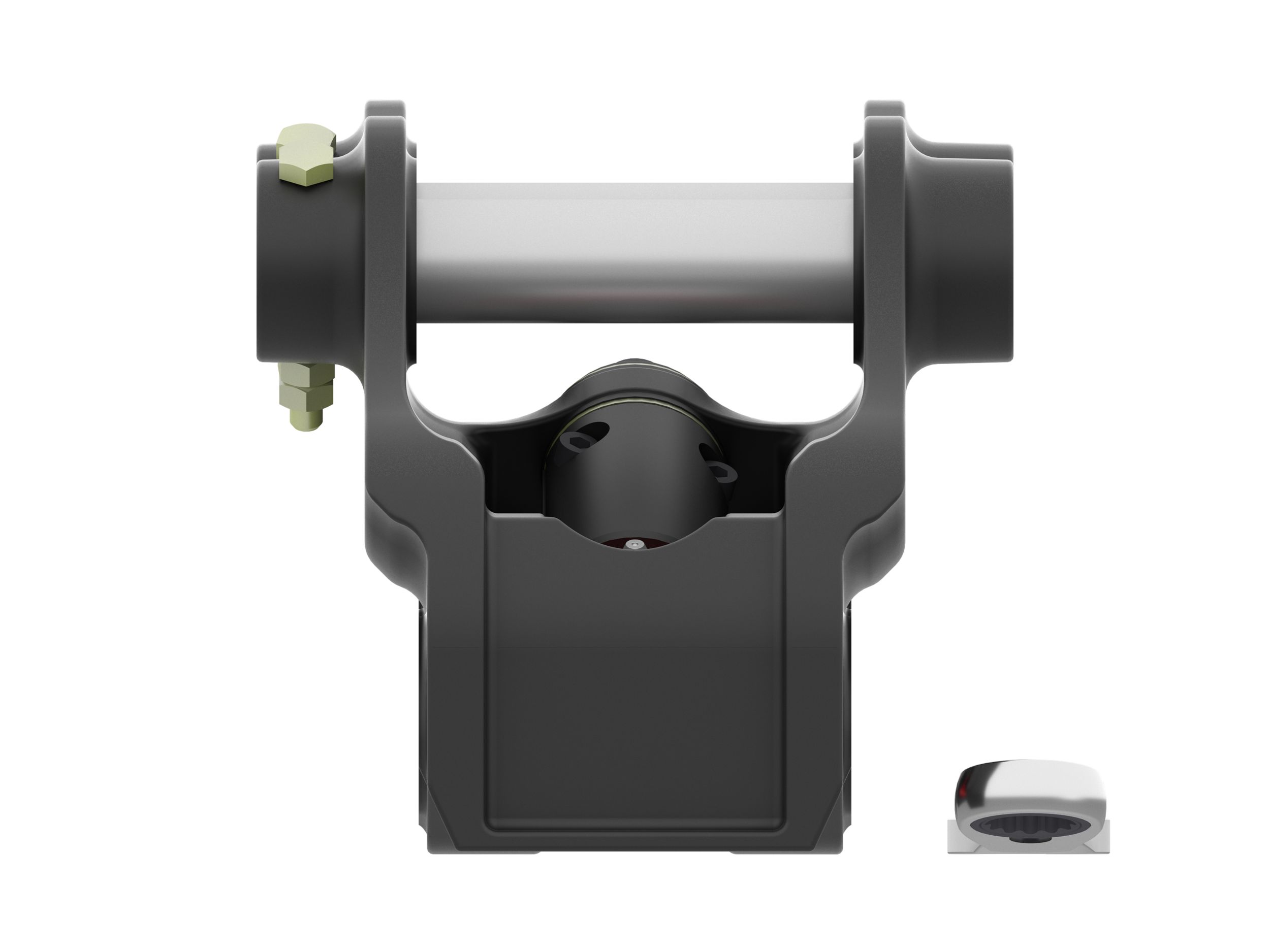

Front View

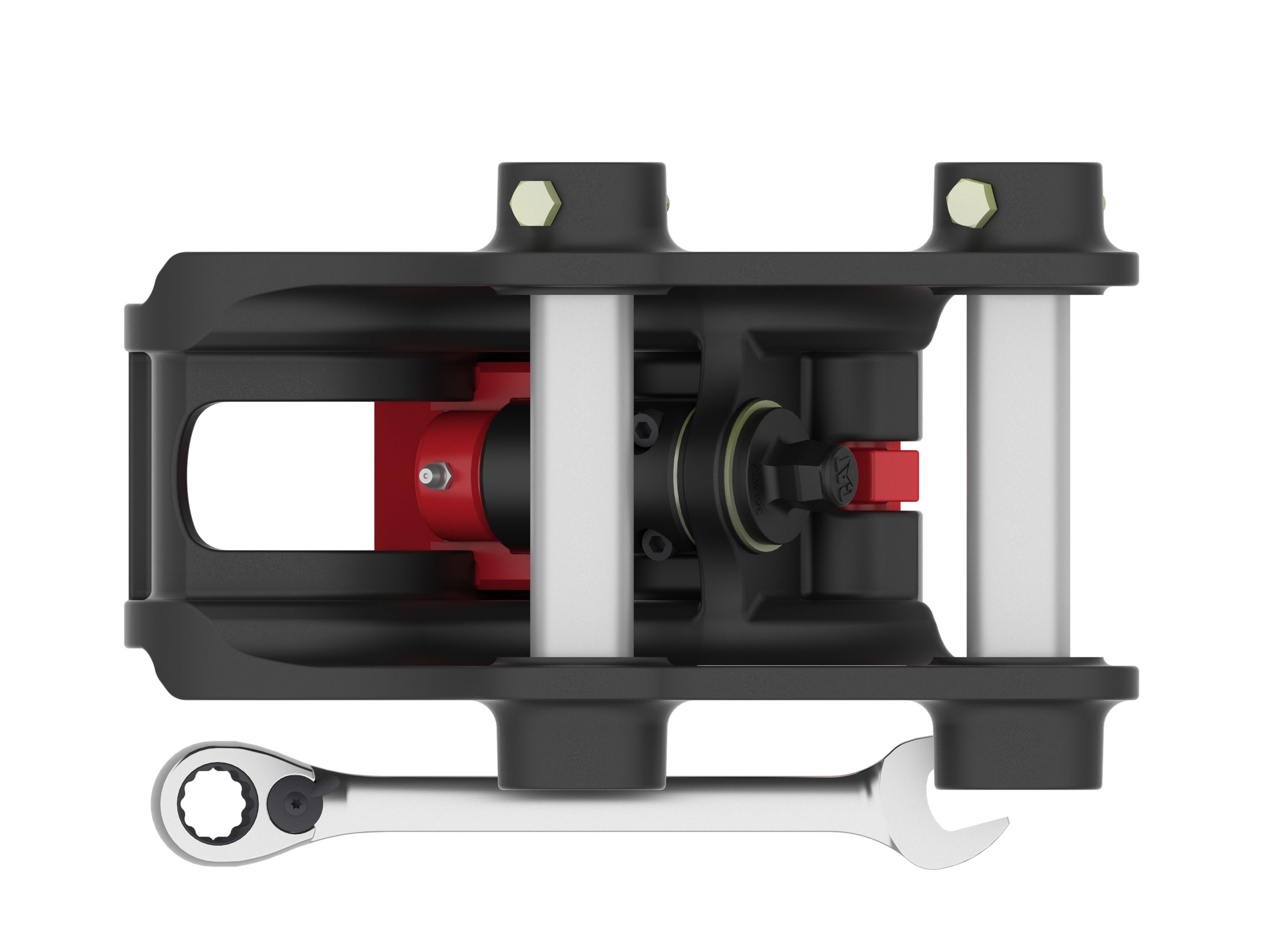

Top View

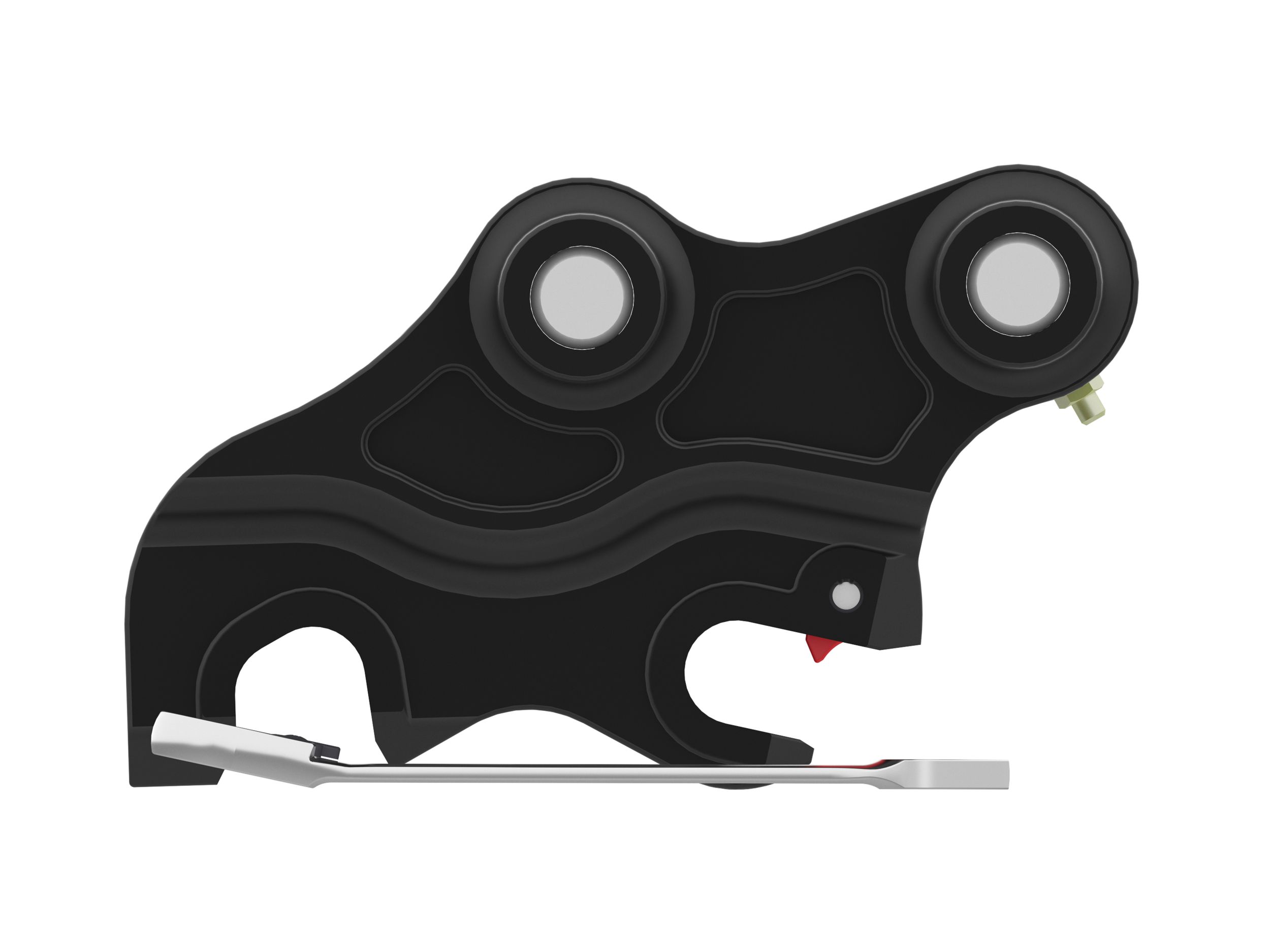

Left View

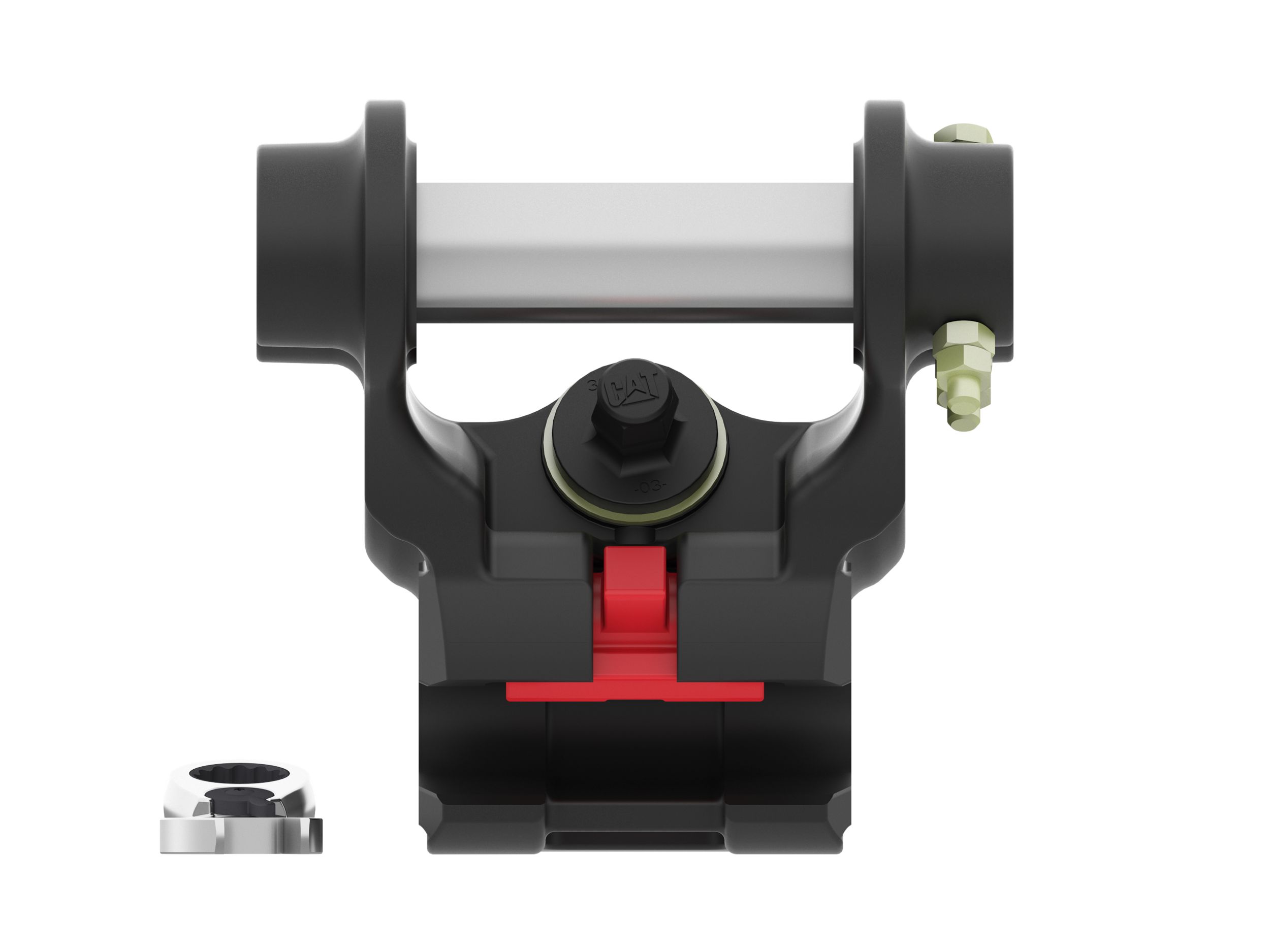

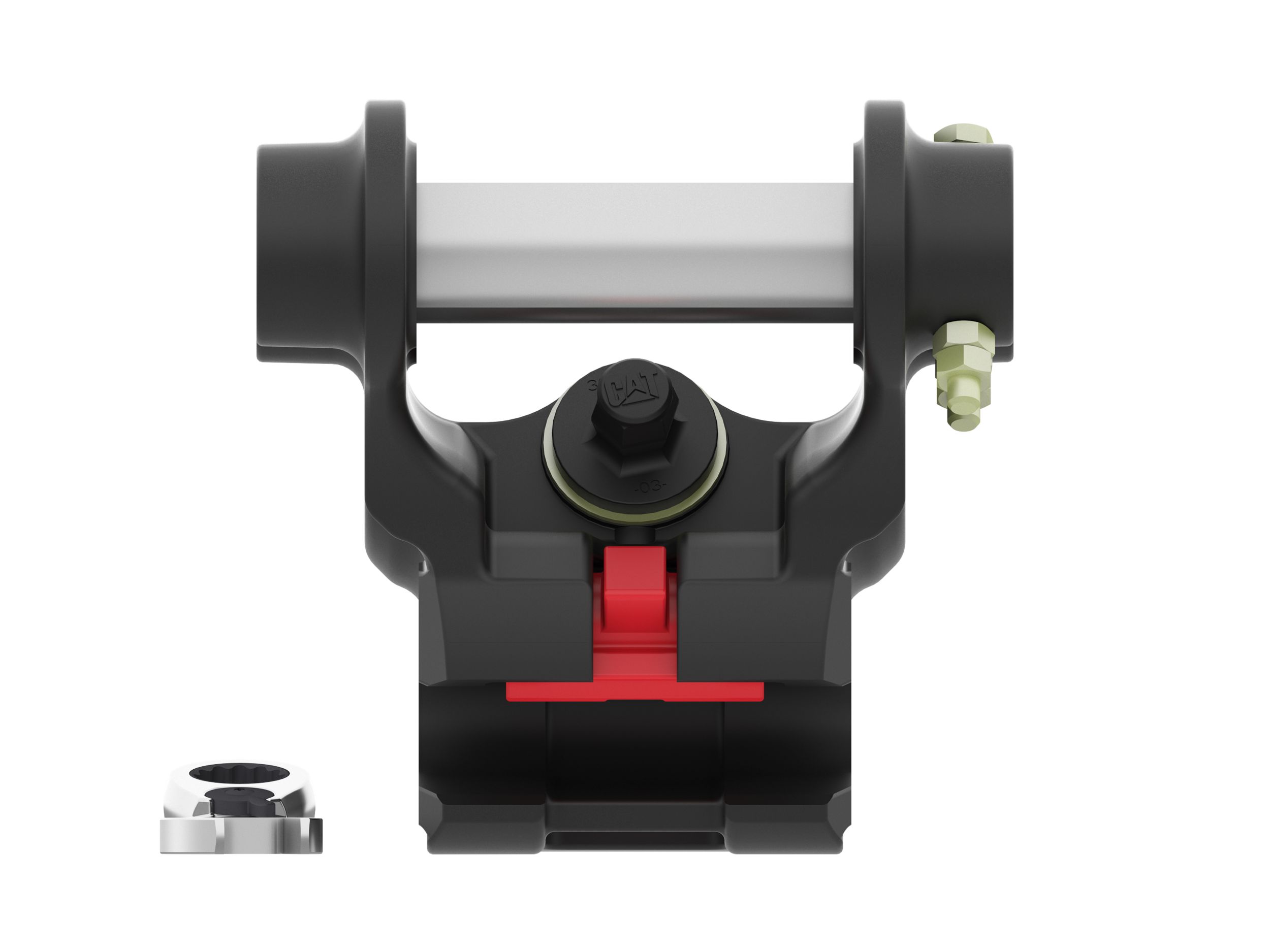

Rear View

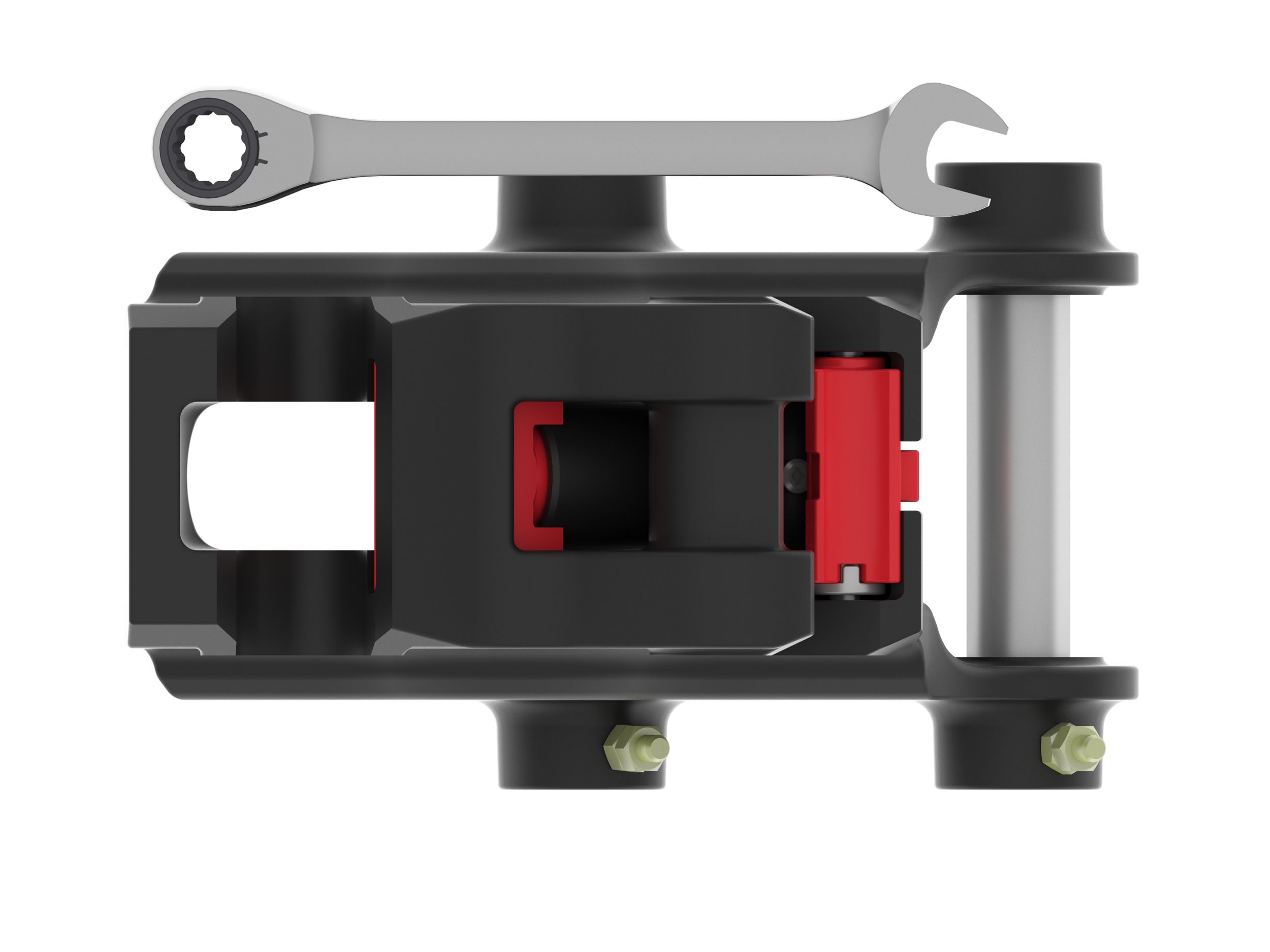

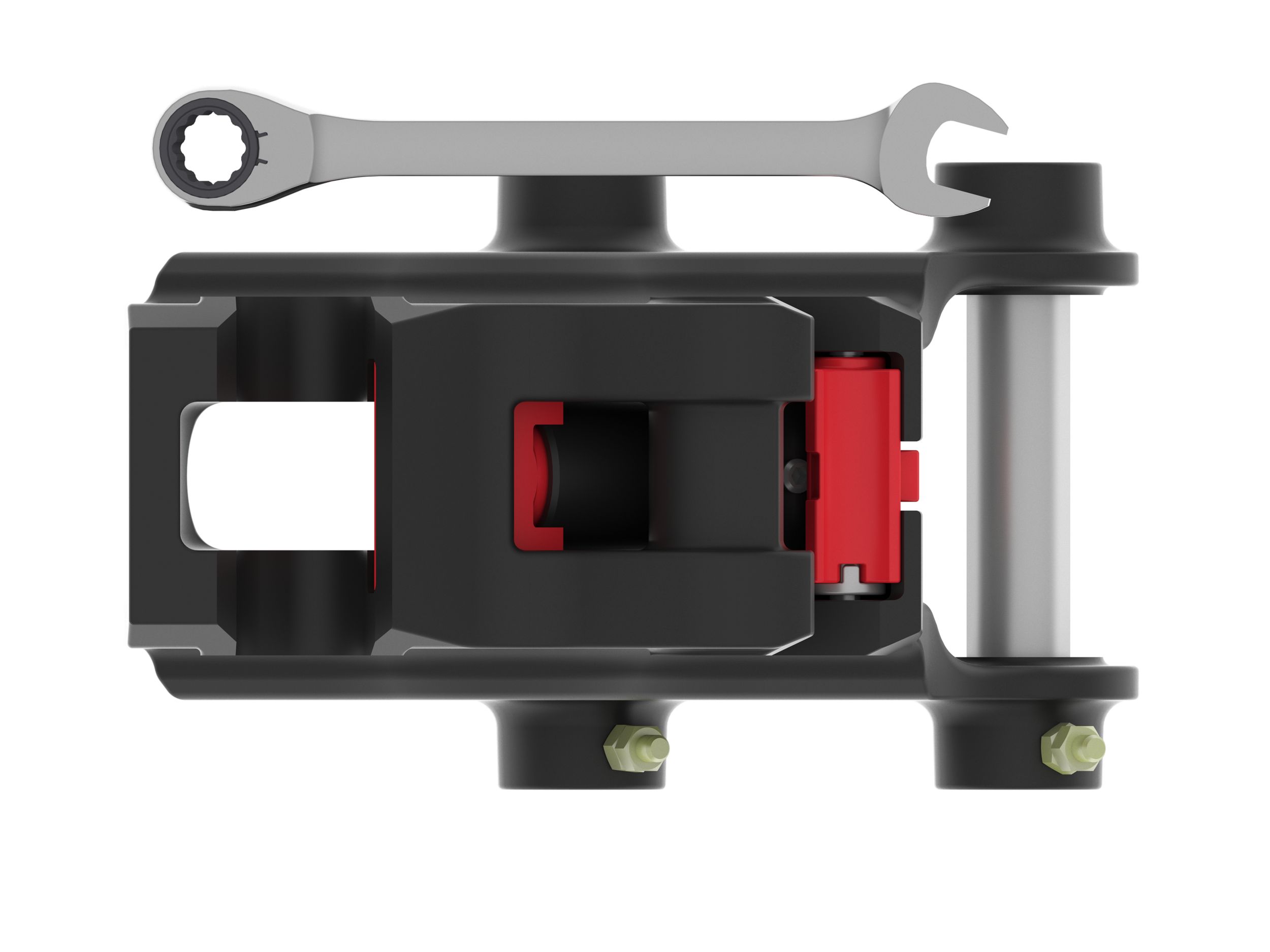

Bottom View

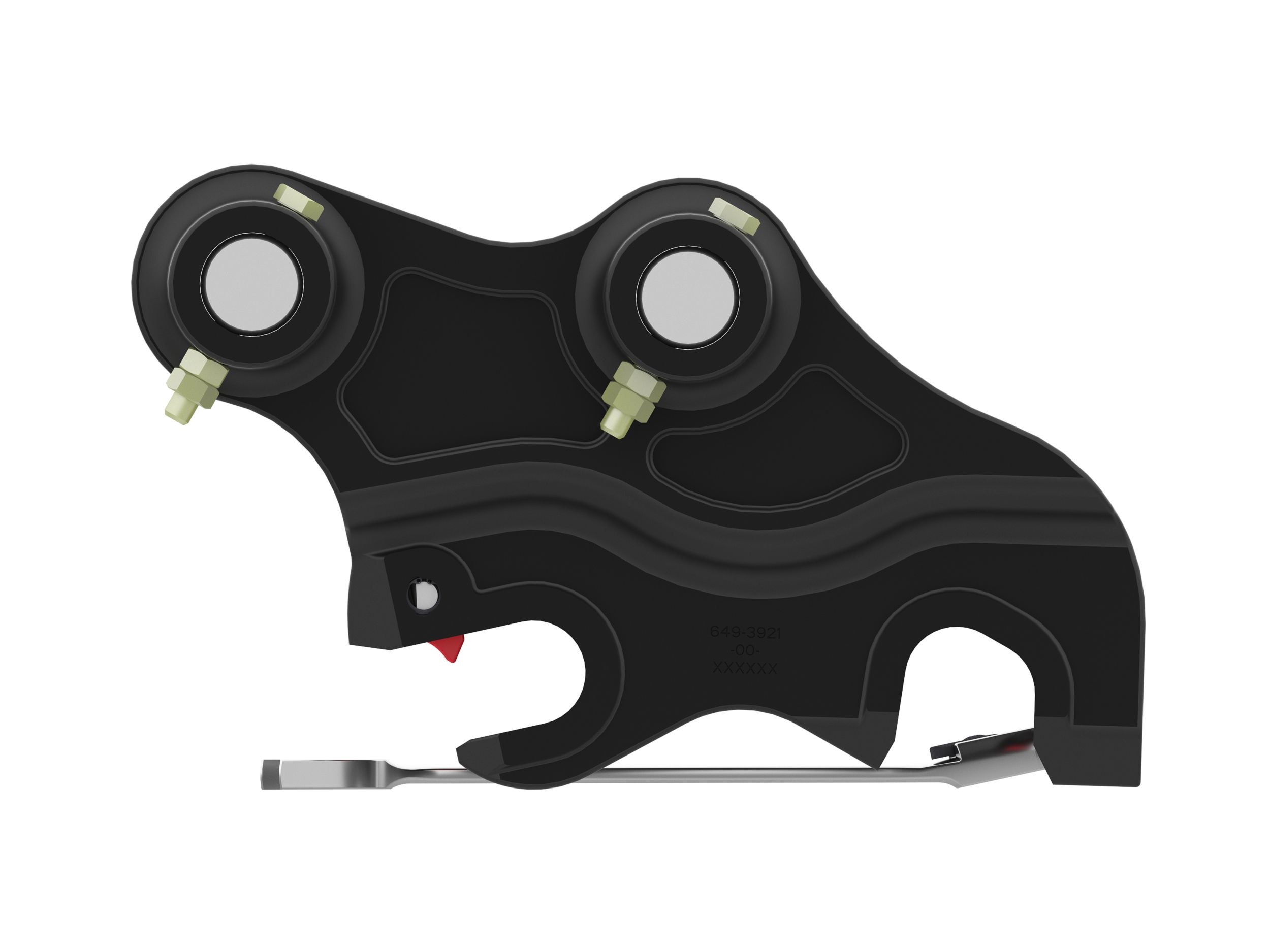

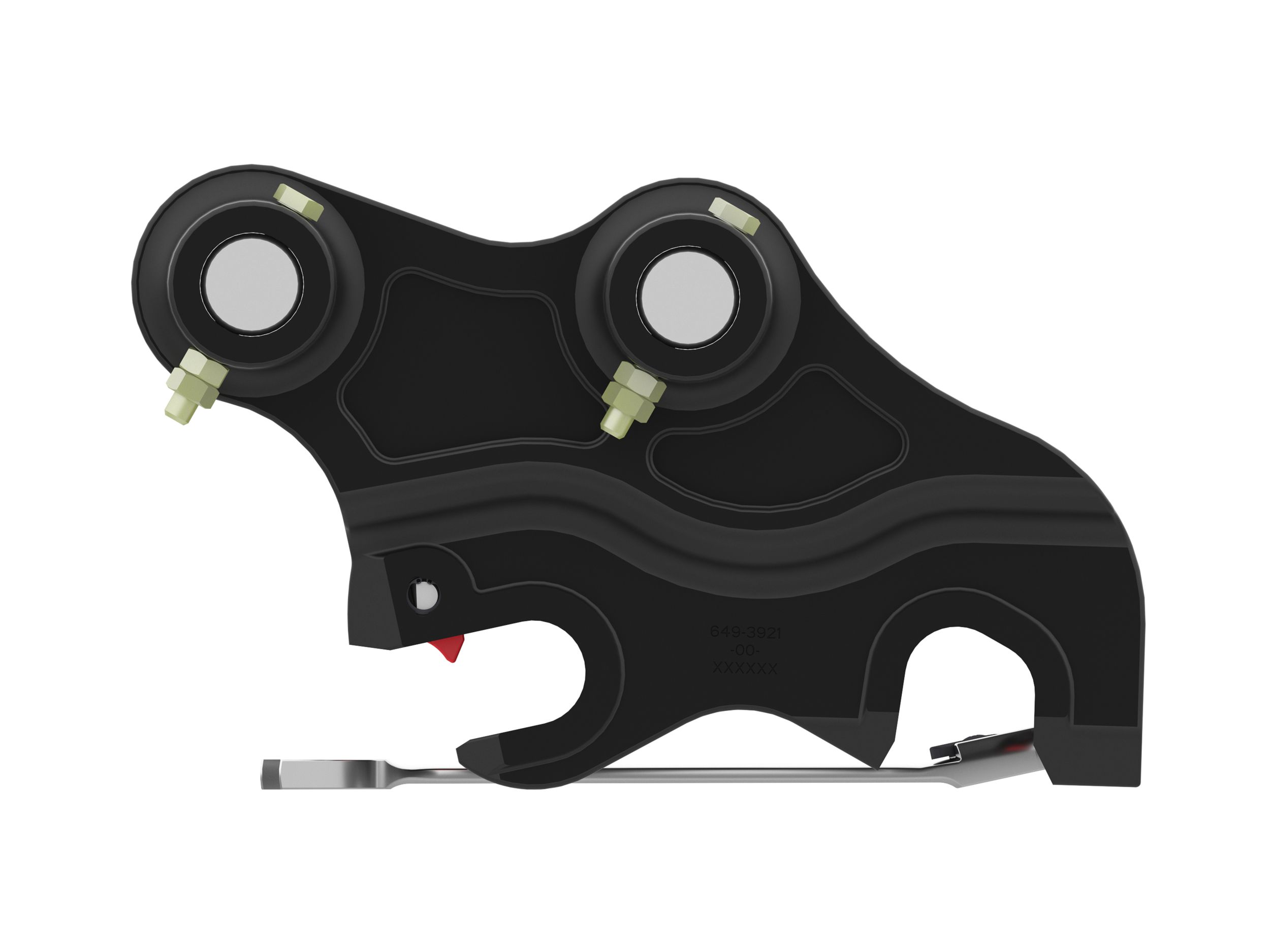

Right View
