Overview
Increase machine versatility and improve overall production.

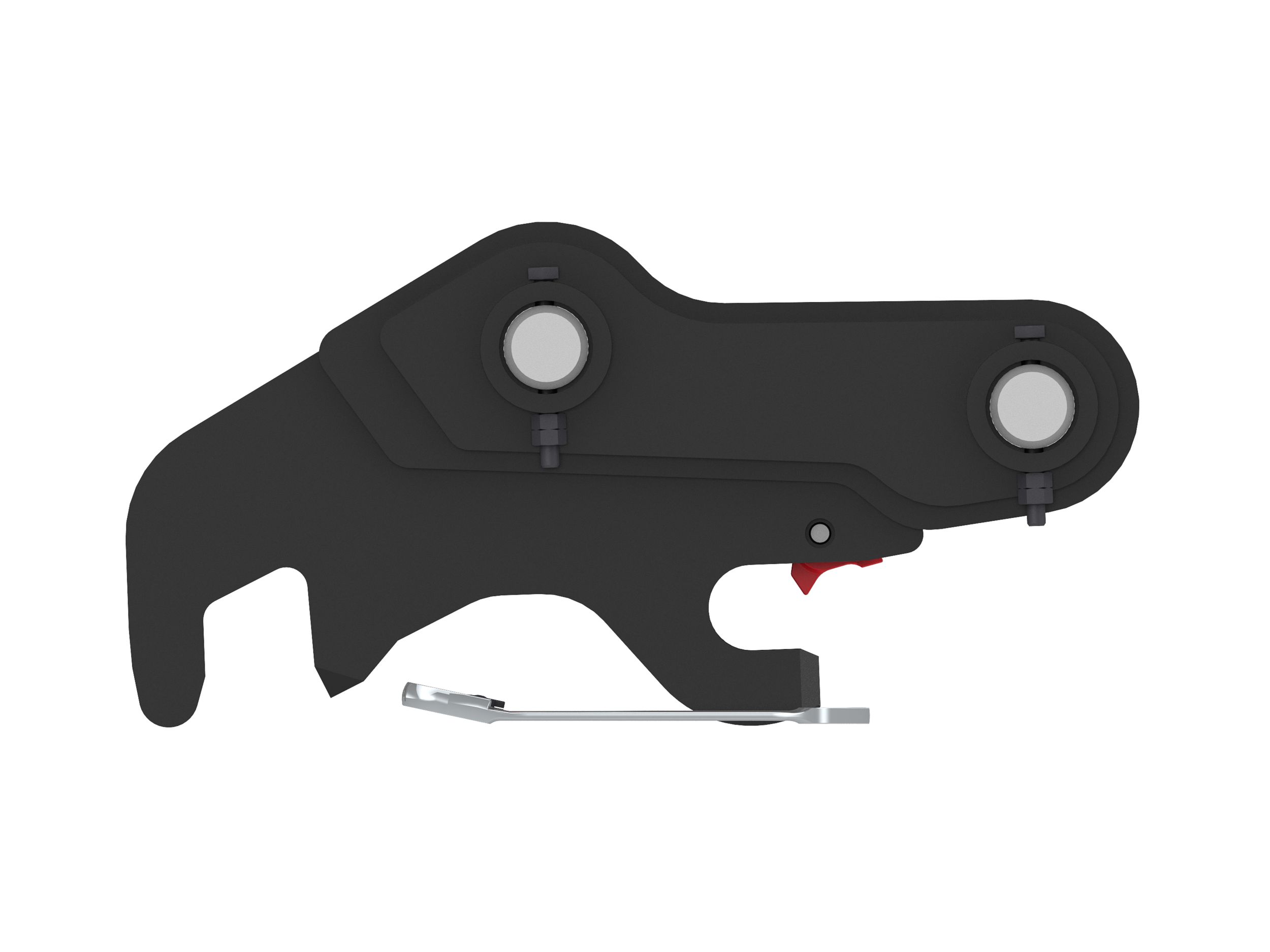

Dual Lock™ Pin Grabber Couplers - Mini Excavator 5 Ton Mini Excavators Manual
Key Specs
- Weight
- 123.5 lb
- 56 kg
- Width
- 11.7 in
- 298 mm
- Length
- 20.8 in
- 528 mm
Product Specifications for 5 Ton Mini Excavators Manual
| Weight | 123.5 lb 56 kg |
| Width | 11.7 in 298 mm |
| Length | 20.8 in 528 mm |
| Overall Height | 11.5 in 292 mm |
| Pin Diameter | 1.8 in 45 mm |
| Machine Class | 5 Ton Mini Excavators 5 Ton Mini Excavators |
| Interface Type | Pin On Pin On |
| Required Hydraulics | None Required None Required |
See how 5 Ton Mini Excavators Manual compares against frequently compared products.
Couplers - Excavator
5 Ton Mini Excavators Manual
Selected
- Weight
- 123.5 lb
- 56 kg
- Width
- 11.7 in
- 298 mm
- Length
- 20.8 in
- 528 mm
Couplers - Excavator
5 Ton Mini Excavators Hydraulic
- Weight
- 169.8 lb
- 77 kg
- Width
- 10.7 in
- 272 mm
- Length
- 20.8 in
- 528 mm
Couplers - Excavator
8 Ton Mini Excavators Hydraulic
- Weight
- 211.6 lb
- 96 kg
- Width
- 14.6 in
- 370 mm
- Length
- 23.4 in
- 595 mm
