Pin Lock Couplers 416D Backhoe Loaders Tilting

Request A Price Shop Now

Key Specs

Weight: 242.3 lb; 109.9 kg

Width: 16.9 in; 430.51 mm

Length: 25.4 in; 644.45 mm

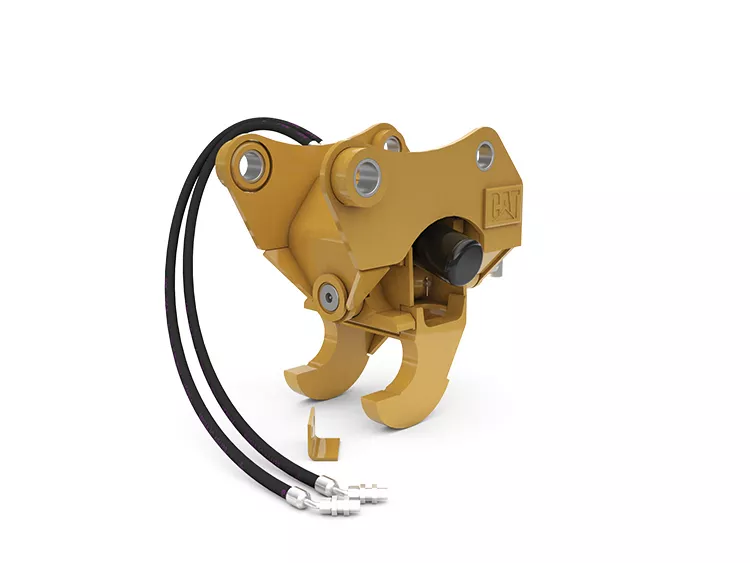

416D Backhoe Loaders Tilting
Change model

Overview

Utilize one coupler to match existing work tool attachments with new Cat® machines or similarly-sized competitive machines.

Features At A Glance

Zinc plated engagement pin prevents corrosion, allowing for trouble free operation in harsh environments.

Standard locking pin with lanyard prevents loss and provides a placement holder when not in use.

Engagement points on coupler hooks are doubled plated for extending the life of the coupler. The increased contact area also provides additional stability for connected attachments. (450/310 versions only)

Fully compatible with Wain-Roy and Gannon-style buckets.

Product Specifications for 416D Backhoe Loaders Tilting

Weight	242.3 lb 109.9 kg
Width	16.9 in 430.51 mm
Length	25.4 in 644.45 mm
Overall Height	21.5 in 547.25 mm
Pin Diameter	45 mm/50 mm (1.8 in/2 in) 45 mm/50 mm (1.8 in/2 in)
Machine Class	416D Backhoe Loaders 416D Backhoe Loaders
Interface Type	Pin On Pin On
Required Hydraulics	Dedicated Factory Installed Dedicated Factory Installed
Tilt Angle Range	90° Left/Right 90° Left/Right

Product Specifications for 416D Backhoe Loaders Tilting

Download Print

Weight	242.3 lb 109.9 kg
Width	16.9 in 430.51 mm
Length	25.4 in 644.45 mm
Overall Height	21.5 in 547.25 mm
Pin Diameter	45 mm/50 mm (1.8 in/2 in) 45 mm/50 mm (1.8 in/2 in)
Machine Class	416D Backhoe Loaders 416D Backhoe Loaders
Interface Type	Pin On Pin On
Required Hydraulics	Dedicated Factory Installed Dedicated Factory Installed
Tilt Angle Range	90° Left/Right 90° Left/Right
