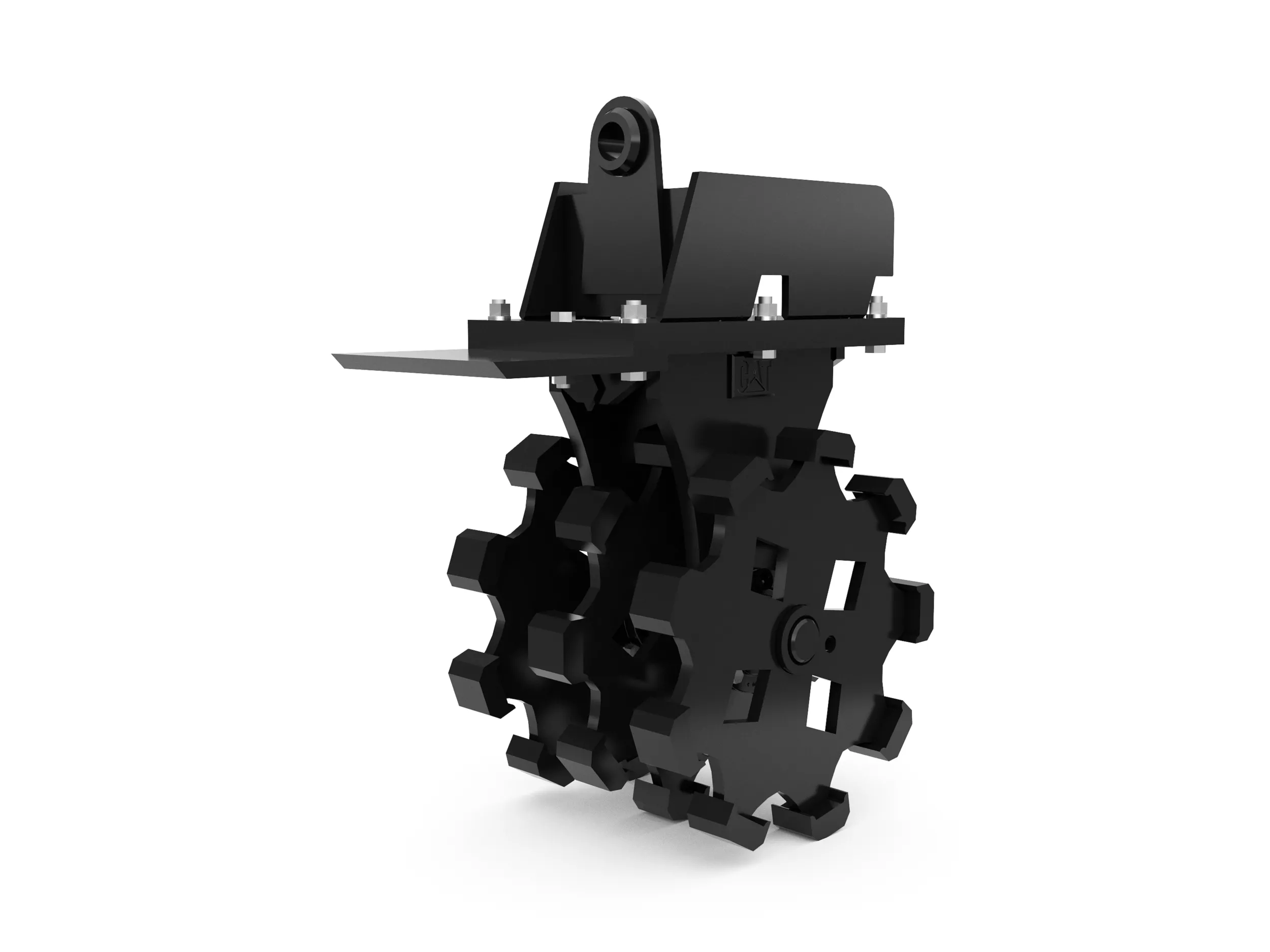

610 mm (24 in), 1/2 Yard Pin Lock, 1 Ton Mini Excavators

Compaction Wheels 610 mm (24 in), 1/2 Yard Pin Lock, 1 Ton Mini Excavators

Request A Price Shop Now

Key Specs

Compaction Width: 21.9 in; 556 mm

Number of Wheels: 3; 3

Machine Class: 1 Ton Mini Excavators; 1 Ton Mini Excavators

610 mm (24 in), 1/2 Yard Pin Lock, 1 Ton Mini Excavators

610 mm (24 in), 1/2 Yard Pin Lock, 1 Ton Mini Excavators
Change model

Overview

When backfilling trenches, Compaction Wheels are an option to achieve desired compaction levels at a lower price point.

Features At A Glance

Used to compact trenches and easily backfill.

Tamper Foot Design with Static Pad Rollers

Static pad rollers are best suitable for compacting cohesive soils and achieving a higher degree of compaction.

Tapered Roller Bearing

Tapered roller bearing provides smooth wheel operation and appropriate tool balance.

Standard Backfill Plate

Backfill plate bolts onto main tool interface to be used in collaboration with wheel, to create smooth trench bottom.

Open Rim Design

Open rim design allows wheel to penetrate through the lift of trench fill and compact soil from the bottom up, rather than the top down.

Product Specifications for 610 mm (24 in), 1/2 Yard Pin Lock, 1 Ton Mini Excavators

Compaction Width	21.9 in 556 mm
Number of Wheels	3 3
Machine Class	1 Ton Mini Excavators 1 Ton Mini Excavators
Number of Pads	27 27
Weight	1280.9 lb 581 kg
Overall Length	39.3 in 997 mm
Overall Height	50.6 in 1284 mm
Overall Width	21.9 in 556 mm
Interface Type	Pin Lock Pin Lock

Product Specifications for 610 mm (24 in), 1/2 Yard Pin Lock, 1 Ton Mini Excavators

Download Print

Compaction Width	21.9 in 556 mm
Number of Wheels	3 3
Machine Class	1 Ton Mini Excavators 1 Ton Mini Excavators
Number of Pads	27 27
Weight	1280.9 lb 581 kg
Overall Length	39.3 in 997 mm
Overall Height	50.6 in 1284 mm
Overall Width	21.9 in 556 mm
Interface Type	Pin Lock Pin Lock

See how 610 mm (24 in), 1/2 Yard Pin Lock, 1 Ton Mini Excavators compares against frequently compared products.

Compactors

Selected

610 mm (24 in), 1/2 Yard Pin Lock, 1 Ton Mini Excavators

610 mm (24 in), 1/2 Yard Pin Lock, 1 Ton Mini Excavators

Compaction Width: 21.9 in; 556 mm
Number of Wheels: 3; 3
Machine Class: 1 Ton Mini Excavators; 1 Ton Mini Excavators

Compactors

559 mm (22 in), Pin On, 5 Ton Mini Excavators

559 mm (22 in), Pin On, 5 Ton Mini Excavators

Compaction Width: 21.8 in; 553 mm
Number of Wheels: 4; 4
Machine Class: 5 Ton Mini Excavators; 5 Ton Mini Excavators

View Details

Compactors

610 mm (24 in), 1/4 Yard Pin Lock, 1 Ton Mini Excavators

610 mm (24 in), 1/4 Yard Pin Lock, 1 Ton Mini Excavators

Compaction Width: 22 in; 559 mm
Number of Wheels: 3; 3
Machine Class: 1 Ton Mini Excavators; 1 Ton Mini Excavators

View Details
