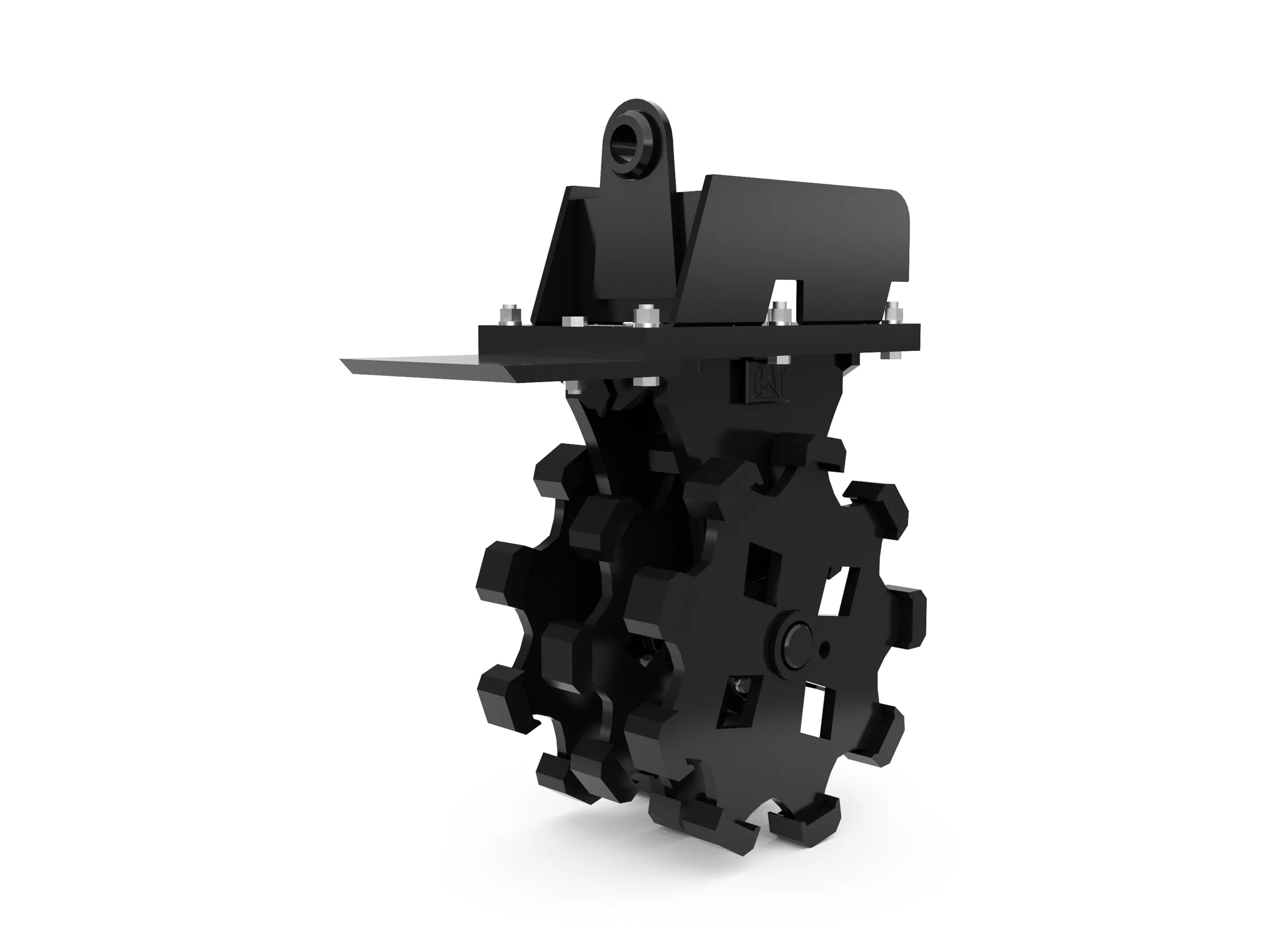

Compaction Wheels 457 mm (18 in), 1/2 Yard Pin Lock, 1 Ton Mini Excavators

Request A Price Shop Now

Key Specs

457 mm (18 in), 1/2 Yard Pin Lock, 1 Ton Mini Excavators
Change model

When backfilling trenches, Compaction Wheels are an option to achieve desired compaction levels at a lower price point.

Features At A Glance

Used to compact trenches and easily backfill.

Static pad rollers are best suitable for compacting cohesive soils and achieving a higher degree of compaction.

Tapered roller bearing provides smooth wheel operation and appropriate tool balance.

Backfill plate bolts onto main tool interface to be used in collaboration with wheel, to create smooth trench bottom.

Open rim design allows wheel to penetrate through the lift of trench fill and compact soil from the bottom up, rather than the top down.

Compaction Width	17.7 in 449 mm
Number of Wheels	3 3
Machine Class	1 Ton Mini Excavators 1 Ton Mini Excavators
Number of Pads	27 27
Weight	1241.2 lb 563 kg
Overall Length	39.3 in 997 mm
Overall Height	50.6 in 1284 mm
Overall Width	17.7 in 449 mm
Interface Type	Pin Lock Pin Lock

Download Print

Compaction Width	17.7 in 449 mm
Number of Wheels	3 3
Machine Class	1 Ton Mini Excavators 1 Ton Mini Excavators
Number of Pads	27 27
Weight	1241.2 lb 563 kg
Overall Length	39.3 in 997 mm
Overall Height	50.6 in 1284 mm
Overall Width	17.7 in 449 mm
Interface Type	Pin Lock Pin Lock
