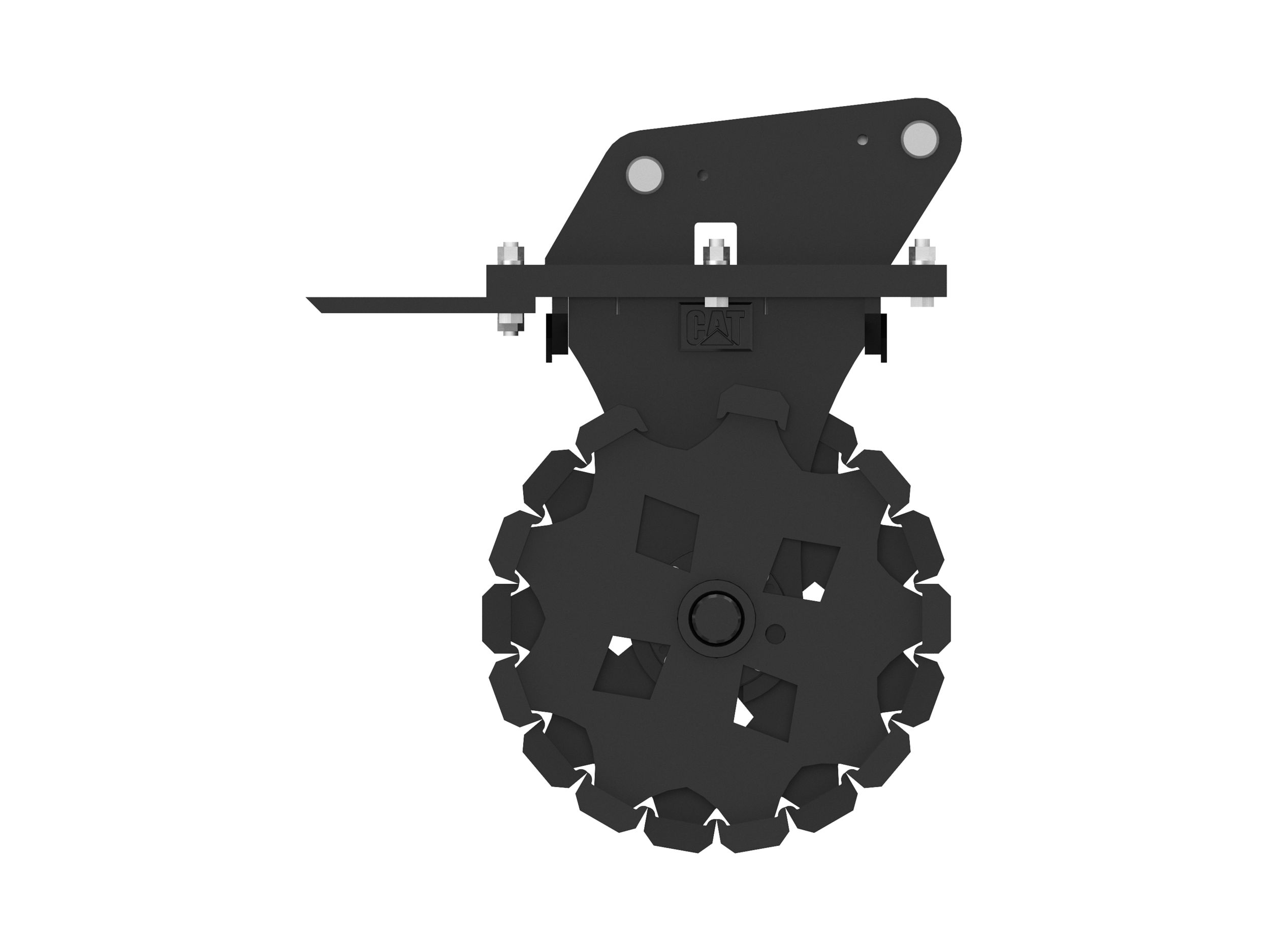

Front View
Top View

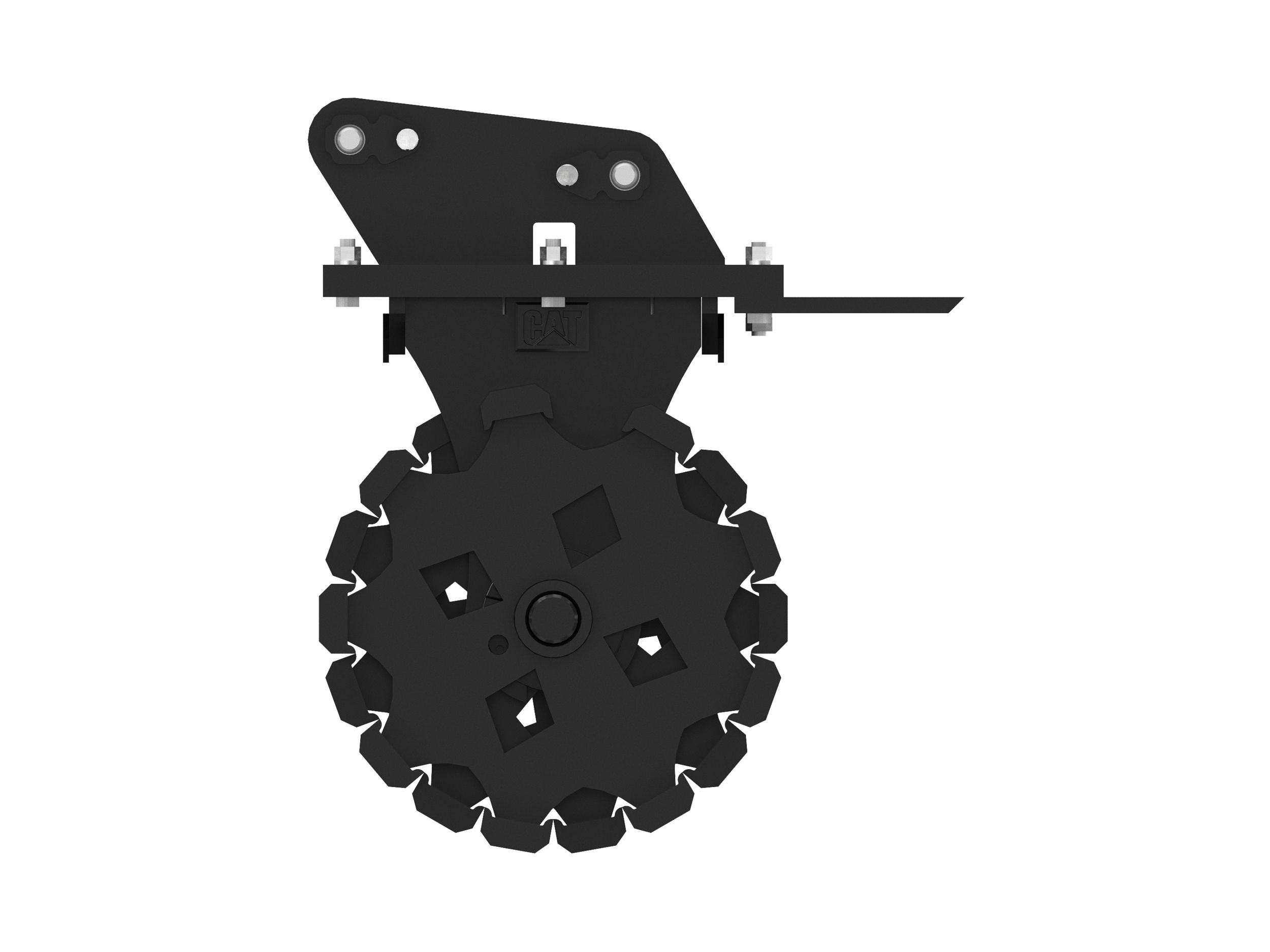

Left View
Photos (9)
Videos (3)

457 mm (18 in), Pin On, 450 Backhoe Loaders Compaction Wheels

Request A Price Shop Now

Key Specs

Compaction Width
17.7 in
449 mm
Number of Wheels
3
3
Machine Class
10 Ton Excavators, 450 Backhoe Loaders
10 Ton Excavators, 450 Backhoe Loaders

Features At A Glance

Displaying 1-6 of 5

Application

Application

Used to compact trenches and easily backfill.
Tamper Foot Design with Static Pad Rollers

Tamper Foot Design with Static Pad Rollers

Static pad rollers are best suitable for compacting cohesive soils and achieving a higher degree of compaction.
Tapered Roller Bearing

Tapered Roller Bearing

Tapered roller bearing provides smooth wheel operation and appropriate tool balance.
Standard Backfill Plate

Standard Backfill Plate

Backfill plate bolts onto main tool interface to be used in collaboration with wheel, to create smooth trench bottom.
Open Rim Design

Open Rim Design

Open rim design allows wheel to penetrate through the lift of trench fill and compact soil from the bottom up, rather than the top down.

Product Specifications for 457 mm (18 in), Pin On, 450 Backhoe Loaders

Compaction Width 17.7 in 449 mm
Number of Wheels 3 3
Machine Class 10 Ton Excavators, 450 Backhoe Loaders 10 Ton Excavators, 450 Backhoe Loaders
Number of Pads 27 27
Weight 1265.5 lb 574 kg
Overall Length 39.9 in 1014 mm
Overall Height 46 in 1168 mm
Overall Width 17.7 in 449 mm
Interface Type Pin On Pin On
