Overview
When backfilling trenches, Compaction Wheels are an option to achieve desired compaction levels at a lower price point.
Compaction Wheels 610 mm (24 in), 1/4 Yard Pin Lock, 1 Ton Mini Excavators
Request A Price Shop NowKey Specs
- Compaction Width
- 22 in
- 559 mm
- Number of Wheels
- 3
- 3
- Machine Class
- 1 Ton Mini Excavators
- 1 Ton Mini Excavators
Features At A Glance
Displaying 1-6 of 5
Application
Used to compact trenches and easily backfill.
Tamper Foot Design with Static Pad Rollers
Static pad rollers are best suitable for compacting cohesive soils and achieving a higher degree of compaction.
Tapered Roller Bearing
Tapered roller bearing provides smooth wheel operation and appropriate tool balance.
Standard Backfill Plate
Backfill plate bolts onto main tool interface to be used in collaboration with wheel, to create smooth trench bottom.
Open Rim Design
Open rim design allows wheel to penetrate through the lift of trench fill and compact soil from the bottom up, rather than the top down.
Product Specifications for 610 mm (24 in), 1/4 Yard Pin Lock, 1 Ton Mini Excavators
| Compaction Width | 22 in 559 mm |
| Number of Wheels | 3 3 |
| Machine Class | 1 Ton Mini Excavators 1 Ton Mini Excavators |
| Number of Pads | 27 27 |
| Weight | 1142 lb 518 kg |
| Overall Length | 39 in 991 mm |
| Overall Height | 46.4 in 1179 mm |
| Overall Width | 22 in 559 mm |
| Interface Type | Pin Lock Pin Lock |
See how 610 mm (24 in), 1/4 Yard Pin Lock, 1 Ton Mini Excavators compares against frequently compared products.
Compactors
610 mm (24 in), 1/4 Yard Pin Lock, 1 Ton Mini Excavators
Selected
- Compaction Width
- 22 in
- 559 mm
- Number of Wheels
- 3
- 3
- Machine Class
- 1 Ton Mini Excavators
- 1 Ton Mini Excavators
Compactors
610 mm (24 in), 1/2 Yard Pin Lock, 1 Ton Mini Excavators
- Compaction Width
- 21.9 in
- 556 mm
- Number of Wheels
- 3
- 3
- Machine Class
- 1 Ton Mini Excavators
- 1 Ton Mini Excavators
Compactors
610 mm (24 in), Pin On, 450 Backhoe Loaders
- Compaction Width
- 21.9 in
- 556 mm
- Number of Wheels
- 3
- 3
- Machine Class
- 10 Ton Excavators, 450 Backhoe Loaders
- 10 Ton Excavators, 450 Backhoe Loaders
assignment Product Brochures and More Are Ready to Download!
Caterpillar product brochures and other informational documents are available for your growing business.
Media Gallery
Photos
Videos

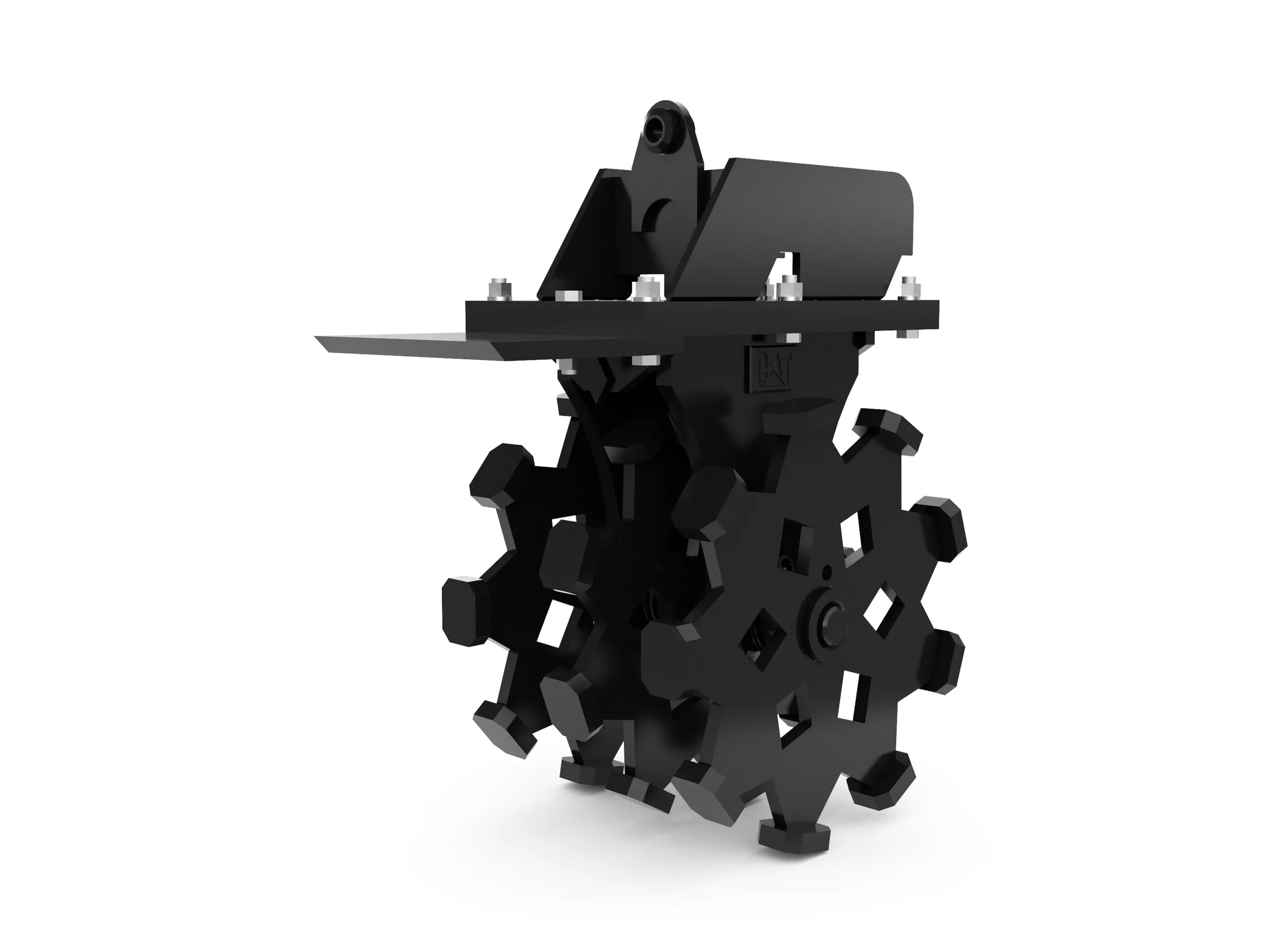

Studio Shot
Front View
Top View
Left View
Rear View
Bottom View
Right View
Compacting heavy clay with Cat® Compaction Wheel
Using backfill plate on Cat® Compaction Wheel to smooth trench bottom
Cat® Compaction Wheels at Work
Cat® Compaction Wheels Overview
An Attachment for Every Job - Cat® Work Tool Attachments
