Overview
When backfilling trenches, Compaction Wheels are an option to achieve desired compaction levels at a lower price point.
Compaction Wheels 305 mm (12 in), Pin On, 415-444 Backhoe Loaders
Request A Price Shop NowKey Specs
- Compaction Width
- 11.3 in
- 286 mm
- Number of Wheels
- 2
- 2
- Machine Class
- 415-444 Backhoe Loaders
- 415-444 Backhoe Loaders
Features At A Glance
Displaying 1-6 of 5
Application
Used to compact trenches and easily backfill.
Tamper Foot Design with Static Pad Rollers
Static pad rollers are best suitable for compacting cohesive soils and achieving a higher degree of compaction.
Tapered Roller Bearing
Tapered roller bearing provides smooth wheel operation and appropriate tool balance.
Standard Backfill Plate
Backfill plate bolts onto main tool interface to be used in collaboration with wheel, to create smooth trench bottom.
Open Rim Design
Open rim design allows wheel to penetrate through the lift of trench fill and compact soil from the bottom up, rather than the top down.
Product Specifications for 305 mm (12 in), Pin On, 415-444 Backhoe Loaders
| Compaction Width | 11.3 in 286 mm |
| Number of Wheels | 2 2 |
| Machine Class | 415-444 Backhoe Loaders 415-444 Backhoe Loaders |
| Number of Pads | 18 18 |
| Weight | 873 lb 396 kg |
| Overall Length | 39.2 in 995 mm |
| Overall Height | 44.8 in 1138 mm |
| Overall Width | 15.7 in 398 mm |
| Interface Type | Pin On Pin On |
See how 305 mm (12 in), Pin On, 415-444 Backhoe Loaders compares against frequently compared products.
Compactors
305 mm (12 in), Pin On, 415-444 Backhoe Loaders
Selected
- Compaction Width
- 11.3 in
- 286 mm
- Number of Wheels
- 2
- 2
- Machine Class
- 415-444 Backhoe Loaders
- 415-444 Backhoe Loaders
Compactors
305 mm (12 in), Pin On, 7-8 Ton Mini Excavators
- Compaction Width
- 12 in
- 306 mm
- Number of Wheels
- 2
- 2
- Machine Class
- 7-8 Ton Mini Excavators
- 7-8 Ton Mini Excavators
Compactors
406 mm (16 in), Pin On, 1 Ton Mini Excavators
- Compaction Width
- 15.7 in
- 399 mm
- Number of Wheels
- 3
- 3
- Machine Class
- 1 Ton Mini Excavators
- 1 Ton Mini Excavators
assignment Product Brochures and More Are Ready to Download!
Caterpillar product brochures and other informational documents are available for your growing business.
Media Gallery
Photos
Videos
Studio Shot
Front View

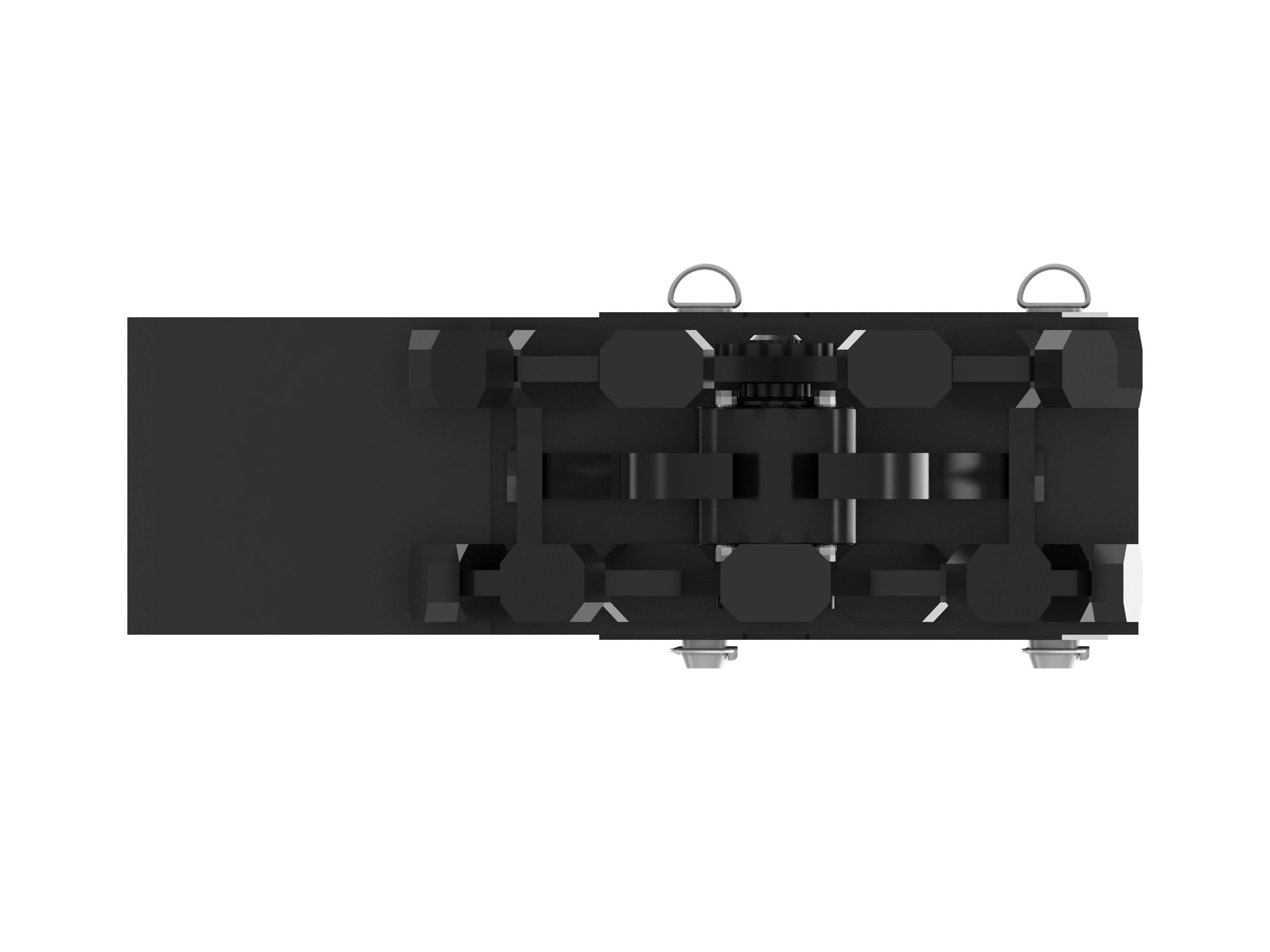

Top View

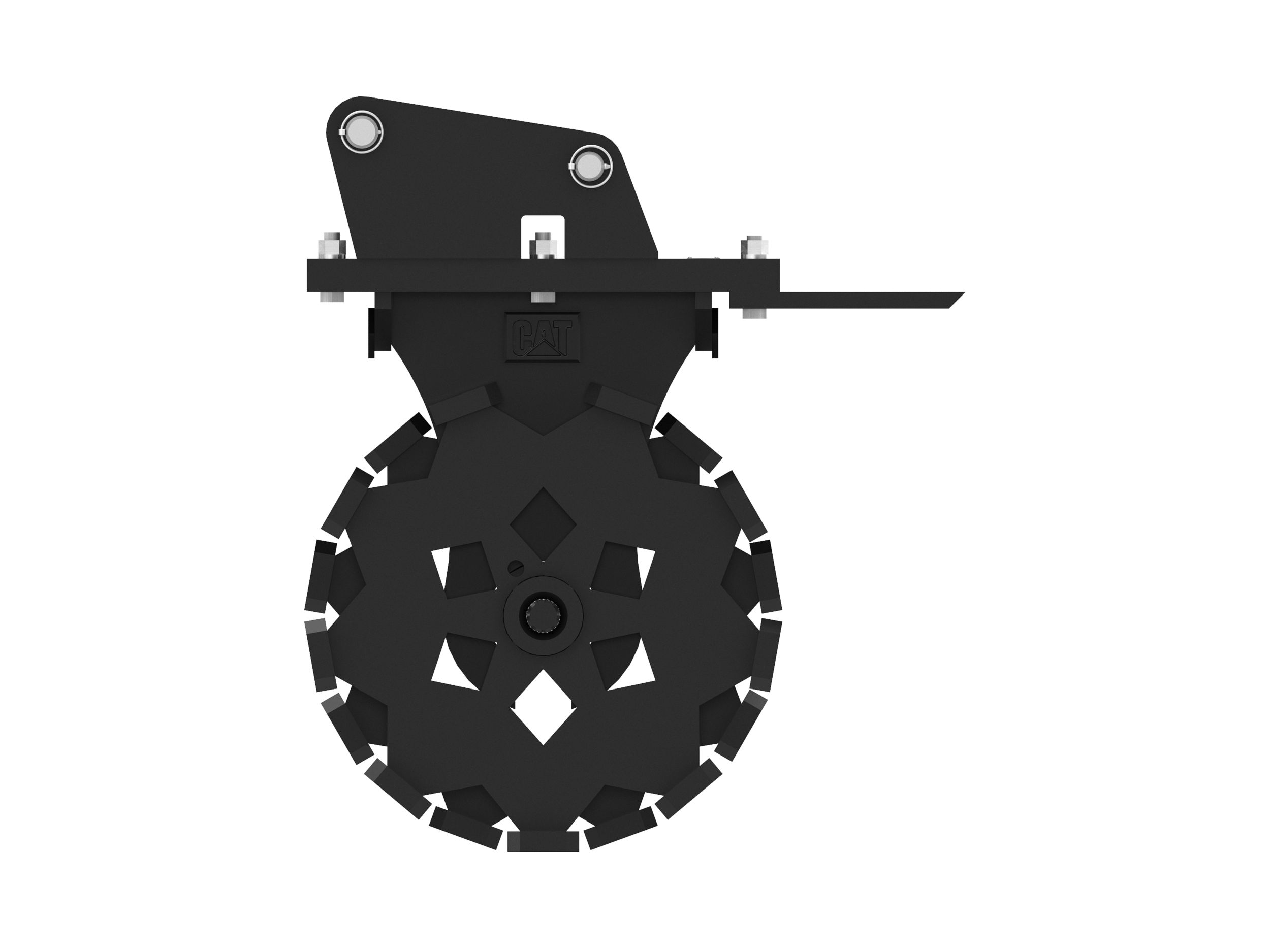

Left View
