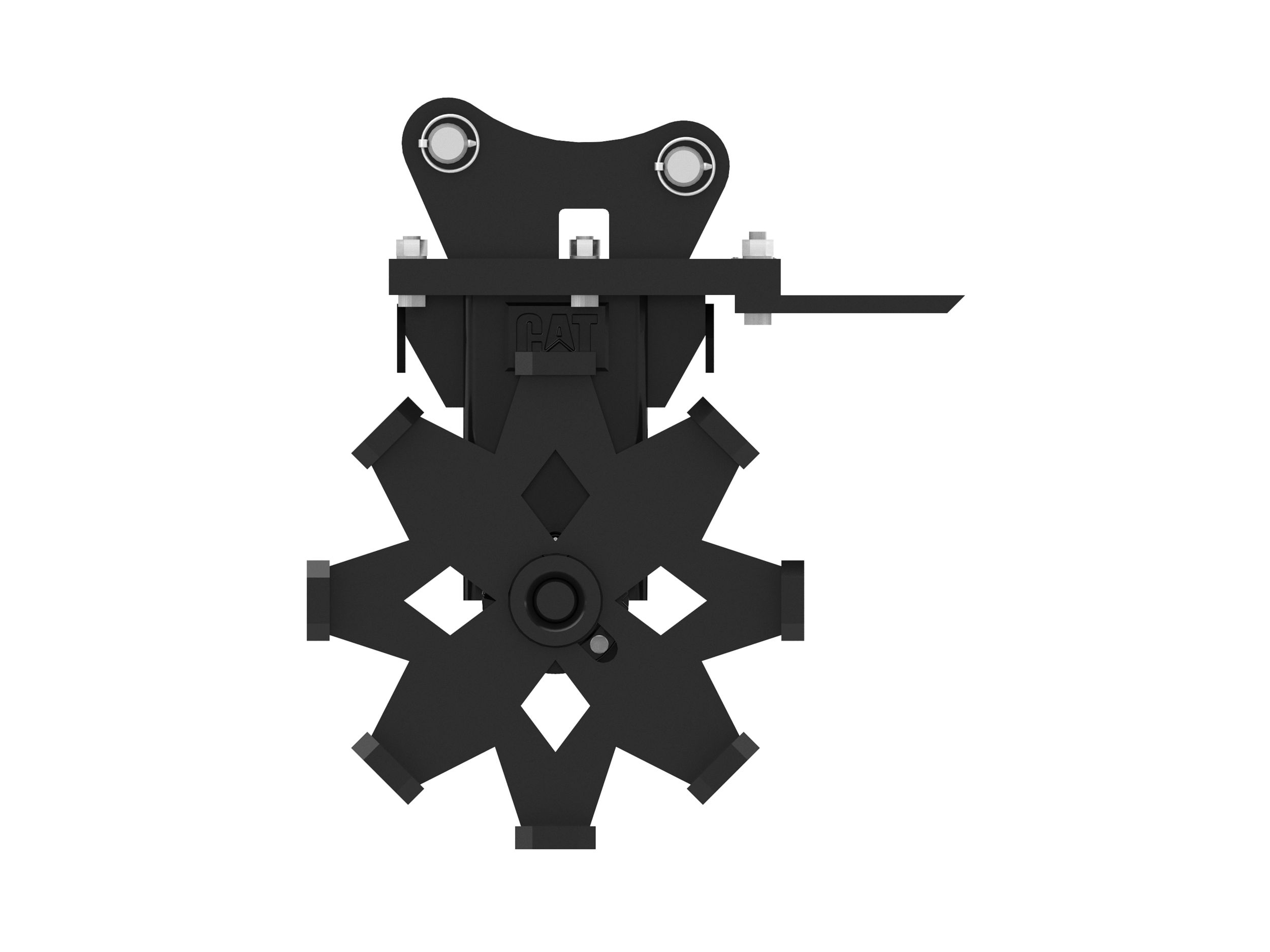

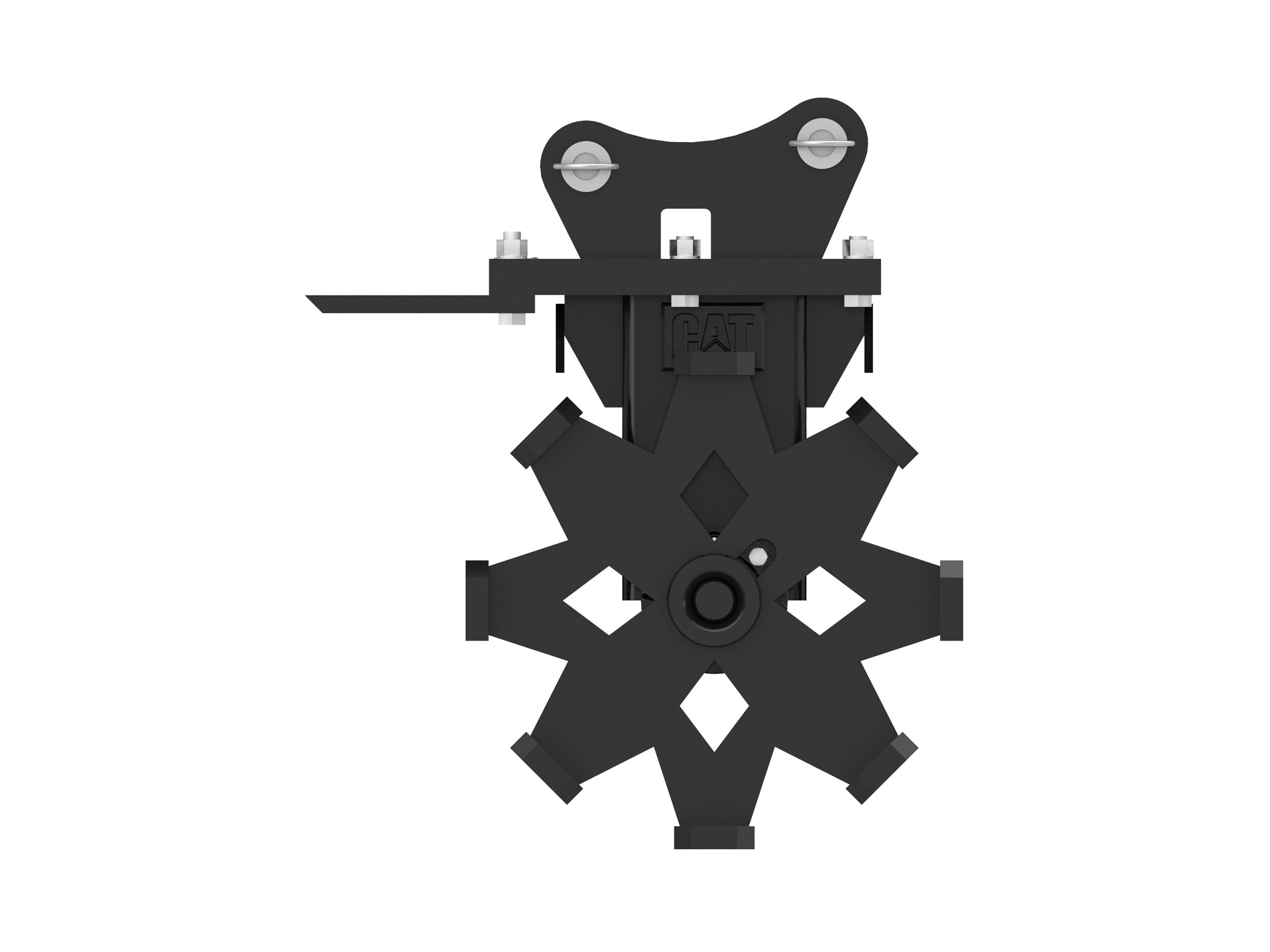

Compaction Wheels 305 mm (12 in), Pin On, 5 Ton Mini Excavators

Name: 305 mm (12 in) Pin On Compaction Wheel For 5 Ton Mini Excavators
Brand: Cat

Request A Price Shop Now

Key Specs

305 mm (12 in), Pin On, 5 Ton Mini Excavators
Change model

Overview

When backfilling trenches, Compaction Wheels are an option to achieve desired compaction levels at a lower price point.

Displaying 1-6 of 5

Used to compact trenches and easily backfill.

Static pad rollers are best suitable for compacting cohesive soils and achieving a higher degree of compaction.

Tapered roller bearing provides smooth wheel operation and appropriate tool balance.

Backfill plate bolts onto main tool interface to be used in collaboration with wheel, to create smooth trench bottom.

Open rim design allows wheel to penetrate through the lift of trench fill and compact soil from the bottom up, rather than the top down.

Used to compact trenches and easily backfill.

Static pad rollers are best suitable for compacting cohesive soils and achieving a higher degree of compaction.

Tapered roller bearing provides smooth wheel operation and appropriate tool balance.

Backfill plate bolts onto main tool interface to be used in collaboration with wheel, to create smooth trench bottom.

Open rim design allows wheel to penetrate through the lift of trench fill and compact soil from the bottom up, rather than the top down.

Compaction Width	10.7 in 271 mm
Number of Wheels	2 2
Machine Class	5 Ton Mini Excavators 5 Ton Mini Excavators
Number of Pads	16 16
Weight	374.8 lb 170 kg
Overall Length	28.6 in 726 mm
Overall Height	32.6 in 829 mm
Overall Width	13.5 in 343 mm
Interface Type	Pin On Pin On

Download Print

Compaction Width	10.7 in 271 mm
Number of Wheels	2 2
Machine Class	5 Ton Mini Excavators 5 Ton Mini Excavators
Number of Pads	16 16
Weight	374.8 lb 170 kg
Overall Length	28.6 in 726 mm
Overall Height	32.6 in 829 mm
Overall Width	13.5 in 343 mm
Interface Type	Pin On Pin On

Compactors

Selected

305 mm (12 in), Pin On, 5 Ton Mini Excavators

Compactors

305 mm (12 in), Pin On, 450 Backhoe Loaders

Compaction Width: 12 in; 306 mm
Number of Wheels: 2; 2
Machine Class: 10 Ton Excavators, 450 Backhoe Loaders; 10 Ton Excavators, 450 Backhoe Loaders
