Overview
When backfilling trenches, Compaction Wheels are an option to achieve desired compaction levels at a lower price point.
Compaction Wheels 406 mm (16 in), Pin On, 2 Ton Mini Excavators
Request A Price Shop NowKey Specs
- Compaction Width
- 15.7 in
- 399 mm
- Number of Wheels
- 3
- 3
- Machine Class
- 2 Ton Mini Excavators
- 2 Ton Mini Excavators
Features At A Glance
Displaying 1-6 of 5
Application
Used to compact trenches and easily backfill.
Tamper Foot Design with Static Pad Rollers
Static pad rollers are best suitable for compacting cohesive soils and achieving a higher degree of compaction.
Tapered Roller Bearing
Tapered roller bearing provides smooth wheel operation and appropriate tool balance.
Standard Backfill Plate
Backfill plate bolts onto main tool interface to be used in collaboration with wheel, to create smooth trench bottom.
Open Rim Design
Open rim design allows wheel to penetrate through the lift of trench fill and compact soil from the bottom up, rather than the top down.
Product Specifications for 406 mm (16 in), Pin On, 2 Ton Mini Excavators
| Compaction Width | 15.7 in 399 mm |
| Number of Wheels | 3 3 |
| Machine Class | 2 Ton Mini Excavators 2 Ton Mini Excavators |
| Number of Pads | 24 24 |
| Weight | 489.4 lb 222 kg |
| Overall Length | 27.3 in 693 mm |
| Overall Height | 32.6 in 827 mm |
| Overall Width | 15.7 in 399 mm |
| Interface Type | Pin On Pin On |
See how 406 mm (16 in), Pin On, 2 Ton Mini Excavators compares against frequently compared products.
Compactors
406 mm (16 in), Pin On, 2 Ton Mini Excavators
Selected
- Compaction Width
- 15.7 in
- 399 mm
- Number of Wheels
- 3
- 3
- Machine Class
- 2 Ton Mini Excavators
- 2 Ton Mini Excavators
Compactors
406 mm (16 in), Pin Lock, 1-8 Ton Mini Excavators
- Compaction Width
- 15.7 in
- 399 mm
- Number of Wheels
- 3
- 3
- Machine Class
- 1-8 Ton Mini Excavators
- 1-8 Ton Mini Excavators
Compactors
406 mm (16 in), Pin On, 3-4 Ton Mini Excavators
- Compaction Width
- 15.7 in
- 399 mm
- Number of Wheels
- 3
- 3
- Machine Class
- 3-4 Ton Mini Excavators
- 3-4 Ton Mini Excavators
assignment Product Brochures and More Are Ready to Download!
Caterpillar product brochures and other informational documents are available for your growing business.
Media Gallery
Photos
Videos
Studio Shot
Front View

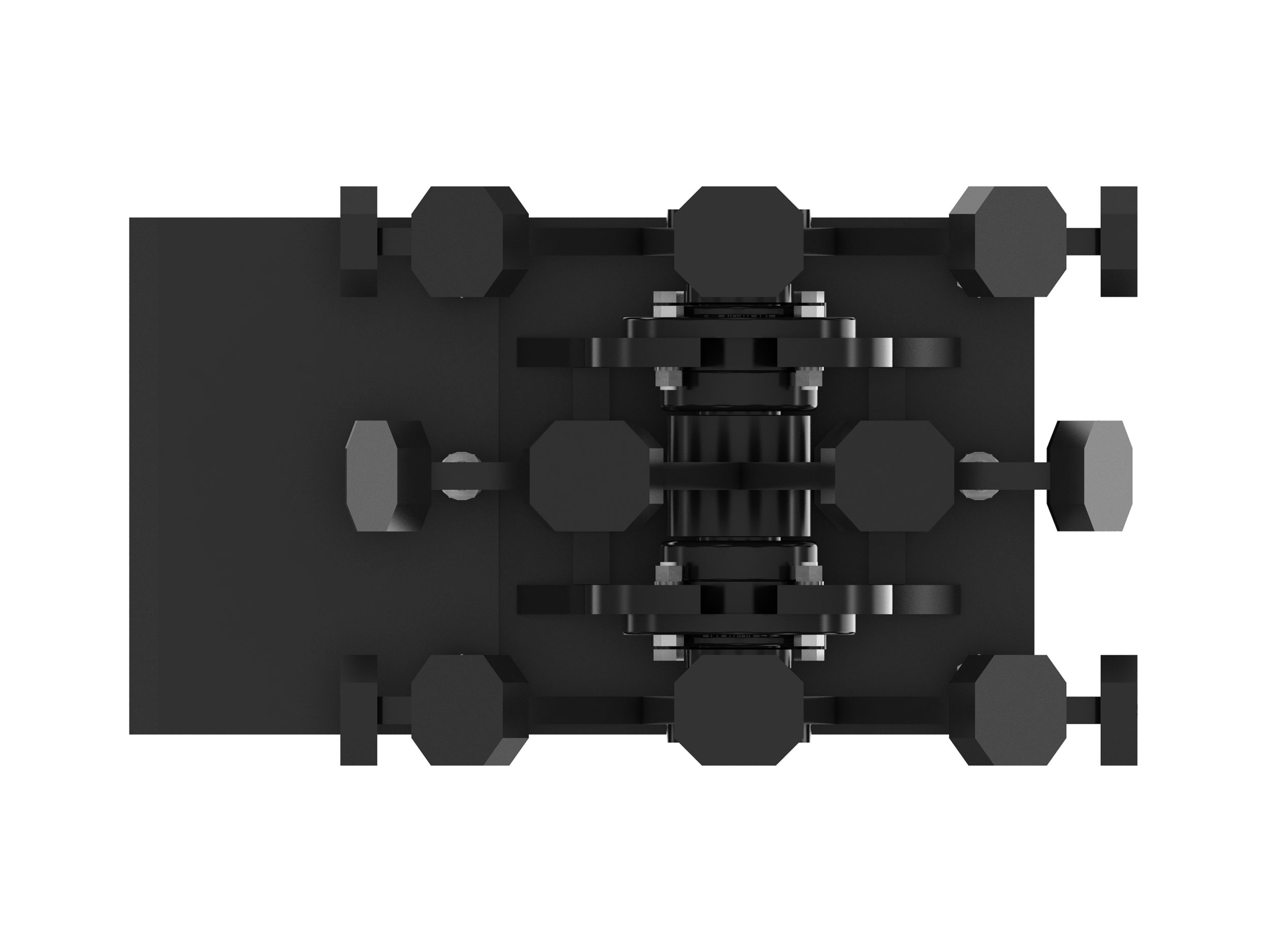

Top View
