Overview
Sand & Gravel Buckets are designed for aggregate handling in batch plant loader applications.

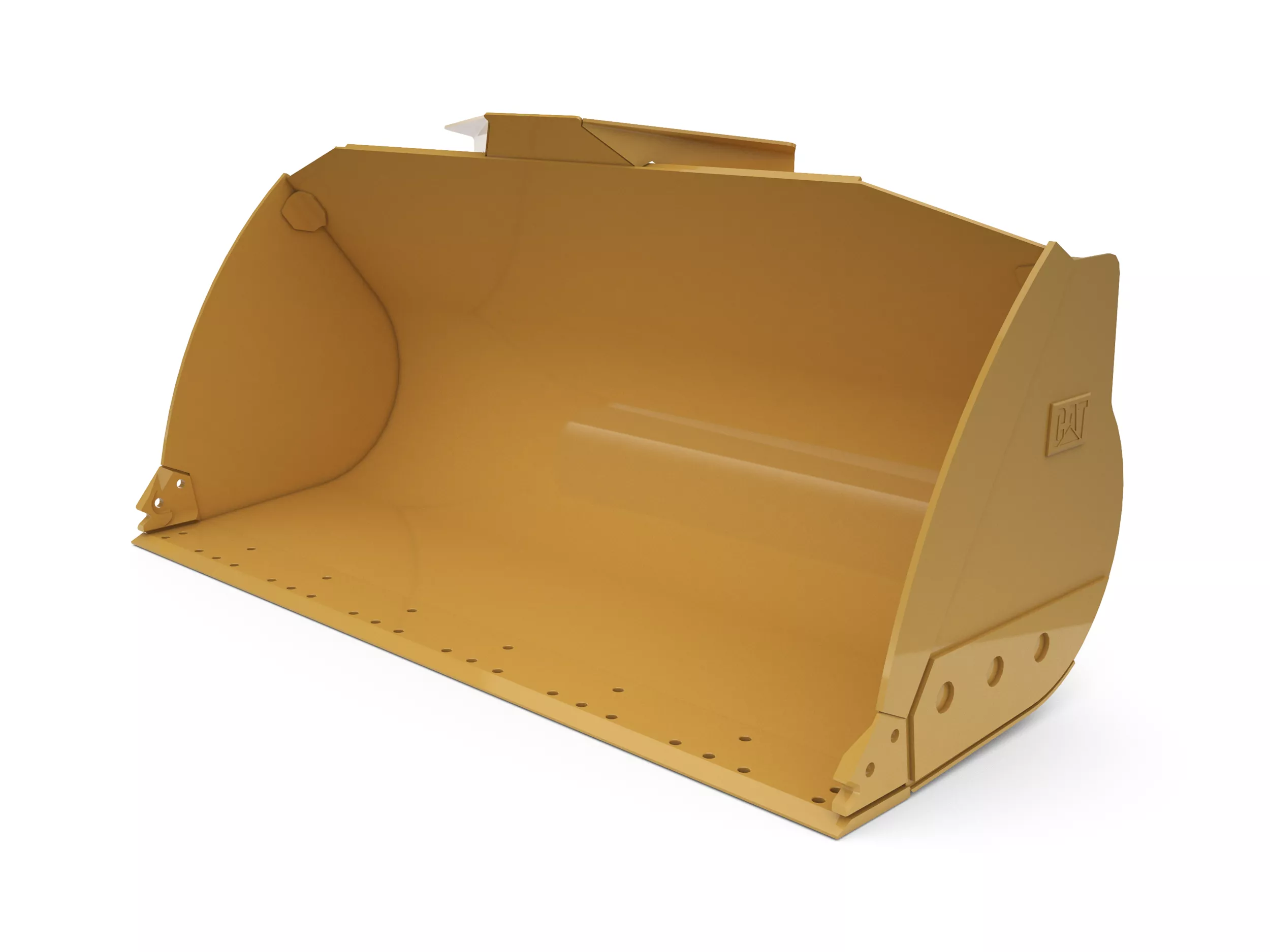

Sand & Gravel Buckets 2.5 m3 (3.2 yd3), Pin On, Base Edge
Request A Price Shop NowKey Specs
- Width
- 108 in
- 2750 mm
- Height
- 52.7 in
- 1338 mm
- Weight
- 2261.9 lb
- 1026 kg
Features At A Glance
Displaying 1-6 of 5
Application
Ideal for aggregate handling in batch plant loader applications.
Rugged Design
Additional wear plates on bottom and sides of the bucket improves life of the bucket in coarse aggregate applications.
Performance Series Technology
Performance Series technology - innovations in bucket designs that improve load-ability of buckets, increasing productivity and decreasing fuel costs.
Maximum Machine Usage
Bucket capacity and loading characteristics are matched to machine capabilities to ensure maximum usage and productivity.
Spill Guard
Spill guard prevents rock and other materials from spilling onto coupler interface and hydraulics.
Product Specifications for 2.5 m3 (3.2 yd3), Pin On, Base Edge
| Width | 108 in 2750 mm |
| Height | 52.7 in 1338 mm |
| Weight | 2261.9 lb 1026 kg |
| Length | 51.3 in 1303 mm |
| Capacity | 3.2 yd³ 2.5 m³ |
| Base Edge Thickness | 1 in 25 mm |
| Interface Type | Pin On Pin On |
See how 2.5 m3 (3.2 yd3), Pin On, Base Edge compares against frequently compared products.
Buckets - Loader
2.5 m3 (3.2 yd3), Pin On, Base Edge
Selected
- Width
- 108 in
- 2750 mm
- Height
- 52.7 in
- 1338 mm
- Weight
- 2261.9 lb
- 1026 kg
Buckets - Loader
2.5 m3 (3.2 yd3), Pin On, Bolt-On Cutting Edge
- Width
- 108 in
- 2750 mm
- Height
- 53.5 in
- 1359 mm
- Weight
- 2581.6 lb
- 1171 kg
Buckets - Loader
2.7 m3 (3.5 yd3), Pin On, Bolt-On Cutting Edge
- Width
- 108 in
- 2750 mm
- Height
- 55.3 in
- 1404 mm
- Weight
- 2667.6 lb
- 1210 kg
