Overview
Maximum loader performance in light material

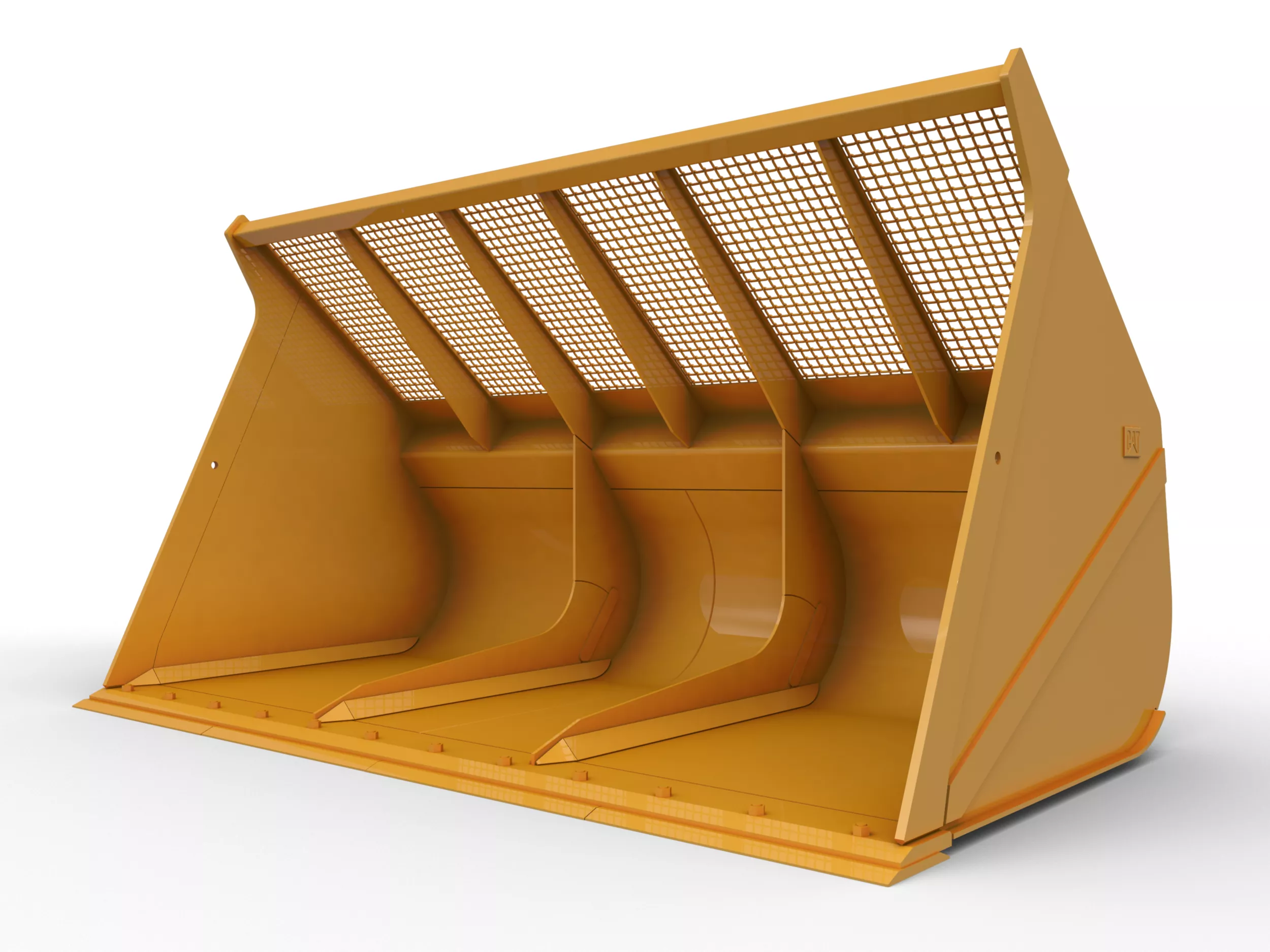

Light Material Buckets 17.2 m³ (22.5 yd³), pin on, Bolt-On Cutting Edge
Request A Price Find DealerKey Specs
- Capacity
- 22.5 yd³
- 17.2 m³
- Width
- 175 in
- 4433 mm
- Weight
- 11971 lb
- 5430 kg
Features At A Glance
Use 100% of Your Loader's Power
- A year-round solution - more light material, clear snow. Get more use from your machine.
- Optional Fusion coupler interface enables quick changes to other buckets or tools as needed.
Move More In Less Time
- Bucket is sized to load as much material as your machine can carry.
- Produce more when loading woodchips, bark, sawdust, snow or any other lower-density material.
24/7/365 Versatility
- Flat floor fills quickly, and retains well in load and carry.
- Load more efficiently, as you watch the material flow into the bucket through rear observation windows.
- Loads equally well on paved and unpaved yards
Product Specifications for 17.2 m³ (22.5 yd³), pin on, Bolt-On Cutting Edge
| Capacity | 22.5 yd³ 17.2 m³ |
| Width | 175 in 4433 mm |
| Weight | 11971 lb 5430 kg |
| Length | 108.5 in 2757 mm |
| Height | 98.5 in 2503 mm |
See how 17.2 m³ (22.5 yd³), pin on, Bolt-On Cutting Edge compares against frequently compared products.
Buckets - Loader
17.2 m³ (22.5 yd³), pin on, Bolt-On Cutting Edge
Selected
- Capacity
- 22.5 yd³
- 17.2 m³
- Width
- 175 in
- 4433 mm
- Weight
- 11971 lb
- 5430 kg
Buckets - Loader
14.5 m³ (19 yd³), pin on, Bolt-On Cutting Edge
- Capacity
- 19 yd³
- 14.5 m³
- Width
- 175 in
- 4433 mm
- Weight
- 10582 lb
- 4800 kg
Buckets - Loader
14.5 m³ (19 yd³), Fusion™, Bolt-On Cutting Edge
- Capacity
- 19 yd³
- 14.5 m³
- Width
- 175 in
- 4433 mm
- Weight
- 9652 lb
- 4378 kg
