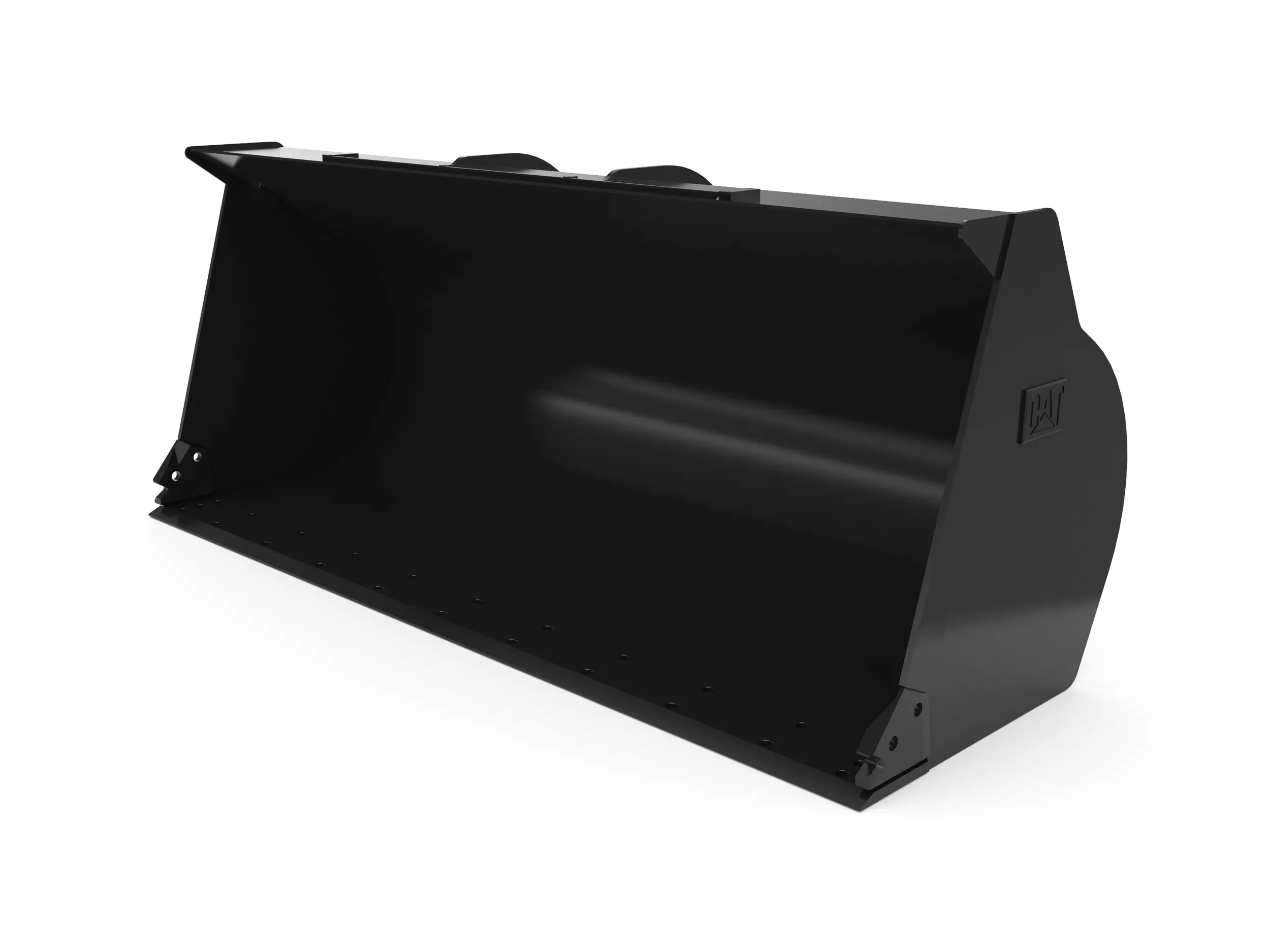

General Purpose Buckets - Performance Series 2.6 m3 (3.4 yd3), 2743 mm (108 in), IT Coupler, Bolt-On Cutting Edge

Request A Price Shop Now

Key Specs

Width: 108 in; 2743 mm

Height: 45.7 in; 1160 mm

Weight: 2442.7 lb; 1108 kg

2.6 m3 (3.4 yd3), 2743 mm (108 in), IT Coupler, Bolt-On Cutting Edge
Change model

Overview

General Purpose Performance Series buckets provides higher fill factors and material retention in load and carry applications, as well as grading, leveling and dumping in a wide variety of applications and materials.

Features At A Glance

General Purpose Performance Series Buckets provide good all-around performance for stockpiling, re-handling, excavating, and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. They are designed for standard breakout forces and abrasion conditions. Ideal for back dragging and grading applications. The fill factor for Performance Series buckets can be up to 115% on top of the specified capacity.

Integrated Spill Guard provides protection of machine linkage and improved load retention by preventing material spillage.

Rounded sidebars help funnel material into the bucket and retain it.

Performance Series profile for easy loading and maximum carry load.

Open throat design improves heap size and fill factor.

Product Specifications for 2.6 m3 (3.4 yd3), 2743 mm (108 in), IT Coupler, Bolt-On Cutting Edge

Width	108 in 2743 mm
Height	45.7 in 1160 mm
Weight	2442.7 lb 1108 kg
Length	48.4 in 1230 mm
Capacity	3.4 yd³ 2.6 m³
Base Edge Thickness	1 in 25 mm
Interface Type	IT Coupler IT Coupler

Product Specifications for 2.6 m3 (3.4 yd3), 2743 mm (108 in), IT Coupler, Bolt-On Cutting Edge

Download Print

Width	108 in 2743 mm
Height	45.7 in 1160 mm
Weight	2442.7 lb 1108 kg
Length	48.4 in 1230 mm
Capacity	3.4 yd³ 2.6 m³
Base Edge Thickness	1 in 25 mm
Interface Type	IT Coupler IT Coupler
