Overview
General Purpose Performance Series buckets provides higher fill factors and material retention in load and carry applications, as well as grading, leveling and dumping in a wide variety of applications and materials.

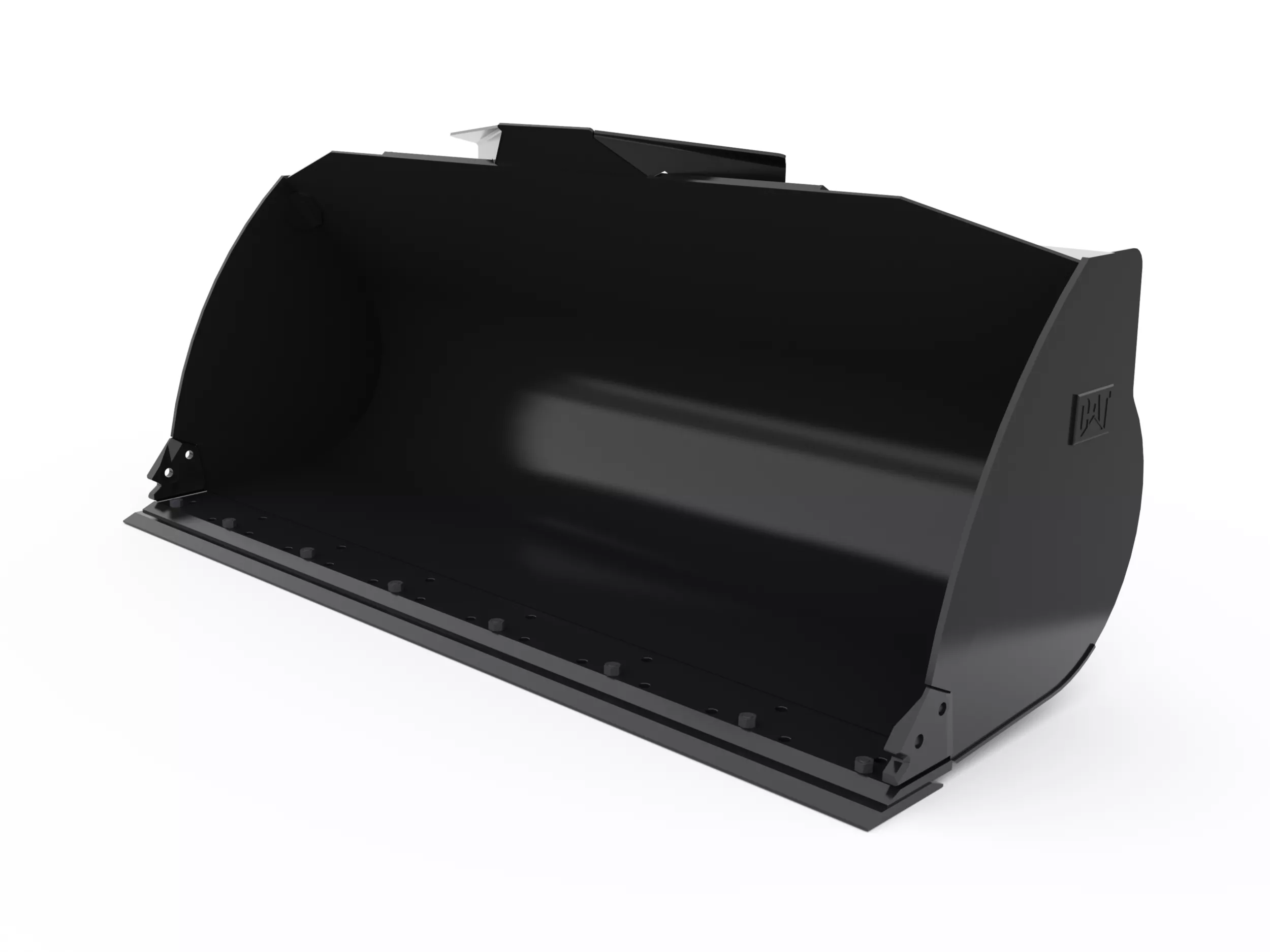

General Purpose Buckets - Performance Series 2.6 m3 (3.4 yd3), 2950 mm (116 in), HPL-ISO Coupler, Bolt-On Cutting Edge
Request A Price Shop NowKey Specs
- Width
- 116 in
- 2950 mm
- Height
- 51.7 in
- 1314 mm
- Weight
- 2387.6 lb
- 1083 kg
Features At A Glance
Displaying 1-6 of 5
Application
General Purpose Performance Series Buckets provide good all-around performance for stockpiling, re-handling, excavating, and bank loading. As the name suggests, these buckets work well in loading from stockpiles as well as bank loading. They are designed for standard breakout forces and abrasion conditions. Ideal for back dragging and grading applications. The fill factor for Performance Series buckets can be up to 115% on top of the specified capacity.
Integrated Spill Guard
Integrated Spill Guard provides protection of machine linkage and improved load retention by preventing material spillage.
Rounded Sidebars
Rounded sidebars help funnel material into the bucket and retain it.
Performance Series Profile
Performance Series profile for easy loading and maximum carry load.
Open Throat Design
Open throat design improves heap size and fill factor.
Product Specifications for 2.6 m3 (3.4 yd3), 2950 mm (116 in), HPL-ISO Coupler, Bolt-On Cutting Edge
| Width | 116 in 2950 mm |
| Height | 51.7 in 1314 mm |
| Weight | 2387.6 lb 1083 kg |
| Length | 49.9 in 1267 mm |
| Capacity | 3.4 yd³ 2.6 m³ |
| Base Edge Thickness | 1 in 25 mm |
| Cutting Edge Thickness | 1 in 25 mm |
| Interface Type | HPL-ISO Coupler HPL-ISO Coupler |
See how 2.6 m3 (3.4 yd3), 2950 mm (116 in), HPL-ISO Coupler, Bolt-On Cutting Edge compares against frequently compared products.
Buckets - Loader
2.6 m3 (3.4 yd3), 2950 mm (116 in), HPL-ISO Coupler, Bolt-On Cutting Edge
Selected
- Width
- 116 in
- 2950 mm
- Height
- 51.7 in
- 1314 mm
- Weight
- 2387.6 lb
- 1083 kg
Buckets - Loader
2.6 m3 (3.4 yd3), 2950 mm (116 in), Fusion™ Coupler, Bolt-On Cutting Edge
- Width
- 116 in
- 2950 mm
- Height
- 51.7 in
- 1314 mm
- Weight
- 2491.2 lb
- 1130 kg
Buckets - Loader
2.7 m3 (3.5 yd3), 2550 mm (100 in), Fusion™ Coupler, Base Edge
- Width
- 100 in
- 2550 mm
- Height
- 55.7 in
- 1414 mm
- Weight
- 2120.8 lb
- 962 kg
